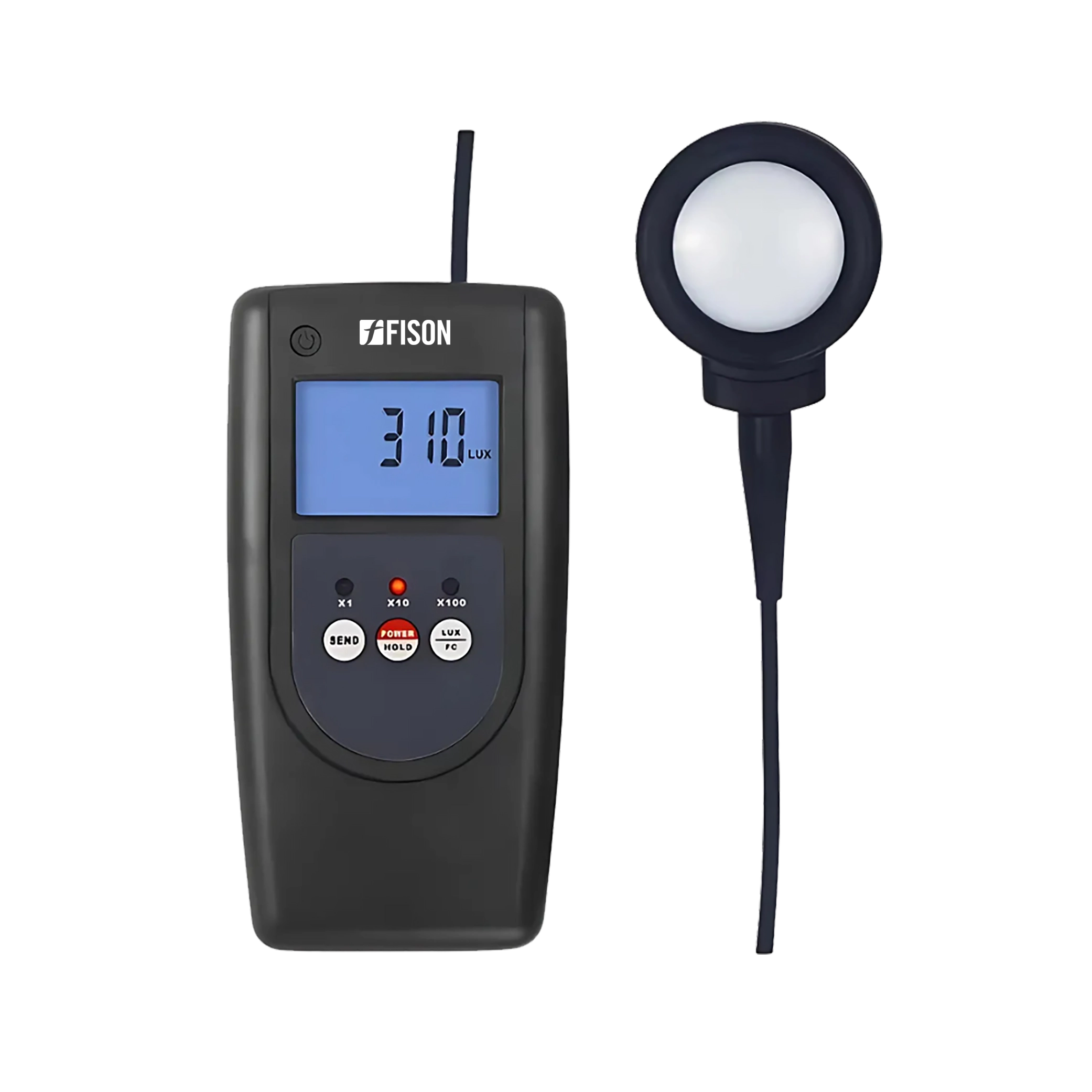

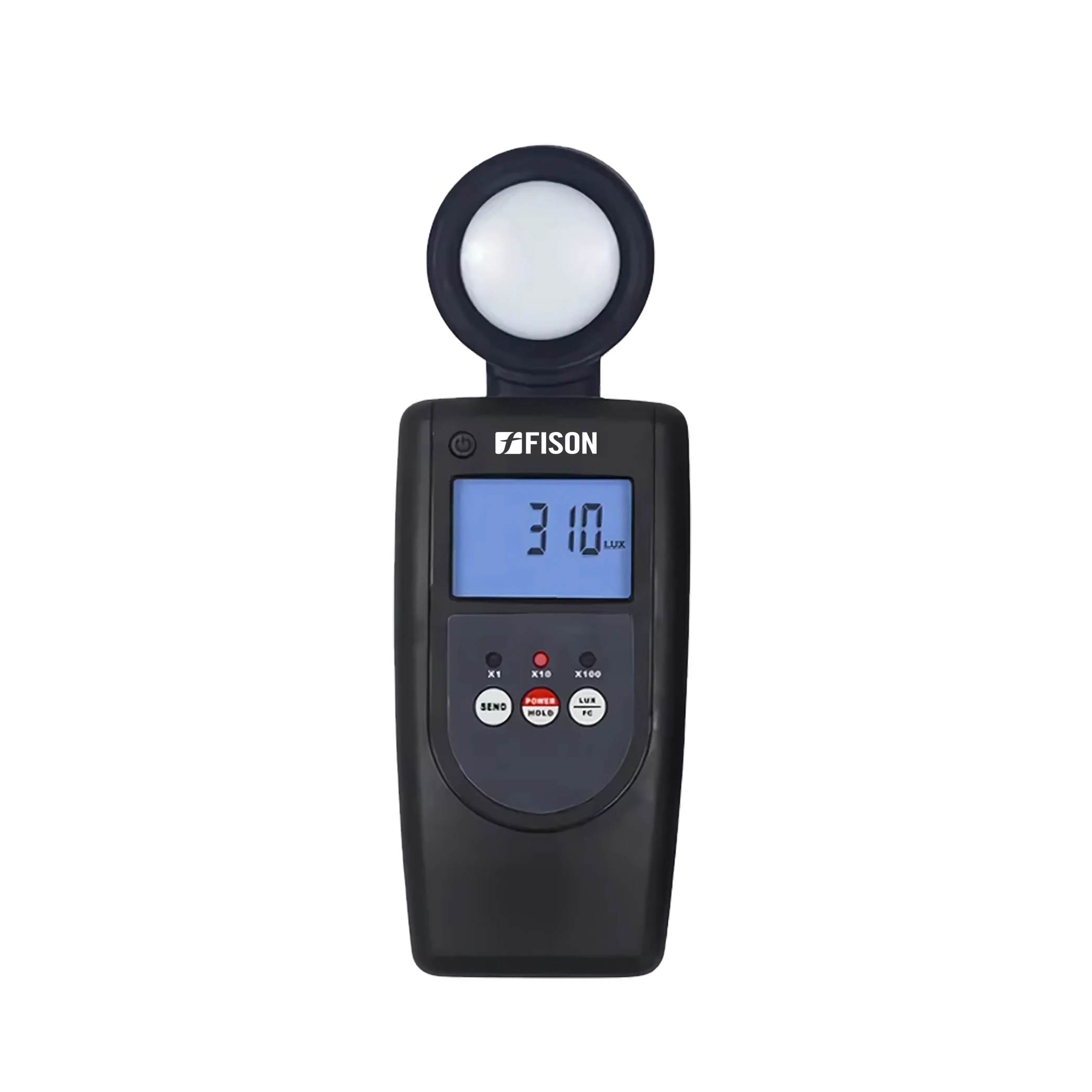

Lux Meter FM-LXM-A102
Lux Meter FM-LXM-A102 is a handheld unit designed for measurement of luminosity and brightness in lux as well as Foot Candle (FC) units. It offers 3 grade measurement range X1, X10 and X100. Designed with 4 digit, 10 mm digital LCD display assures accurate reading without any manual error. The probe and host are separate. Equipped with separate light sensor ensures measurements at optimum position taken by user. It is used for laboratories as well as on-field measurement of light (brightness) and luminosity.
Specifications
| Display | LCD Display | ||||
| X1 Grade range 1 | 0 to 199 lux | ||||
| X1 Grade resolution 1 | 0.1 lux | ||||
| X1 Grade range 2 | 200 to 1999 lux | ||||
| X1 Grade resolution 2 | 1 lux | ||||
| X10 Grade range | 2000 to 19999 lux | ||||
| X10 Grade resolution | 10 lux | ||||
| X100 Grade range | 20000 to 200000 lux | ||||
| X100 Grade resolution | 100 Lux | ||||
| Foot candle range | 0 to 20000 FC | ||||
| Foot candle resolution | 1 FC | ||||
| Accuracy | ± (5%n + 5d) | ||||
| Operating temperature | 0 to 50°C (32 to 122°F) | ||||
| Humidity | < 80% RH | ||||

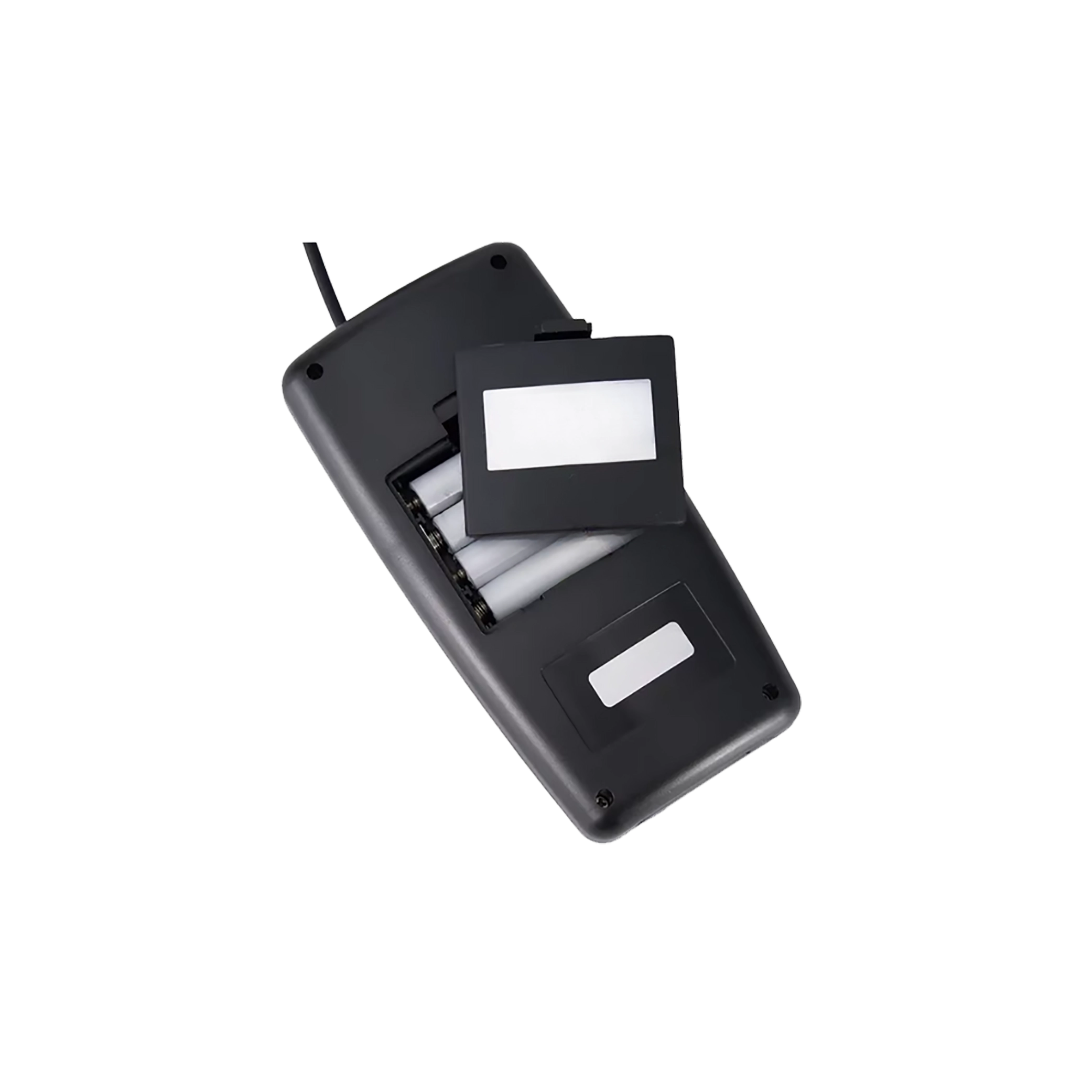

| Power supply | 4 × 1.5 V AAA (UM-4) Battery | ||||
| Dimension |
|
||||
| Weight (Including battery) | 200 g |
Features
- Digital LCD display
- Separate light sensor for optimum positions readings
- Multi-parameter measurement: lux and FC
- The probe and host are separate
- Built-in low battery indicator
- Wide measuring range
- High resolution throughput
- ABS plastic body
- Maximum value hold function
- Ergonomic, user-friendly applications
Applications
- Used to measure luminosity, brightness across electro-optical industry, research laboratories, metallurgy industry, agriculture industry and plastic industry.
Accessories
Accessories no. Accessories name Unit 1 Carrying case 1
Accessories Optional
Accessories no. Accessories name Unit 1 RS-232C data with software 1 2 Bluetooth data adapter with software 1
