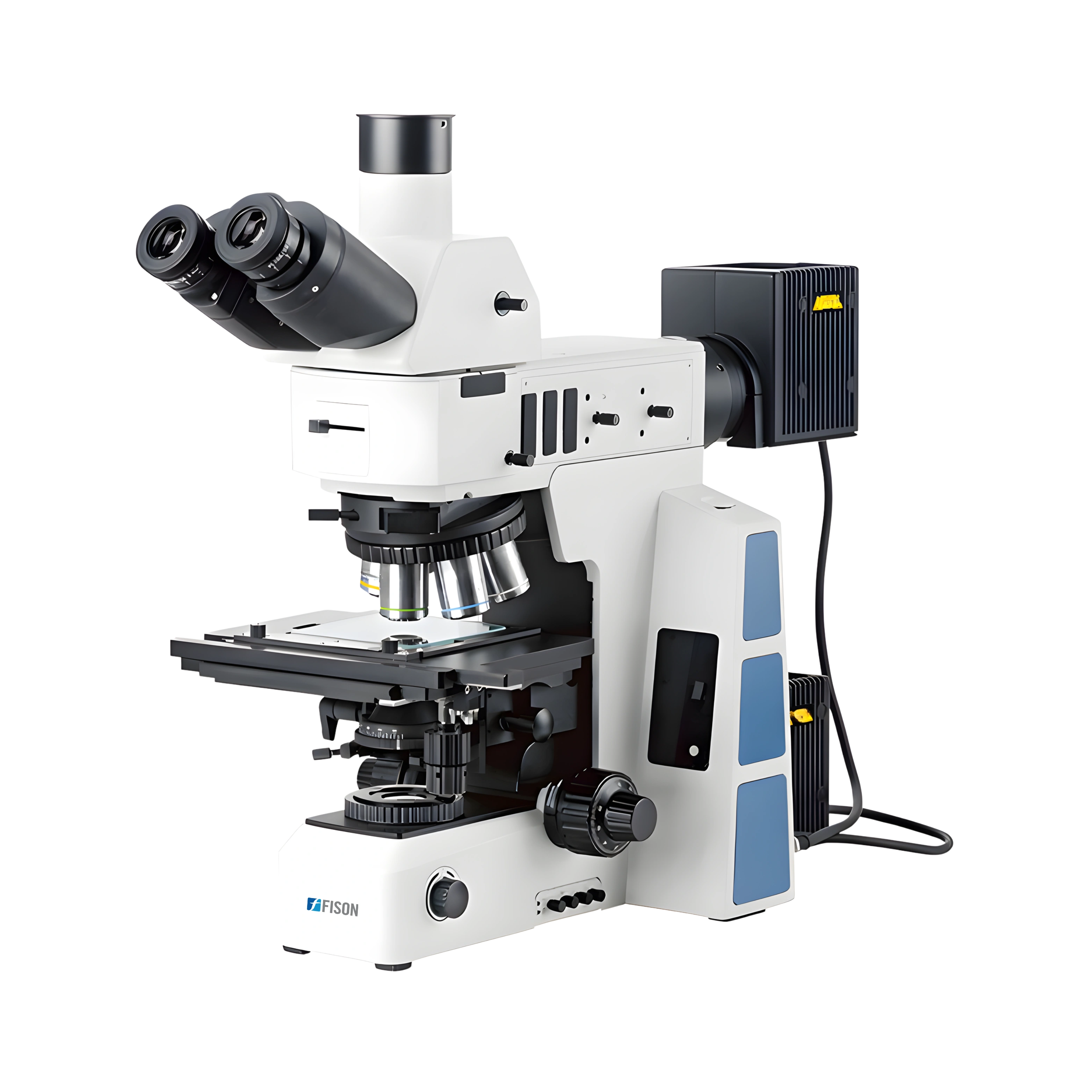

Metallurgical Microscope FM-MM-B100

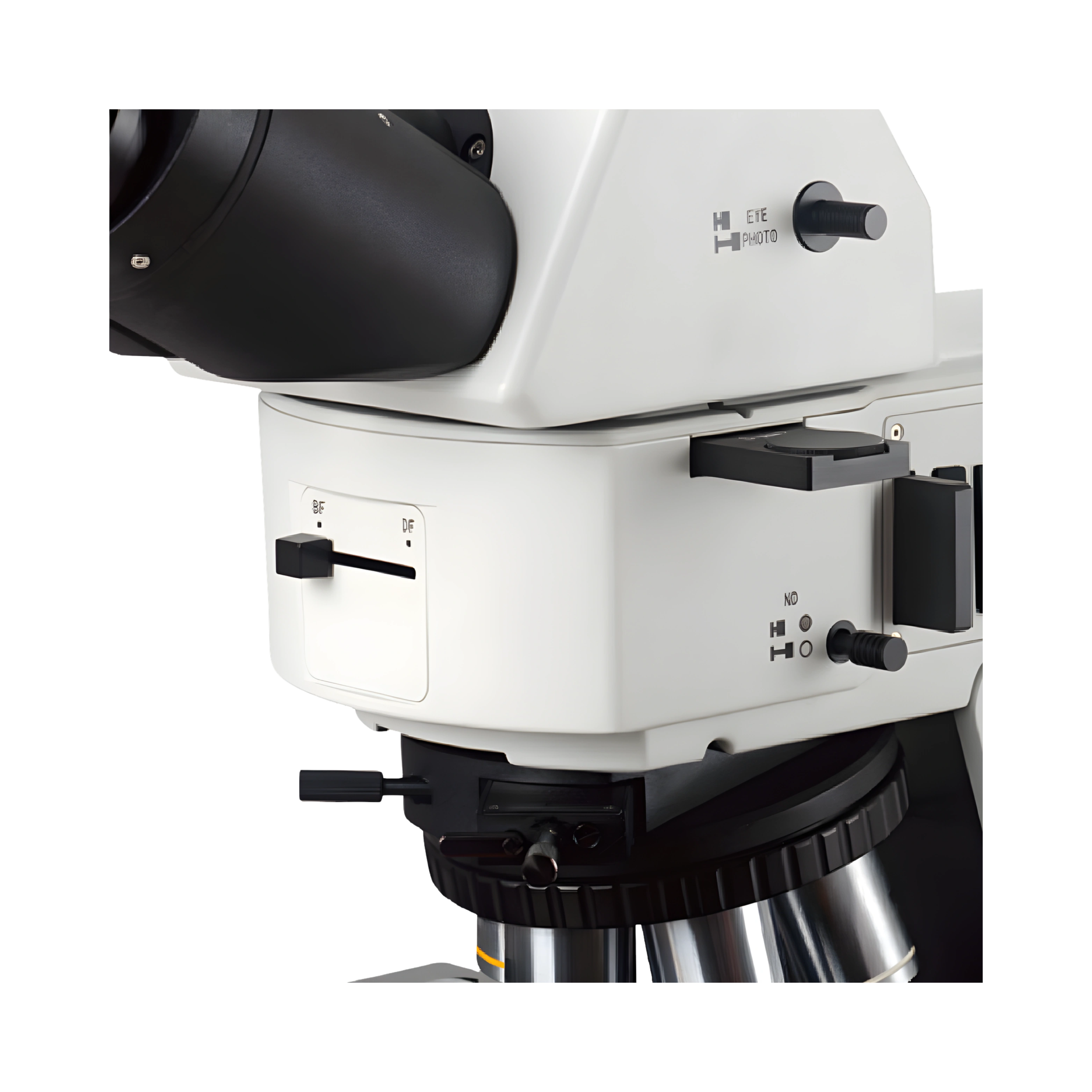

Metallurgical Microscope FM-MM-B100 features an infinity color-corrected optical system with semi-apochromatic objectives for sharp imaging. Its trinocular viewing head provides flexible splitting ratios and a super-wide 26.5mm field of view. Advanced illumination with bright/dark field switching, neutral density filter linkage, and digital dimming ensures precise control. Polarization and Nomarski DIC systems enhance contrast, enabling detection of micro-surface details. A robust, ergonomic design makes it an essential solution for reliable metallurgical analysis.
$13,615.00
Specifications
| Optical System | Infinity Color Corrected Optical System |

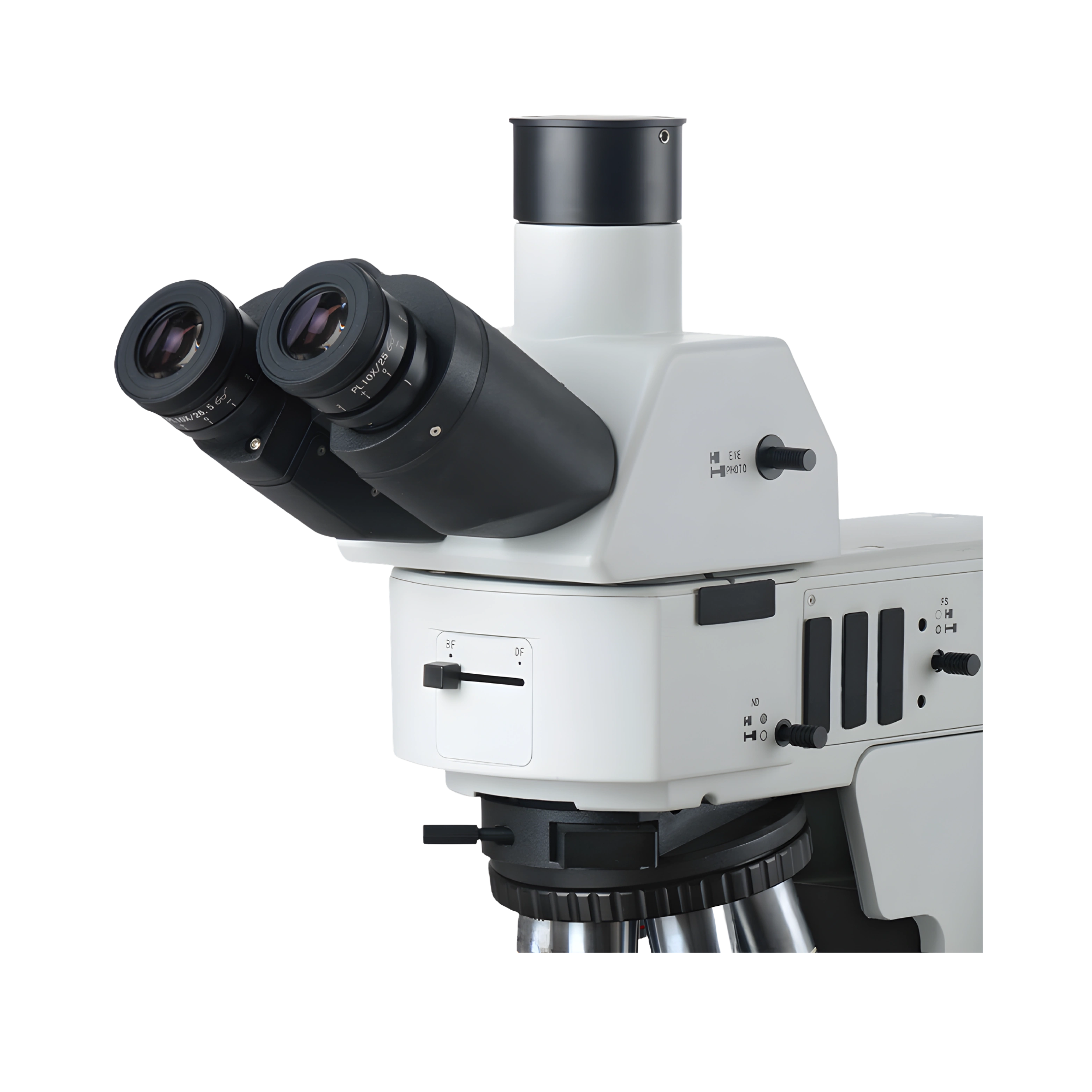

| Viewing Head | 30° inclined, erect image, infinity gemel trinocular head, interpupillary distance: 50-76mm, binocular: trinocular=100:0 or 0:100. |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/25mm, with adjustable diopter |
| Objective | Bright & Dark Field Semi-Apochromatic Metallurgical Objectives 5X/NA=0.15, WD=13.5mm 10X/NA=0.3, WD=9.0mm 20X/NA=0.5, WD=2.5mm 50X/NA=0.8, WD=1.0mm 100X/NA=0.9, WD=1.0mm |
| Nosepiece | Sextuple bright & dark field nosepiece, with DIC slot |
| Stage | 4-inchmechanicalstagewithlow-positionhandleknobon the right, travel range:105mm(X)*102mm(Y), with locking mechanism of Y-axis, with light blocking plate, with glass stage plate. |
| Microscope Body | Transmitted & Reflected frame for LED illumination, with low position coaxial focusing mechanism, coarse range: 25mm, fine precision 0.001mm,24mm high sample is available, with upper limited and tension adjustment. Built-inwide-rangevoltage100V 240V, dual power output, the transmitted illumination and reflected illumination can be independently controlled. |
| Illumination | 5W LED lamp house for transmitted and reflected |
| Condenser | Swing-out type apochromatic condenser for transmitted, NA 0.9 |
| Polarizer and Analyzer | Polarizer and 360-degree rotatable analyzer |
| Other | Internal hexagonal Spanner M4 Internal hexagonal Spanner M5 |
| Packaging Dimension | 89.4×56.3×52.5 cm |
| Gross Weight | 28 Kg |
Features
- Ultra-long working distance
- Multi-filter holders
- Coaxial fine focusing
- Wide-range voltage support
- Compact septuple nosepiece
Applications
- Metallurgical Microscope FM-MM-B100 is widely used in research institutes, laboratories, and industrial inspection. It supports structural observation of metals, alloys, ceramics, coatings, integrated circuits, PCB boards, LCD panels, powders, films, fibers, and non-metallic materials, making it indispensable in electronics, chemical, and instrumentation industries.
Accessories
PL10X/25mm Eyepiece
5X, 10X, 20X, 50X, 100X Bright & Dark Field Semi-Apochromatic Metallurgical Objectives
Sextuple Bright & Dark Field Nosepiece
DIC Attachment
Filter
0.5X C-mount Adapter
Accessories Optional
USB3.0 C-mount CMOS Color Digital Camera (1/1.2", 8.3MP)
Metallurgical Software
