Microscopic Digital Camera FM-MDC-A202-1 Microscopic Digital Camera FM-MDC-A202-2 Microscopic Digital Camera FM-MDC-A202-3

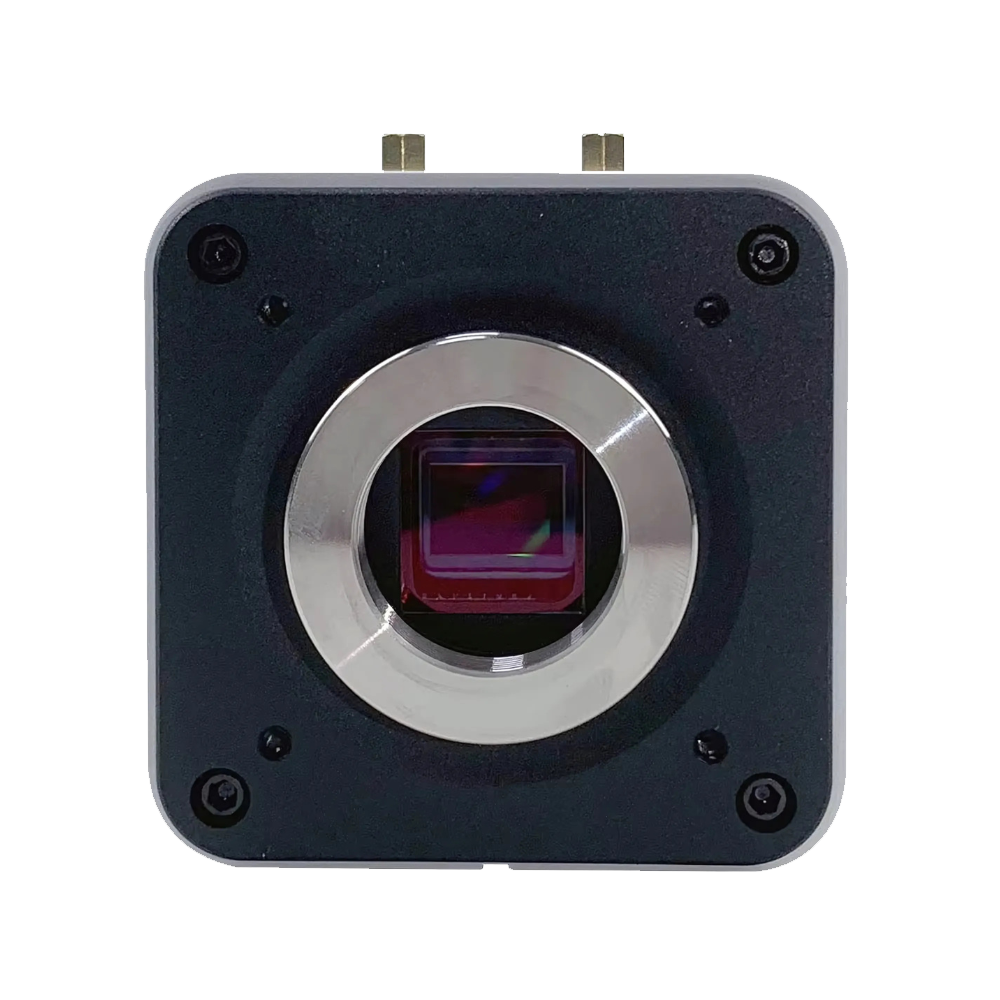

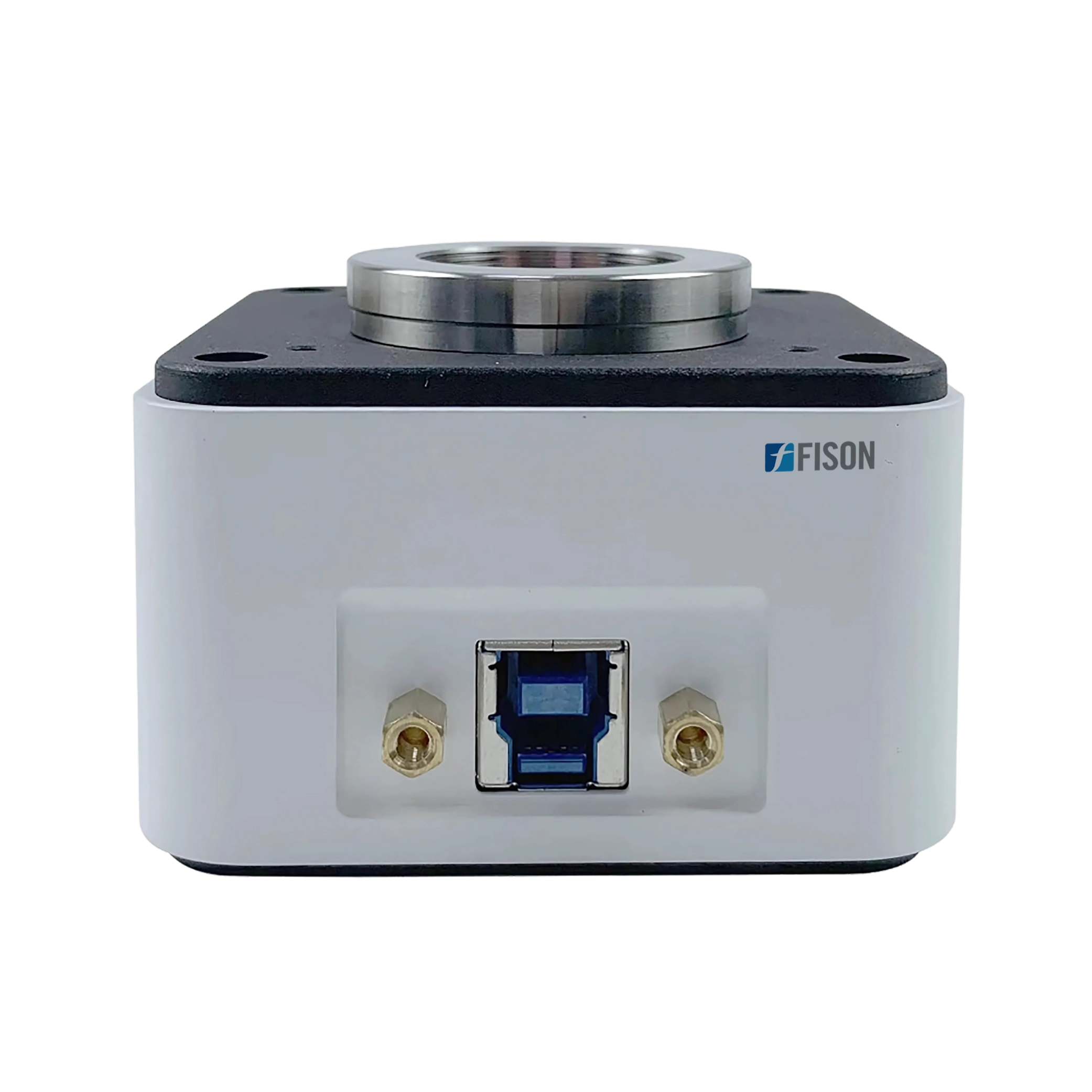

Microscopic Digital Camera FM-MDC-A202

Microscopic Digital Camera FM-MDC-A202 is 3.0 USB high-speed transmission interface camera featured with computational imaging software, Mosaic 2.0. With a fast and high-definition 6 MP CMOS 1/1.8″ image sensor it offers frame rate upto 41 fps (3072 × 2048) in full resolution and pixel size of 2.4 × 2.4 μm. Built in advanced rolling shutter technology, allows accurate tracking and captures dynamic crisp images of fast moving specimens.

$1,587.00

Download Catalog

Microscopic Digital Camera FM-MDC-A202 - Specifications

Shutter Mode Rolling
Sensor Model IMX178LQJ-C
Sensor Type CMOS
Sensor Size 1/1.8″
Camera type Color
Pixel Size 2.4 × 2.4 μm
Resolution 6 MP, 3072 (H) x 2048 (V)
Frame Rate 41 fps (3072 × 2048)
41 fps (1536 × 1024 2x2 bin)
Exposure Supports auto/manual exposure
Exposure time 0.13 ms to 15 s
Color scale Automatic
White balance Automatic
Color gain Manual
Noise reduction Manual
Flat field correction Manual
Color Temperature 2000 to 15000 K
Picture Format JPG/PNG/TIFF
Sample applications Fluorescence microscope, Biological microscope, Polarizing microscope, Metallographic microscope, Stereoscopic microscope
Data Interface USB 3.0
Lens mount Standard C mount
Multiple Cameras Supports 4 cameras simultaneously
PC Operating Software: Mosaic V 2.0
System: Windows/Linux/Mac
PC Configuration CPU: Intel Core i5 or better (Quad or more Core)
RAM: 8 G or more
Supporting OS: Windows 7/8/10 64bit
Dimension 68 × 68 × 46 mm
Gross weight 330 g

Microscopic Digital Camera FM-MDC-A202 - Features

  1. Sony professional 6 MP CMOS sensor digital camera
  2. Super-speed USB 3.0 interface ensures stable high transmission rate
  3. Revolutionary PC imaging software Mosaic V2.0
  4. Two Core Technology: Real-time image stitching & depth-of-field fusion
  5. Supports simultaneous image capturing from 4 multiple cameras
  6. Smart flat field correction based on dynamic calculation
  7. Intelligent 64-bit ISP color reproduction
  8. ISP color-interpolation algorithm corrects color deviation of biological bright field, stereo or fluorescence image
  9. Micro-imaging-based intelligent automatic exposure
  10. Real-time fluorescence image synthesis and editing
  11. Efficient image acquisition, editing, measurement and report output workflow process
  12. <strong>Body material quality </strong>
  13. Meticulous CNC arc processing
  14. Environmental protection spraying
  15. Unique side decorative patterns
  16. Stainless steel C ring with no debris

Microscopic Digital Camera FM-MDC-A202 - Applications

  • Microscopic Digital Cameras are suited for industrial applications that require a great amount of data to be processed and transferred from camera to PC. These revolutionary industrial and biological, digital micro cameras are used in microscopic imaging, visual inspection, and measurement of test specimen across life sciences.

Alternative Models Of Microscopic Camera

Fison Microscopic Cameras offer high-resolution imaging, capturing detailed microscopic images with sharp clarity for precise analysis. They are equipped with an advanced optical system for color accuracy and detailed visualization. These units feature real-time observation, enabling live image streaming for immediate sample inspection and analysis. They provide a user-friendly interface for easy operation and monitoring. These cameras include multiple connectivity options such as USB, HDMI, or Wi-Fi for easy image transfer and sharing.
