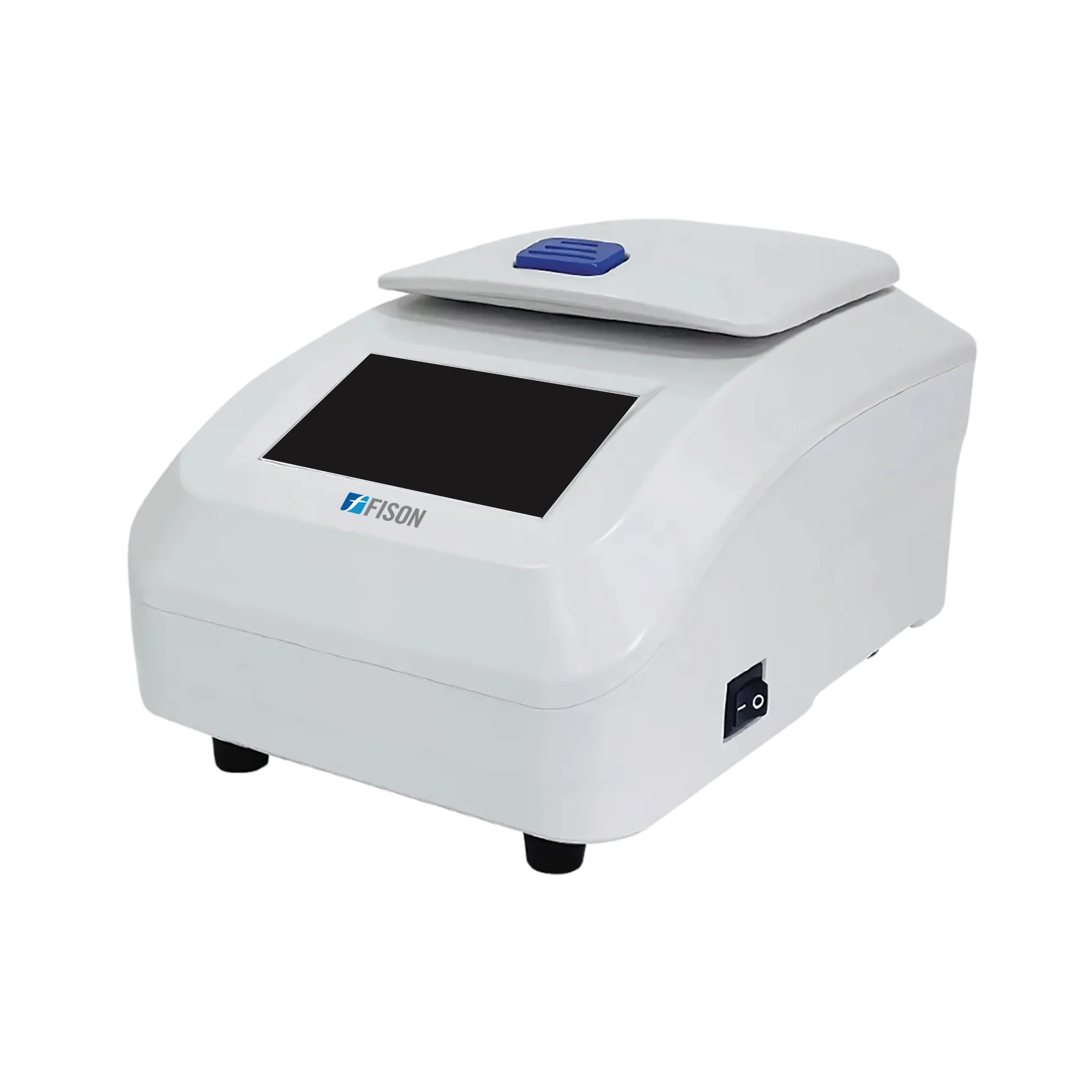

Mini Thermal Cycler FM-MTC-A102
Mini Thermal Cycler FM-MTC-A102 features a capacity of 32 × 0.2 ml microtubes or 4 × 8 × 0.2 ml tube strips, accommodating various samples simultaneously. It offers a block temperature range of 4℃ to 105℃, providing optimal thermal control for reliable performance. It features a high-performance axial flow fan, ensuring consistent temperature regulation throughout the cycling process. It has a color touchscreen for real-time monitoring and intuitive operation.
Specifications
| Capacity | 32 × 0.2 ml microtubes or 4 × 8 × 0.2 ml tube strips |
| Block Temperature Range | 4℃ to 105℃ |
| Gradient Temperature Range | 30℃ to 105℃ |
| Gradient Set Span | Max. 30℃ |
| Heating Rate (Max.) | 5℃/s |
| Cooling Rate (Max.) | 4℃/s |
| Block Temperature Accuracy | ±0.2℃ |
| Block Temperature Uniformity | ≤ ±0.25℃ |
| Gradient Temperature Accuracy | ±0.3℃ |
| Gradient Temperature Uniformity | ±0.3℃ |
| Temperature Display Accuracy | 0.1℃ |
| Heating Lid Temperature Range | 30℃ to 110℃ |
| Temperature Control Modes | Block or tube |
| 16℃ Holding Function | Infinite Duration |
| Max. Cycles | 99 |
| Max. Steps per Program | 30 |
| Pause Function | Yes |
| Power Failure Recovery | Yes |
| Real-time Operation Display | Image-text Display |
| Programs Stored | 200 |
| Timer Range | 1s to 59 min 59 sec / Infinite Duration |
| Touchdown PCR | Temperature change: -9.9℃ to 9.9℃ |
| Long PCR Timer | Step Interval: -599 to 599 sec |
| Number of Peltier Units | 2 |
| Display | 4.3-inch Color Touch Screen (800×480 pixels) |
| Power Consumption | Max. 225 W |
| Power Supply | AC 110V to 220V, 50/60 Hz |
| Dimensions (W × D × H) | 243 × 172 × 145 mm |
| Weight | 2.3 kg |
Features
- Advanced Peltier Technology
- Adaptive Elastic Heated Lid
- Low noise operation
- Robust build
- User-friendly interface
Applications
- Mini Thermal Cycler FM-MTC-A102 is used in molecular biology laboratories for precise DNA amplification, making it ideal for various applications, including genetic research, clinical diagnostics, and forensic analysis.
