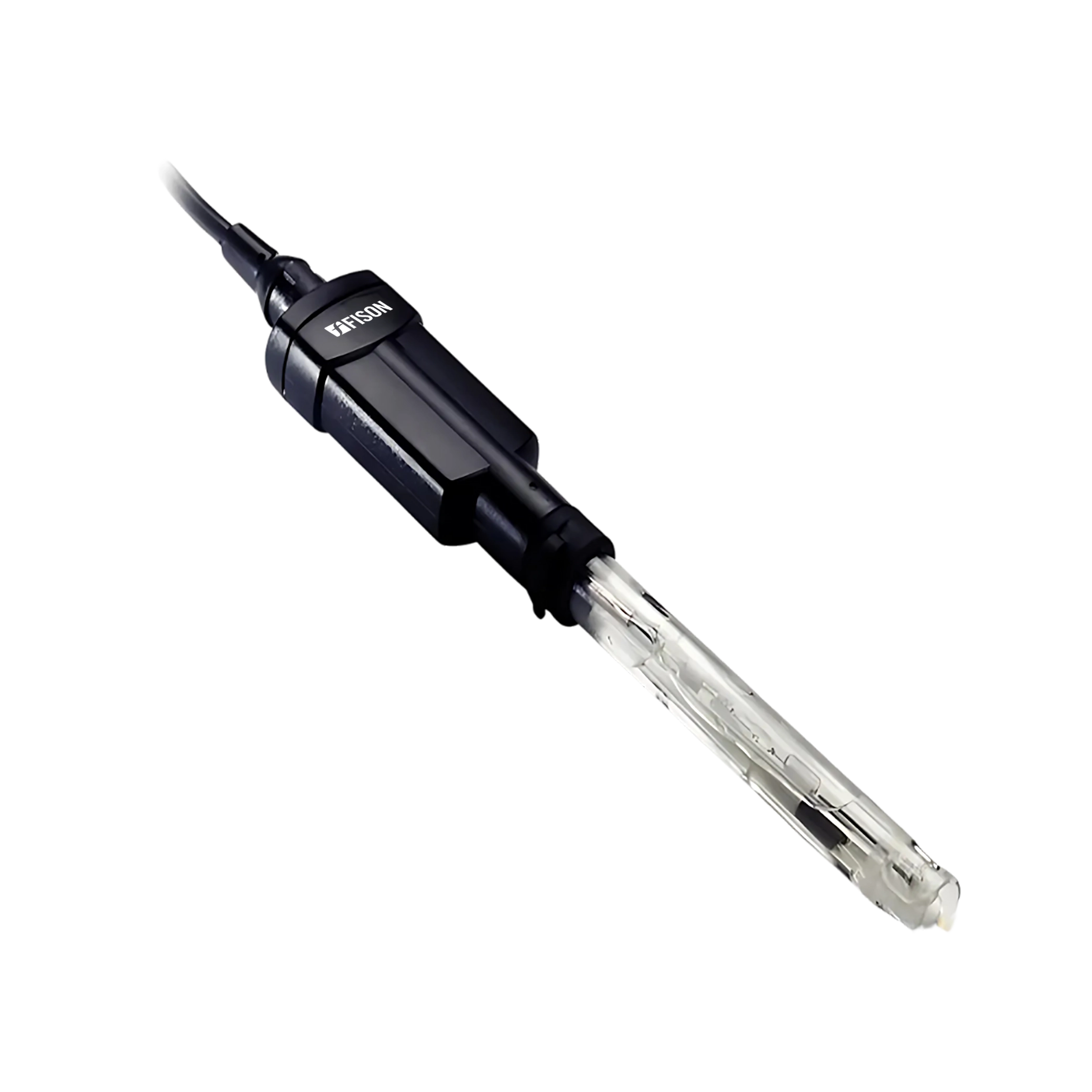

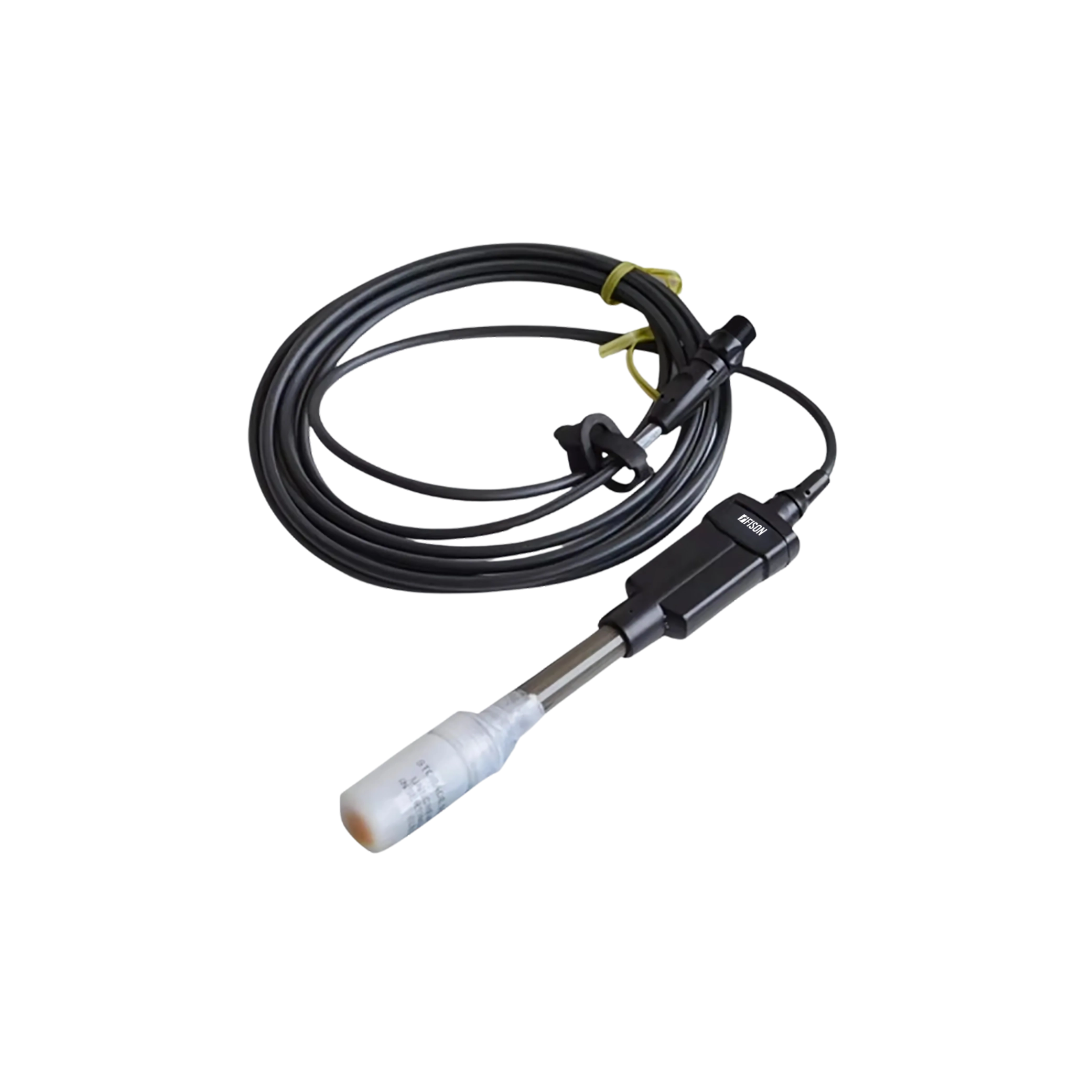

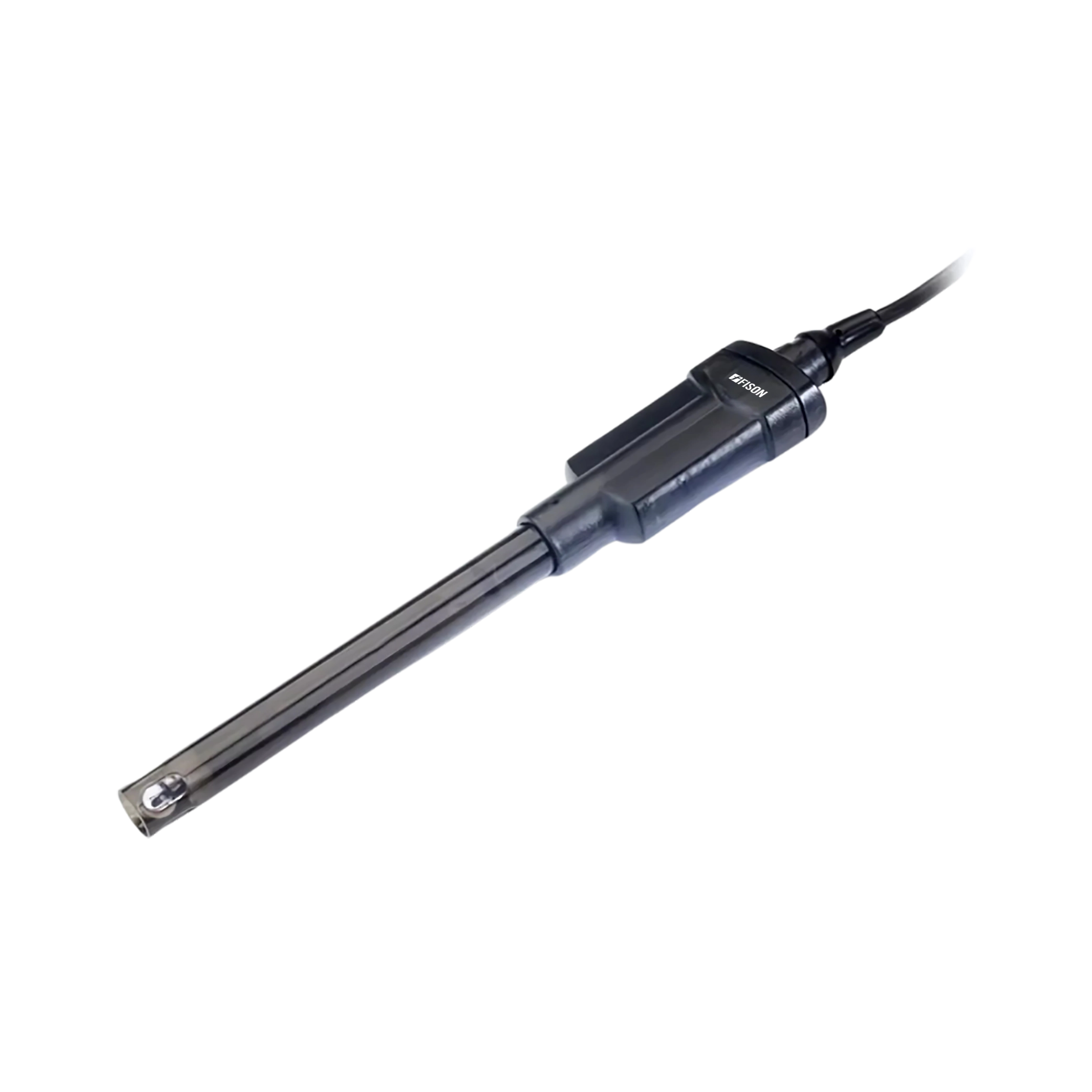

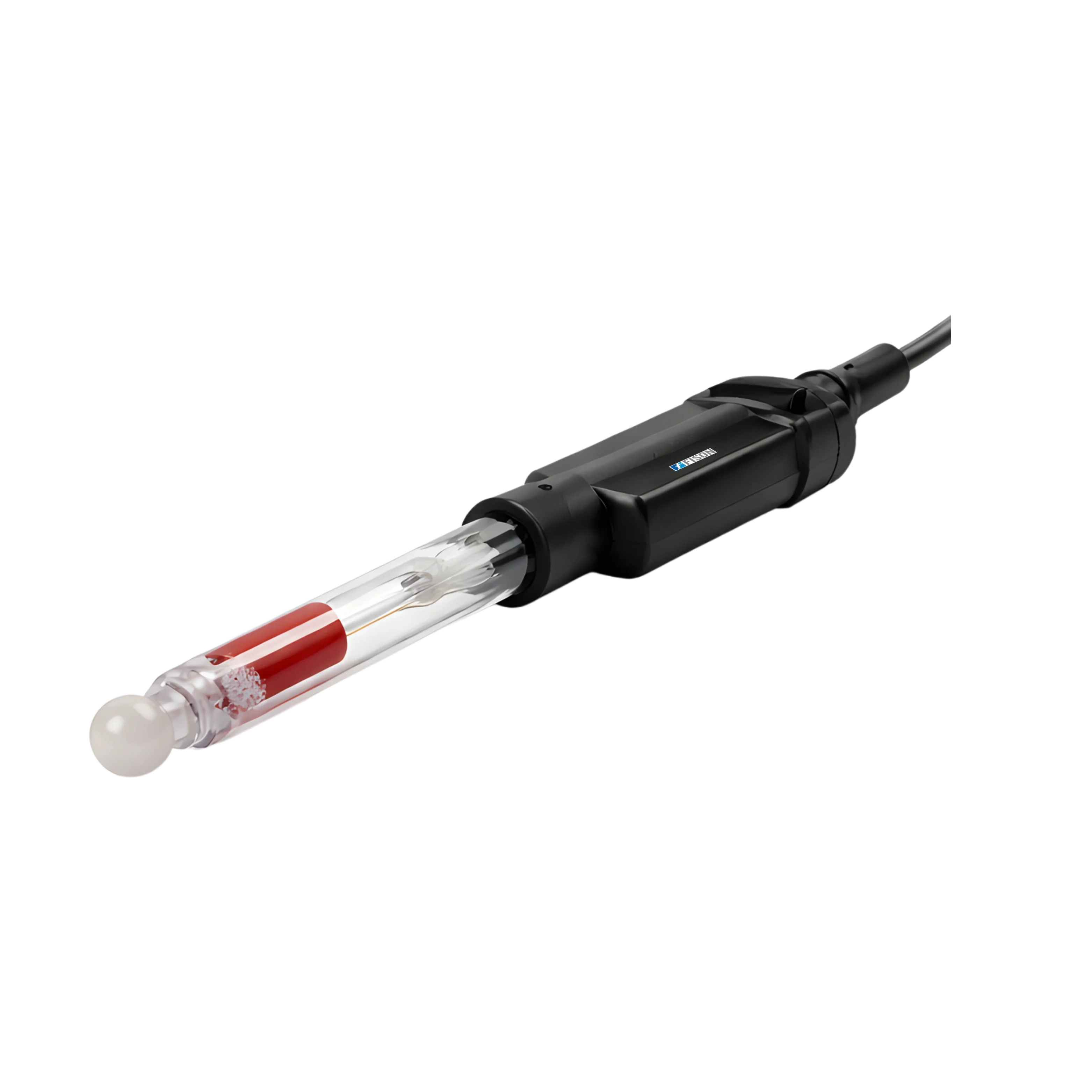

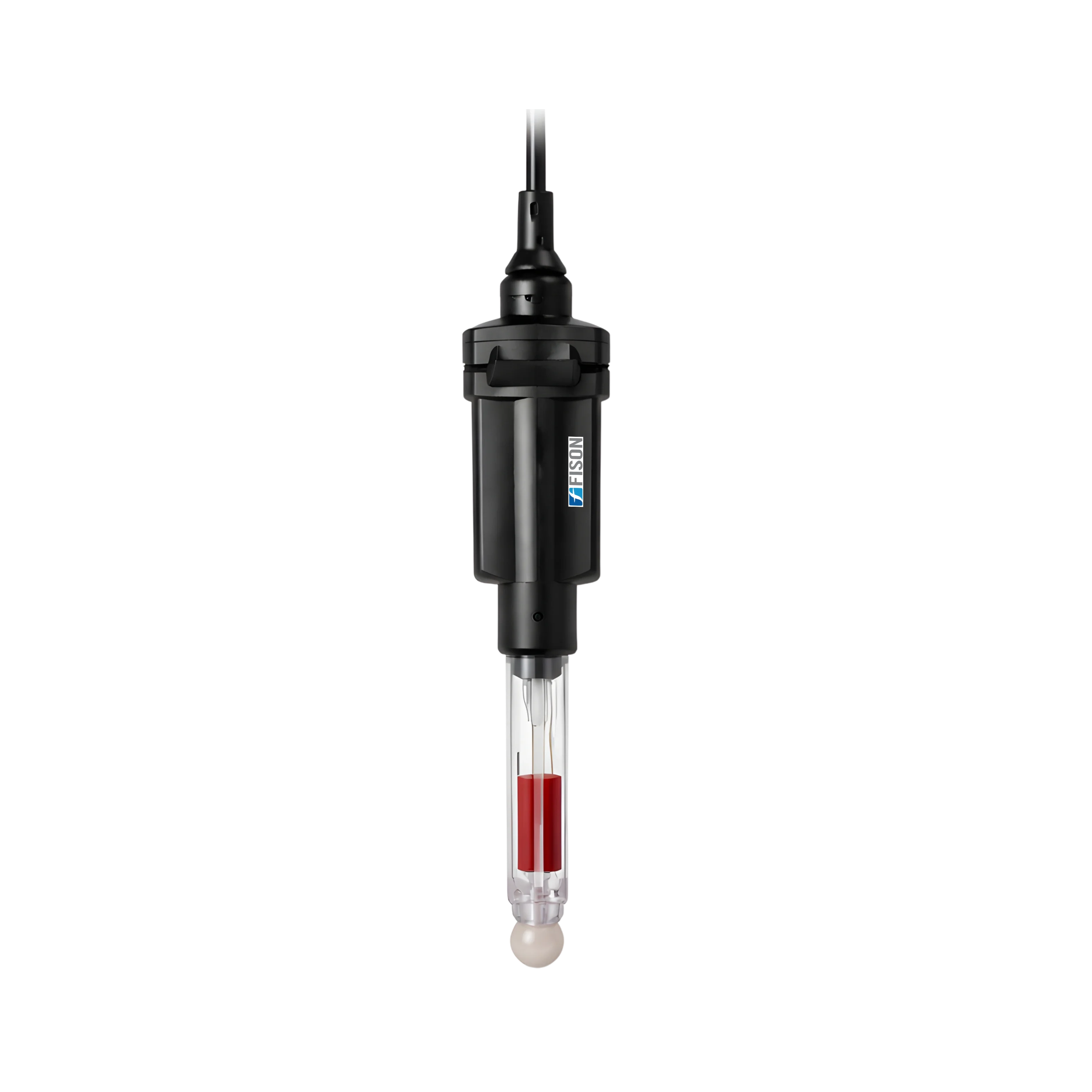

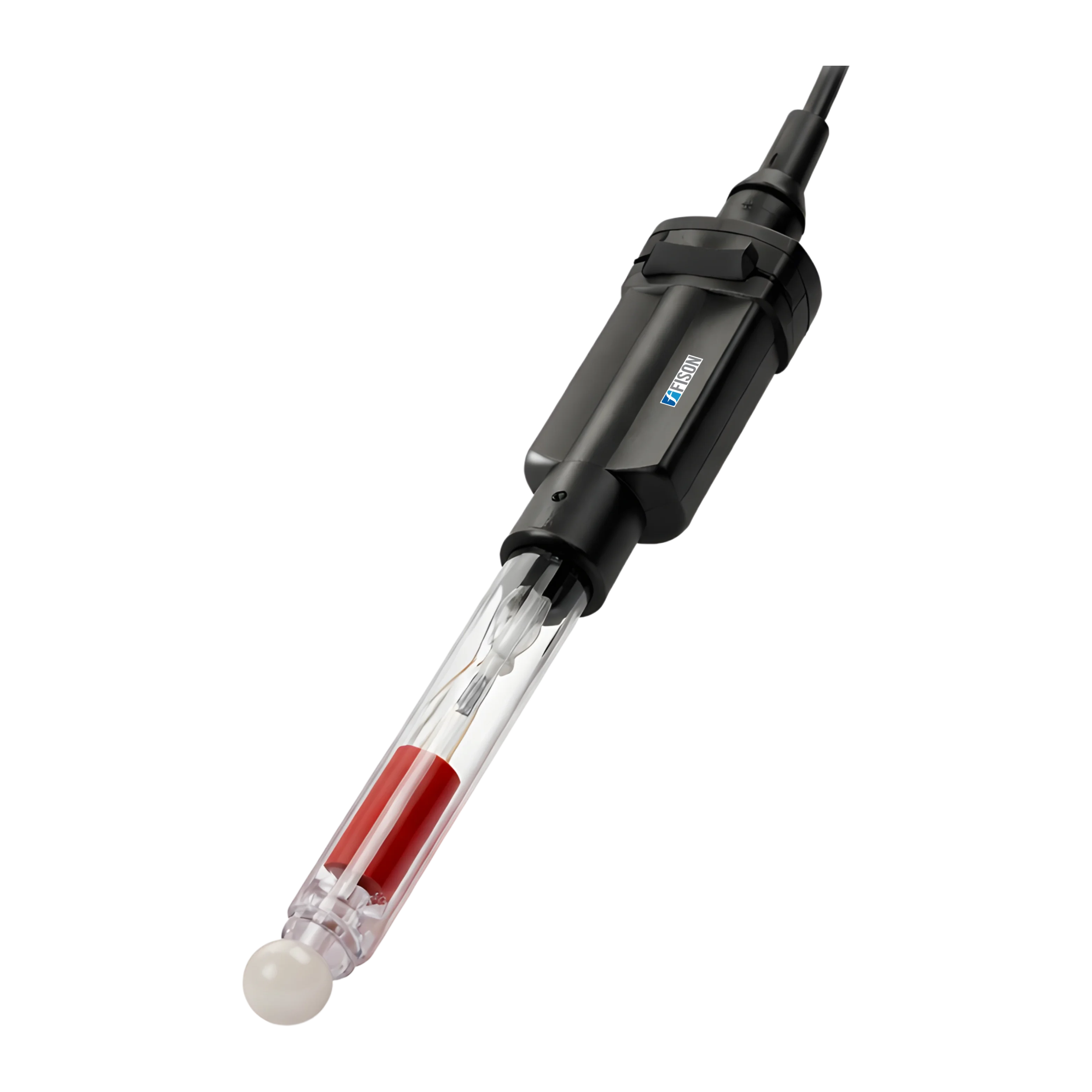

pH Electrode FM-PHE-A100
pH Electrode FM-PHE-A100 provides a pH measurement range of 0 to 14 allowing comprehensive analysis of various samples. It is equipped with a temperature sensor and offers a temperature range of 0 to 80℃ for precise hydrogen potential analysis in solutions. Our electrode is encased in an unbreakable gel-filled ceramic junction, providing maintenance-free operation.
Specifications
| Measuring Range | 0 to 14 pH |
| Temperature Range | 0 to 80℃ |
| Accuracy | ± 0.02 pH |
| Sensor Type | Glass |
| Reference | Ag/AgCl |
| Type Interface Type | Ceramic micropores |
| Sensor Material | Epoxy resin |
| Filling Solution | Non-fillable gel |
| Temperature Accuracy | ±0.3 ℃ |
| Temperature Resolution: | 0.1 ℃ |
| Dimension | 12 × 200 mm |
| Weight | 0.1 Kg |
Features
- Crafted with shockproof epoxy plastic body
- Supports data storage
- Calibration alerts
- HQD meter compatible
- Easy meter swap
Applications
- pH Electrode is used in labs for accurate pH-based chemical analysis and research. Also crucial in the food and beverage industry for product safety and quality.
Accessories
- Storage soaker bottle
1 m cable
Test certificate
Basic user manual
