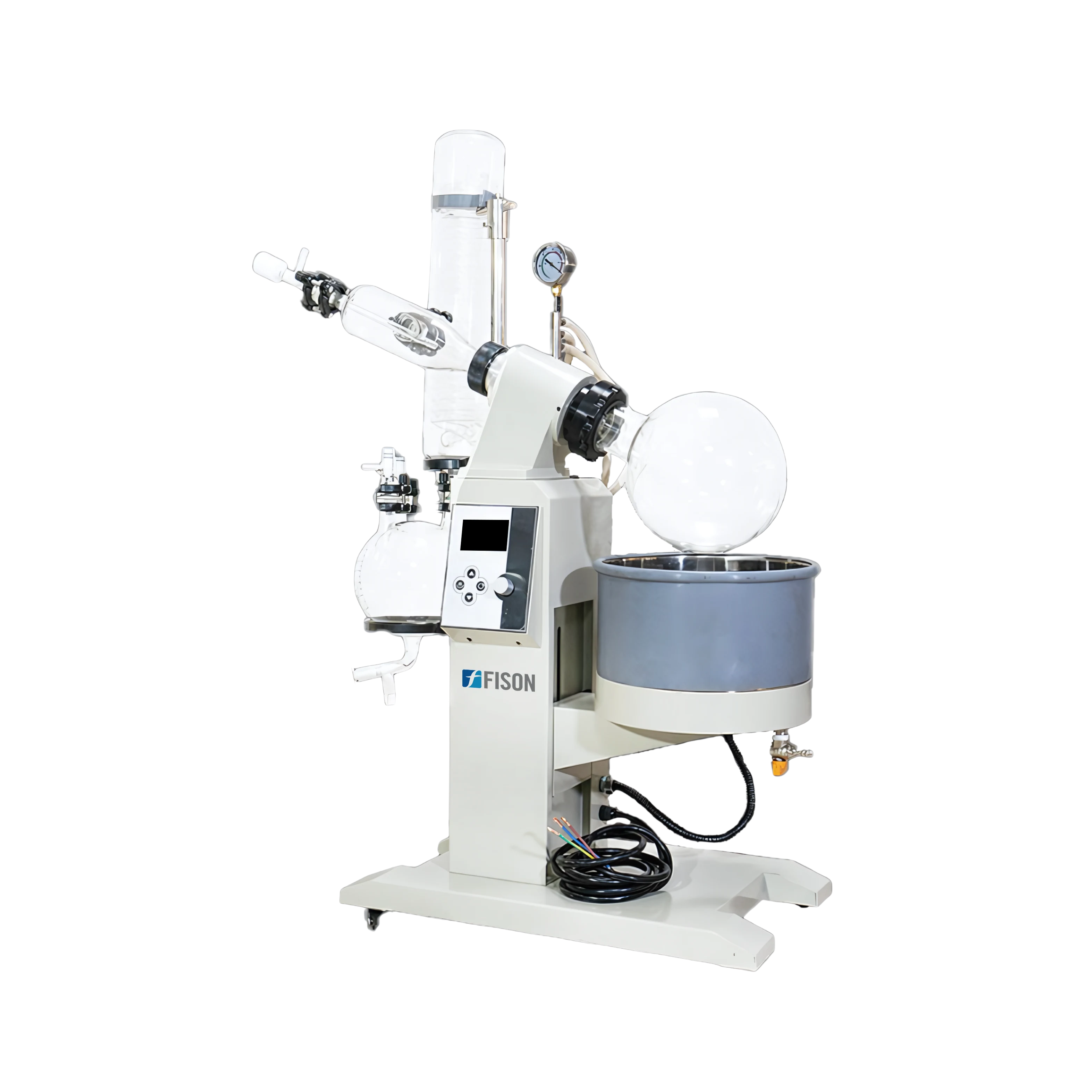

Pilot Scale Rotary Evaporator FM-PRE-A108
Pilot Scale Rotary Evaporator FM-PRE-A108 features a 5L evaporation capacity, making it ideal for efficient large-volume solvent recovery under vacuum. It includes a 3L receiving bottle with a discharge valve for easy collection. It is equipped with a 12L heating bath that ensures stable thermal performance. A digital interface allows precise and user-friendly operation. This unit is perfect for applications in pharmaceuticals, chemical synthesis, and industrial labs.
$3,558.00
Specifications
| Evaporating flask | 5L |
| Receiving bottle | 3L (With discharge valve) |
| Temperature range | RT to 180°C |
| Temperature control accuracy | ±1°C |
| Rotation speed | 0 to 120 rpm |
| Vacuum degree | 0.098MPa |
| Bath volume | 12L |
| Condenser | Vertical, main triple + auxiliary double coil |
| Lifting distance | 140mm |
| Rotating motor power | 60W |
| Lifting motor power | 40W |
| Heating power | 2000W |
| Overall power | 2100W |
| Power supply | 220 to 240V, 50Hz |
| Dimensions (W × D × H) | 980 × 480 × 1260mm |
| Weight | 46kg |
Features
- Precision vacuum control
- Smart digital interface
- Space saving build
- Rapid heat transfer
- Smooth electric lift
Applications
- Pilot Scale Rotary Evaporator FM-PRE-A108 is Ideal for solvent recovery, concentration, and distillation in pharmaceutical production, chemical processing, and pilot scale laboratory workflows.
Frequently Asked Question
1: Q1. Can Pilot Scale Rotary Evaporator FM-PRE-A108 handle continuous evaporation for long hours in industrial settings?
A1. Yes, it is designed for long-duration operations, making it suitable for pilot-scale or small batch industrial applications.
2: Is the glassware customizable for specific solvents or chemical compatibility?
The system includes high borosilicate glass 3.3, and customization is available on request for specialized solvents.
3: Does the Pilot Scale Rotary Evaporator FM-PRE-A108 support vacuum pump and chiller integration?
Yes, it is compatible with most standard vacuum pumps and recirculating chillers for efficient operation.
