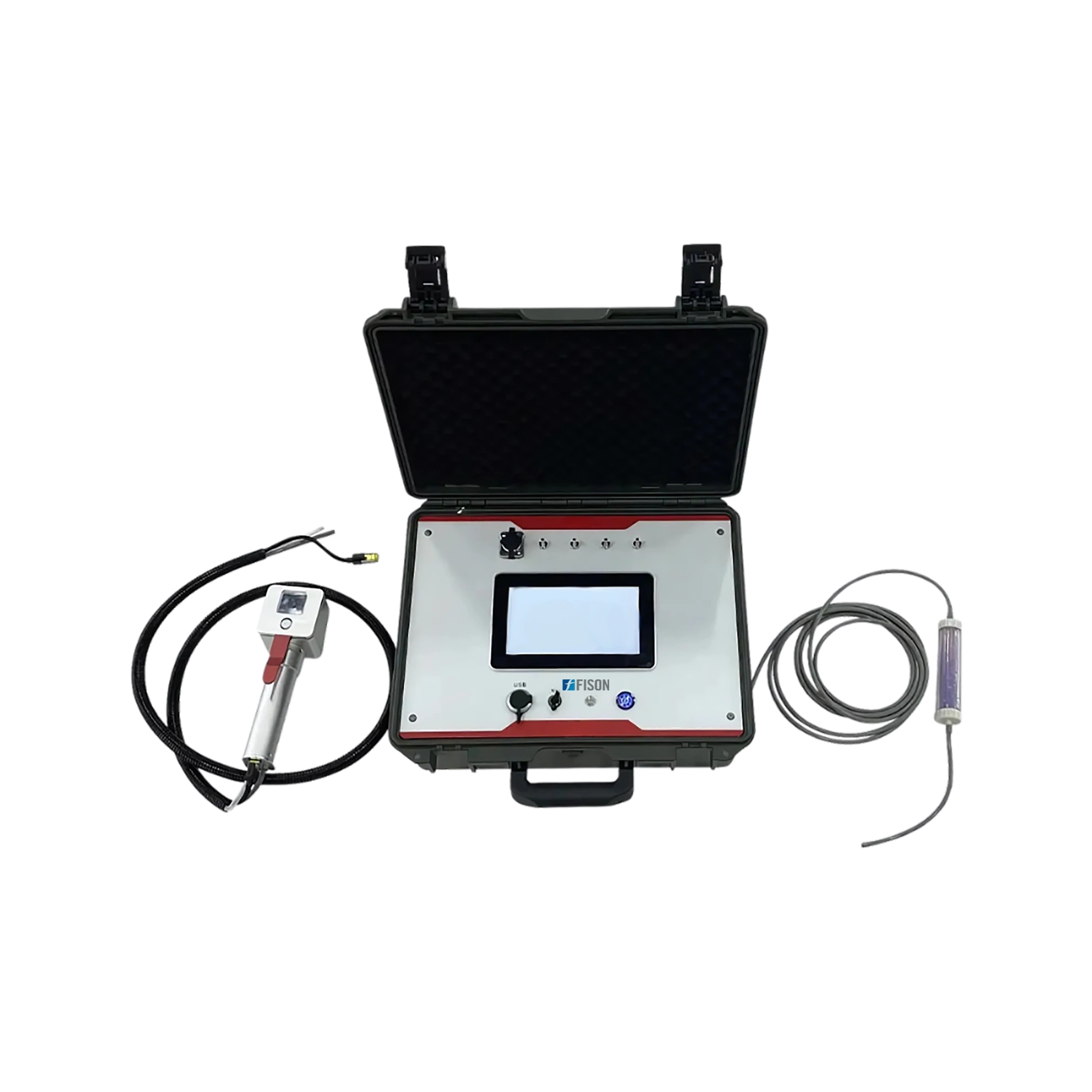

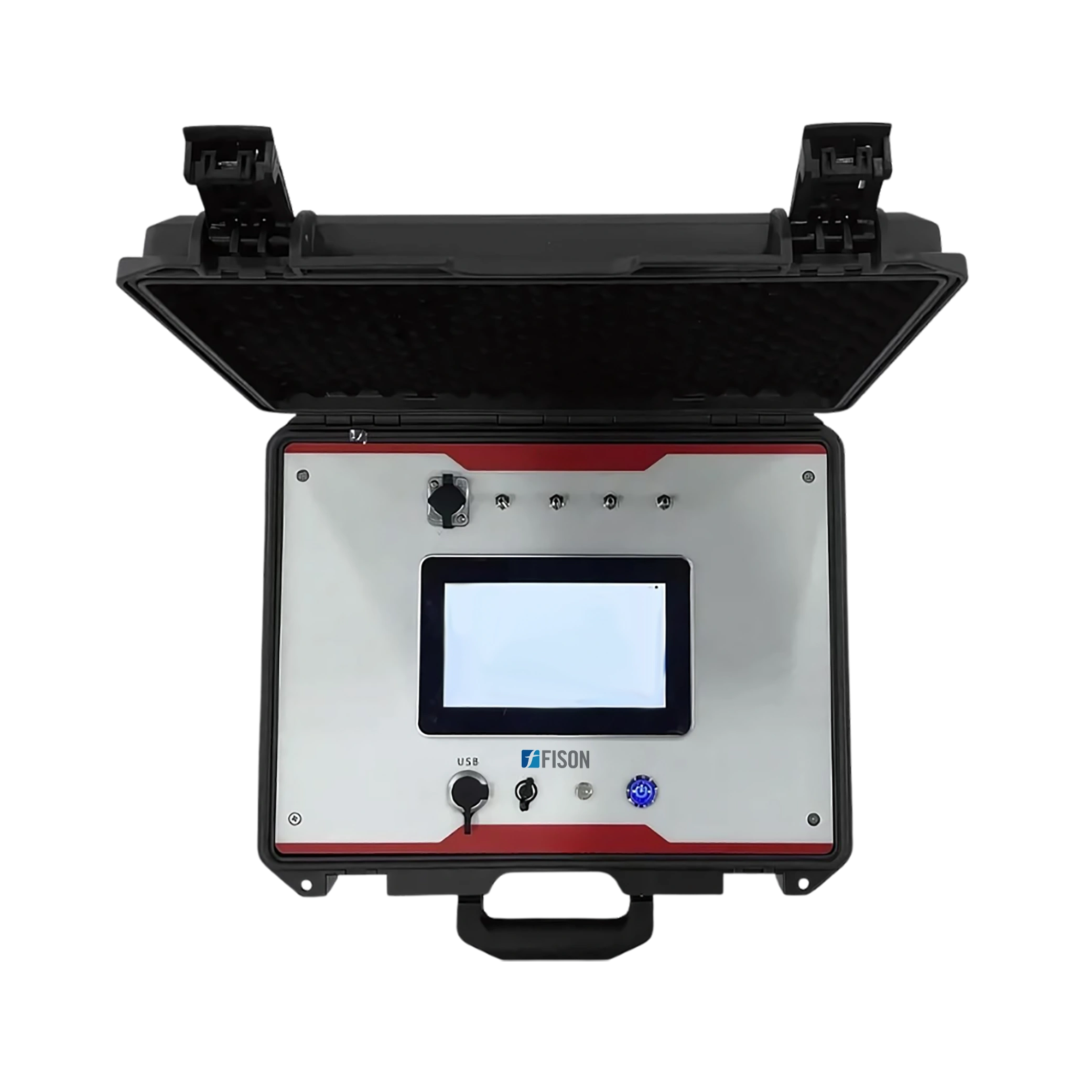

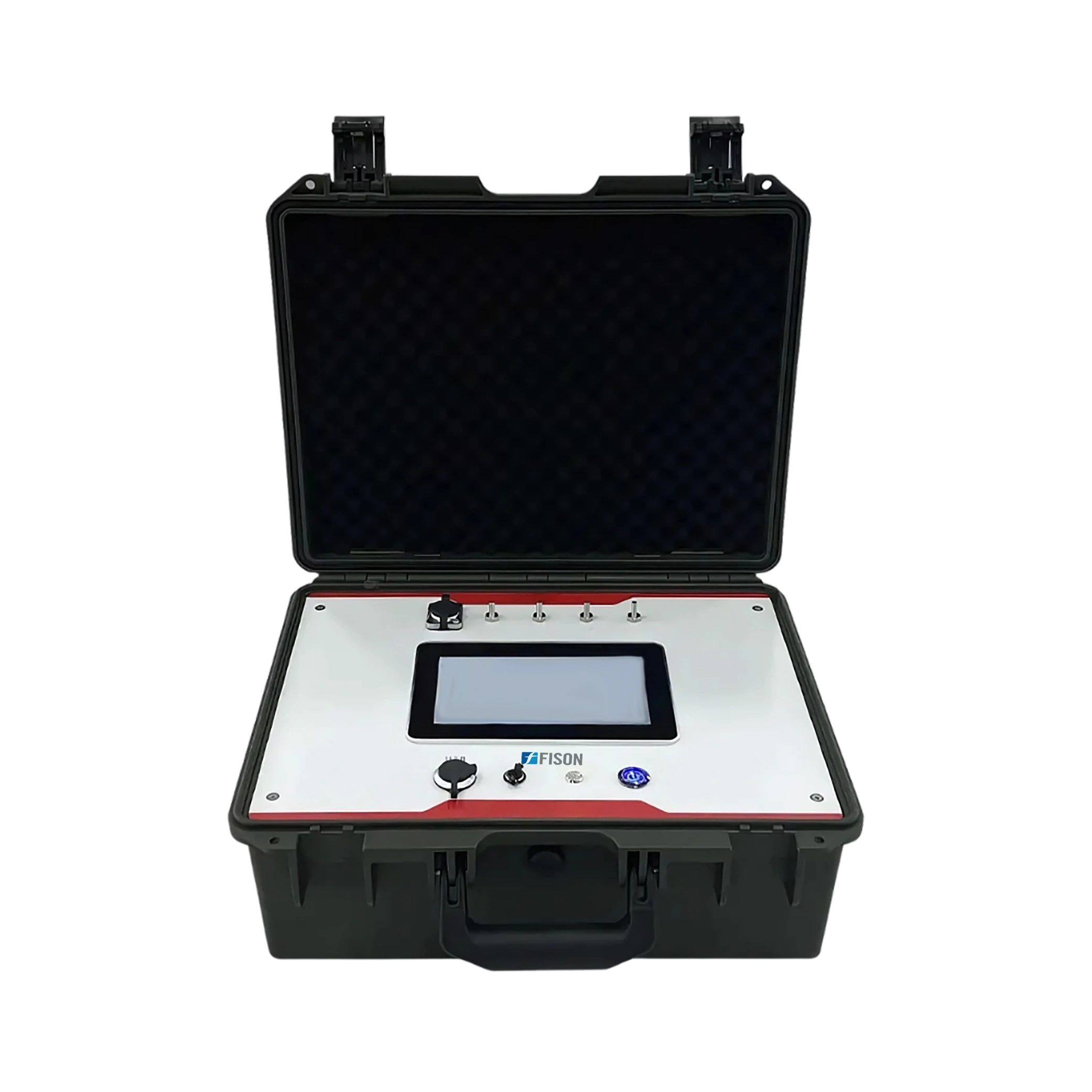

Portable Plant Photosynthesis Meter FM-PPM-B100
Portable Plant Photosynthesis Meter FM-PPM-B100 accurately measures CO₂ concentration in the range of 0 to 2000 μMol/mol (ppm), providing reliable readings. It operates efficiently in an environmental temperature range of 0 to 50 °C, ensuring reliable performance under varying conditions. It measures photosynthetic effective radiation from 0 to 2500 μMol·m⁻²·s⁻¹, providing accurate light intensity data for plant growth analysis. Our photosynthesis meter is integrated with an LCD for real-time monitoring and operation.
$7,380.00
Specifications
| CO₂ Concentration Range | 0 to 2000 μMol/mol (ppm) |
| CO₂ Concentration Resolution | 0.01 |
| Environmental Temperature Range | 0 to 50 °C |
| Environmental Temperature Resolution | 0.01 |
| Environmental Temperature Error | ±0.3 °C |
| Leaf Chamber Temperature Range | 0 to 50 °C |
| Leaf Chamber Temperature Resolution | 0.01 |
| Leaf Chamber Temperature Error | ±0.3 °C |
| Leaf Surface Temperature Range | 0 to 50 °C |
| Leaf Surface Temperature Resolution | 0.01 |
| Leaf Surface Temperature Error | ±0.2 °C |
| Environmental Humidity Range | 0 to 100% RH |
| Environmental Humidity Resolution | 0.01 |
| Environmental Humidity Error | ±5% RH |
| Leaf Chamber Humidity Range | 0 to 100% RH |
| Leaf Chamber Humidity Resolution | 0.01 |
| Leaf Chamber Humidity Error | ±5% RH |
| Photosynthetic Effective Radiation (PAR) Range | 0 to 2500 μMol·m⁻²·s⁻¹ |
| PAR Resolution | 0.01 |
| PAR Error | ±5 μMol·m⁻²·s⁻¹ |
| Net Photosynthetic Rate (Pn) Resolution | 0.01 |
| Stomatal Conductance (Gs) Resolution | 0.01 |
| Transpiration Rate (Tr) Resolution | 0.01 |
| Intercellular CO₂ Concentration (Ci) Resolution | 0.01 |
| Instantaneous Water Use Efficiency (WUE) Resolution | 0.01 |
| Display Screen | 7-inch color touch LCD (Android system) |
| Leaf Chamber Window | 3×3 cm (customizable: Type I 1×3 cm, Type II 2×3 cm) |
| Working Environment | 0 to 40 °C; humidity ≤ 75% RH |
| Transport Package | Carton Box (55×40×25 cm) |
| Power / Battery Life | Rechargeable, >8 hours continuous operation |
| Production Capacity | 200 pcs/month |
Features
- Convenient operation
- Portable design
- Automatic data saving
- Intuitive operation
Applications
- Portable Plant Photosynthesis Meter FM-PPM-B100 used in agriculture, environmental studies, and research to measure a plant's photosynthetic rate, stomatal conductance, and other key physiological parameters.
