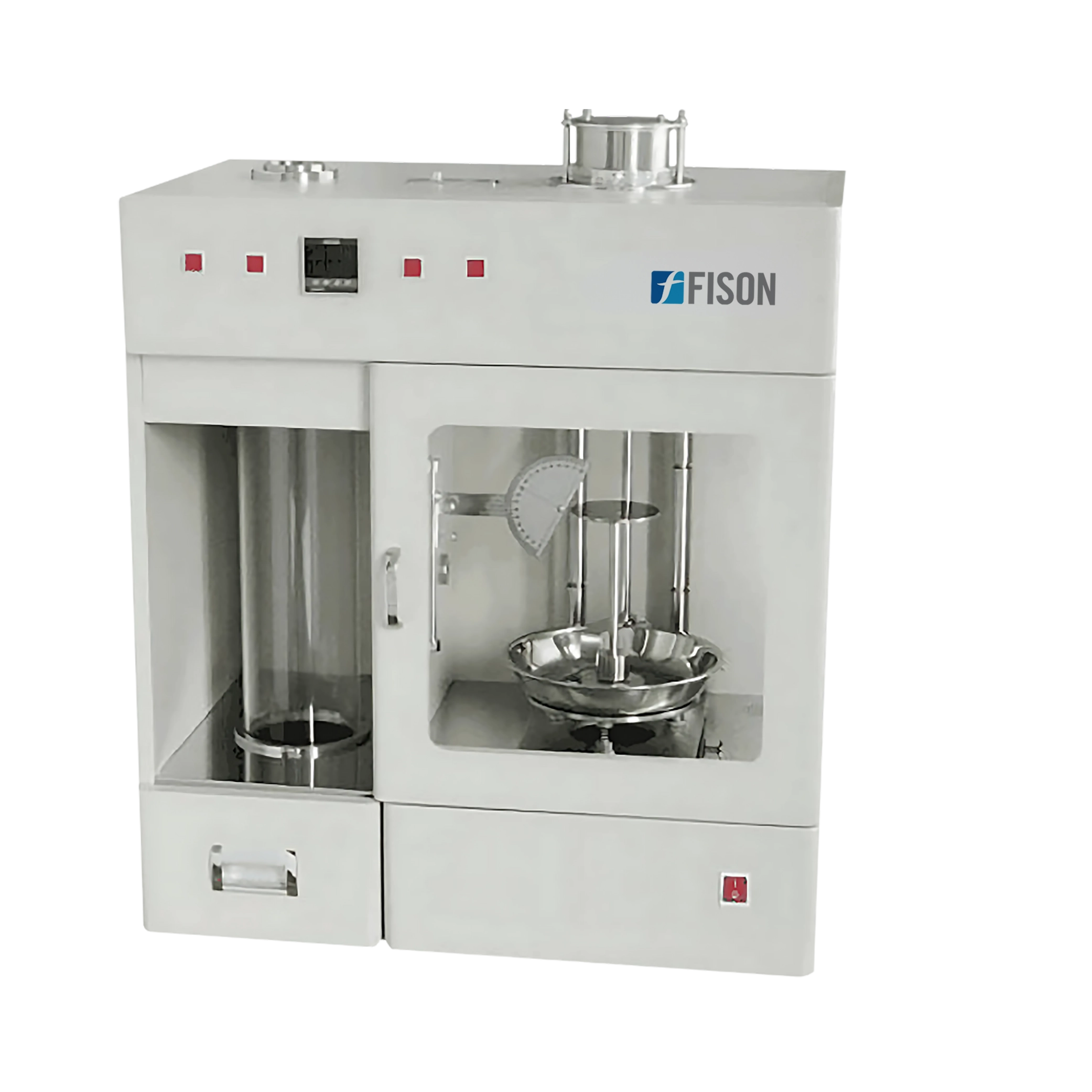

Powder characteristic machine FM-PCM-A101 is a stand-alone multi-functional unit for comprehensive measurement of physical properties of the free flowing or static powder. It measures flowability, tap and bulk density, angle of repose, collapse, difference, compressibility and other characteristics of a powder sample. With good repeatability rate and guaranteed accuracy of each test, it finds application in packaging, production, quality testing and research analysis across Food & Drug, Chemicals & Dyes, Pharmaceutical, and Life science industries.
| Damping Pad | Stainless Steel (diameter of 12 mm) |
| Damping Pad Thickness | 1 mm, 2 mm, 500 mm |
| Silicon pad | 70 × 2 mm |
| Measurement Cylinders | 25 ml (1 pc), 50 ml (1 pc), 100 ml (2 pcs) |
| Angle of repose, crash angle sample table washer | Made up of Polyurethane |
| Power Supply | 250 V, 10 A, 60 Hz |
| Fuse | 5 × 20 mm |
| Dimension Package 01 | 700 × 350 × 850 mm |
| Gross weight | 460 × 220 × 400 mm |
Powder characteristic machine is used for quality testing of powder across production, processing, packaging, transportation system in pharmaceutical, food, minerology, metallurgy, cosmetics, construction material fields and others.
| Test name | Details |
|---|---|
| Tap Density, Bulk Density, Angle of Collapse, Angle of Repose, Flat Angle, Dispersion Test Method | They are in accordance with ASTM D6393-99 Standard (Carl Index) |
| Hall Flow Meter | Measures fluidity of metal powders which can flow through funnel with pore size of 2.5 mm |
| Void ratio | Based on particle shape, structure, and diameter of the particle present in powder void ratio is calculated. Spherical particles: 40% void ratio. Ultrafine or Irregular particles: 70-80% or higher |
| Agglutination degree | Amount of mutual cohesion shown by the particles present on surface of powder. Dry powder: small degree of agglutination |
| Uniformity | In a failed attempt to measure agglutination of powder the test of uniformity confirms the amount of cohesive force of the powder |
| Liquidity index | Is sum total of angle of repose, plate angle, compression, uniformity, and agglutination |
| Jet index | Measures difficulty of dust generation and difficulty of liquefaction of powders |
| Accessories no. | Accessories Name | Details |
|---|---|---|
| 1 | Angle of response sample table | Stainless steel (1 pc) |
| 2 | Angle of repose funnel | Stainless steel (1 pc) |
| 3 | Naturally stacked bulk density output funnel | Stainless steel (1 pc) |
| 4 | Brush | (3 pcs) |
| 5 | Metal powder bulk density output funnel | Stainless steel (2 pcs) |
| 6 | Bulk density positioning table | Stainless steel (1 pc) |
| 7 | Tap density vibration component | (1 pc) |
| 9 | Overflow tray | Stainless steel (1 pc) |
| 10 | Dispersion tray | (1 pc) |
| 11 | Blocking rod | Stainless steel (1 pc) |
| 12 | Bulk density measuring cup (2 for 100 ml, 1 for 25 ml) | Stainless steel (3 pcs) |
| 13 | Heavy hammer | Stainless steel (1 pc) |
| 14 | Sample spoon | Stainless steel (2 pcs) |
