Shaking Incubator FM-IS-A104 Shaking Incubator FM-IS-A104 Shaking Incubator FM-IS-A104

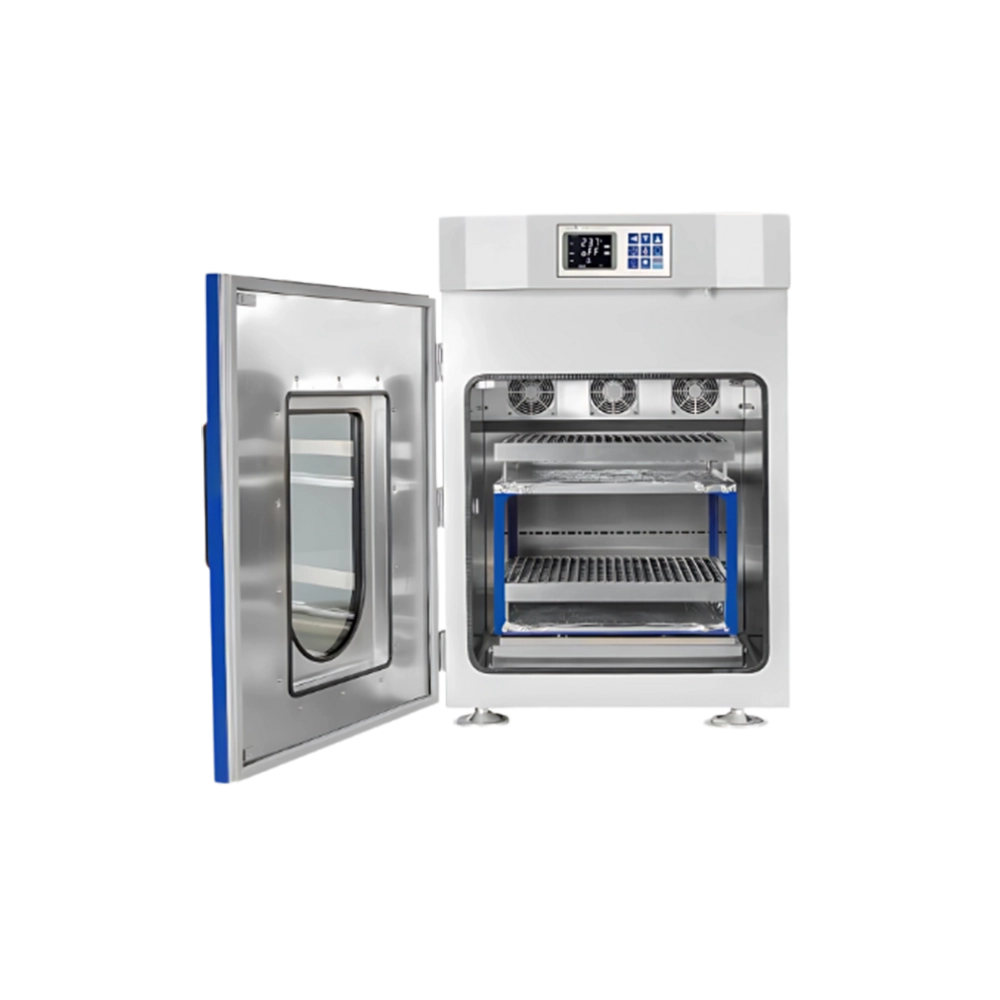

Shaking Incubator FM-IS-A104

Shaking Incubator FM-IS-A104 has a maximum loading capacity of 35 kg for large volumes of samples safely and efficiently. Its durable flask clamp secures and stabilizes the holding of vessels during shaking. The vibration-free stacking feature allows multiple units to be stacked without affecting the shaking or incubation process. Our incubator shaker operates with a quiet machine, minimizing noise levels in the lab.

Download Catalog

Specifications

Total Volume 310 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 35 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Maximum Power Consumption 1300 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 500 × 500 mm
Tray Capacity for Shake Flasks 25 × 250 ml; 16 × 500 ml; 9 × 1000 ml
Dimensions (W × D × H) 710 × 776 × 1080 mm
Internal Dimensions (W × D × H) 680 × 640 × 692 mm
Weight 170 kg

Features

  1. Easy flask placement
  2. Aluminum sliding tray
  3. Heatless waterproof fan
  4. Energy-saving incubator fan
  5. Uniform temperature control

Applications

  • Shaking Incubator FM-IS-A104 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Accessories Optional

  • Removable Shake Tray
    125 mL Flask Clamp
    250 mL Flask Clamp
    500 mL Flask Clamp
    1000 mL Flask Clamp
    2000 mL Flask Clamp
    Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
    Adjustable Angle Test Tube Rack (15 mL×60)
    Adjustable Angle Test Tube Rack (50 mL×30)

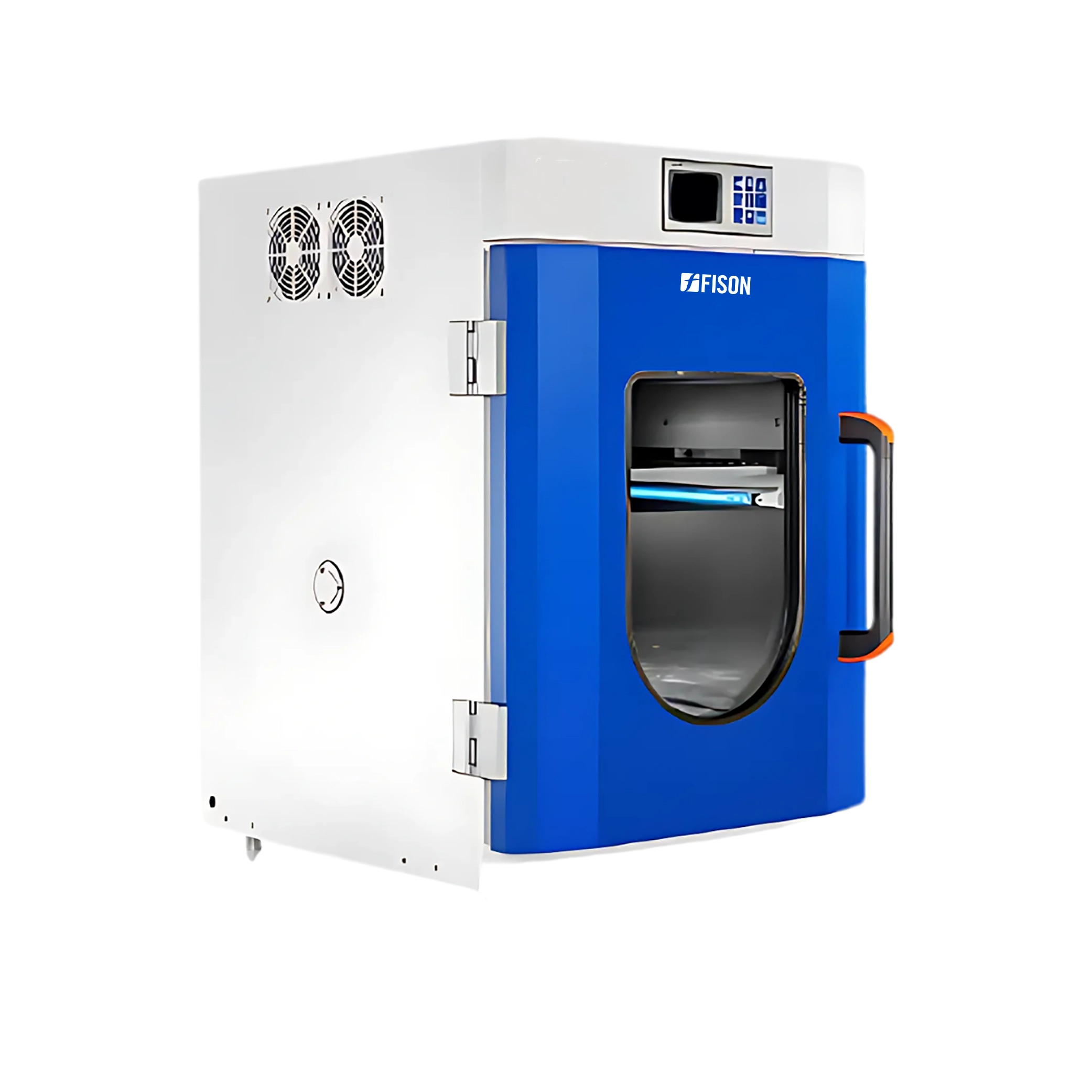

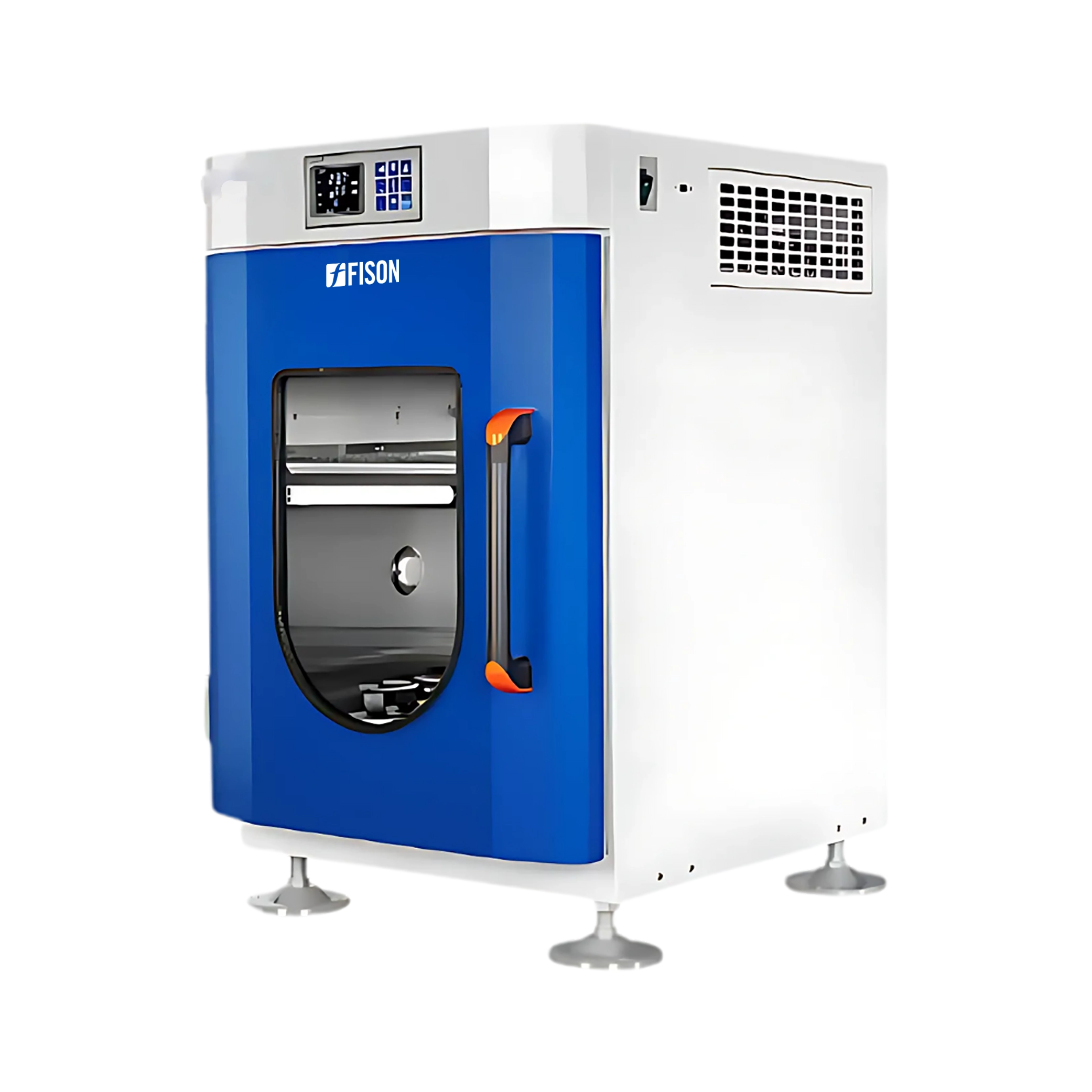

Alternative Models Of Shaking Incubator

Fison Shaking Incubator has an integrated digital speed monitor that allows precise control over shaking speeds and consistent sample agitation. The incubator optimizes dark culture capabilities for sensitive biological cultures that require low-light exposure. The incubator's vibration-free stacking feature enables the stacking of multiple units without disrupting the shaking or incubation process. They feature a balanced oscillation system that requires uniform and consistent shaking, essential for optimal sample mixing and culture growth. Our shaking incubator protects photosensitive media from degradation, ensuring accurate and reliable results.
