Shaking Incubator FM-IS-A108 Shaking Incubator FM-IS-A108

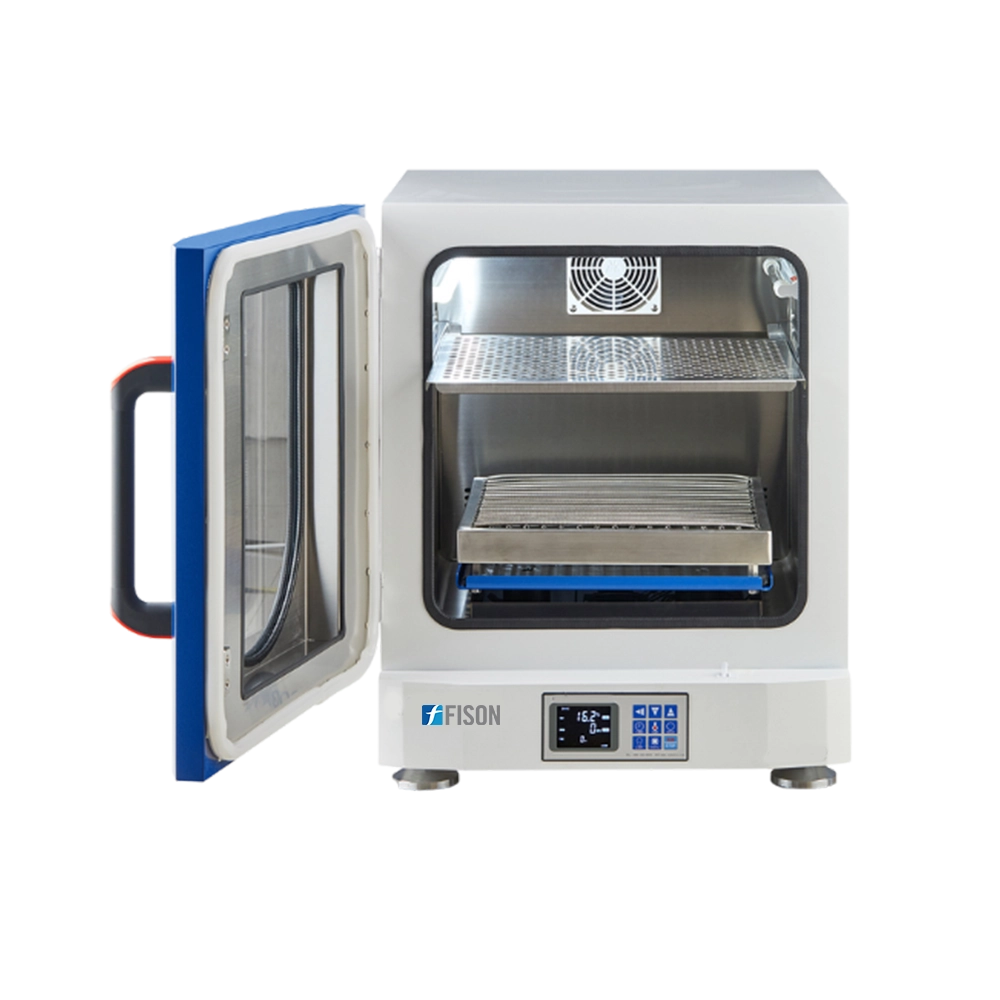

Shaking Incubator FM-IS-A108

Shaking Incubator FM-IS-A108 delivers optimal performance with a rotation speed range of 2 to 300 rpm, depending on the load and stacking configuration. This ensures efficient sample mixing while accommodating varying volumes. The unit features rust-resistant stainless steel, offering long-lasting reliability and corrosion resistance. Our shaker is equipped with a UV radiation blocker, protecting samples from harmful UV exposure.

Download Catalog

Specifications

Total Volume 86 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 35 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours

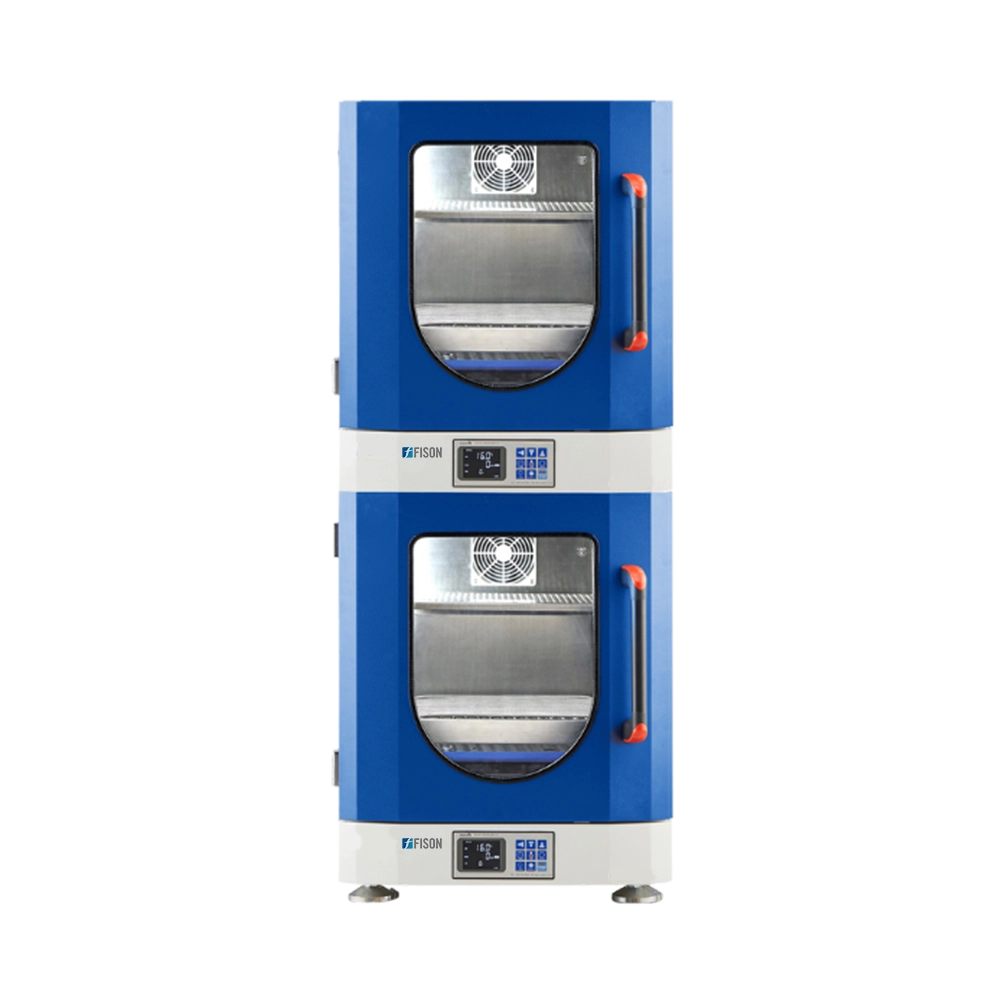

Maximum Stackable Units Up to 2 units
Maximum Power Consumption 800 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 370 × 400 mm
Tray Capacity for Shake Flasks 16 × 250 ml or 11 × 500 ml or 7 × 1000 ml or 5 × 2000 ml
Dimensions (W × D × H) 550 × 676 × 700mm 550 × 676 × 1350mm
Internal Dimensions (W × D × H) 460 × 480 × 500 mm
Weight 75 kg

Features

  1. Enhanced user safety
  2. Efficient dark culture
  3. Long-lasting machine life
  4. Minimal background heat
  5. Energy-efficient incubation

Applications

  • Shaking Incubator FM-IS-A108 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Accessories Optional

  • Removable Shake Tray
    125 mL Flask Clamp
    250 mL Flask Clamp
    500 mL Flask Clamp
    1000 mL Flask Clamp
    2000 mL Flask Clamp
    Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
    Adjustable Angle Test Tube Rack (15 mL×60)
    Adjustable Angle Test Tube Rack (50 mL×30)

Alternative Models Of Shaking Incubator

Fison Shaking Incubator has an integrated digital speed monitor that allows precise control over shaking speeds and consistent sample agitation. The incubator optimizes dark culture capabilities for sensitive biological cultures that require low-light exposure. The incubator's vibration-free stacking feature enables the stacking of multiple units without disrupting the shaking or incubation process. They feature a balanced oscillation system that requires uniform and consistent shaking, essential for optimal sample mixing and culture growth. Our shaking incubator protects photosensitive media from degradation, ensuring accurate and reliable results.
