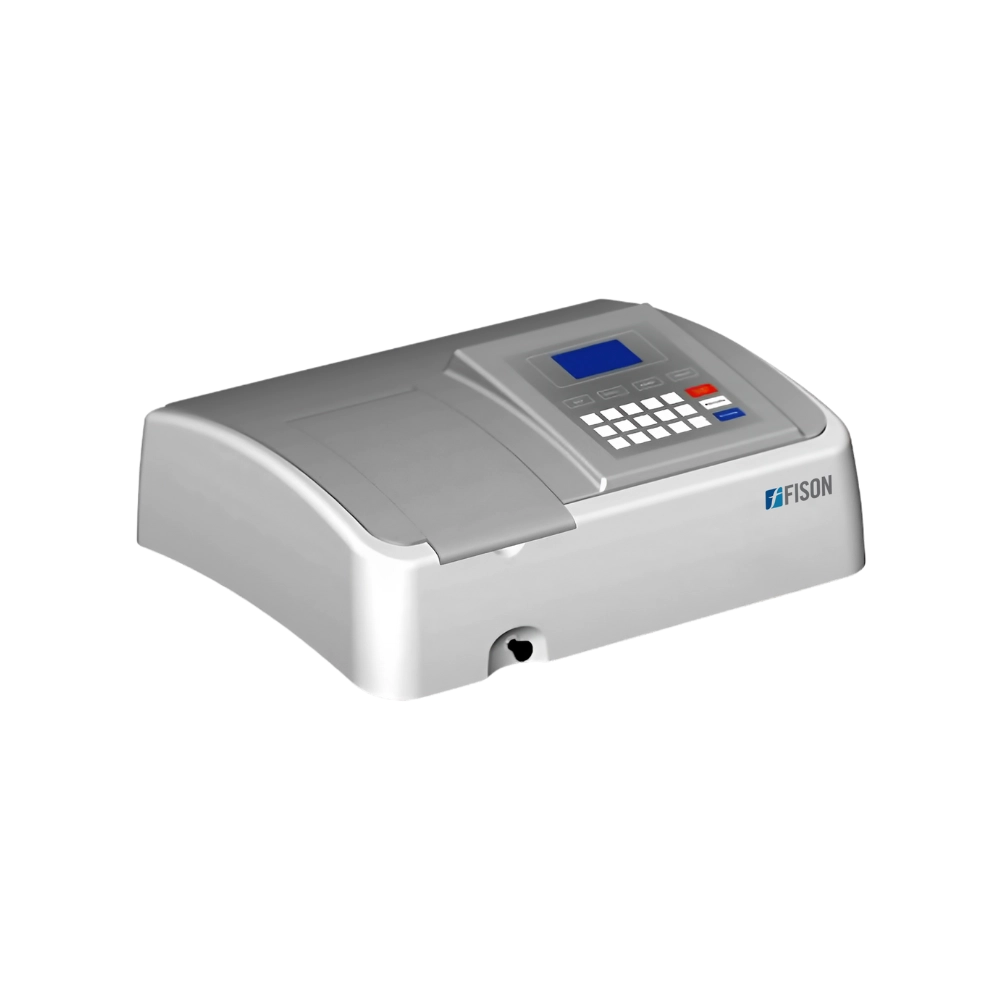

Single Beam UV-Visible Spectrophotometer FM-UVS-A102 offers a wavelength range from 190 to 1100 nm. It is controlled by a single-chip microcomputer for reliable operation. It provides a large memory capacity for storing multiple sets of data and supports automatic wavelength adjustment for accurate measurements. The equipment features a large LCD display for clear and easy viewing and allows multi-group data display to enhance efficiency and convenience.
$3,690.00
| Wavelength range | 190 nm to 1100 nm |
| Wavelength Adjustment | Automatic |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Reproducibility | ≤0.2 nm |
| Spectral Bandwidth | 4 nm |
| Photometric Range | –0.3 to 3 A |
| Display | 128×64 LCD screen |
| Transmittance Accuracy | ±0.3%T |
| Transmittance Reproducibility | 0.15%T |
| Light Source | Imported deuterium lamp and tungsten lamp |
| Stray Light | ≤0.05%T (220 nm NaI, 340 nm NaNO2) |
| Photometric Modes | Transmittance, Absorbance, Concentration, Energy |
| Stability | 0.001 A/h (at 500 nm after warm-up) |
| Detector | Imported silicon photodiode |
| Power Consumption | 120 W |
| Power Supply | AC 220V/50Hz or 110V/60Hz |
| Dimensions | 480 × 350 × 220 mm |
| Net Weight | 15 kg |
Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.
