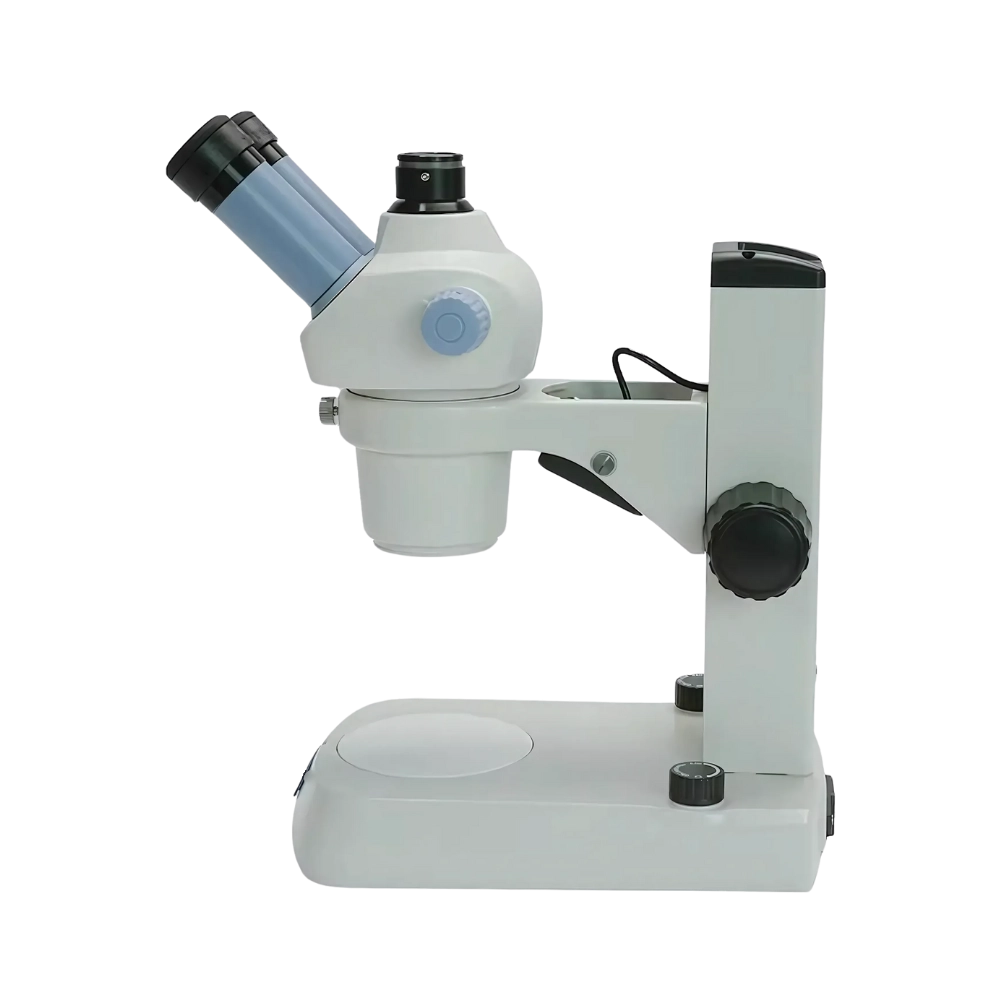

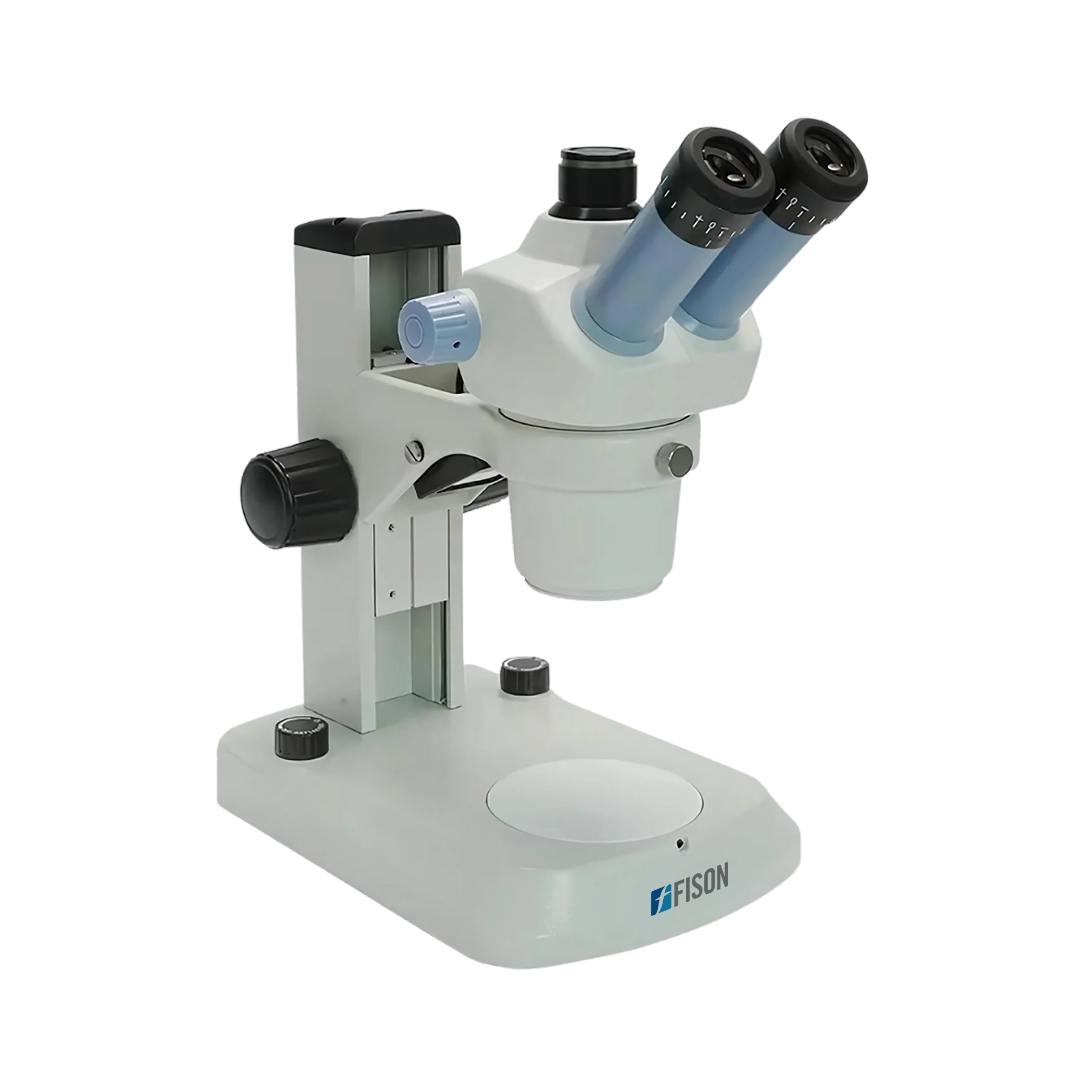

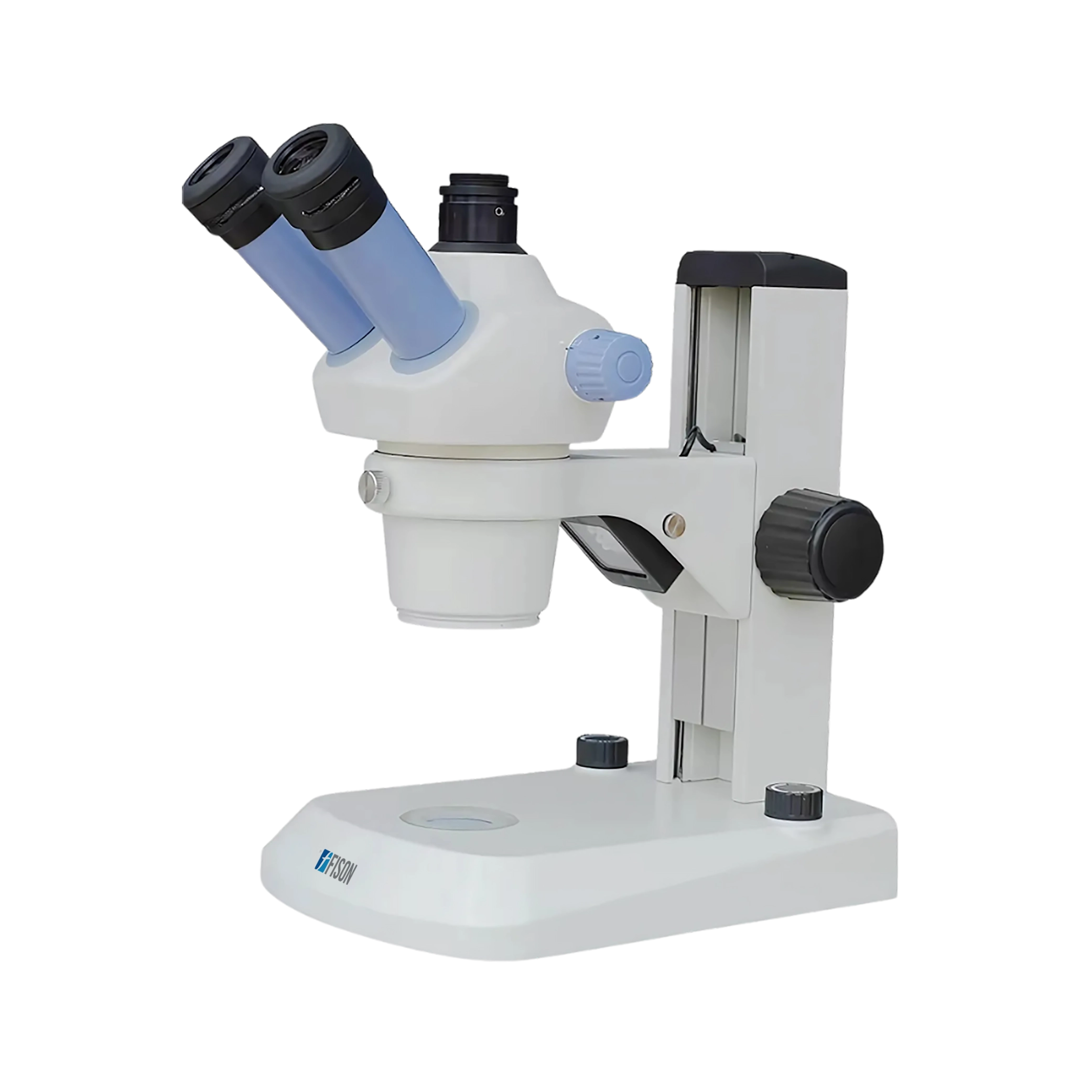

Fison Stereo Microscope FM-SM-A100 features a Greenough zoom optical system with 10× to 45× magnification and a 4.5:1 zoom ratio for detailed specimen observation. Equipped with a 45° inclined 360° rotatable binocular viewing head, 97 mm working distance, dual LED illumination, and a fixed-arm focusing mechanism, it provides clear imaging and convenient operation for laboratory examination.
$1,512.00
| Optical system | Greenough zoom optical system |
| Viewing Head | 45° inclined and 360° rotable binocular viewing head, interpupillary distance 54-76 mm |
| Eyepieces | EW 10X/20 mm with diopter adjustment |
| Objectives | Zoom Objective 1x - 4.5x, Standard 1x objective |
| Zoom Magnification | 10 x to 45 x |
| Zoom ratio | 4.5:1 |
| Working distance | 97 mm |
| Stand | Fixed arm type with focusing mechanism |
| Focusing | Rack and pinion controlled by a pair of knobs placed on both sides of the stand |
| Stage base | Clear glass plate diameter 95 mm |
| Illumination | 2 high efficiency LED light source for Incident and transmitted light illumination simultaneously, Angle of incident illumination is adjustable |
| Diemsnion (W×D×H) | 185 × 262 × 315 mm |
| Weight | 4.5 kg |
| Power supply | AC 110/ 240 V |
Stereo Microscope FM-SM-A100 suitable for magnified observation of specimens and samples in medical, life science, mineralogy, gemology, research laboratories, and industrial inspection applications
| Accessories No. | Name |
| 1 | Eyepiece EW10X/ 20 mm |
| 2 | 10 X Eyepiece with cross hair |
| 3 | Binocular 60° viewing head, zoom objectives 0.7-3X, Zoom Ratio 1:4:3 |
| 4 | Auxiliary plan objective 2X, 30 mm |
| 5 | Auxiliary plan objective 0.75X, 120 mm |
| 6 | Auxiliary plan objective 0.63X, 137 mm |
| 7 | Auxiliary plan objective 0.5X, 180 mm |
| 8 | 1X C mount |
| 9 | 0.5X C mount |
| 10 | 7X photo Adapter |
| 11 | Polarization set |
| 12 | Dark field set |
| 13 | Moveable stage |
| 14 | Temperature controlled stage |
| 15 | Cold light illumination |
Fison Stereo Microscopes provide clear, three-dimensional visualization for detailed specimen observation and surface inspection. Available with Greenough and parallel optical systems, these microscopes feature binocular or trinocular viewing heads, adjustable zoom objectives, widefield eyepieces, and ergonomic designs for comfortable operation. Selected models include integrated digital cameras with HDMI output for image capture and documentation, supporting precise examination with sharp image quality and flexible viewing options.
