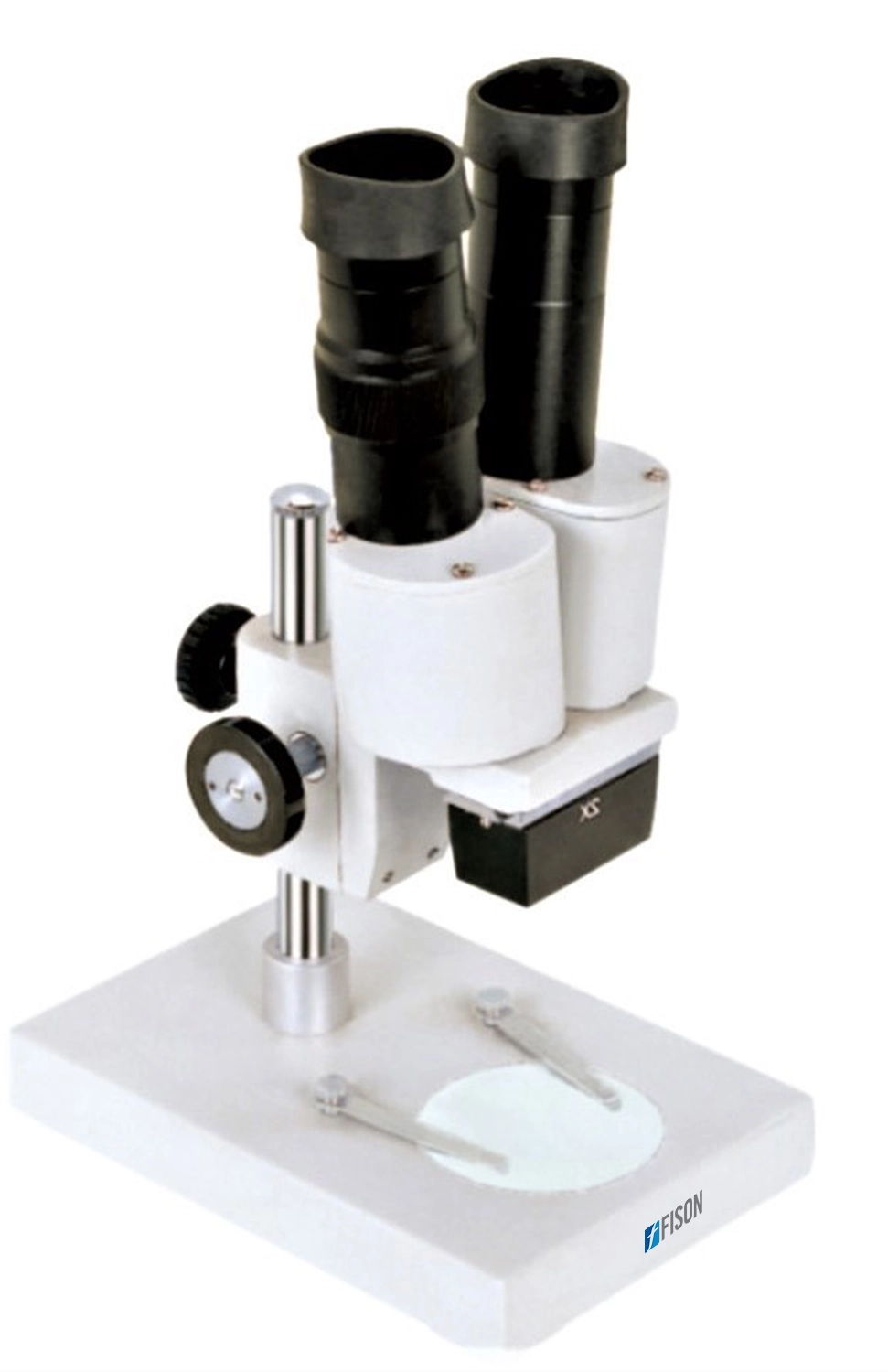

Stereo Microscope FM-SM-A300
Stereo Microscope FM-SM-A300 is an upright viewing educational plastic student microscope which gives sharp stereo erect image over wide field view. Fitted out with pair of optical glass widefield 10X eyepiece and two AA batteries. This microscope is specially designed to be portable and suitable to field sites. Widely used in electric factories, laboratories, schools, sculpture and families.
Specifications
| Main body | Sharp stereo erect image over wide field view |
| Optical system | Greenough system |
| Viewing head | Straight viewing 90° Upright head and rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm |
| Widefield eyepiece | WF 10 X / 20 mm |
| Objective | Standard 2X objective |
| Working distance | 80 mm |
| Working board material | White and black board |
| Base size | 115 × 170 mm |
| Stand style | Pillar stand |
| Focusing | Coarse focusing knob |
| Illumination | Nil |
| Power supply | 110 V, 220 V / 10 W |
| Dimension (W× L × H) | 115 × 170 × 230 mm |
| Net weight | 1.3 kg |
| Gross weight | 1.75 kg |
Features
- Upright binocular viewing head
- Straight viewing body with 90° ocular angle
- Optical system with 2X standard lens
- Working distance of 80 mm
- Adjustable interpupillary distance (55 mm - 75 mm)
- Left ocular-tube with dioptre adjustment ± 5 dp
- Locked on stage clips for specimen holding
Applications
- It has applications in geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools.
Accessories Optional
Accessories no. Name 1. Eyepiece WF 5 X 2. Eyepiece WF 15 X 3. Eyepiece WF 20 X 4. Objective 1 X , 3 X , 4 X , 6 X 5. Auxiliary plan objective of 1 X and 2 X 6. Auxiliary plan objective of 1 X and 3 X
