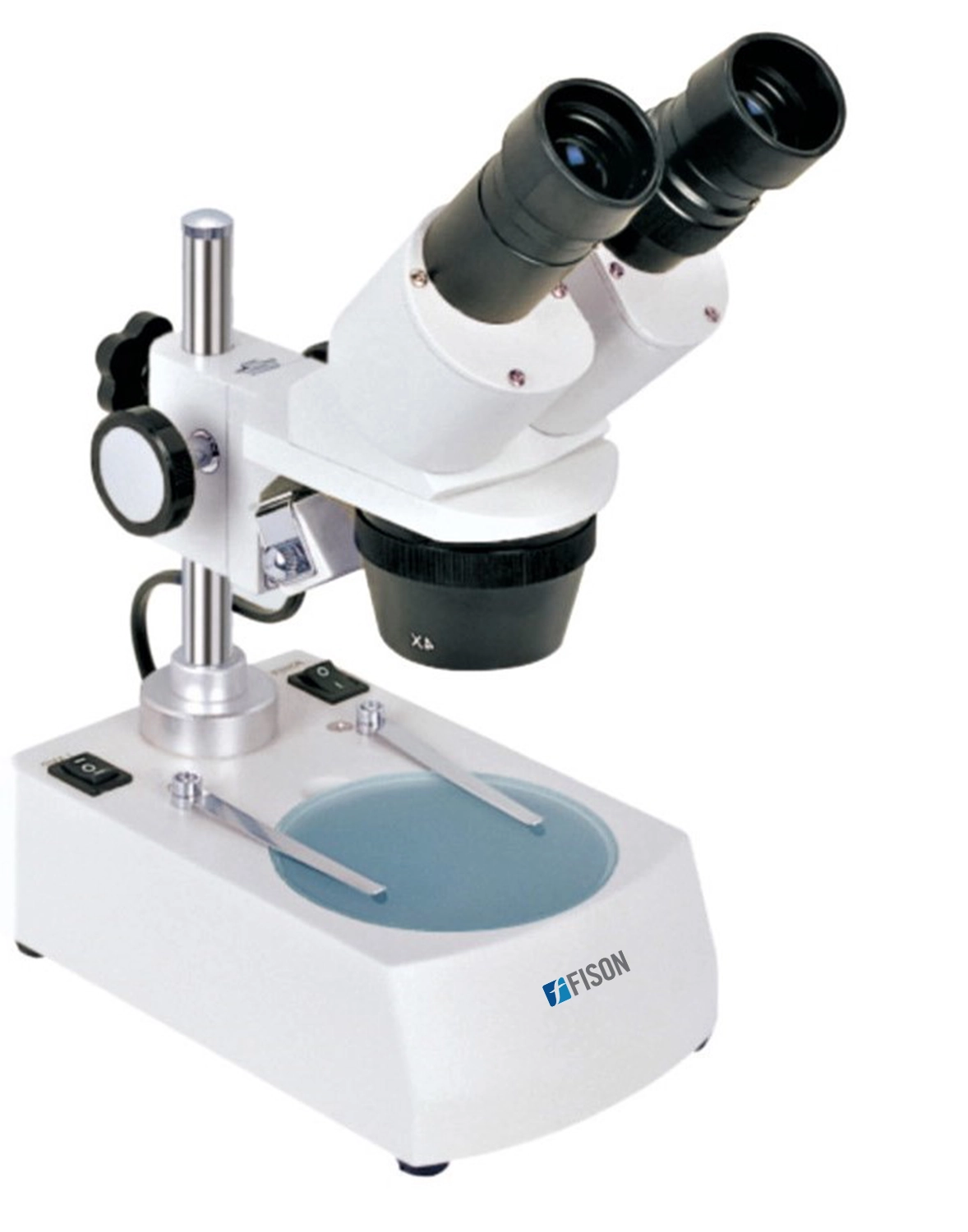

Stereo Microscope FM-SM-A302
Stereo Microscope FM-SM-A302 is forward facing binocular stereo microscope that has both top and bottom LED illumination system. It is designed for indoor and outdoor applications, powered through an outlet or by batteries. Armed with 10 X magnification power, 90° Ocular-tube and adjustable dioptre gives sharp clear stereo images. Optical system with 2X and 4X lens provides high quality original true colour.
Specifications
| Main body | Sharp stereo erect image over wide field view |
| Optical system | Greenough system |
| Viewing head | Binocular 45° inclined head and 90° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm |
| Widefield eyepiece | WF10 X / 20 mm |
| Objective | Standard 2 X and 4 X objective |
| Working distance | 57 mm |
| Working board material | Glass board |
| Base size | 115 × 170 mm |
| Stand style | Pillar stand |
| Focusing | Coarse focusing knob |
| Illumination | LED Incident and Transmitted light , 12 V / 10 W |
| Power supply | 110 V, 220 V / 10 W |
| Dimension (W× L × H) | 115 × 170 × 230 mm |
| Net weight | 2.4 kg |
| Gross weight | 2.75 kg |
Features
- Widefield binocular head with 45° inclined body
- Forward viewing with 90° rotational body
- Optical system with 2X and 4X standard lens
- Transmitted and incident LED illumination with intensity control and on/off switch for each light
- Working distance of 57 mm
- Durable all metal framework pillar stand
- Adjustable Interpupillary Distance (55 mm - 75 mm)
- Left ocular-tube with dioptre adjustment ± 5 dp
- Locked on stage clips for specimen holding
Applications
- It has applications in geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools.
Accessories Optional
Accessories no. Name 1. Eyepiece WF 5 X 2. Eyepiece WF 15 X 3. Eyepiece WF 20 X 4. Objective 1 X , 3 X , 4 X , 6 X 5. Auxiliary plan objective of 1 X and 2 X 6. Auxiliary plan objective of 1 X and 3 X
