$3,787.00

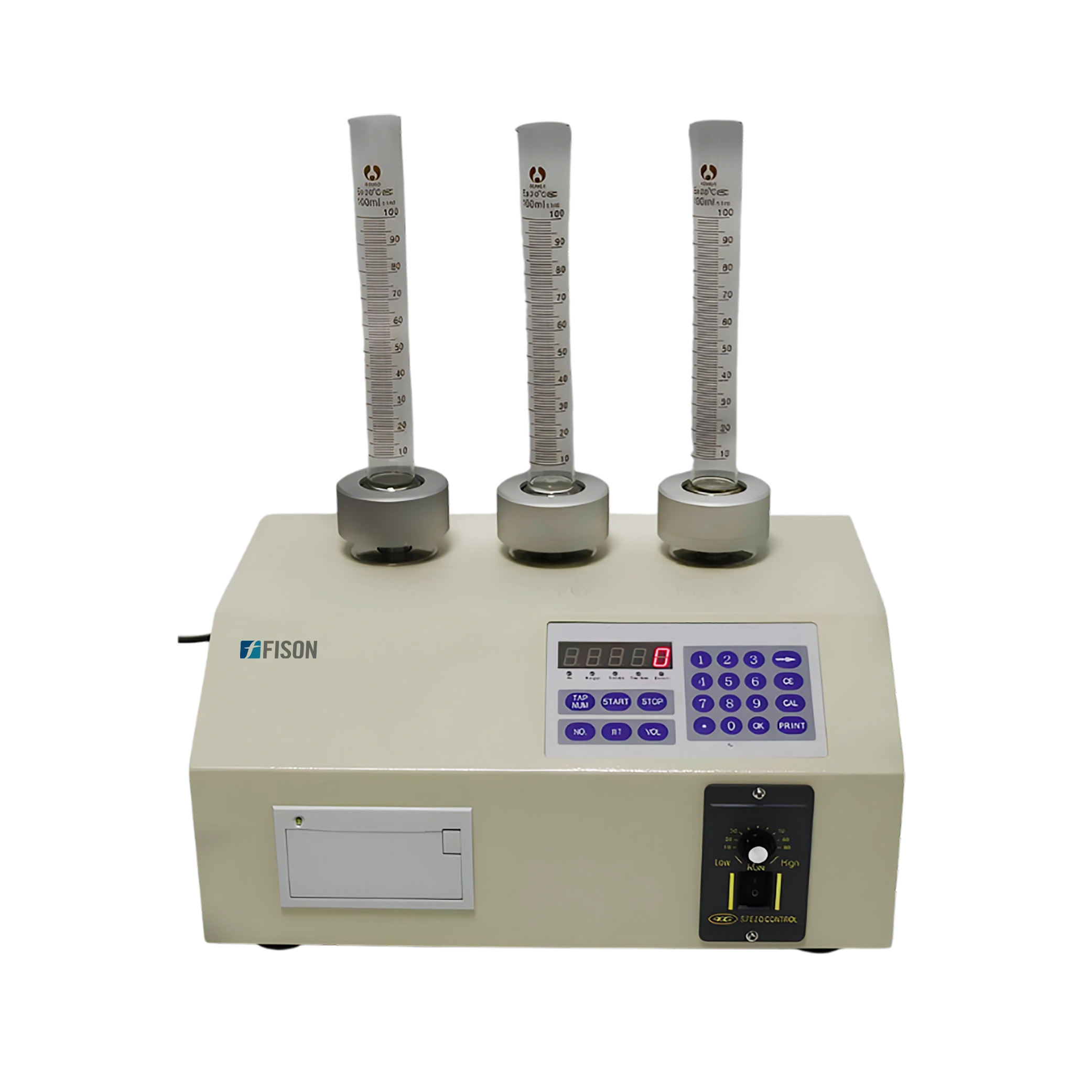

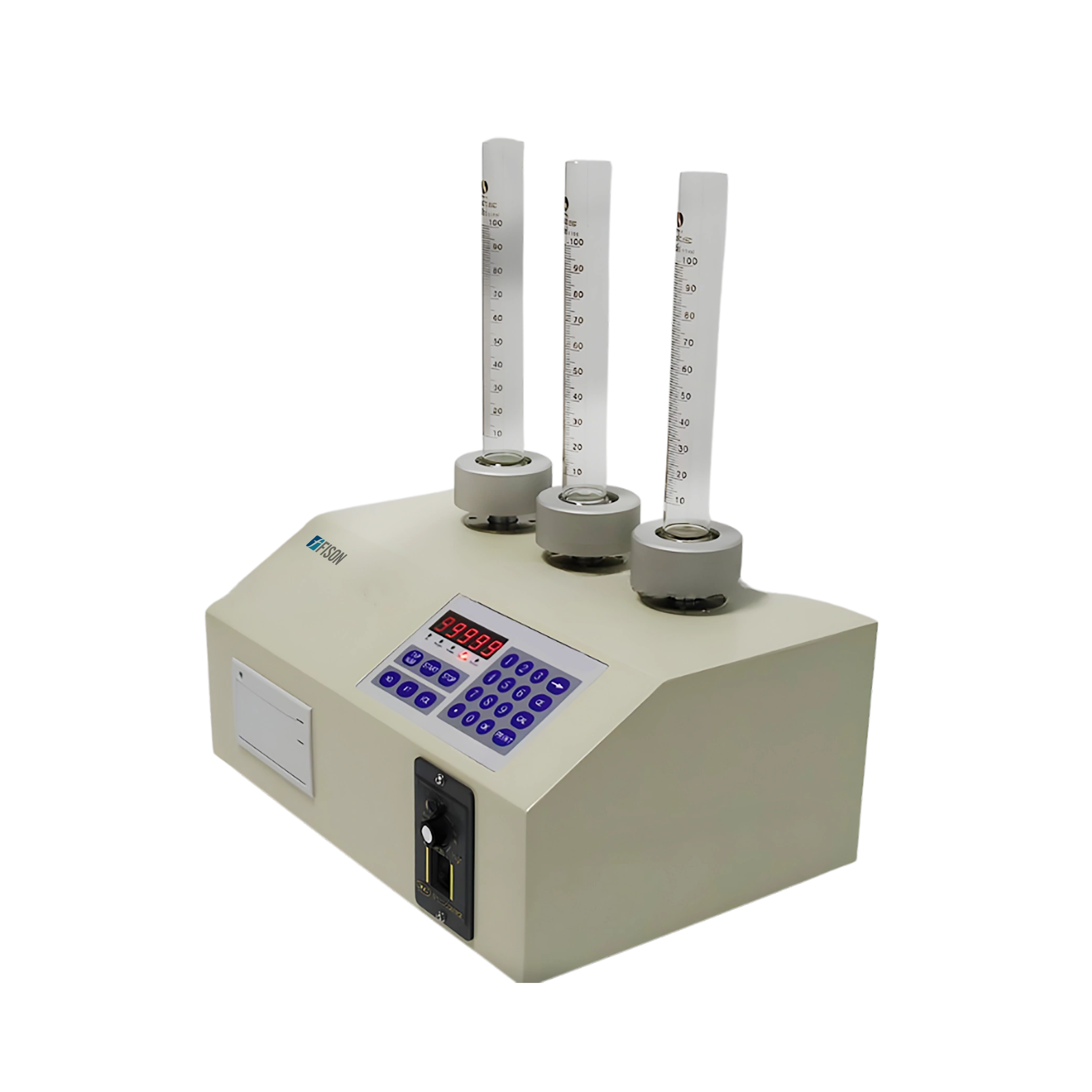

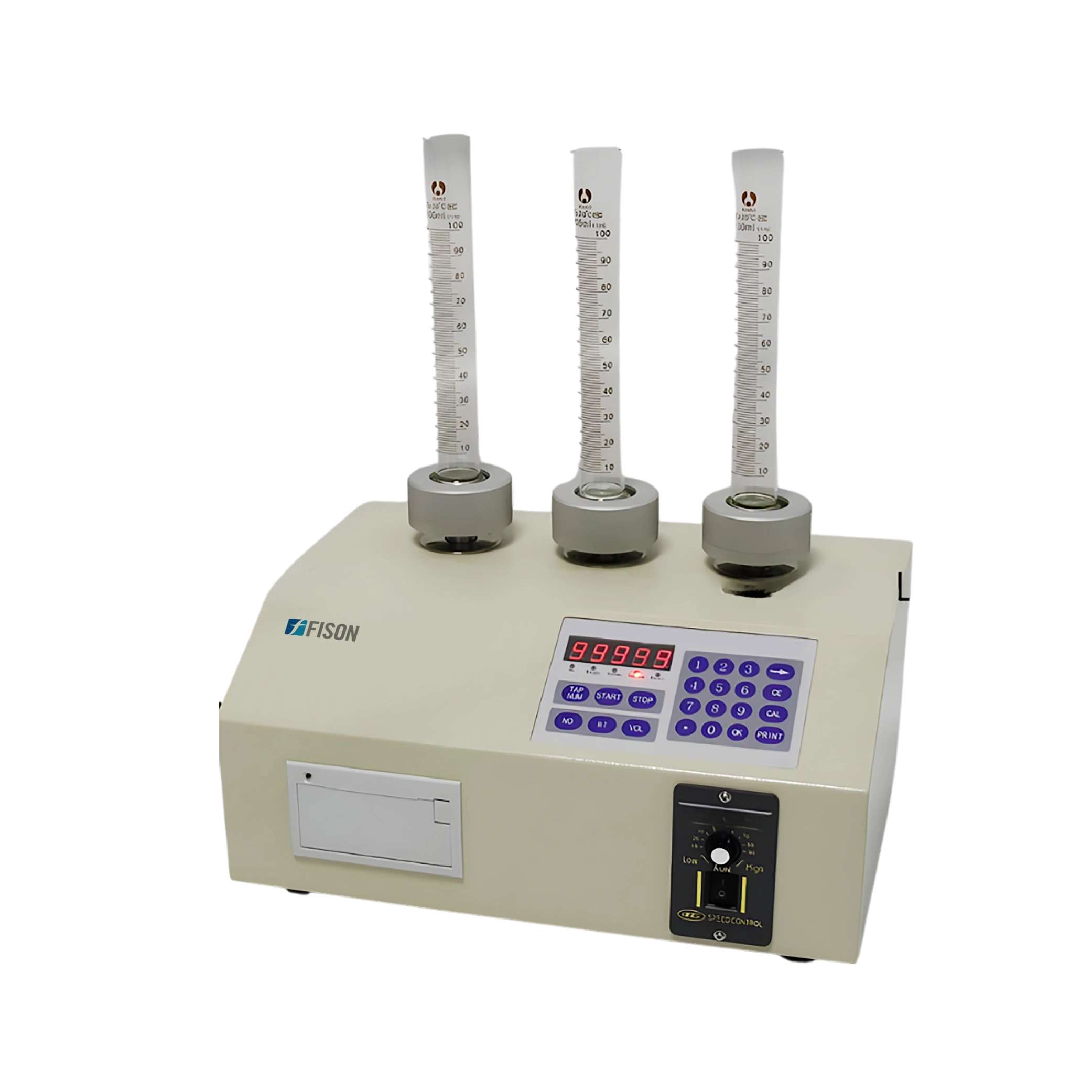

Tap Density Tester FM-TDM-A102 - Specifications

Work station	3
Sample volume	≤ 100 ml
Sample weight	≤ 500 g
Number of Tapping	0 to 99999 (set 0 to output bulk density)
Frequency	300 rpm (continuous adjustable in 0 to 300 rpm)
Amplitude	Maximum 15 mm ( 1 to 15 mm integer variable)
Stroke height	Stroke height 3 mm
Strokes/ min	250 strokes/ min
Display	LED display
Repeatability	≤ 1 %
Accuracy	≤ 1 %
Humidity	≤ 85 % RH
Motor torque	0.86 N. m
Power	40 W
Power supply	AC 220 V± 10 %, 50 Hz

Tap Density Tester FM-TDM-A102 - Features

1. Test figure accuracy up to 4 decimal places
2. Stores test data in shut down mode
3. Highly advanced result interpretation
4. Built-in printer to print test report
5. Measures Hausner Ratio (TD/BD), Compressibility Index (TD-BD/TD × 100)
6. No need to adjust an integer
7. Automatically saves test result

Tap Density Tester FM-TDM-A102 - Applications

• Tap Density Tester FM‑TDM‑A102 features three stations for simultaneous powder testing, compliant with USP I & II methods. It calculates tapped density, bulk density. It widely used in pharmacy, food, and life science industries for production, packaging, and quality control.

Tap Density Tester FM-TDM-A102 - Complied Work Standards

• Sr. No.	Standards
  1	ISO 3953: Metallic powder determination of tap density
  2	USP Tapped Density Method II
  3	USP Tapped Density Method I
  4	ASTM B 527
  5	DIN ISO EN 787/11
  6	EP 2.9.15

Tap Density Tester FM-TDM-A102 - Accessories

• Accessories no.	Name	Details	Qty.
  1	Washer	Polyurethane	6
  2	Glass measuring cup	25 ml	2
  3	Glass measuring cup	50 ml	2
  4	Glass measuring cup	100 ml	2
  5	Damping washer	1 mm thickness	4
  6	Damping washer	2 mm thickness	4
  7	Damping washer	5 mm thickness	4
  8	Power cable	250 V, 10 A	1
  9	Fuse	5 × 20 mm, 1 A	5
  10	Silicone gasket	70 × 2 mm	2
  11	Tum brush		1
