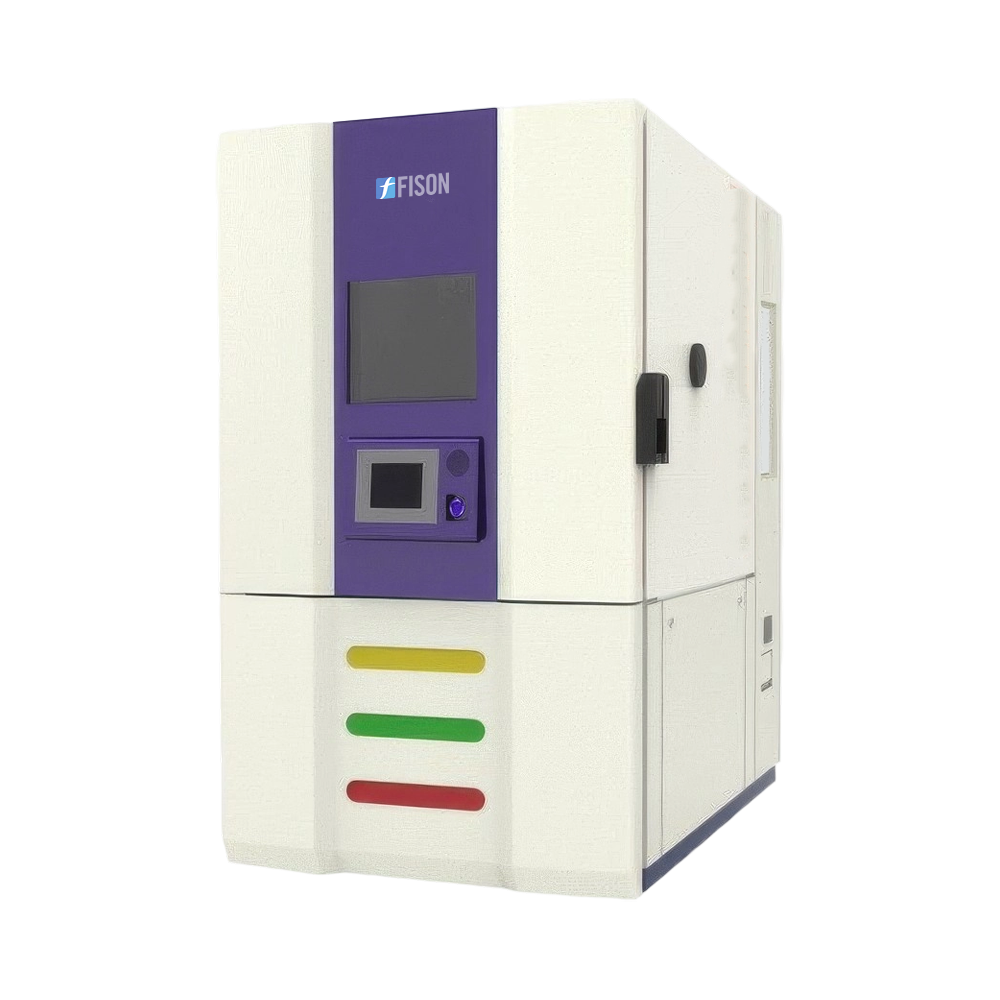

Fison Temperature Test Chamber FM-TTC-A100 comes with an 80L capacity, accommodating specimens up to 5 kg, and operates across a -40 to 180°C temperature range. An eco-friendly refrigeration system delivers heating and cooling rates of 3.3°C per minute and 3.0°C per minute, supported by patented air circulation for consistent conditions throughout the test space. A 7-inch touchscreen handles control and monitoring, while Ethernet and USB ports plus four programmable power outlets allow connection and synchronization with external devices. The chamber includes stainless steel shelves, silicon stoppers for entry ports, and left and right entry ports of 50mm for specimen wiring access.
$15,711.00
| Capacity | 80L |
| Temperature Range | -40 to +180 °C |
| Max. Specimen Weight | 5 kg |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 3.3 °C/min |
| Cooling Rate | 3.0 °C/min |
| Cooling Methods | Air-cooled/Water-cooled |
| Test Space Dimension (W × D × H) | 400 × 400 × 500 mm |
| External Dimension (W × D × H) | 650 × 1000 × 1750 mm |
| Net weight | 600 kg |
| Gross weight | 660 kg |
Temperature Test Chamber FM-TTC-A100 is designed to simulate extreme temperature conditions for environmental testing, product validation, and reliability assessment. It is widely used in pharmaceutical and biotechnology laboratories, materials science, aerospace, automotive, electronics, and semiconductor industries to evaluate the performance and durability of materials and components under controlled temperature conditions.
2 Silicon stoppers for entry ports
2 Stainless steel shelves
3 Power outlets for specimens
Left and right entry ports Φ50mm
Fison Temperature Test Chambers provide controlled temperature testing from -40°C to +180°C for product evaluation and quality testing applications. Available in capacities from 80 L to 1000 L, they accommodate specimen loads up to 100 kg and maintain temperature constancy of ±0.1 to ±0.5°C for consistent results. The chambers feature rapid heating and cooling, uniform temperature distribution, a touchscreen controller, Ethernet and USB connectivity, and programmable power outlets for convenient operation and monitoring.
