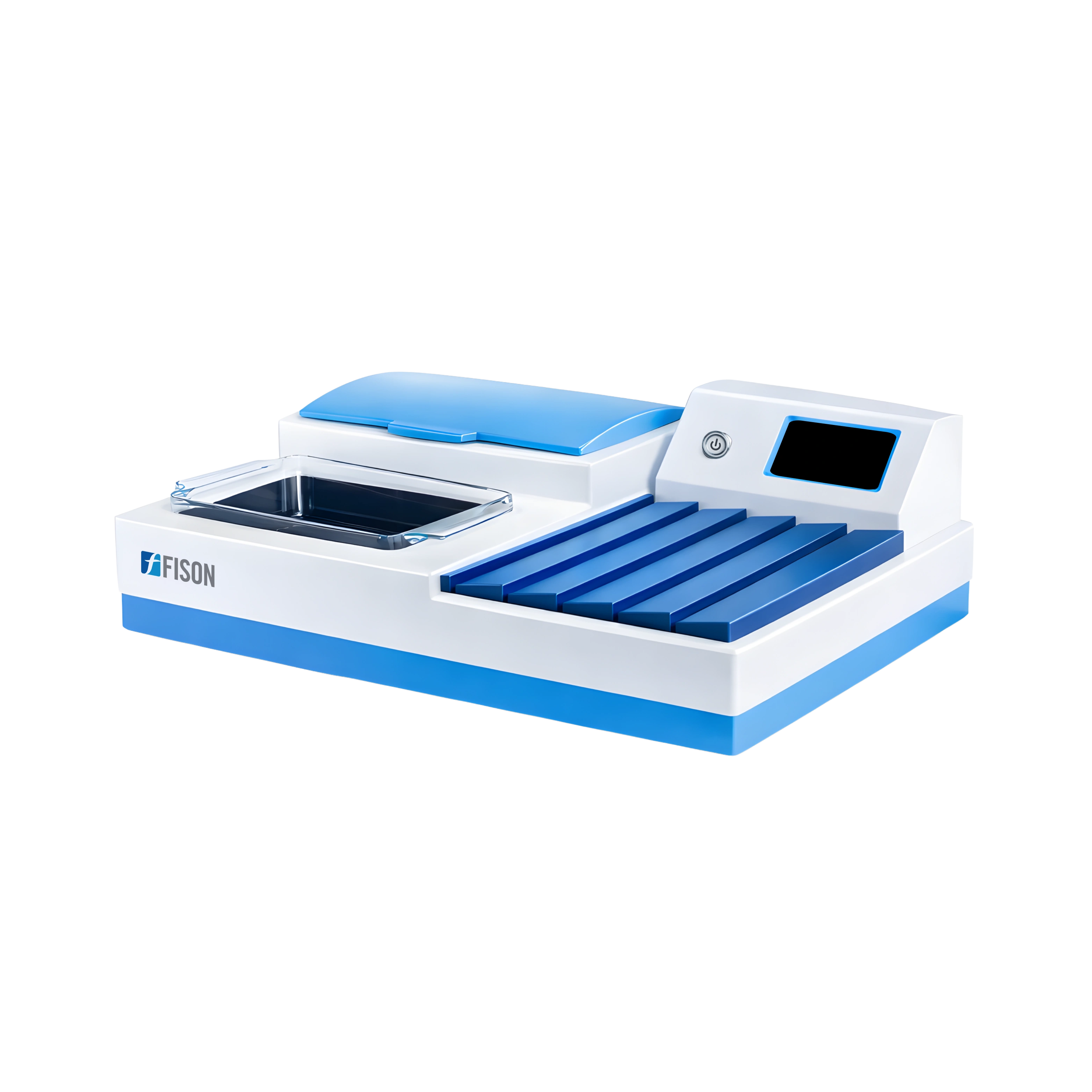

Tissue Flotation Workstation FM-TFW-A100 is an integrated unit comprised of a floating water bath, slide dryer, and oven, which comes with 0 to 99°C of temperature range for each part. Features 2 L capacity of floating bath, 64 pcs slide capacity of slide dryer, and 3 staining racks for oven. Designed with a tempered glass floating water bath with double LED headlight and backlight, curved-shaped dryer working area, and an oven, each part can be operated individually. Equipped with a fast and stable heating system, has a timing switch on and off function with an alarm system and overheat protection function. Incorporated with a 4.3-inch touch screen display and a dual temperature protection system, prevents tissue damage, over-baking, drying, and undermining of tissue slides.
$3,025.00
| Parts | Flotation water bath, Slide dryer and Oven |
| Flotation water bath capacity | 2 L |
| Slide dryer capacity | 64 pcs |
| Oven capacity | 3 staining racks |
| Temperature range | 0 to 99°C |
| Floting water bath illumination | Double LED headlight and backlight |
| Display | 4.3 inch touch screen display |
| Temperature protection | Dual temperature protection system |
| Alarm system | Timing alarm system |
| Power supply | AC 100 to 240 V ± 10%, 50 ± 1 Hz |
| Power | 600 VA |
| Floatation water bath dimension ((L×W×H) | 212×168×55 mm |
| Dryer dimension (L×W×H) | 206×170×55 mm |
| Oven dimension (L×W×H) | 235×95×92 mm |
| External dimension (L×W×H) | 540×360×180 mm |
| Packaging dimension (L×W×H) | 620×450×270 mm |
| Net weight | 17 kg |
| Gross weight | 20 kg |
Tissue Floatation Workstation is used for stretching, drying and baking of tissues for easy preparation across histological, chemical, clinical, bacteriological laboratories etc.
Tissue Flotation Workstations are specialized laboratory equipment designed for handling paraffin–embedded tissue sections during the slide preparation process. These typically consist of a heated water bath that allows freshly cut tissue ribbons to be gently floated and unfolded before being mounted onto a glass slide. Our Tissue Flotation Workstation features precise temperature control, an anti-corrosive surface, and ergonomic design to ensure optimal visibility and user comfort. These workstations are essential for producing high-quality, artifact-free slides, making them indispensable tools in both clinical diagnostics and research laboratories.
