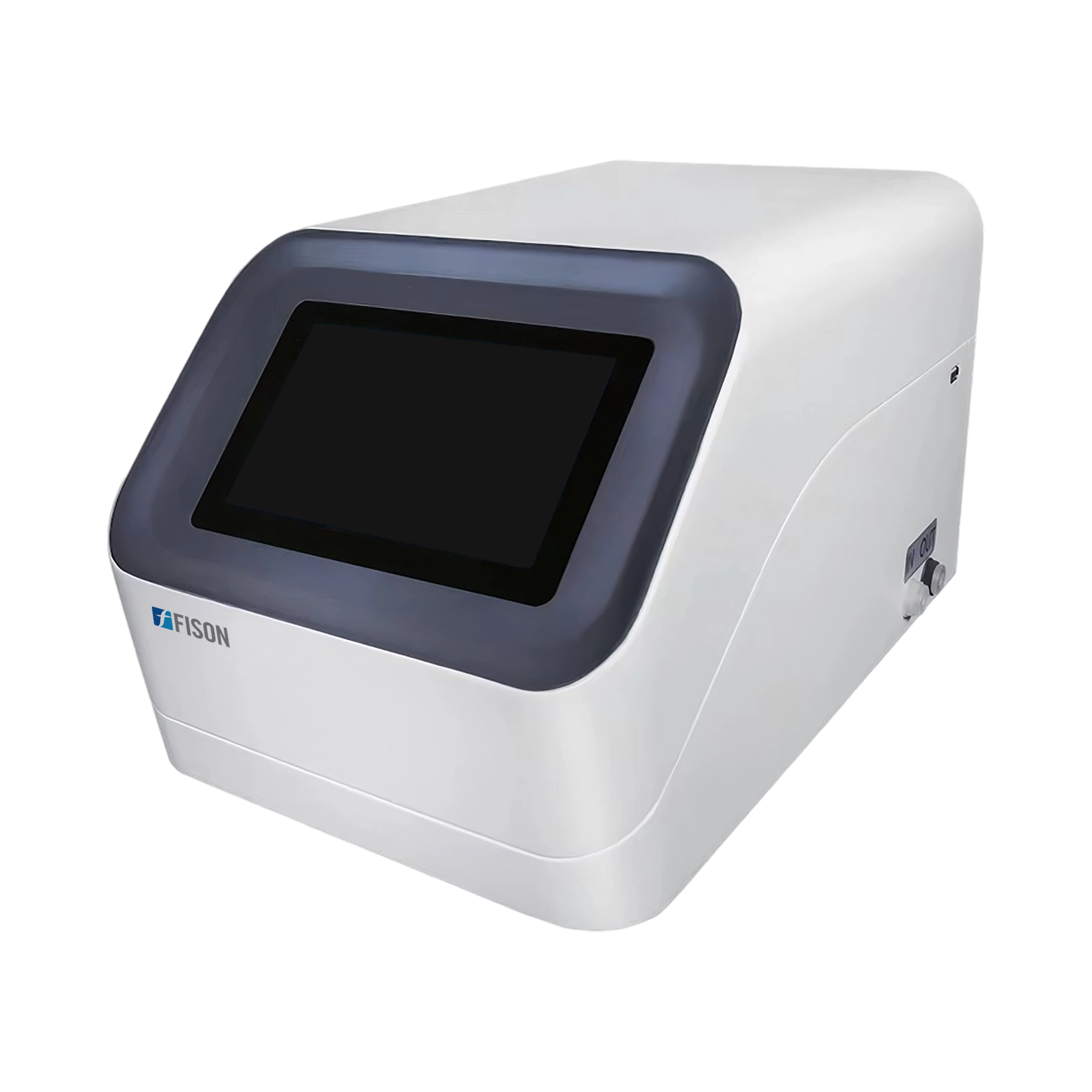

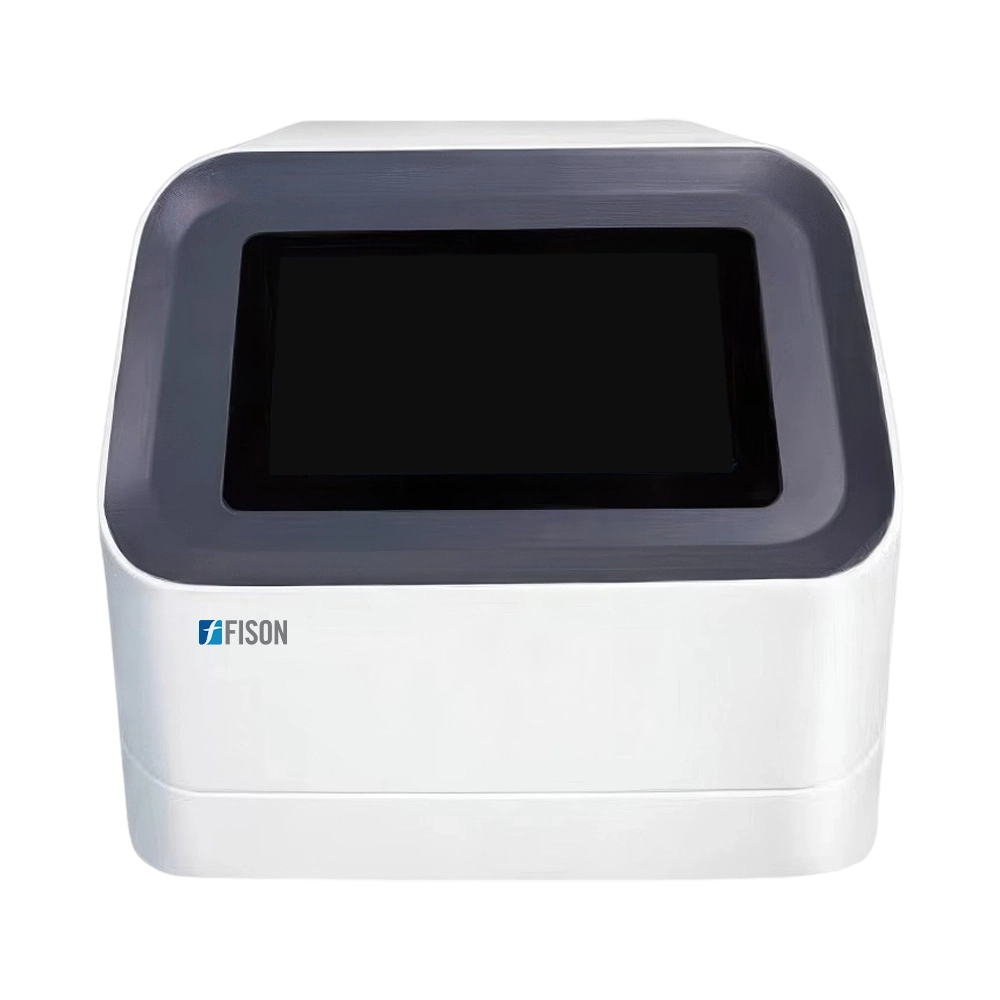

TOC Analyzer FM-TOC-B104 measures TOC in water with a range of 1 to 1500 ppb with ±5% accuracy. It uses 185nm UV oxidation for chemical-free, pollution-free analysis. It features a high-precision 24-bit ADC processor and built-in temperature compensation. Its 5-inch touch screen enables intuitive operation with real-time data viewing. Our TOC Analyzer is an ideal choice for reliable, maintenance-free water quality analysis.
$8,000.00
| Measurement range | 1 to 1500 ppb |
| Maximum deviation | ±5% |
| Division value | 0.01 ppb |
| Analysis time | 3 to 10 min |
| Zero drift | ±5% |
| Repeatability deviation | ≤3% |
| Sample conductivity | ≤2µs/cm at 25°C |
| Sample temperature | 5 to 65°C |
| Ambient temperature | 5 to 45°C |
| Relative humidity | ≤85% |
| Power consumption | ≤50W |
| Power supply | AC 220V/50Hz |
| Dimension (L×B×H) | 180×300×174 mm |
| Weight | 3.45 kg |
Features:
30 position auto sampling
Built-in independent cleaning position
Equipped with number of sensors to monitor operation status in real time
Long term operation
Stable and reliable
Sample number | 30 |
Sample bottle volume | 40 mL |
Disc diameter | 400 mm |
Sampling line material | FEPTeflon |
Sample probe material | 316 stainless steel |
Sampling probe length | 110 mm |
Slip track travel | 105 mm |
Host interface | 1/4-28UNF |
Injecter size (L×B×H) | 400×400×380 mm |
Our TOC Analyzers are important tools for measuring total organic carbon levels in water. They provide accurate and reliable results across a variety of uses. Commonly used in industries like pharmaceuticals, electronics, food, and environmental testing, these analyzers are designed for both offline and online monitoring.
