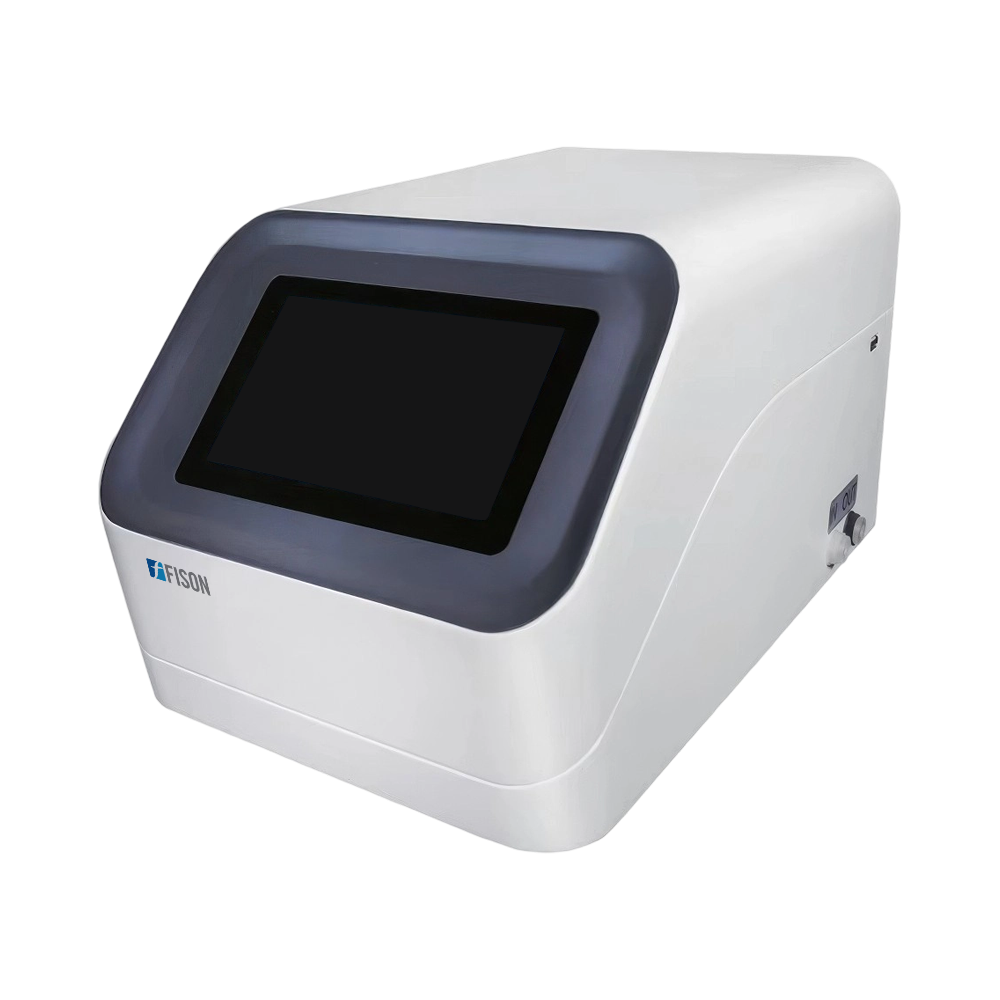

TOC Analyzer FM-TOC-B104
TOC Analyzer FM-TOC-B104 measures TOC in water with a range of 1 to 1500 ppb with ±5% accuracy. It uses 185nm UV oxidation for chemical-free, pollution-free analysis. It features a high-precision 24-bit ADC processor and built-in temperature compensation. Its 5-inch touch screen enables intuitive operation with real-time data viewing. Our TOC Analyzer is an ideal choice for reliable, maintenance-free water quality analysis.
Specifications
| Measurement range | 1 to 1500 ppb |
| Maximum deviation | ±5% |
| Division value | 0.01 ppb |
| Analysis time | 3 to 10 min |
| Zero drift | ±5% |
| Repeatability deviation | ≤3% |
| Sample conductivity | ≤2µs/cm at 25°C |
| Sample temperature | 5 to 65°C |
| Ambient temperature | 5 to 45°C |
| Relative humidity | ≤85% |
| Power consumption | ≤50W |
| Power supply | AC 220V/50Hz |
| Dimension (L×B×H) | 180×300×174 mm |
| Weight | 3.45 kg |
Features
- U-cloud remote monitoring
- MODBUS communication protocol
- Quartz glass oxidation cell
- Fault alarm system
Applications
- TOC Analyzer FM-TOC-B104 can be used in laboratories, environmental monitoring, and pharmaceutical industries to measure organic carbon levels in water, ensuring compliance with purity standards.
Autosampler Optional
Features:
30 position auto sampling
Built-in independent cleaning position
Equipped with number of sensors to monitor operation status in real time
Long term operation
Stable and reliable
Sample number
30
Sample bottle volume
40 mL
Disc diameter
400 mm
Sampling line material
FEPTeflon
Sample probe material
316 stainless steel
Sampling probe length
110 mm
Slip track travel
105 mm
Host interface
1/4-28UNF
Injecter size (L×B×H)
400×400×380 mm
