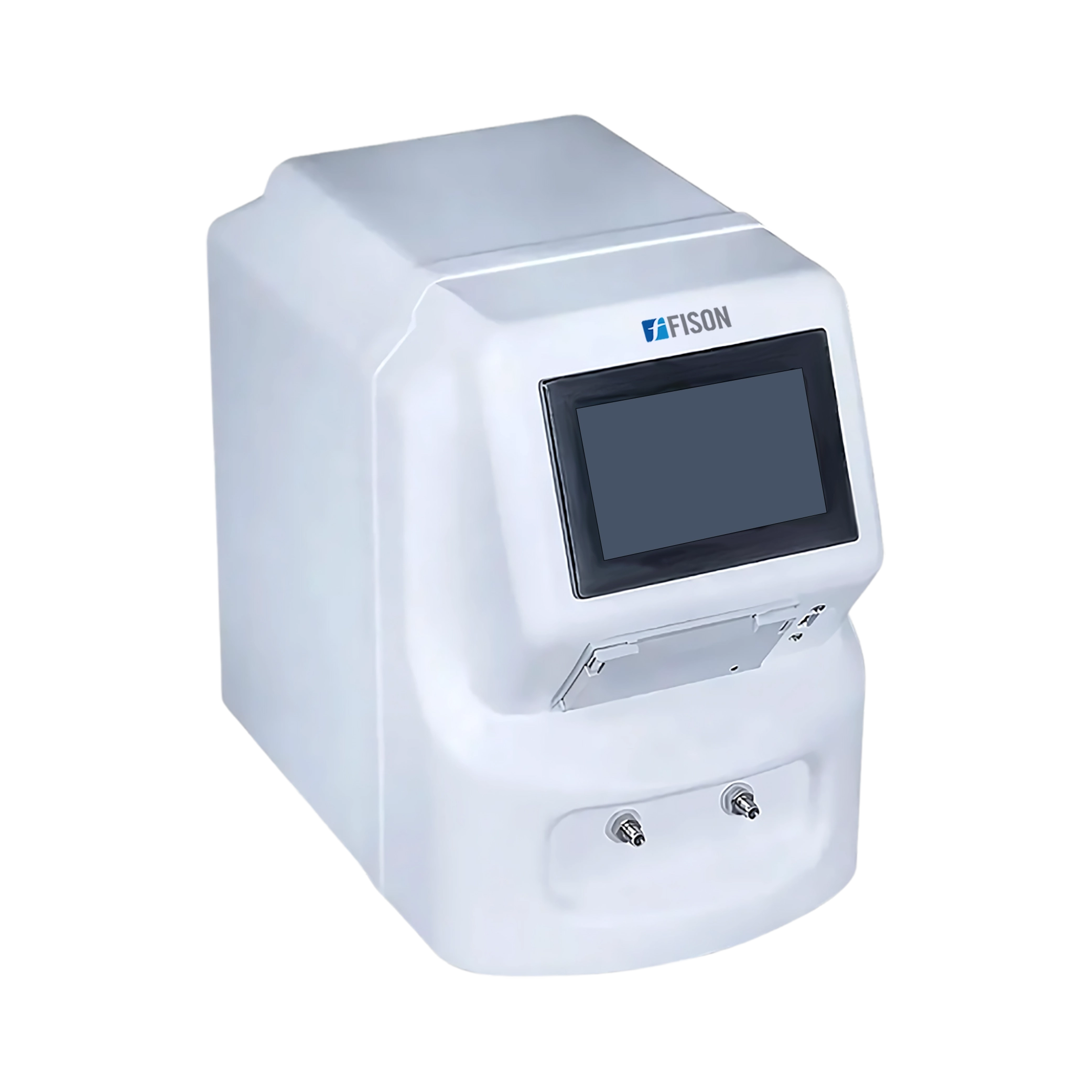

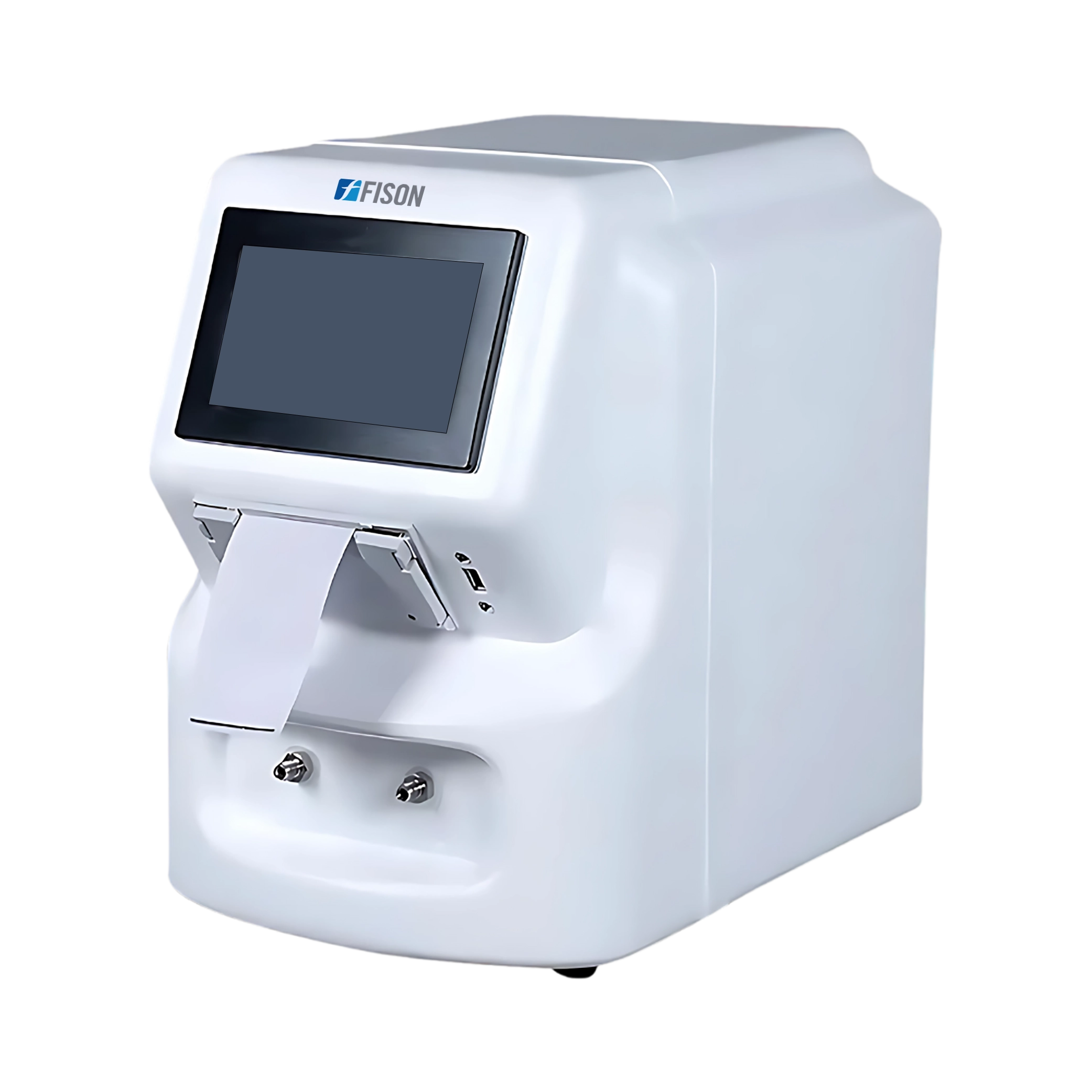

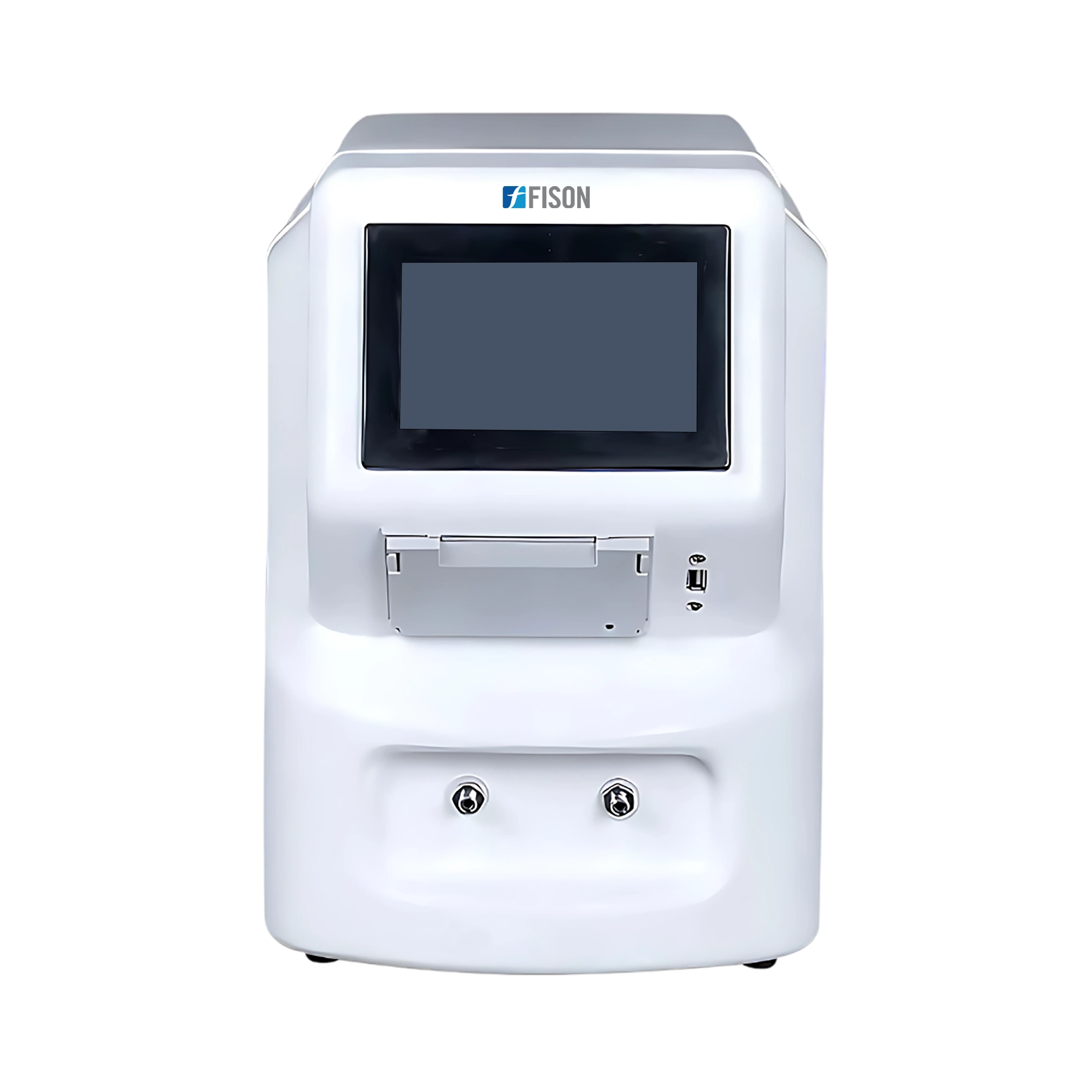

TOC Analyzer FM-TOC-C100
TOC Analyzer FM-TOC-C100 with a measurement range of 0.001 to 1.600 mg/L, offers precise total organic carbon analysis. Engineered with conductivity difference detection, it delivers ultra-precise readings. Touchscreen interface and embedded system ensure user-friendly operation. Built-in data storage and print functions ensure effortless access and documentation.
Specifications
| Measuring range | 0.001 to 1.600 mg/L |
| Accuracy | ±4% |
| resolution | 0.001 mg/L |
| Analysis time | Within 4 minutes for a single detection |
| Sample temperature | 1 to 7 °C |
| Repeatability error | ≤3% |
| Power requirements/capabilities | 220V |
| Display screen | Colour touch screen |
| Dimension (L×B×H) | 35×23×33 cm |
| Packaging dimension (L×B×H) | 52×41×45 cm |
| Weight | 10 kg |
Features
- Automatic alarm output
- Portable lightweight body
- Maintenance-free mechanism
- Gas and reagent free operation
Applications
- TOC Analyzer FM-TOC-C100 is essential for monitoring organic carbon levels in pharmaceutical-grade water, including purified and injection water, during off-site assessments and lab validation.
Accessories
Basic power cord
Sample tube
Touch pen
Frequently Asked Question
1: How fast can it analyze a sample?
Each analysis is completed in under 4 minutes, ensuring rapid feedback for time-sensitive testing.
2: Does it come with built-in data storage and printing?
Yes, the analyzer includes internal memory and printing capabilities, allowing for direct result logging without external devices.
3: What is the measurement range of the FM-TOC-C100?
It offers a high-precision detection range of 0.001 to 1.600 mg/L, with a ±4% accuracy and 0.001 mg/L resolution, making it ideal for trace-level detection.
4: Does it require reagents or carrier gases to operate?
No. One of its major advantages is that it operates gas-free and reagent-free, reducing running costs and simplifying setup and operation.
