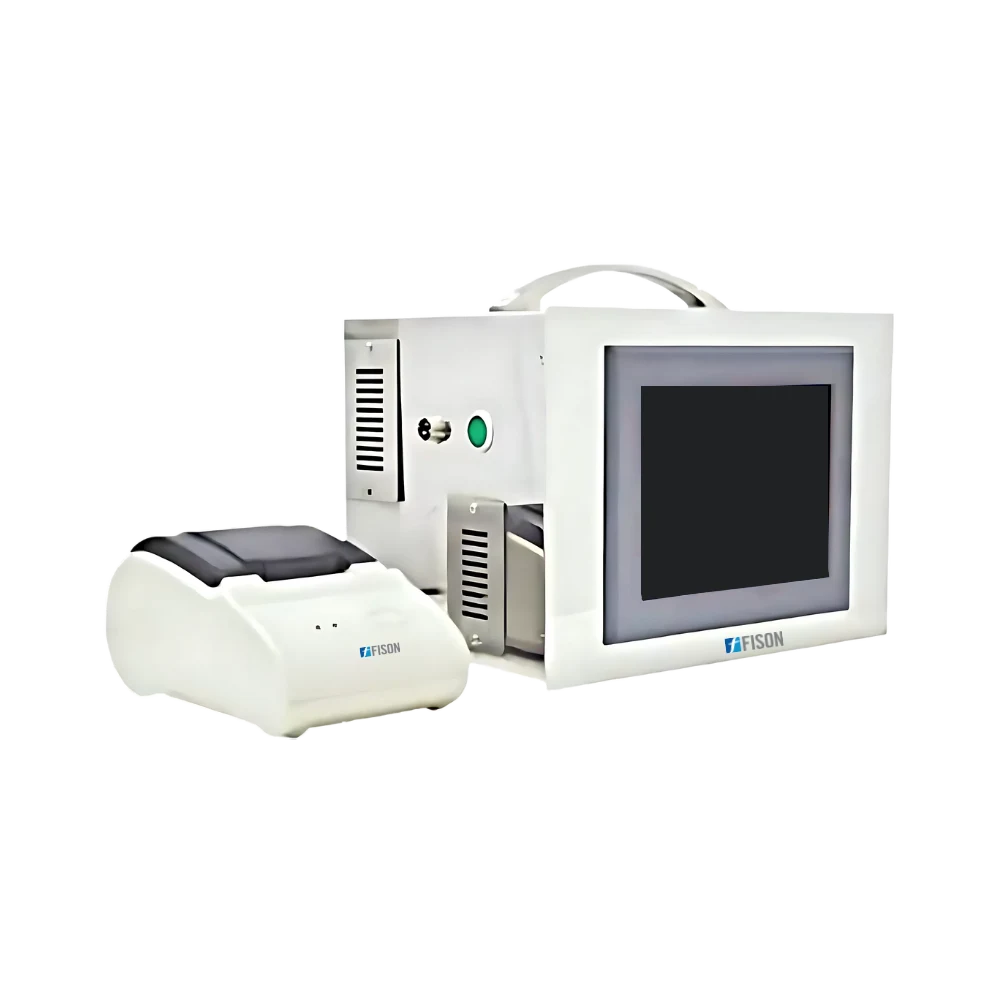

TOC Analyzer FM-TOC-B107
TOC Analyzer FM-TOC-B107 Online Total Organic Carbon Analyzer features a modular design supporting both single-point and multi-point time-division monitoring. It offers a wide measurement range from 0.001 mg/L to 1 mg/L with a resolution of 0.001 mg/L, ensuring high sensitivity. With a real-time display, external printer support, and USB data export, it simplifies data handling. The system is designed for robust performance in high humidity and varying temperature environments. It is ideal for online monitoring in pharmaceutical, food, and electronic industries.
Specifications
| Type | Online |
| Measurement Range | 0.001mg/L to 1mg/L (1 to 1000ppb) |
| Conductivity Detection Range | 0.055 µs/cm to 8.000 µs/cm |
| Applied Range | Online |
| Response Time | 5 mins |
| Sample Temperature | 1 to 95℃ |
| Accuracy | ±3% |
| Resolution | 0.001mg/L |
| Measuring Limit | 0.001mg/L |
| Interface | USB Disk |
| Storage | ≥3 years storage |
| Authority Management | Username and password login |
| Print Function | External Printer |
| Display Screen | Color Touch Screen |
| RSD | Repeatability ≤3% |
| Power | 120W |
| Power Supply | 100 to 260 VAC 50HZ |
| Dimension | 300 × 210 × 250 mm |
| Weight | 8.5KG |
Features
- Touch screen display
- External printer support
- Authority login protection
- USB data export
- Three-year audit
Applications
- TOC Analyzer FM-TOC-B107 is ideal for online monitoring of pharmaceutical-grade water, including purified and injection water, ensuring compliance with regulatory standards. It is also widely used in the electronic and food industries for real-time detection of organic contaminants in high-purity water systems.
