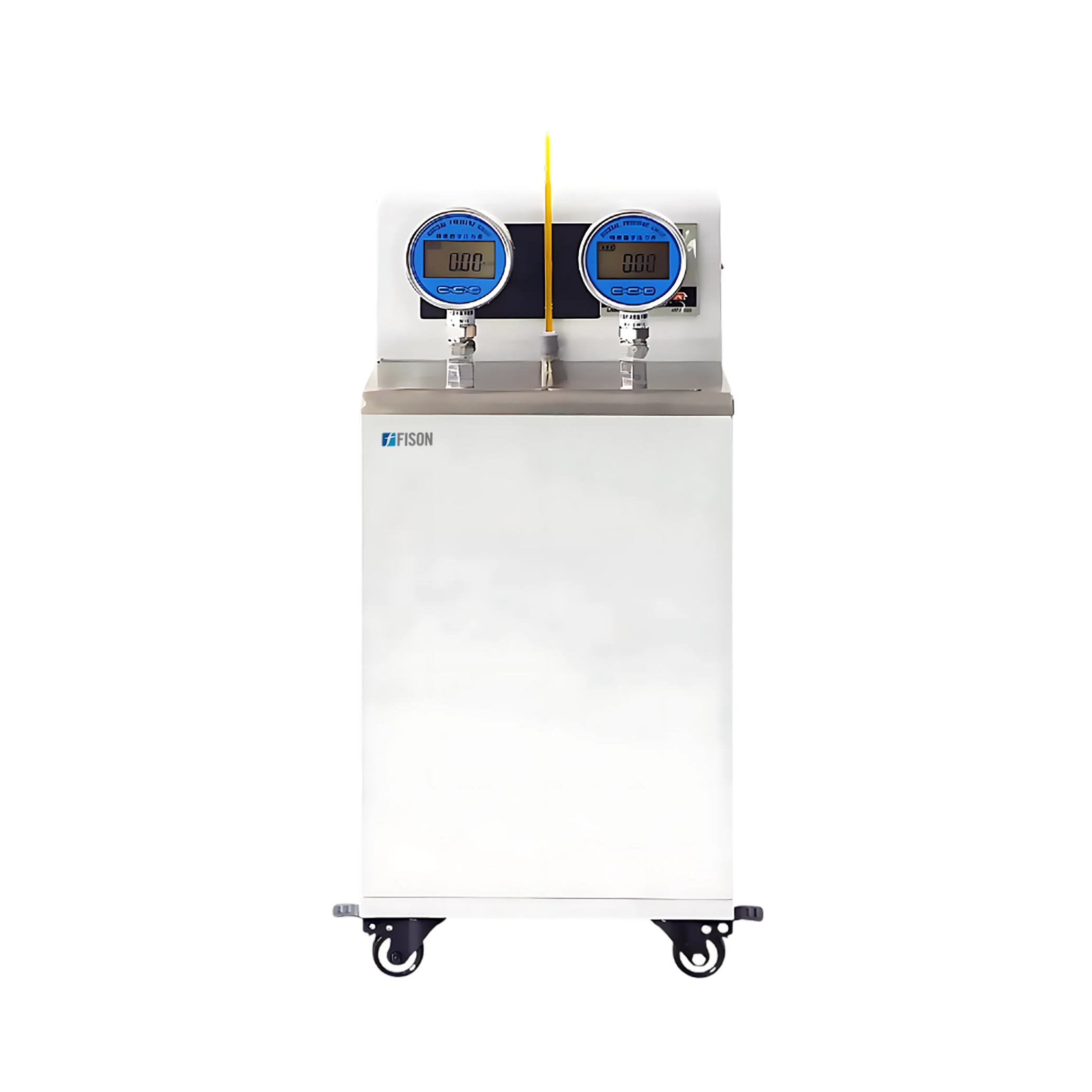

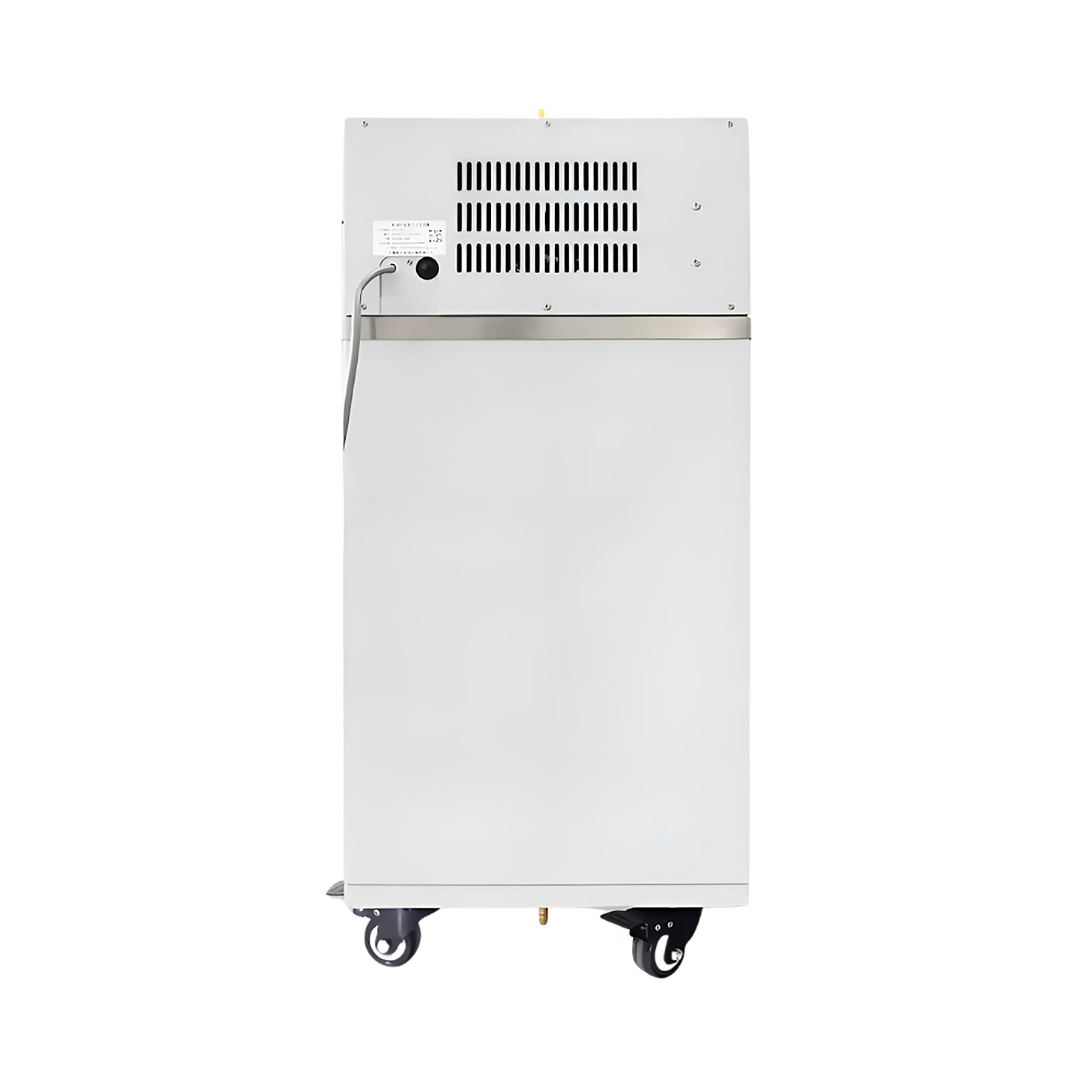

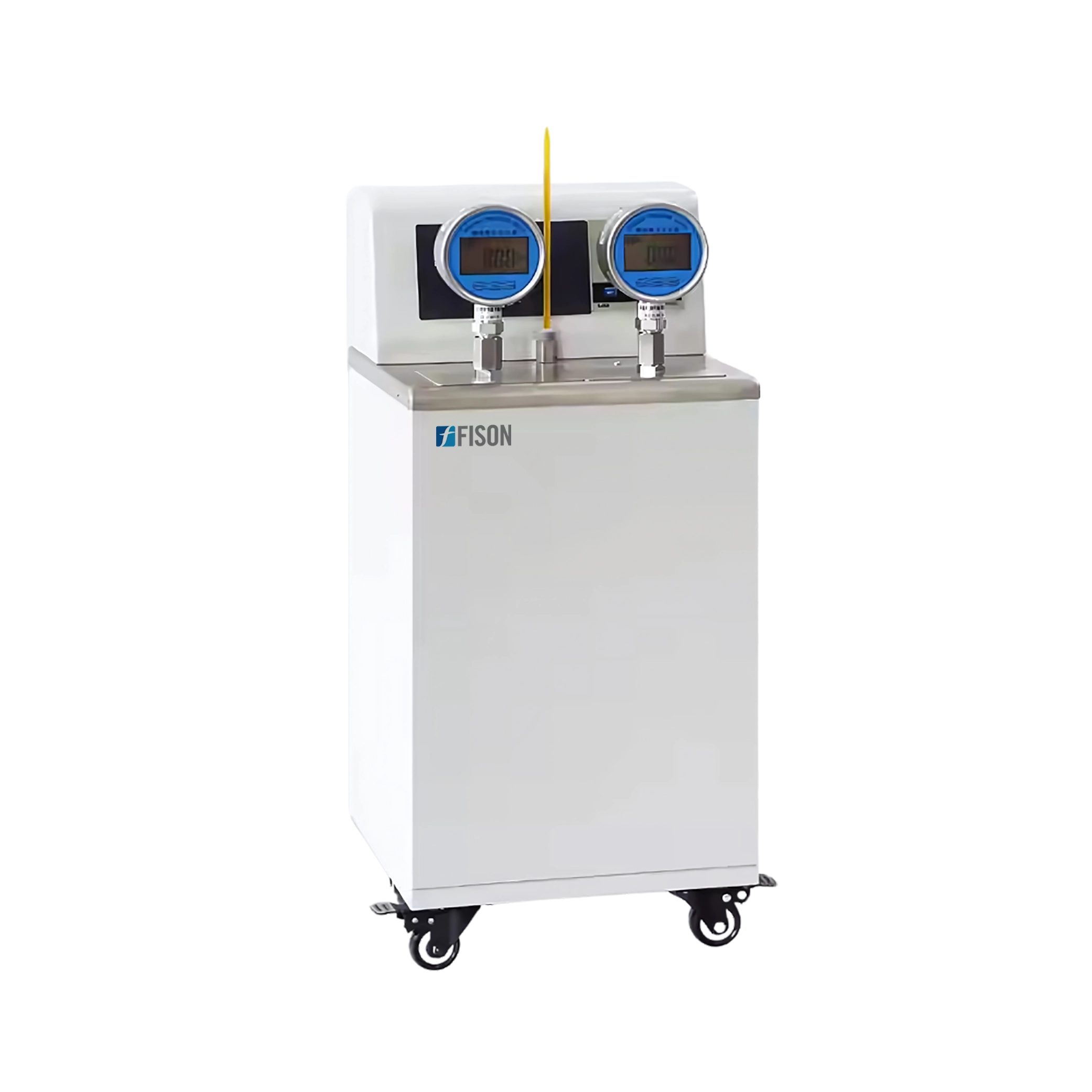

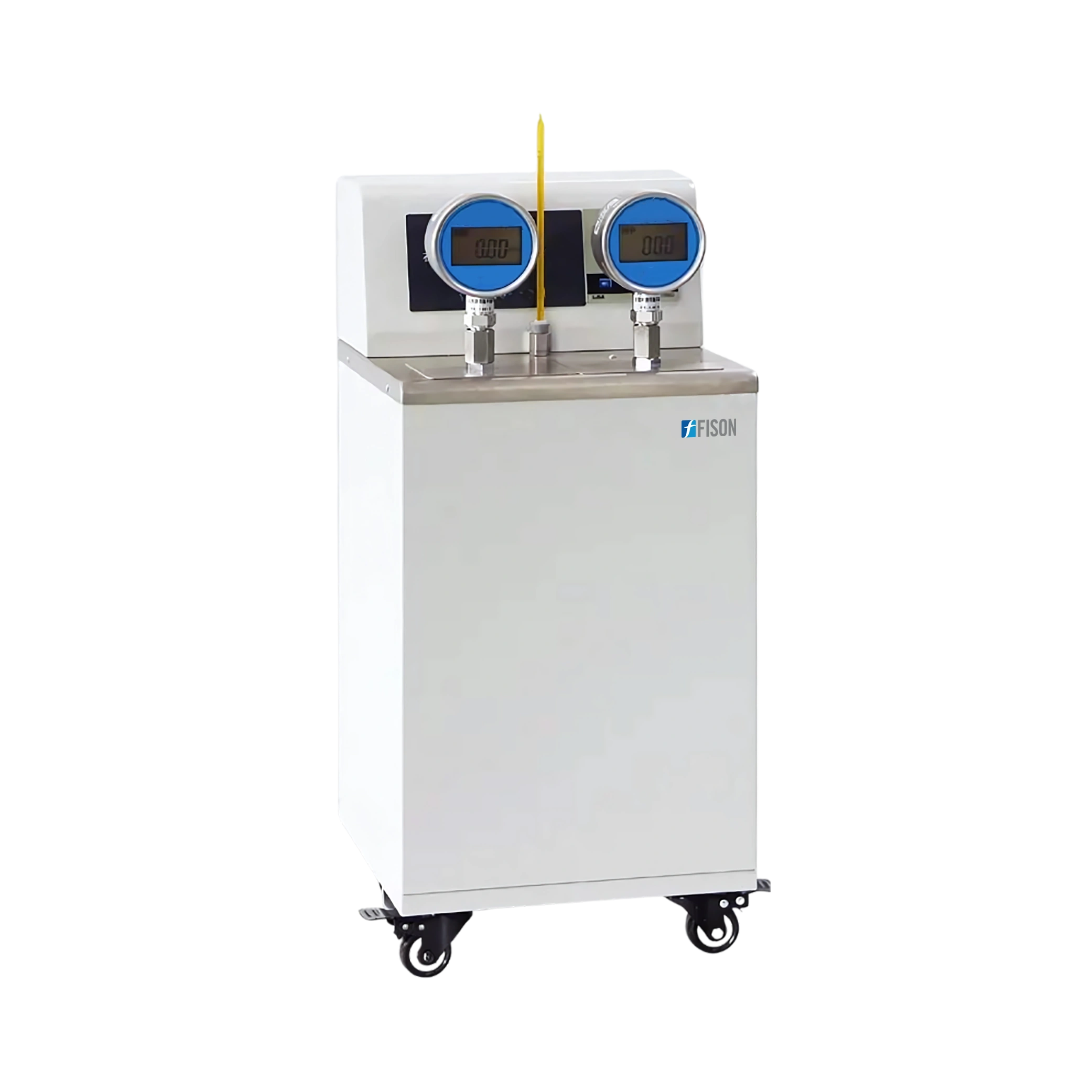

Vapor Pressure Tester FM-VPT-A100
Vapor Pressure Tester FM-VPT-A100 is a spark-free pressure tester designed to measure the vapor pressure of a sample by a vapor in thermodynamic equilibrium with its condensed phases. Our tester utilizes a temperature control mechanism with a digital display and precise temperature regulation. It stimulates at a maximum pressure range from 0 to 200 kp for efficient operation. Improved with a pressure indicator display gauge, providing real-time pressure readings.
Specifications
| Pressure Range | 0 to 200 kp |
| Pressure Gauge | 0 to 1Mpa & 0-2.5Mpa |
| Temperature Range | Room temperature~100℃ |
| Accuracy | ±0.1℃ |
| Humidity | ≤ 85% |
| Power Consumption | 4000 W |
| Power Supply | AC220V ± 10 50Hz |
| Dimension | 650 × 470 × 1060 mm |
| Weight | 57 Kg |
Features
- Configured with a temperature control mechanism
- Responsive and easy to view all working parameters on a digital display
- Constructed with stainless steel material is resistant to rust and ensures durability
- Incorporates advanced PID technology automatically adjusted temperature for optimal performance
- Equipped with two bombs, allowing for simultaneous testing
- Intended with Pt 100 temperature control sensor
- Designed with a switch valve, facilitating easy gas charging and release
Applications
- It is widely used in crude oil, gasoline, aviation fuel, liquified petroleum gas (LPG), any organic, aqueous solvent, R&D applications, and mobile laboratories.
Accessories
- 1. Saturated Vapor Pressure Tester (Manual Type) - 1 set

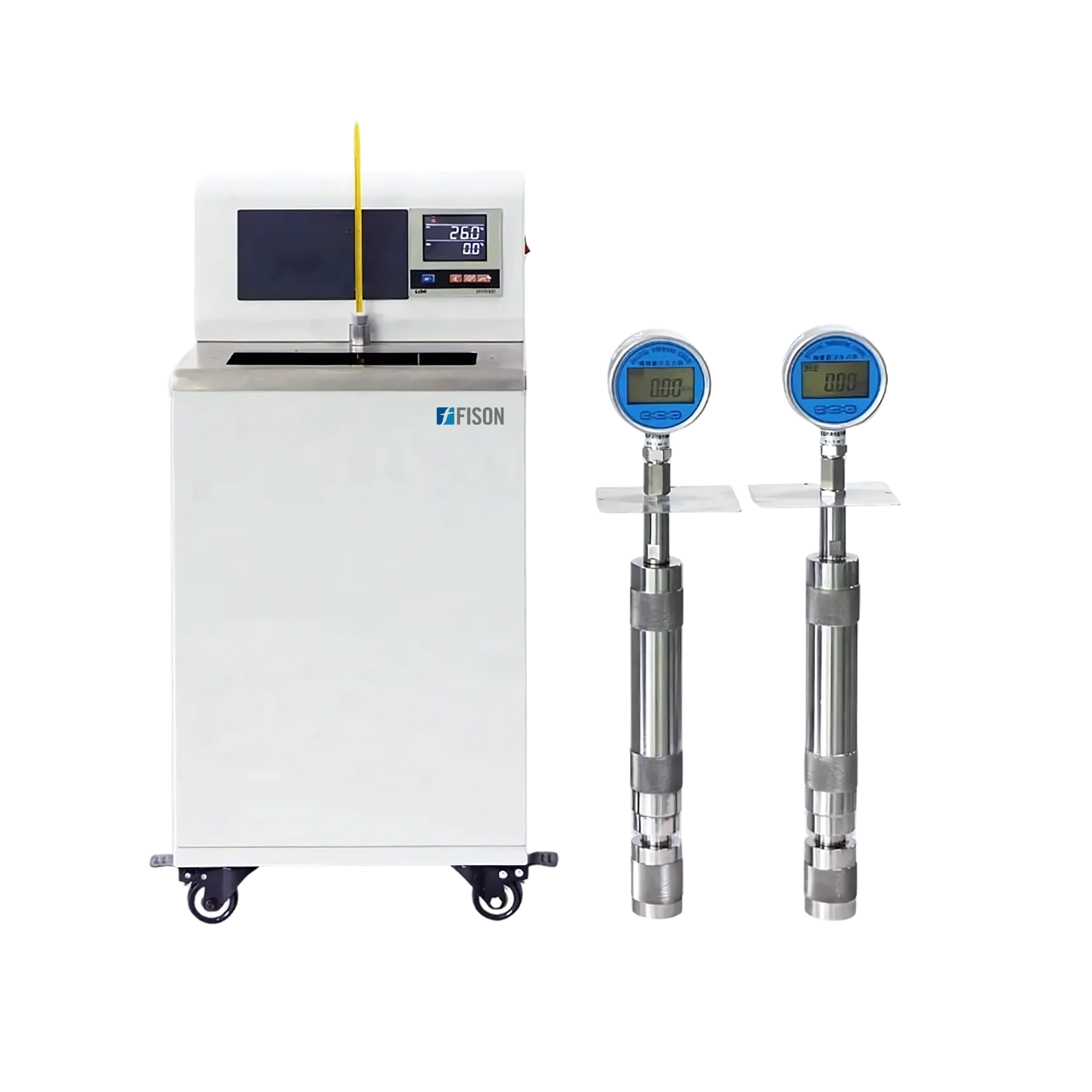

2. Vapor pressure bomb (gas, liquid chamber) - 2 sets
3. Thermometer 34~42°C - 1pc
4. Pressure gauge 0~200Kpa - 2pcs
5. Gasket - 2pcs
6. Fuse - 2pcs
7. Power cable - 1pc
8. Manual - 1pc
9. Certificate - 1pc
