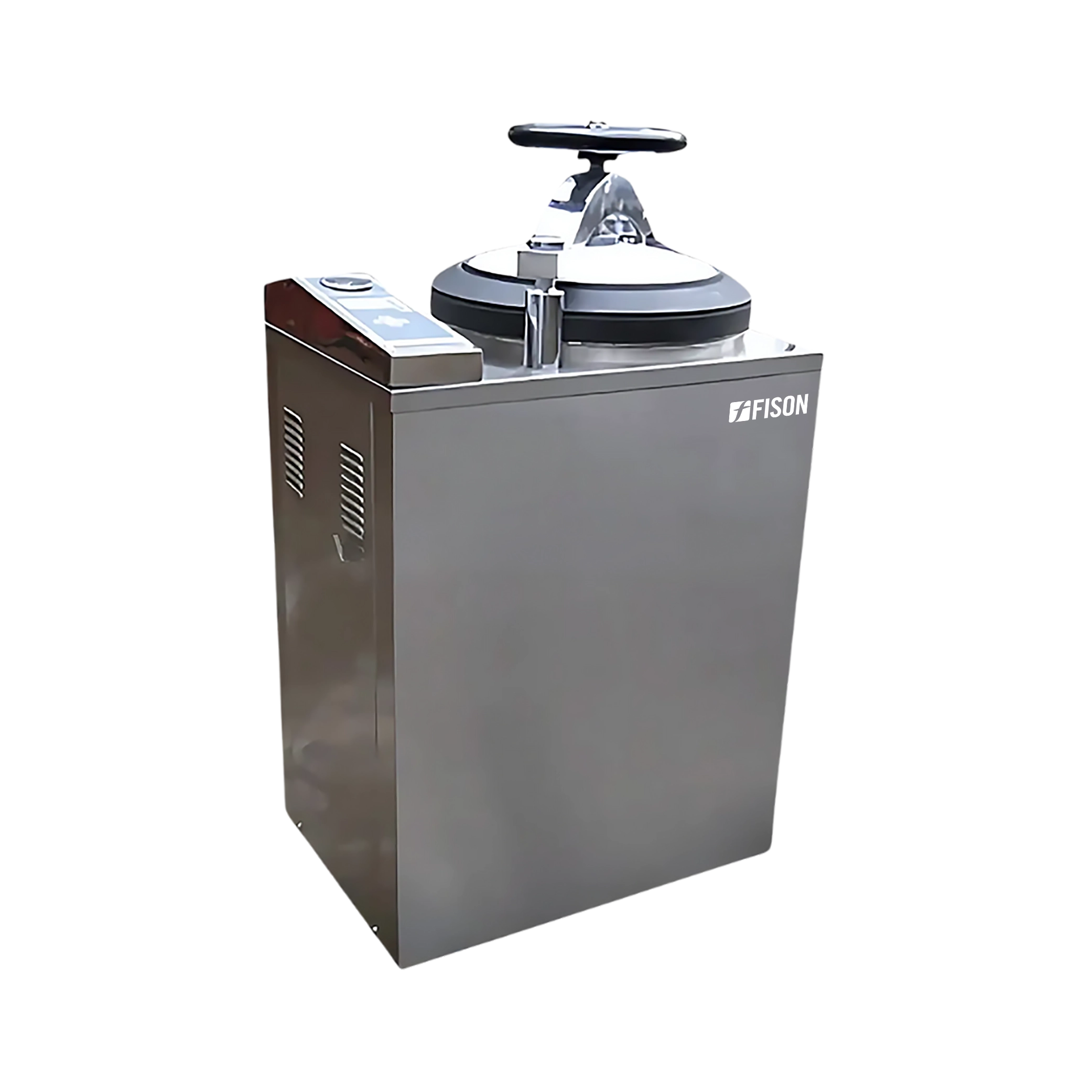

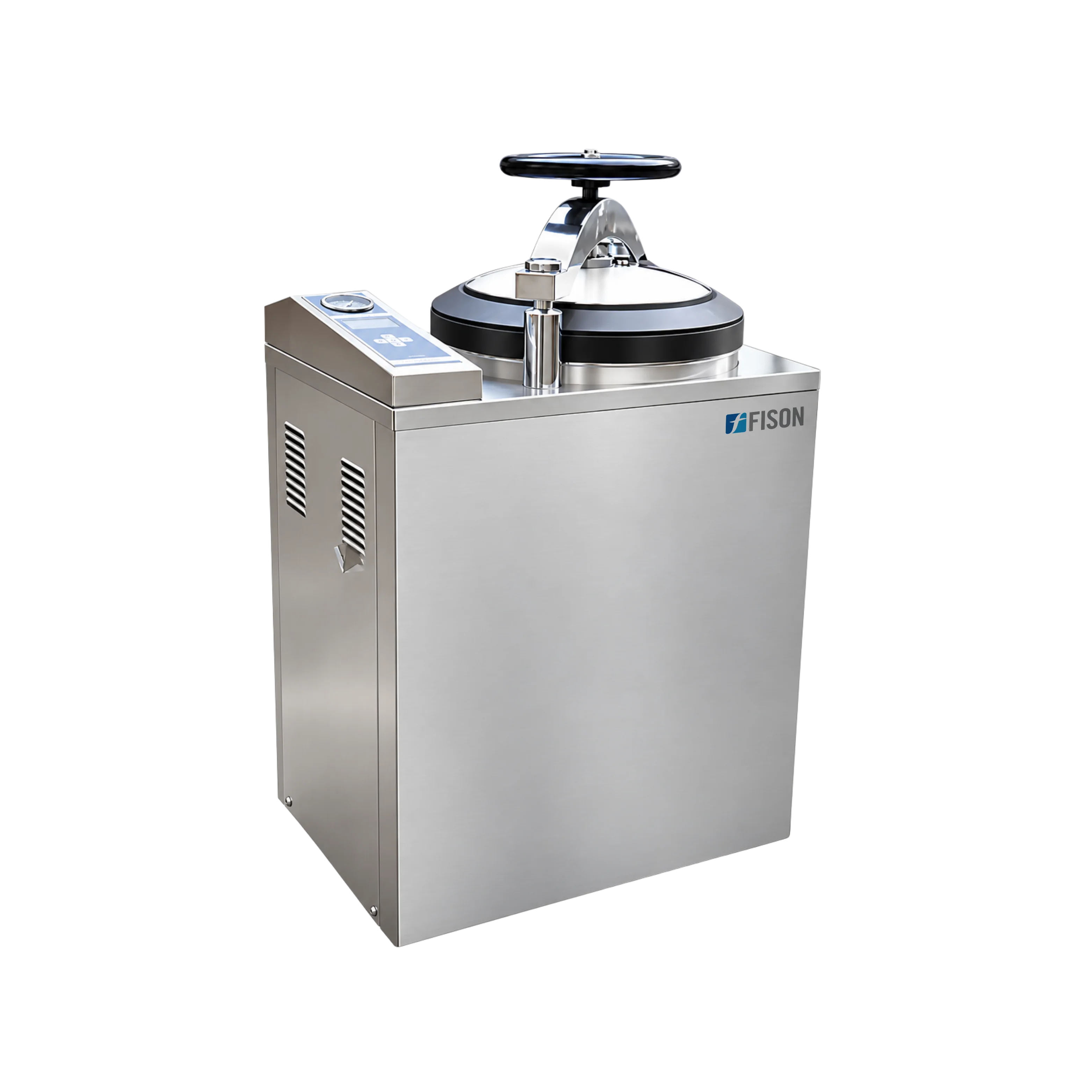

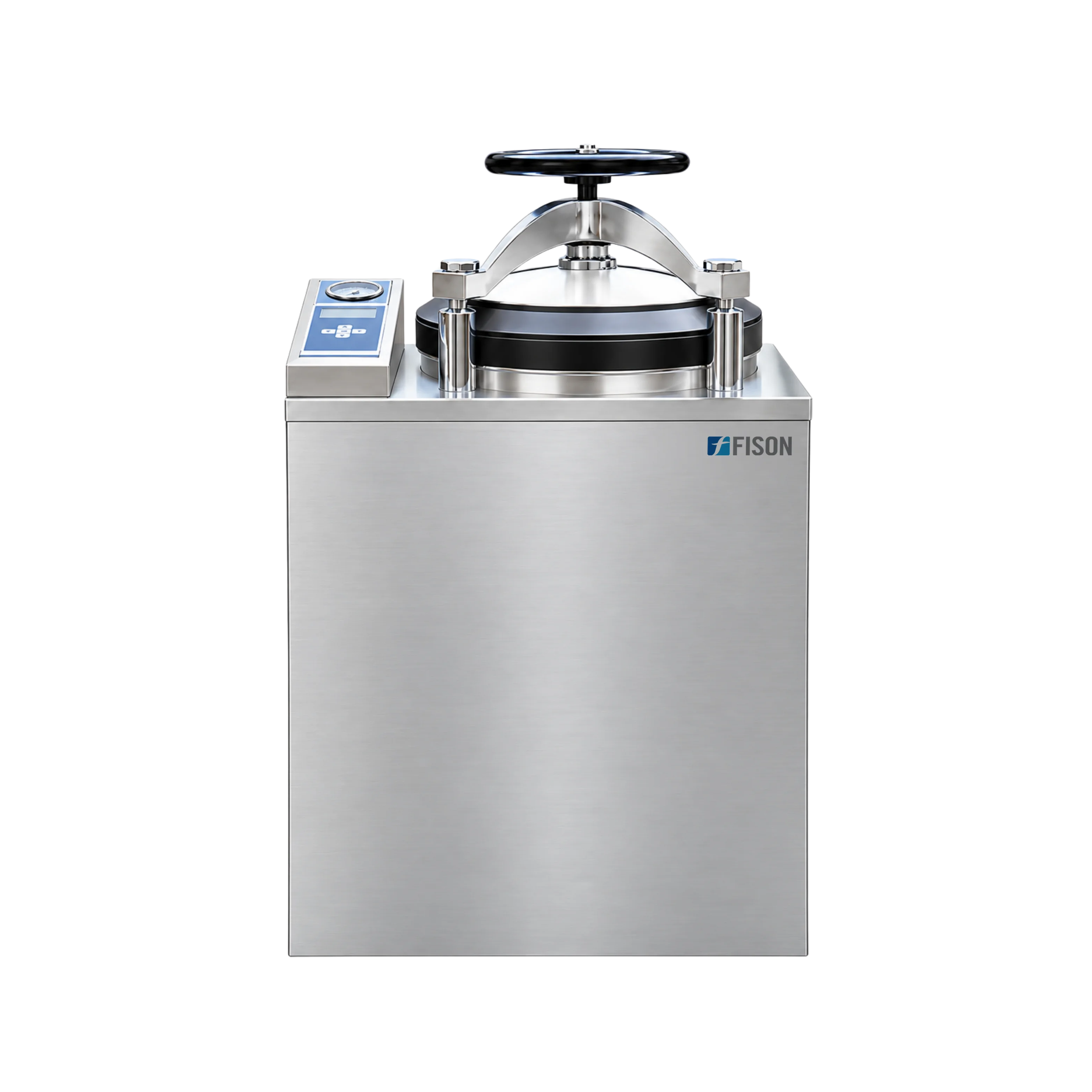

Vertical Autoclave FM-VA-A300
Vertical Autoclave FM-VA-A300 is a top loader sterility autoclave with a 35 L capacity, 134°C sterilization temperature and 0.22 MPa working sterilization pressure. It has hand wheel type quick door open structure design. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. It is CE certified vertical autoclave.
Specifications
| Capacity | 35 L |
| Sterilization temperature | 134°C |
| Wokring sterilization pressure | 0.22 MPa |
| Timer range | 0 to 99 min / 0 to 9 hr 59 s |
| Control Precision: Temperature | ≤ ±1°C |
| Digital display | Yes |
| Maximum power consumption | 2.5 kW |
| Power supply | AC 220 V 50 Hz |
| Chamber dimension (Φ × D) | 318 × 450 mm |
| Dimension (L × W × H) | 600 × 410 × 1030 mm |
| Packaging dimension (L × W × H) | 730 × 500 × 1170 mm |
| Net weight | 77 kg |
| Gross weight | 96 kg |
Features
- Automatically controlled microcomputer digital display system
- Hand wheel type door opening structure
- 304 Stainless steel body with corrosion resistance
- Steam water inner circulation system without steam discharge to environment
- Beep alarm for shutting off after sterilization
- Self-inflated seal type ring to prevent leakage
- Auto protection against over temperature and over pressure
- Light indicator, indicates working status of sterilization process
- Safety features for pressure and water deficient
- Consists of two stainless steel sterilizing baskets
- Door lock safety system
- Safe, reliable and user friendly operation mode
- Comply with strict international directives and standards
Applications
- Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.
Accessories
Accessories no. Accessories name Basket capacity Basket dimension (W × H) Units 1 Basket 35 L 290 × 190 mm 2
