Vertical Electrophoresis System FM-VES-B101
Vertical Electrophoresis System FM-VES-B101 is designed with wide glass plate format to deliver accuracy and consistency in biomolecular separation workflows. Maintenance is simplified through removable electrodes, while the auto power-off lid enhances operational safety. Its built-in aluminium plate enables effective temperature control across the gel surface, supporting stable run conditions. It is ideal for academic research, clinical diagnostics, and protein or nucleic acid analysis in biotechnology labs.
Specifications
| Glass plate size (W×L) | 151×170mm |
| Gel size (W×L) | 121×150mm |
| Gel thickness | 1.0, 1.5 mm |
| Number of gels | 1 to 2 pcs |
| Number of samples | 16 to 52 |
| Total buffer volume | 900 ml |
| Dimension (L×B×H) | 296 × 130 × 200 mm |
| Net weight | 6.6 kg |
Features
- Fast setup design
- easy to handle
- Dual gel compatibility
- Compact footprint
Applications
- Vertical Electrophoresis System FM-VES-B101 is Ideal for protein and nucleic acid separation in research and diagnostic labs. Supports high-resolution electrophoresis for analytical and preparative purposes. Widely used in molecular biology, clinical testing, and biotechnology workflows.
Accessories

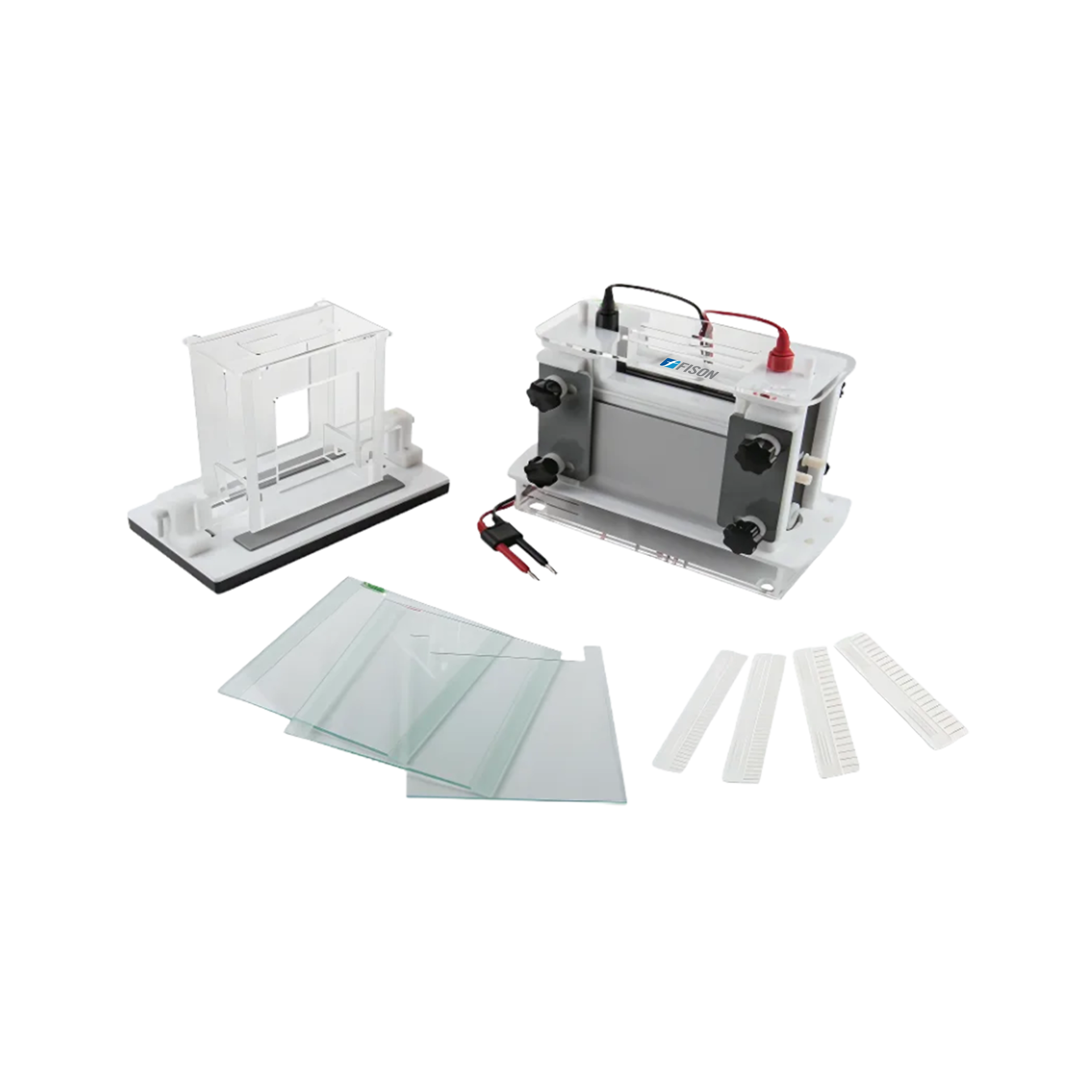

Accessories Quantity Lid with cables 1 Main body with electrodes 1 Bottom tank 1 Gel casting stand 1 Notched glass plates 4 Spacer plate with 1.0 mm glass spacer 2 Spacer plate with 1.5 mm glass spacer 2 1.0 mm thickness 16-well comb 2 1.5 mm thickness 16-well comb 2 1.0 mm thickness 26-well comb 2 1.5 mm thickness 26-well comb 2 Dummy plate 1
