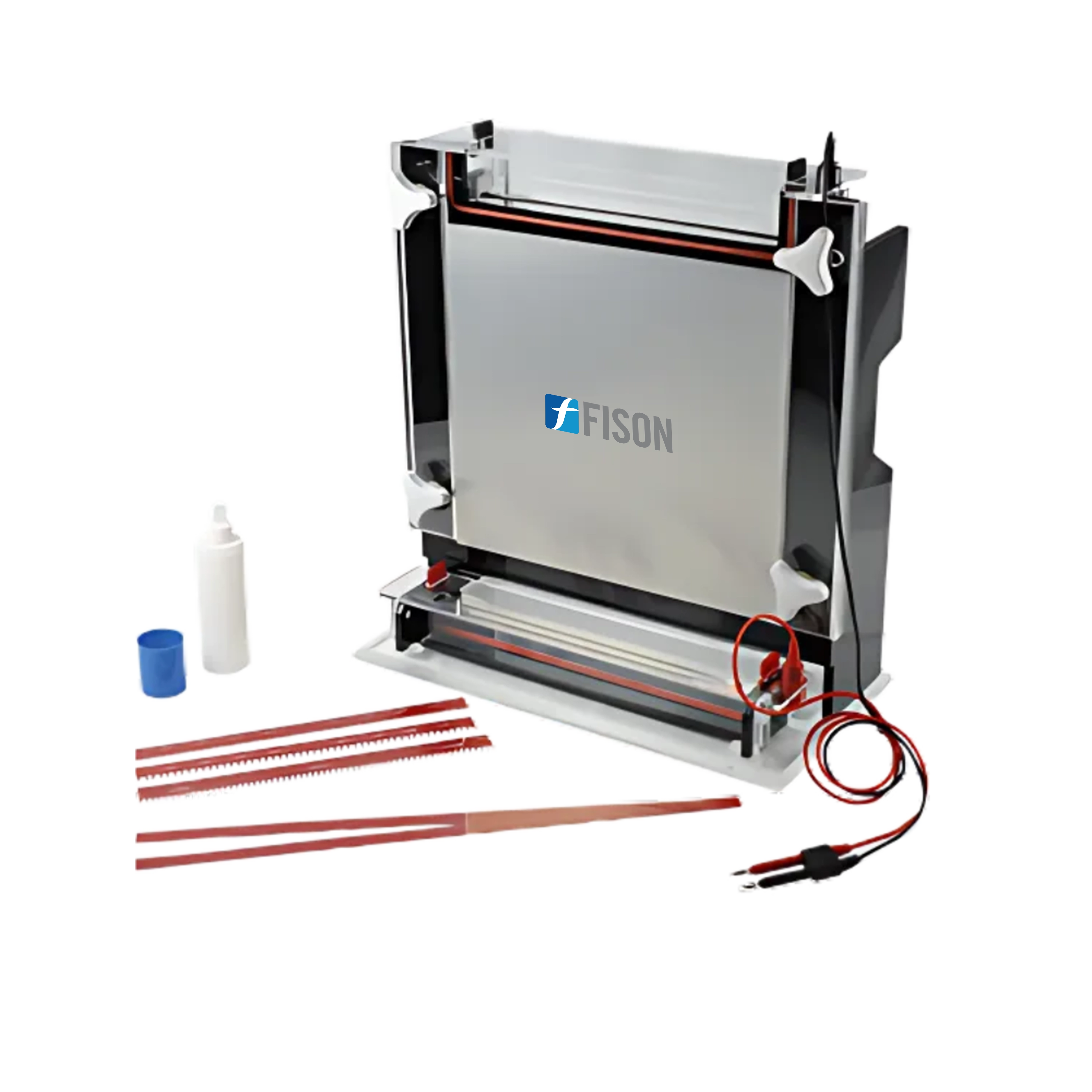

Vertical Electrophoresis System FM-VES-C100
Vertical Electrophoresis System FM-VES-C100 with Gel size 180×420mm, offers advanced sequencing precision. Its smart design includes removable electrodes for easy handling. Thermal control ensures uniform results through aluminium plate integration. It features a secure lid with auto switch-off function. Minimal buffer consumption increases cost-efficiency and sustainability. Ideal for AFLP, DNA foot printing, RNase tests, and primer extension application.
Specifications
| Glass plate size (W×L) | 200×450mm |
| Gel size (W×L) | 180×420mm |
| Gel thickness | 0.4 mm |
| Number of gels | 1 pc |
| Number of samples | 32, 39 |
| Total buffer volume | 500 ml |
| Dimension (L×B×H) | 310 × 230 × 500 mm |
| Net weight | 11 kg |
Features
- Shark tooth comb
- Transparent side plates
- Compact bench design
- Four fastening knobs
- 50% buffer savings
Applications
- Vertical Electrophoresis System FM-VES-C100 is suited for a wide range of nucleic acid research workflows. Ideal for AFLP analysis, heteroduplex detection, and S1 nuclease mapping. It also supports SSR, SSCP, and primer extension experiments.
