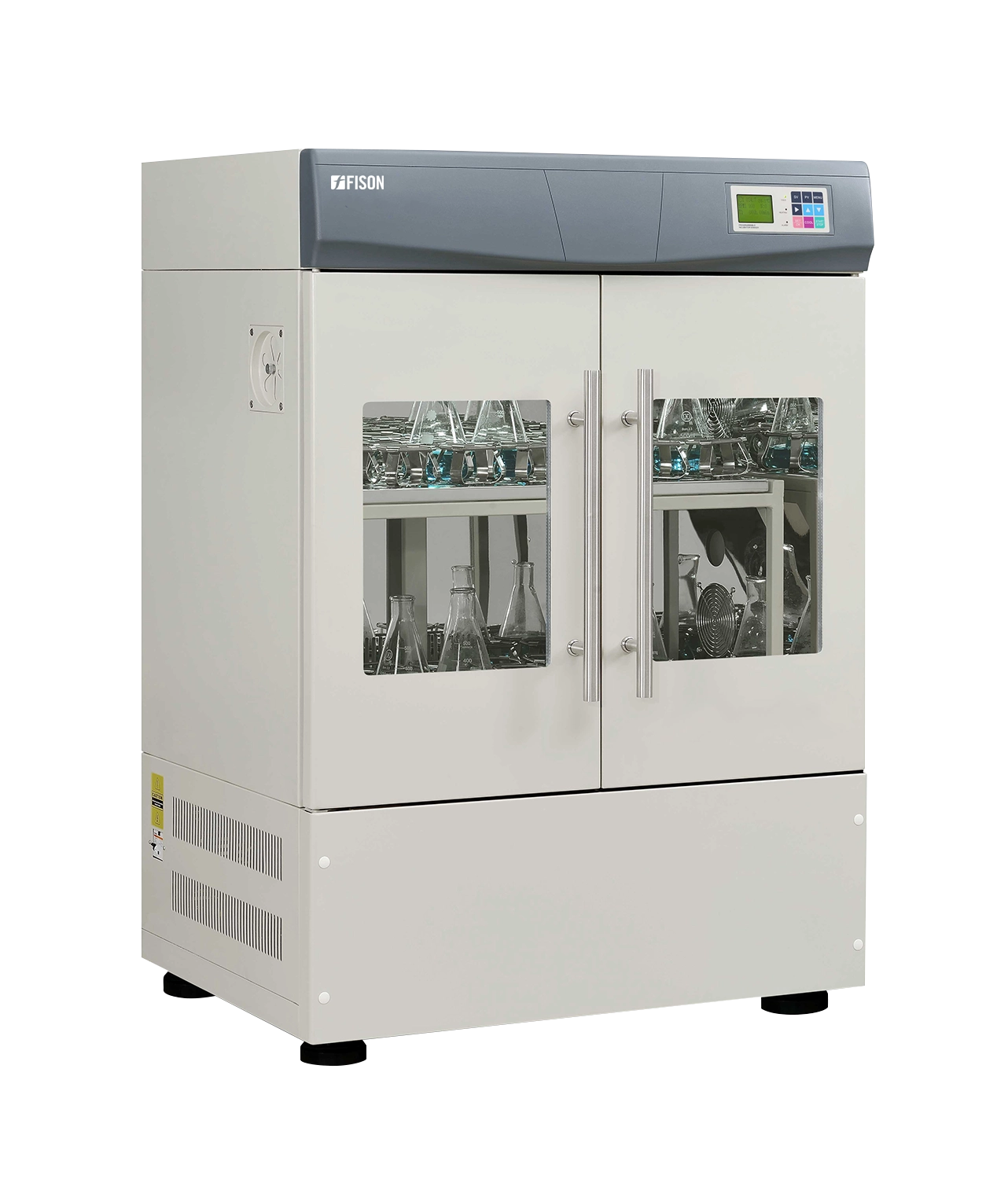

Vertical Shaking Incubator FM-SI-A302
Vertical Shaking Incubator FM-SI-A302 with reciprocal shaking mode is a microprocessor PID controlled system along LCD backlight display. It comes with high precision shaking speed range of 30 to 300 rpm and temperature function. Designed as double door unit with double layer and transparent window for clear observation. Inside chamber is made up of stainless steel & powder coated outer steel body. The large LCD screen displays multiple data at same time and CFC free, R134a refrigerant provides efficient cooling system. Its smooth running start/stop system helps in preventing liquid spillage. It is useful for quality, research and testing purpose across laboratories, institutes.
Specifications
| Chamber Capacity | 363 L |
| Controller | PID (Environmental Scanning Microprocessor） |
| Shaking mode | Orbital |
| Rotating speed | 30 to 300 rpm |
| Rotating accuracy | ± 1 rpm |
| Vibration range | 25 mm |
| Temperature range | 4°C to 60°C |
| Temperature accuracy | ± 0.1°C |
| Temperature uniformity | ± 1°C |
| Working environment temperature | 25 °C |
| Working environment humidity | 20% to 90% |
| Drive mode | Single shaft balance device |
| Circulation mode | High speed convection |
| Display | LCD (simultaneous display of working and set parameters) |
| Refrigerant | CFC free, R134a refrigerant |
| Cooling consumption | 200 W |
| Heating consumption | 500 W |
| Timing range | 0 to 999.59 h continuous |
| Shaking plate size | 734 × 464 mm |
| Shaking plate quantity | 2 pcs |
| Chamber material | Polished stainless steel |
| External material | Steel |
| Safety function | Audio and visual alarm for over temperature, alarm for over speed |
| Power | 1200 W |
| Power supply | AC 220 V to 240 V, 50/60 Hz |
| Internal dimension (W × D × H) | 850 × 520 × 760 mm |
| External dimension (W × D × H) | 950 × 740 × 1400 mm |
| Net weight | 235 kg |
Features
- Microprocessor PID control with acoustic and visual alarm
- LCD backlight display with working parameters
- Offers orbital shaking mode and convection circulation mode
- Durable single shaft drive technology
- Constant temperature and refrigeration are optional
- Automatic power cut, audio and visual alarm for over temperature
- Data recovery after automatic power off
- CFC free, R134a refrigerant system
- Built-in lighting system for convenient observation
- 120 W AC inductive brushless motor
- Stainless steel chamber and powder coated steel body
- Smooth shaking mode provide stable and reliable operation
- Transparent glass window and built-in light for observation
- Automatic stop function when door is open
Applications
- Used for microbial cell cultures, entomology, solubility tests, metabolic studies, stability studies, haematological studies, food processing, quality control analysis, mixing of reagents, pilot scale and pharmacy experiments.
Accessories
Accessories no. Accessories name Unit 1 Fluorescent lamp 1 2 UV lamp 1 3 Shaking tray 2 4 Flask clamp 500 ml × 28 and 1000 ml × 22
Accessories Optional
Accessories no. Accessories name Unit 1 Humidity testing / control system 1 2 Gas inlet 1 3 Illumination system 15000 Lux 1
Standard Configuration
Specification Standard Quantity Maximum capacity Flask clamp (PCS) 50 ml - 104 100 ml - 104 250 ml 28 56 500 ml 22 44 1000 ml - 30 Universal spring tray Tube rack Available for both stainless steel and ABS plastic Standard size 734 × 464 × 80 mm Flask clamp, spring tray, tube rack, Microplate holder and PCR tube clamp are available Note: Other sizes listed above can be offered as standard configuration to replace the size with standard quantity alternatively.
