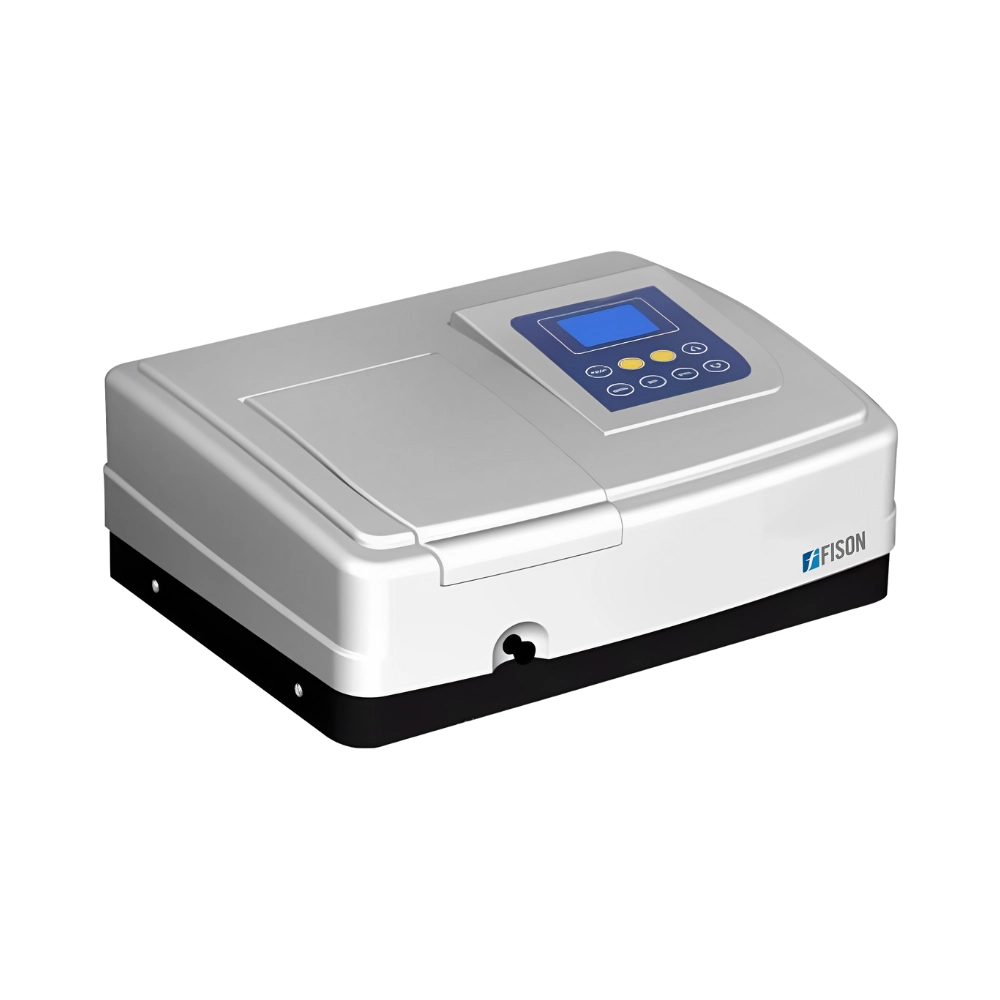

Visible Spectrophotometer FM-VS-A101
Visible Spectrophotometer FM-VS-A101 is a single beam visible spectrophotometer with large LCD display screen and 4 cell holder capacity. It has wavelength in range of 325 nm to 1000 nm with 4 nm spectral bandwidth and 0.8 nm wavelength repeatability. It uses silicon photo diode detector and tungsten lamp as light source which provides the best wavelength coverage across the working range of the spectrophotometer. This single beam spectrophotometer has highly stable optics with 1200 lines/mm grating. System save test results up to 200 group data and 100 standard curves.
Specifications
| Wavelength range | 325 nm to 1000 nm |
| Spectral bandwidth | 4 nm |
| Optical system | Single beam, grating 1200 lines / mm |
| Wavelength accuracy | ± 2 nm |
| Wavelength repeatability | 0.8 nm |
| Photometric range | T: 0 to 200% , A: (-0.3) to 3, C: 0 to 9999 |
| Photometric accuracy | T: ≤ ±0.5%, A: ±0.003 % @ 1 A |
| Light source | Tungsten lamp |
| Stray light | 0.3 % T |
| Stability | ±0.002 A/h @ 500 nm |
| Display | LCD (128 × 64 dots) |
| Standard cell holder | 4 position 10 mm cell changer |
| Sample compartment | Standard 10 mm path length cuvette |
| Detector | Silicon photodiode |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 470 × 370 × 180 mm |
| Weight | 12 kg |
Features
- LCD screen (128 × 64 dots)
- Wavelength range 325 nm to 1000 nm
- 1200 lines / mm grating optical system
- Spectral bandwidth 4 nm
- Wavelength repeatability 0.8 nm
- Automatic 0 % transmittance
- 100 % transmittance calibration
- Large sample compartment accommodate 5 to 100 mm path length cuvettes
- High accuracy with digital wavelength display
- Data restores after sudden power cut
- Auto setting of wavelength
- System save test results 200 group data and 100 standard curves
Applications
- Used for quantitative and qualitative analysis, detection of impurities, functional groups determination and identification of unknown compound.
