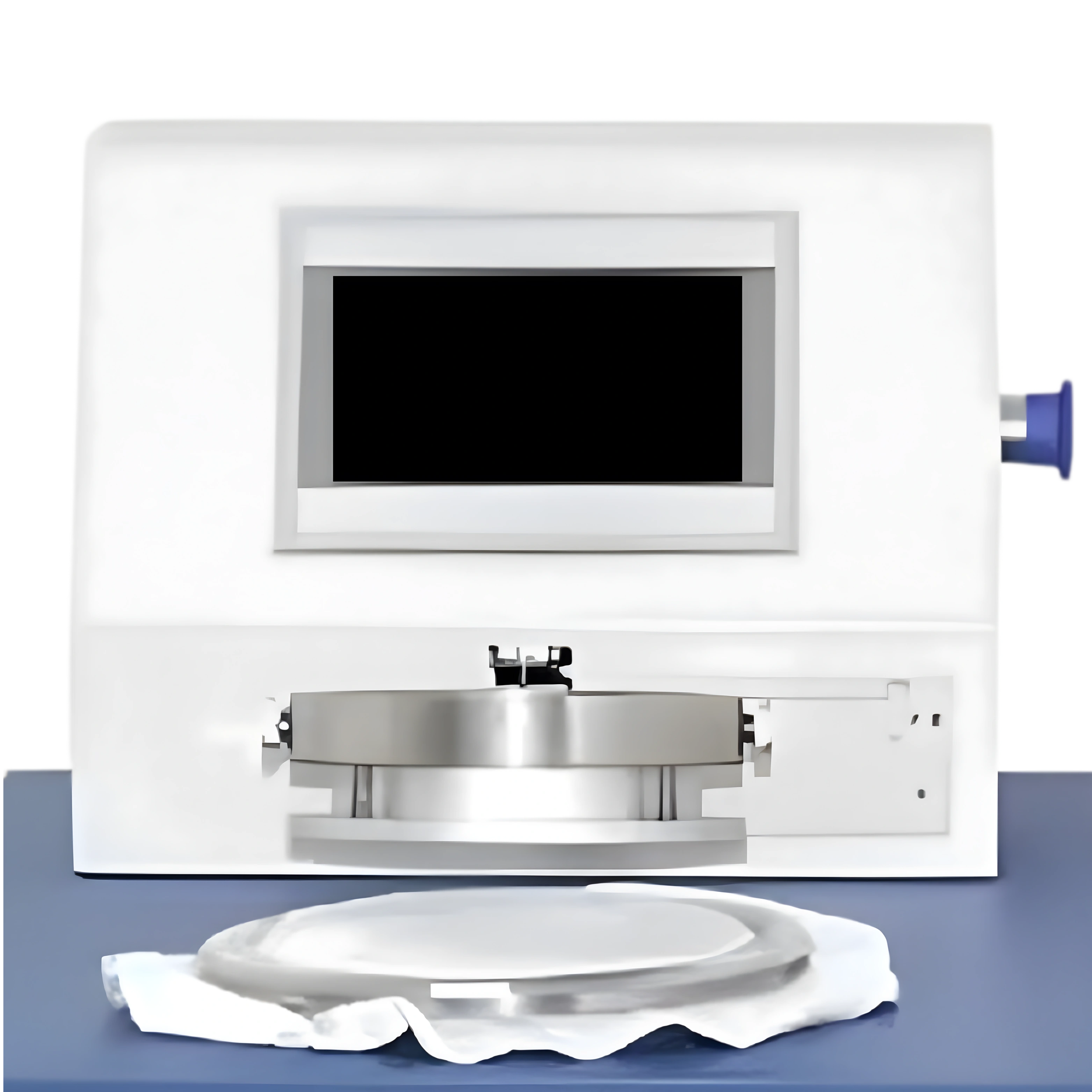

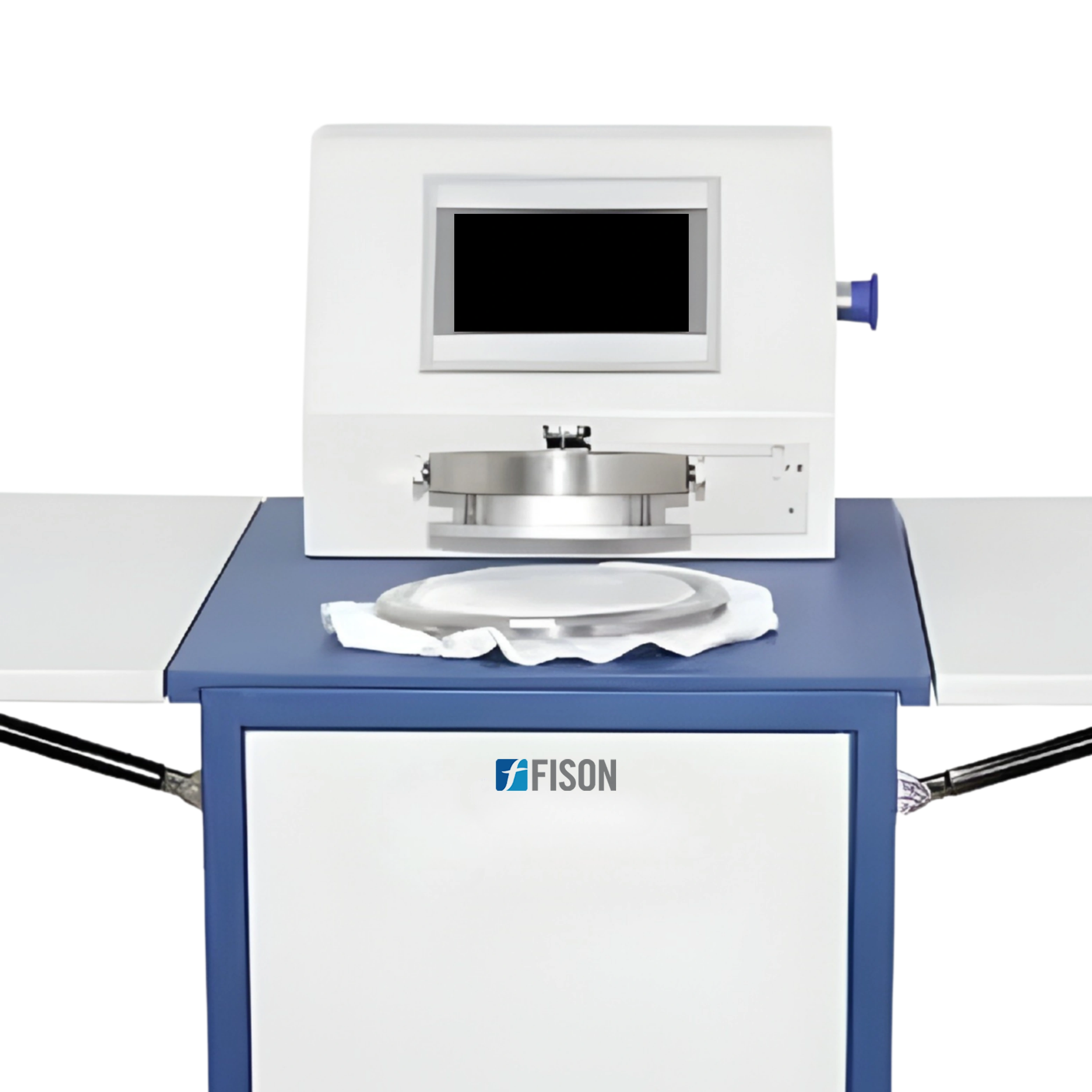

Fison Air Permeability Tester FM-APR-A200 functions as a high-precision tester offering a permeability range of 0.1 to 12,000 mm/s with accuracy less than ±2%. It operates with a 4,000 Pa nozzle pressure difference and 1,000 Pa specimen pressure difference, ensuring stable and repeatable results with a test time of 10–15 seconds. The system supports multiple units (mm/s, m³/m²/min, L/m²/s, cfm, etc.), multiple testing areas, and 11 interchangeable nozzles for different materials. It features fully automatic PLC control, real-time touch screen display, RS232C data output, and built-in thermal printing.
$8,400.00
| Permeability Range | 0.1 to 12,000 mm/s with constant ventilation |
| Measuring Error | Less than ±2% |
| Nozzle Pressure Difference | 4,000 Pa |
| Specimen Pressure Difference | 1,000 Pa |
| Test Time | 10 to 15 seconds |
| Measuring Units | mm/s, m³/m²/min, cm³/cm²/s, m³/m²/h, L/dm²/min, L/m²/s, cfm |
| Testing Area Options | 5 cm², 20 cm², 50 cm², 100 cm², Φ50 mm (≈19.6 cm²), Φ70 mm (≈38.3 cm²) |
| Fabric Thickness | Less than 12 mm |
| Nozzle Diameter Options | 0.8 mm, 1.2 mm, 2 mm, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Sample Size | 50 × 50 mm to 100 × 100 mm (Standard) |
| Sample Thickness | Less than 12 mm (standard), up to 1 mm max. with attachment for thicker samples |
| Power Supply | 220/110 V 50/60 Hz |
| Dimension (L × W × H) | 700 × 600 × 1100 mm |
| Packing Dimension (L × W × H) | 880 × 720 × 1380 mm |
| Net weight | 120 Kg |
| Gross weight | 164kg |
Air Permeability Tester FM-APR-A200 is used in textile manufacturing, medical textiles, sportswear production, industrial filtration, protective clothing, parachutes, and tent materials. It helps evaluate air flow performance and material quality for product development, quality control, and end-use testing.
Calibration orifice plate×1 piece (Ф7.8mm)
Non-perforated plate×1 piece
Sample area constant circle×1 piece (20cm2)
Vent pressing plate for variable vent sizes
Attachment for thick samples
Test plates and fixtures
Calibration Plates
Nozzle
Power line
1: What is the permeability range of the Air Permeability Tester FM-APR-A200?
Air Permeability Tester FM-APR-A200 offers a wide permeability range of 0.1 to 12,000 mm/s.
2: How does the Air Permeability Tester FM-APR-A200 ensure accurate results?
Air Permeability Tester FM-APR-A200 uses a stable nozzle pressure difference of 4,000 Pa for consistent testing.
3: Is the Air Permeability Tester FM-APR-A200 fully automatic?
Yes, the Air Permeability Tester FM-APR-A200 features a fully automatic test method for ease of operation.
4: Can the Air Permeability Tester FM-APR-A200 display real-time results?
Yes, the Air Permeability Tester FM-APR-A200 displays real-time air permeability values on the touch screen.
5: What data output options does the Air Permeability Tester FM-APR-A200 offer?
Air Permeability Tester FM-APR-A200 includes an RS232C data port and a data logger output terminal.
6: Does the Air Permeability Tester FM-APR-A200 support different test setups?
Yes, the Air Permeability Tester FM-APR-A200 includes 11 interchangeable nozzles for various materials.
Fison Air Permeability Tester functions as a high-precision permeability meter designed for accurate measurement of air permeability in materials. It offers a permeability range from 0.1 to 12,000 mm/s and up to 1 to 14,000 mm/s, with a pressure difference up to 4000 Pa and test pressure up to 2400 Pa. The system operates within 10°C to 35°C, ensuring stable testing conditions. It provides measuring accuracy up to ±2% with constant ventilation support. Equipped with a manual clamp mechanism, replaceable nozzle system, airtight door lock, and integrated thermal printer, it ensures consistent testing performance.
