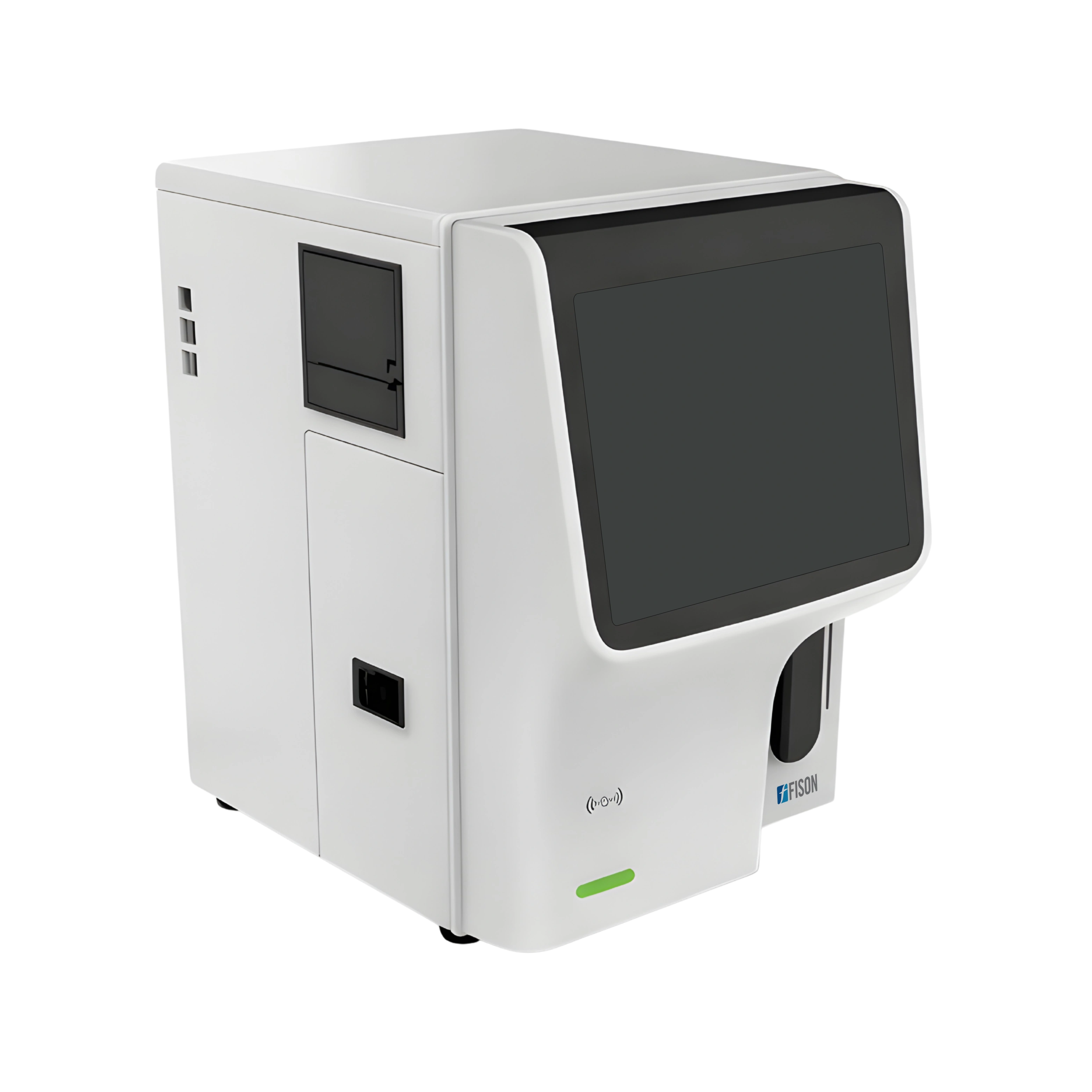

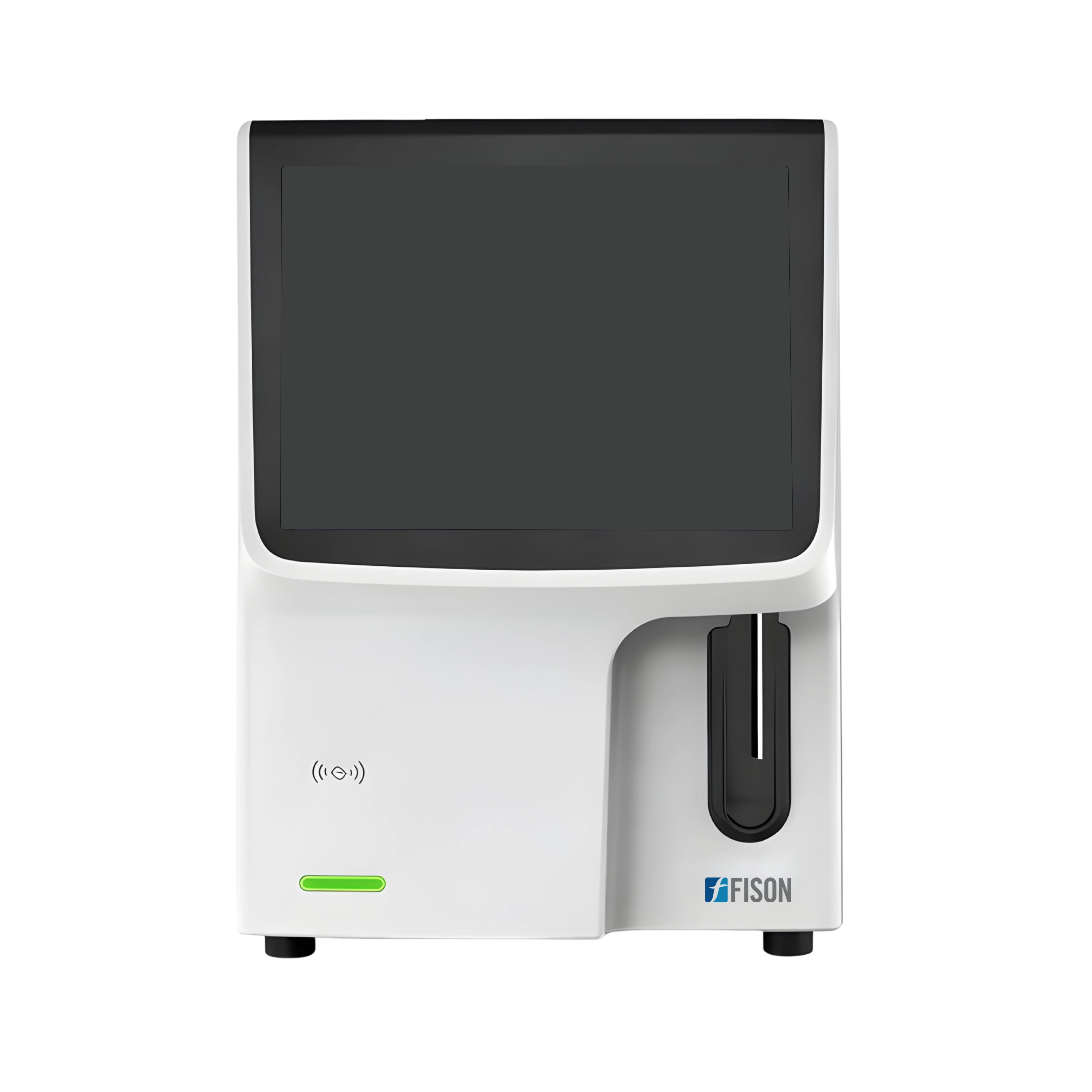

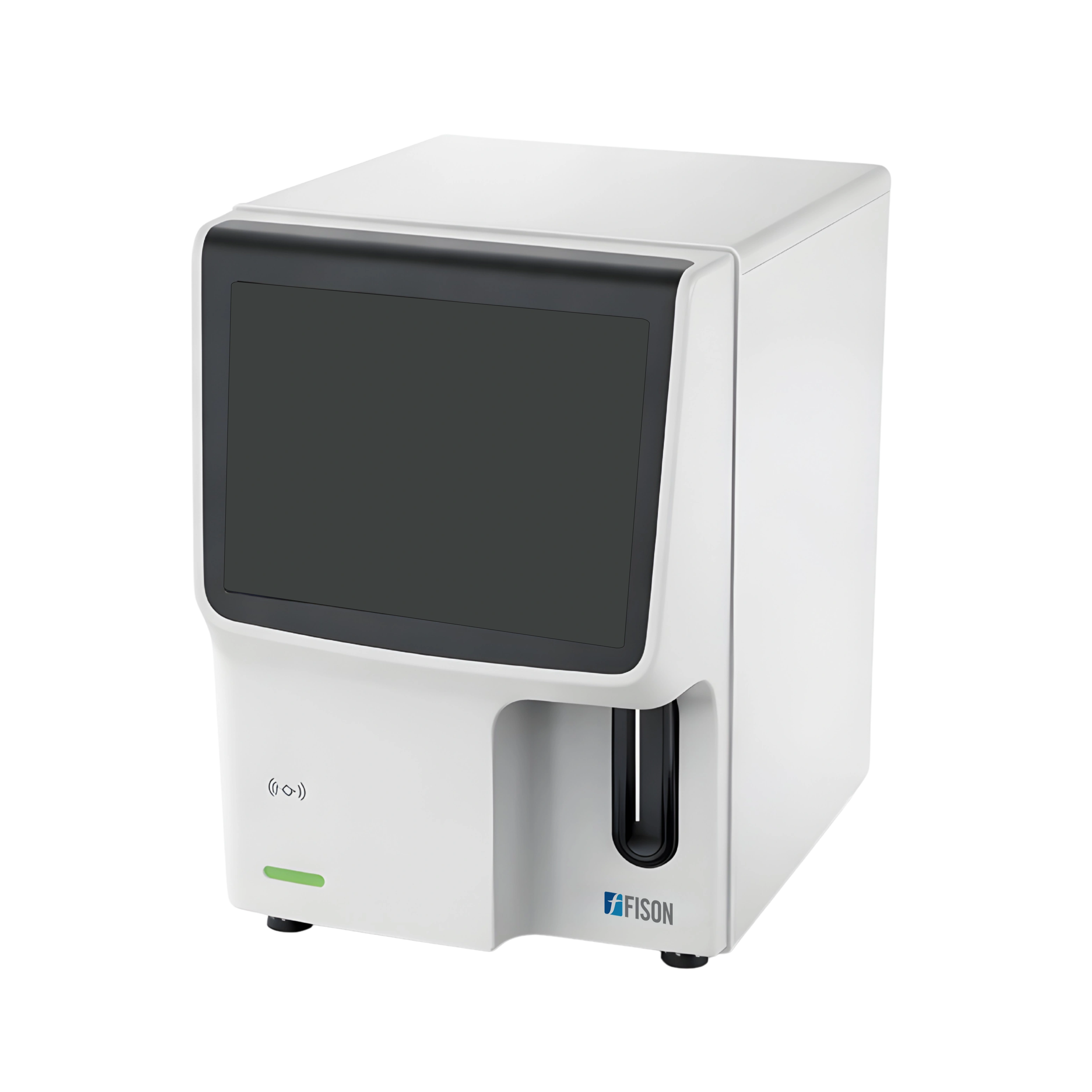

Auto Hematology Analyser FM-AHA-A103
Auto Hematology Analyser FM-AHA-A103 offers 25 reportable parameters using advanced flow cytometry and Coulter principles. With a sample volume as low as 28 µL, it supports precise 5-part WBC differential counts along with RBC, PLT, and HGB analysis. It features USB and LAN interfaces, an intuitive touchscreen, and optional barcode scanner and printer, making it ideal for high-throughput diagnostic labs.
$7,275.00
Specifications
| Operating system | Automatic |
| Sample Volume | 28 μL (whole blood mode) 20 μL (Pre diluted mode) |
| Throughput | ≥55 samples/hour |
| Reportable parameters | 25 parameters: WBC, Lym#, Lym%, Mon#, Mon%, Neu#, Neu%, Eos#, Eos%, Baso#, Baso%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P_LCR, P_LCC |
| Multiple test mode | CBC, CBC+5diff, CBC+5diff+RRBC |
| Display | LCD 10.4-inch color touchscreen Resolution: 1024 × 768 |
| Communication | LAN port supports HL7 protocol |
| Interface | USB,LAN |
| Language Support | English, Chinese |
| Operating Temperature | 10 °C to 35 °C |
| Operating Humidity | 20% to 80% |
| Operating Air Pressure | 80 kPa to 106 kPa |
| Storage | Up to 50,000 sample |
| Printer | Built-in thermal printer |
| Barcode Reader | Optional |
| Reagent | Lyse B-5LH, Lyse B-DIFF, Diluent B-DI, Probe cleaner |
| Power Requirement | 100 to 240 V (±10%) 50/60 Hz (±1 Hz) |
| Dimensions (L × W × H) | 430 × 330 × 510 mm |
| Weight | ≤25 kg |
Features
- Coulter and Flow Cytometry Tech
- Touchscreen Control
- Smart Sample Mode
- Automated LIS Integration
- Built-in Reagent Monitoring
Applications
- Auto Hematology Analyser FM-AHA-A103 is Used in hospitals, clinics, and diagnostic labs for routine CBC, WBC differential, anemia detection, infection monitoring, and hematological analysis.
Accessories
Hematology Analyzer 1 unit Power Cable 1 unit Lyse Reagent 1 500 mL Lyse Reagent 2 500 mL Diluent 20 liters Probe Cleaner 50 mL
Accessories Optional
Lyse 1 500 mL Lyse 2 500 mL Diluent 20 liters Probe Cleaner 50 mL
Frequently Asked Question
1: What parameters can the Auto Hematology Analyser FM-AHA-A103 measure?
The analyzer measures 25 parameters including WBC, RBC, HGB, HCT, PLT, and provides a 5-part WBC differential along with histograms and scattergrams.
2: How does the dual-channel system improve analysis?
The system uses impedance for counting and optical scatter for classification, enhancing accuracy in white cell differentials and flagging abnormalities.
3: Is the analyzer suitable for both whole blood and pre-diluted samples?
Yes, the Auto Hematology Analyser FM-AHA-A103 supports both whole blood and pre-diluted sample modes, making it versatile for various testing requirements.
