Benchtop Rotary Evaporator FM-BRE-A100

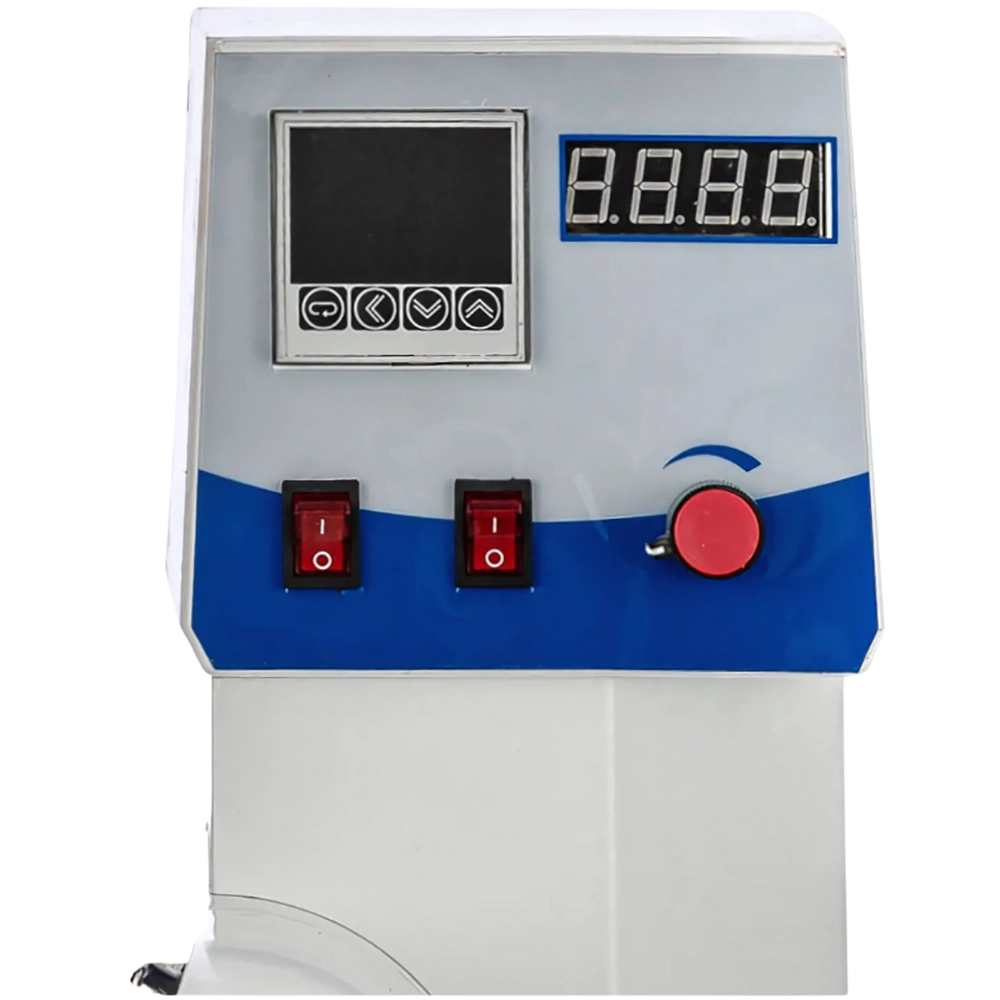

Benchtop Rotary Evaporator FM-BRE-A100 has a bath size and volume of φ235 mm x 145 mm (height) and a capacity of 6.2 liters for efficient distillation. It features a digital display for easy temperature monitoring. This unit offers a fluoro rubber double seal to ensure a high vacuum. Our Benchtop Rotary Evaporator comes with a high recovery rate to maximize the efficiency of solvent recovery.
Specifications
| Bath Size & Volume | φ235 x 145 mm (H), 6.2L |
| Rotation Speed | 0-200 rpm |
| Temperature Range | RT99°C (Water bath), RT180°C (Oil bath) |
| Temperature Control Accuracy | ±1°C |
| Vacuum Degree | 0.098 MPa |
| Evaporating Flask | Eggplant-shaped, 1L φ131 mm |
| Receiving Bottle | 1L φ131 mm |
| Lifting Distance | 120 mm |
| Lifting Mode | Electric |
| Condensing Area | 0.17 m² |
| Rotating Motor Power | 40W |
| Lifting Motor Power | 20W |
| Heating Power | 1200W |
| Power Consumption | 1260W |
| Power Supply | 220-240V, 50Hz |
| Dimensions (W × D × H) | 630W × 400 × (690-810) m |
| Weight | 20.5 kg |
Features
- Equipped with double coil
- Electric lifting for adjustable height
- Efficient condenser for rapid cooling
- Incorporates rotating and heating dual fuses
- Ensures PTFE for superior durability
Applications
- Benchtop Rotary Evaporator FM-BRE-A100 evaporates solvents under reduced pressure to concentrate solutions commonly used in chemical labs, pharmaceutical labs, distilling heat-sensitive materials like essential oils and fragrances, and in food, cosmetics, and biotechnology industries to extract active compounds.
Accessories
Safety Condenser
Accessories Optional
Chiller
Vacuum pump
