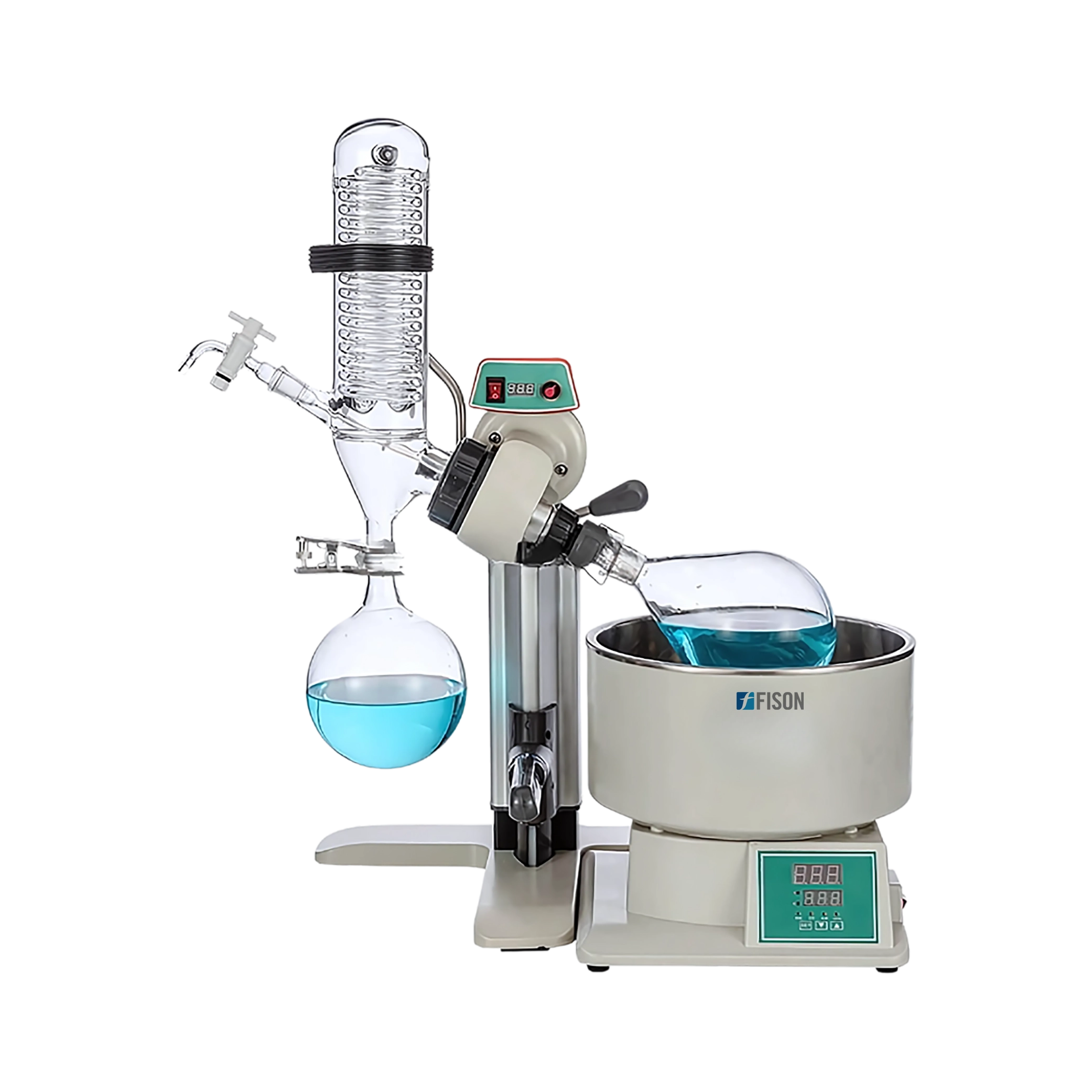

Manual Lifting Rotary Evaporator FM-LRE-A100

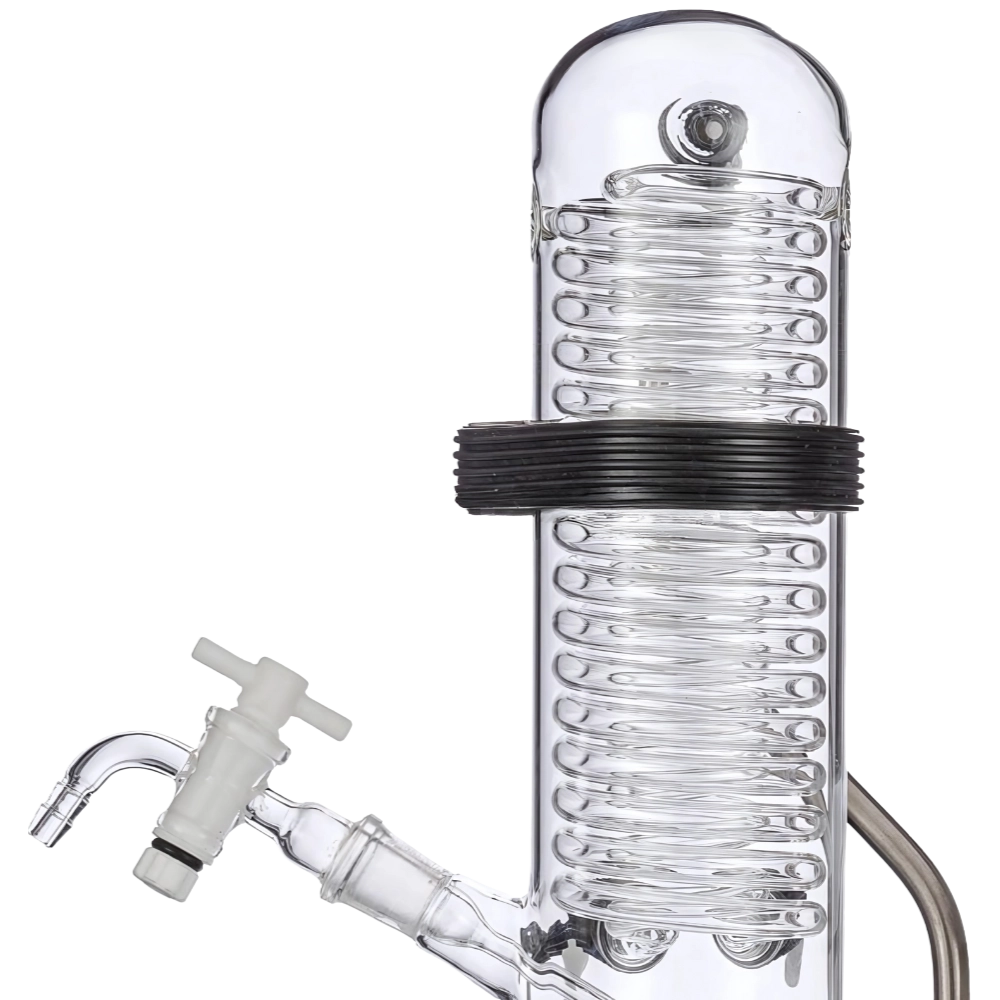

Manual Lifting Rotary Evaporator FM-LRE-A100 is engineered for high-efficiency solvent evaporation with vacuum range up to 0.098 MPa. It boasts chemical-resistant high borosilicate glass and PTFE contact components, ensuring durability and stability. Its double-layer vertical serpentine coil condenser enhances recovery rates while dual control functions allow for precise heating and rotation adjustments. It is equipped with digital display for speed and temperature monitoring. Our Manual Lifting Rotary Evaporator is designed for consistent lab performance.
Specifications
| Vacuum degree | 0.098Mpa |
| Evaporating flask | Eggplant shaped, 1L, ϕ131mm, 24# standard mouth |

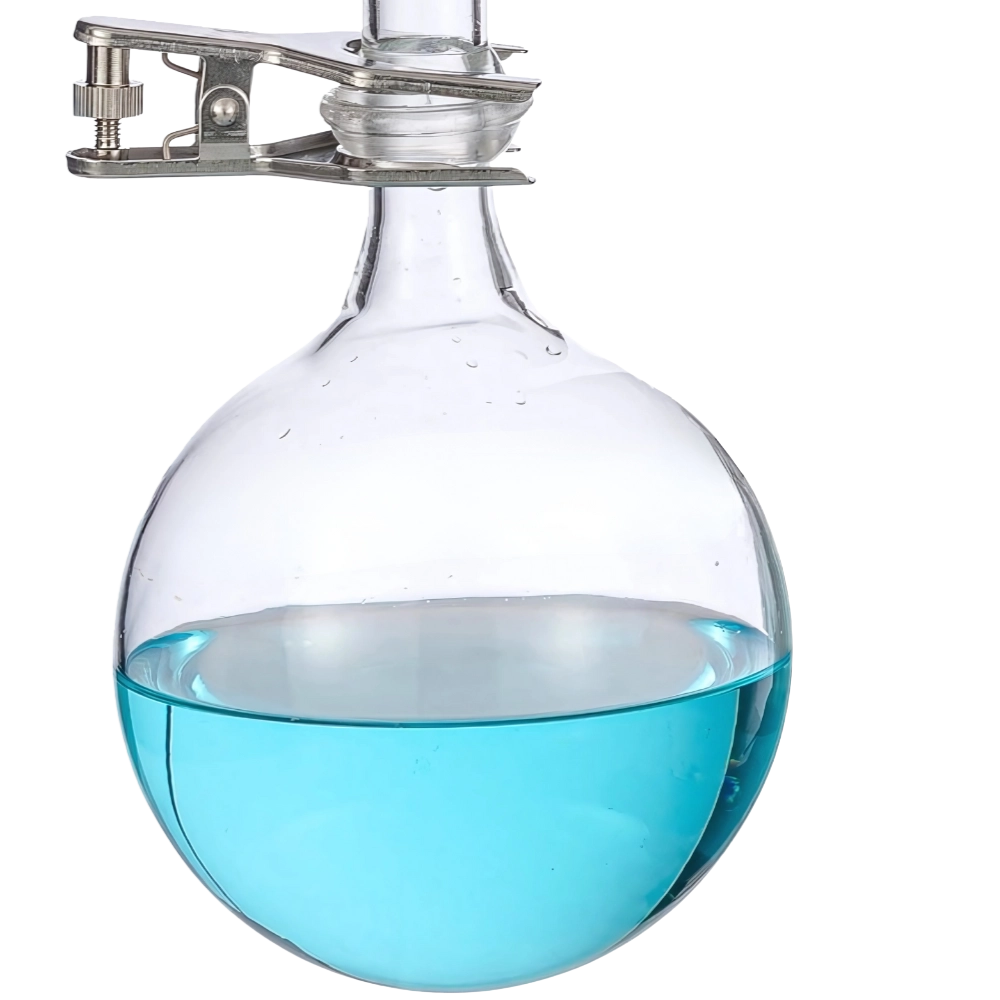

| Receiving bottle | Round shaped, 1L, ϕ131mm, 35# ball milling mouth |
| Rotation speed | 0 to 200 rpm |
| Temperature range | RT to 99°C (water bath) RT to 180°C (oil bath) |
| Temperature control accuracy | ±1°C |
| Lifting distance | 100 mm + 150mm (sliding + manual lift) |
| Bath volume | Φ240×140H (mm), about 6.5L, 3 kg |
| Heating power | 1300W |
| Rotating motor power | 40W |
| Power consumption | 1340W |
| Power supply | 220V/50Hz |
| Dimension (L×B×H) | 570×400×880 mm |
| Packaging dimension (L×B×H) | 730×550×400 mm |
| Net weight | 12 kg |
| Gross weight | 16 kg |
Features
- Composite vacuum sealing
- Stainless steel heating bath

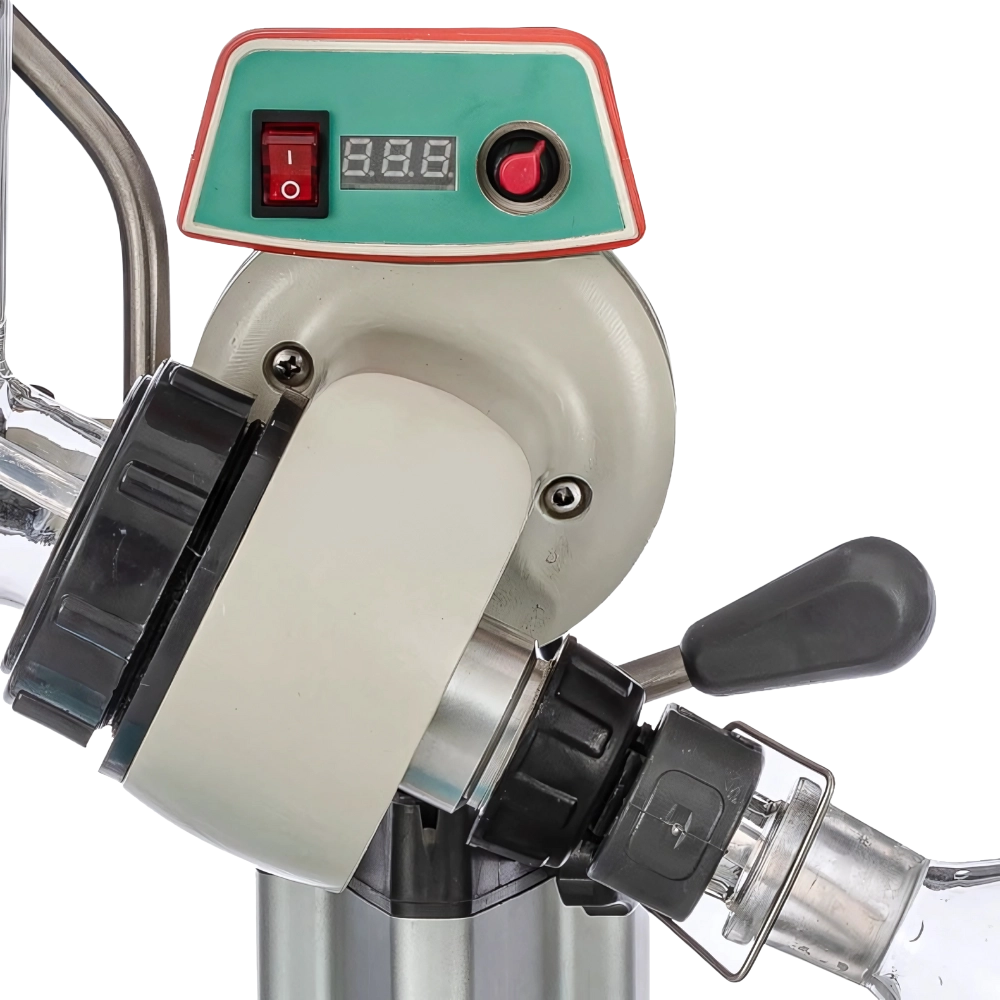

- Digital speed display
- Dual safety fuses
Applications
- Our Manual Lifting Rotary Evaporator FM-LRE-A100 is ideal for solvent recovery, crystallization, and concentration tasks in pharmaceutical, chemical, and biopharmaceutical laboratories, offering precise thermal and vacuum control in pilot-scale workflows.
Accessories
Accessories
Quantity
Machine head with motor
1 set
Evaporating flask
1 pc
Collecting bottle
1 pc
Water bath
1 set
Condenser
1 pc
Ball grinding clamp
1 pc
Feeding valve
1 pc
PTFE tube
1 pc
Glass shaft
1 pc
Heating wire
1 pc
Bath cover
1 pc
Nut with pad
1 set
Circulation joint
2 pcs
Vacuum joint
1 pc
10A fuse
2 pcs
Sealing ring
1 pc
Stop pin
1 pc
Accessories Optional
Glass rotation axis
Oil seal
Evaporating flask (1000ml)
Collecting bottle (1000ml)
Glass condenser
Feeding valve
PTFE feeding tube (20cm)
Frequently Asked Question
1: What is the maximum vacuum level achievable with Manual Lifting Rotary Evaporator FM-LRE-A100?
It can attain a vacuum degree of up to 0.098 MPa, ensuring efficient solvent evaporation under reduced pressure conditions.
2: What types of solvents can be evaporated using Manual Lifting Rotary Evaporator FM-LRE-A100?
It is suitable for evaporating a wide range of solvents, including those with higher boiling points, due to its efficient vacuum system and temperature control.
3: What is the capacity of the evaporating and receiving flasks?
Both the evaporating and receiving flasks have a capacity of 1 liter, accommodating standard laboratory sample volumes.
4: How should Manual Lifting Rotary Evaporator FM-LRE-A100 be maintained for optimal performance?
Regular cleaning of the glassware and seals, checking for wear, and ensuring proper vacuum connections are essential for maintaining optimal performance.
