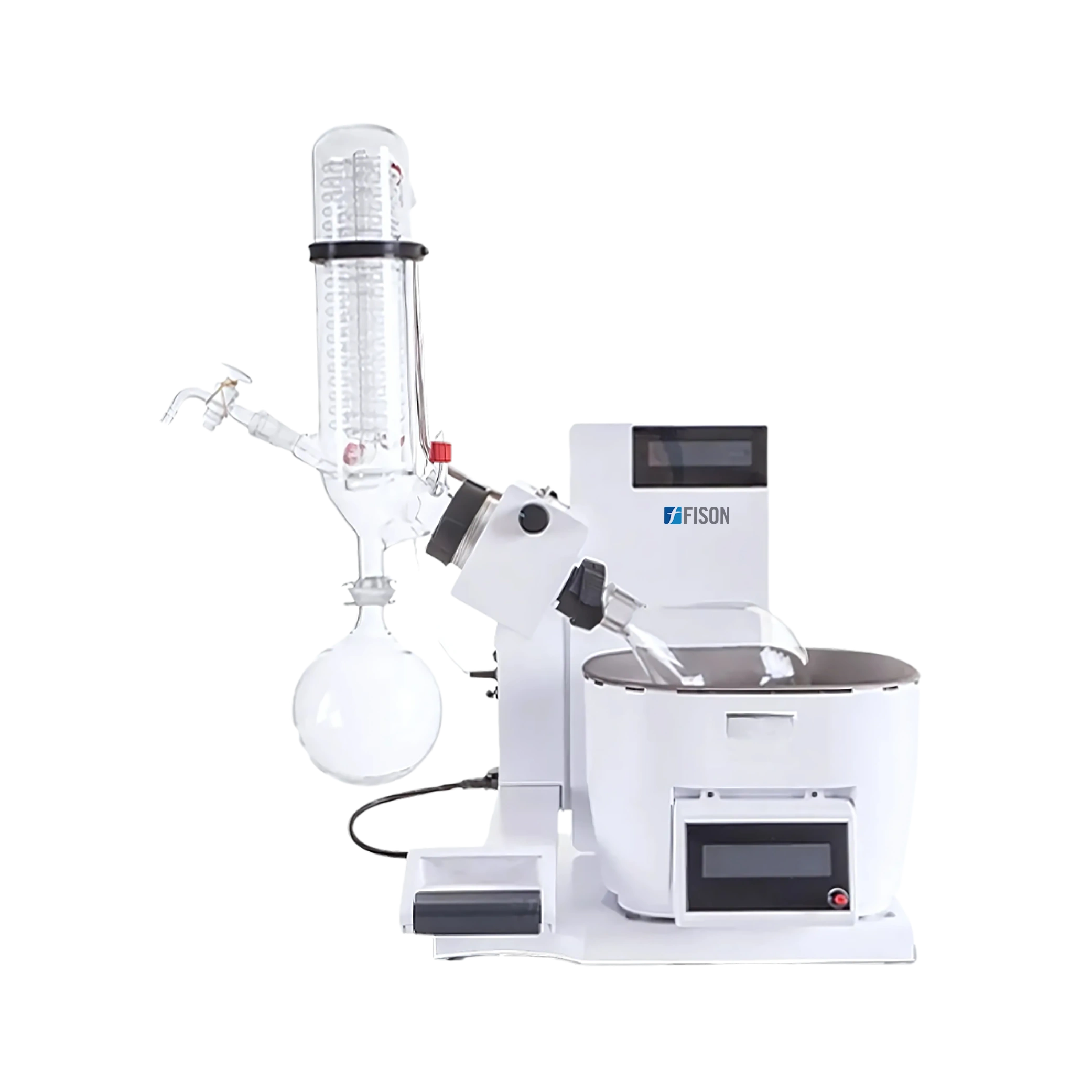

Benchtop Rotary Evaporator FM BRE-A101

Benchtop Rotary Evaporator FM BRE-A101

Benchtop Rotary Evaporator FM BRE-A101 offers a variable rotation speed of 35 to 200 rpm, enabling controlled and precise solvent evaporation. It is designed for efficient operation under vacuum, it features PTFE sealing, electric lift, and temperature control up to 99 °C. It is suitable for evaporation volumes between 50 mL and 2 L, the system ensures high performance and consistency, delivering a water evaporation rate of 20 mL per minute. It is used in laboratory applications across pharmaceuticals, chemicals, and bioprocessing.

$2,825.00

Download Catalog

Specifications

Rotation speed 35 to 200 rpm
Forward & reverse Double-click knob / Click to start
Auto mode Long press for 3 seconds
Tilt angle adjustment 0 to 30°
Lifting mode Electric
Lifting distance 180 mm
Control panel LCD
Evaporating flask volume 50 to 2000 mL
Evaporation efficiency (Water) 20 mL/min
Temp. display modes Set temp., actual temp., steam temp
Temp. range 20 to 99 °C
Accuracy ±1 °C
Heating power 1500 W
Water bath volume 4 L
Sealing parts PTFE
Power supply 220 to 240 V / 50, 60 Hz
Dimensions (L × W × H) 650 × 420 × 900 mm
Weight 19 to 20 kg

Features

  1. Auto-lift on power-off
  2. Knob-controlled rotation reversal
  3. Easy-clean split water bath
  4. Steam temp port for monitoring
  5. Integrated motor-bath unit

Applications

  • Benchtop Rotary Evaporator FM BRE-A101 Used in solvent recovery, concentration, crystallization, drying, and separation processes in pharmaceutical, chemical synthesis, food science, and academic research.

Alternative Models Of Benchtop Rotary Evaporator

Fison Benchtop Rotary Evaporator is equipped with advanced double fuses and high safety protection performance for efficient rotation and heating. It is constructed with high borosilicate glass for enhanced durability and thermal shock resistance. This unit comes with a fluoro rubber double seal to ensure a high vacuum. They feature an integrated condenser for efficient cooling. Our Benchtop Rotary Evaporator includes a double coil design for a high recovery rate.
