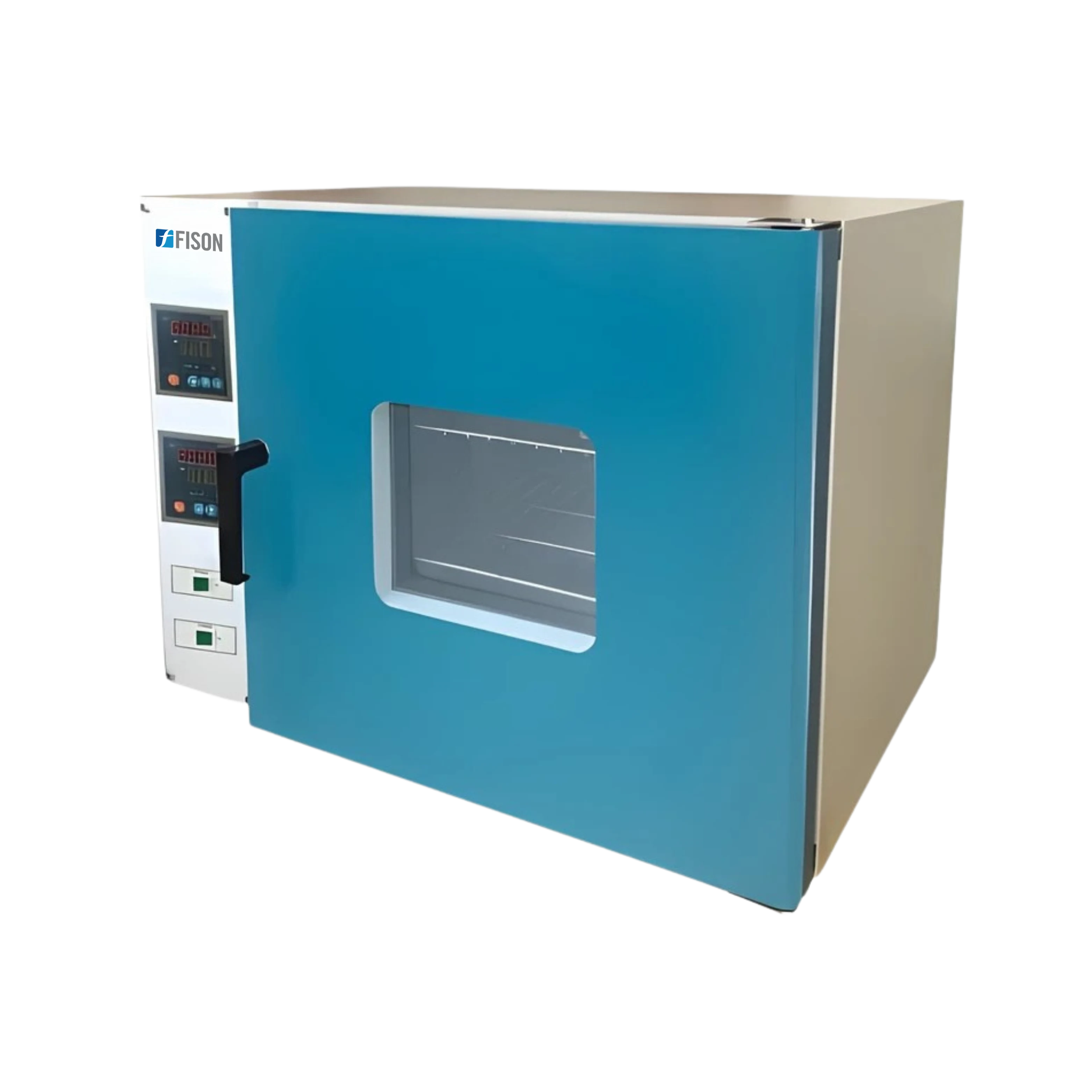

Drying Oven FM-DO-C103 Catalog
Overview
Drying Oven FM-DO-C103 offers a 140L capacity, providing ample space for various sample sizes. It operates within a temperature range of RT+5 to 80℃ as an incubator and 80 to 250℃ as an oven, ensuring versatile application. Its hygienic stainless-steel chamber with rounded edges allows easy cleaning and prevents residue buildup for long-lasting performance. Our oven features a built-in digital timer for precise operation control, ensuring accurate process durations.
Specifications:
| Capacity | 140L |
| Temperature range | As incubator: RT+5 to 80℃As oven: 80 to 250℃ |
| Temperature resolution | 0.1℃ |
| Temperature fluctuation | As incubator: ±0.5℃As oven: ±1℃ |
| Timer | 0 to 9999 min |
| Power Consumption | 1600W |
| Power Supply | 110V 60Hz / 220V 50Hz |
| Working size | 550 × 450 × 550 mm |
| Dimension (L×B×H) | 720 × 780 × 750 mm |
| Packing Dimension (L×B×H) | 830 × 880 × 860 mm |
| Net Weight | 72 kg |
| Gross Weight | 88 kg |
Features:
- Dual-mode oven and incubator operation
- Optimized airflow ducts for uniform heating
- PID self-tuning with over-temperature safety
- Automatic end-of-cycle alert
- Digital temperature display with real-time monitoring
- Low-noise forced air circulation
Applications:
Drying Oven FM-DO-C103 is suitable for drying, baking, wax melting, sterilization, and curing in industrial and mining enterprises, medical and healthcare facilities, and scientific research institutions. It is also ideal for bacterial culture, breeding, fermentation, and other constant temperature tests.
