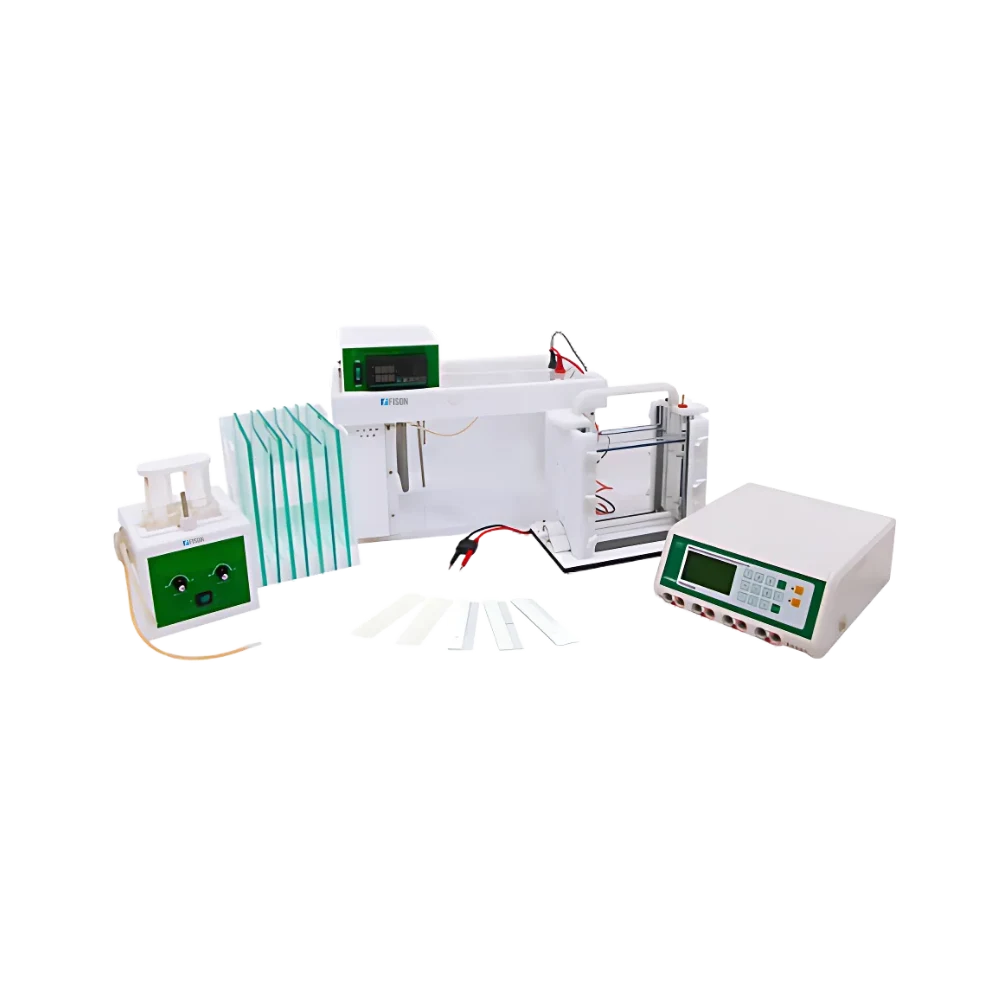

Denaturing Gradient Electrophoresis System FM-DGES-A100 features a fixed gel size of 160×160 mm and supports precise gradient gel separation. Its stationary casting design avoids gel shifting, improving handling and consistency. The gradient generator provides adjustable electric fields for optimal DNA resolution. An integrated buffer circulation system maintains uniform temperature across the gel. Ideal for molecular diagnostics, genetic research, and microbial diversity studies.
$17,716.00
| Glass plate size (W×L) | 200 × 200 mm |
| Gel size (W×L) | 162 × 175 mm |
| Gel thickness | 1.0mm |
| Number of gels | 1 to 2 pcs |
| Number of samples | 1 to 70 |
| Total buffer volume | 10L |
| Dimension (L×B×H) | 458 × 230 × 285 mm |
| Net weight | 23 kg |
Accessories | Quantity |
| Power supply | 1 |
| Body tank with electrodes | 1 |
| Gel casting stand | 1 |
| Gradient gel electric generator | 1 |
| Notched glass plates | 4 |
| Spacer plate with 1.00 mm spacer | 4 |
| 1.0 mm thickness 1-well comb | 2 |
| 1.0 mm thickness 2-well comb | 2 |
| 1.0 mm thickness 15-well comb | 2 |
| 1.0 mm thickness 21-well comb | 2 |
| 1.0 mm thickness 35-well comb | 2 |
| Accessory kit | 1 |
| Control cables | 1 |
| Electrical cables | 1 |
1: How does the temperature control system work in Denaturing Gradient Gel Electrophoresis System FM-DGES-A100?
FM-DGES-A100 uses a built-in buffer liquid circulating pump and heater to maintain uniform buffer temperature up to 45°C for accurate and stable separation.
2: Can Denaturing Gradient Gel Electrophoresis System FM-DGES-A100 operate in both constant voltage and constant current modes?
Yes, the FM-DGES-A100 supports both constant current and constant voltage operation, allowing flexible electrophoresis control.
3: What is the primary application of the FM-DGES-A100 system?
Denaturing Gradient Electrophoresis System FM-DGES-A100 is primarily used for detecting DNA mutations, polymorphisms, and genetic diversity through gradient-based electrophoresis.
4: Is it safe to operate in case of buffer shortage or overheating in Denaturing Gradient Gel Electrophoresis System FM-DGES-A100?
Yes, FM-DGES-A100 is equipped with a buffer height sensor and a temperature probe to automatically protect the unit from damage due to buffer loss or overheating.
5: Does Denaturing Gradient Gel Electrophoresis System FM-DGES-A100 support easy monitoring of gel preparation and run status?
Absolutely. FM-DGES-A100’s side-open safety lid and transparent design enable clear visualization of gels during preparation and operation.
Denaturing Gradient Electrophoresis System is a powerful tool designed to analyze DNA polymorphisms and genetic diversity with high resolution. It features an integrated gel casting setup, gradient gel electric generator, and precise buffer circulation for uniform temperature. The side-open lid and clear glass design enhance user convenience and safety. Built-in protections and intelligent controls ensure reliability and accuracy during operation. Ideal for research on mutations, microbial diversity, cancer diagnostics, and genetic disorder studies.
