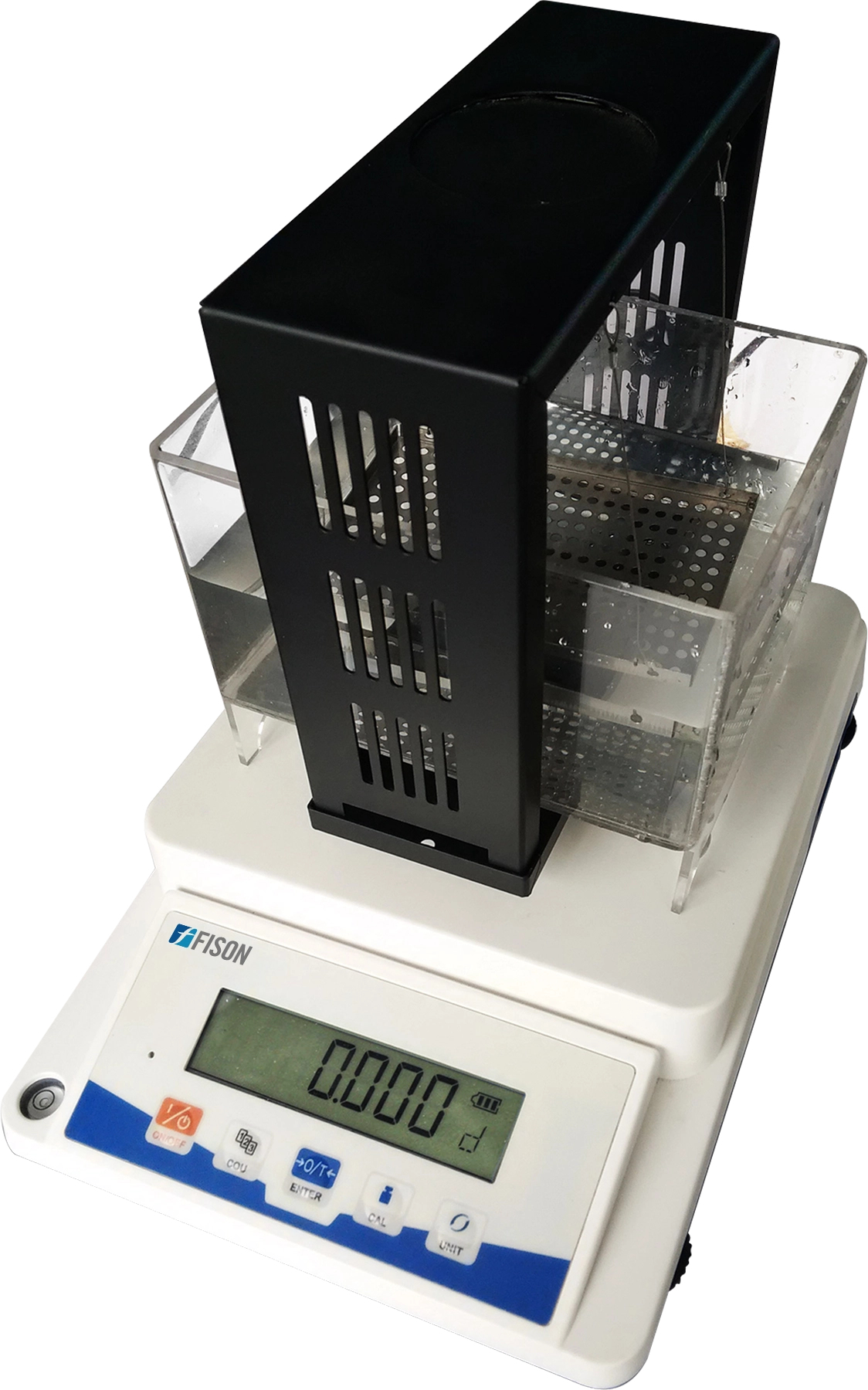

Density Meter FM-MDM-A100
Density Meter FM-MDM-A100 is a benchtop unit with measuring range of 0 to 100 g/cm3. It has a maximum weighing capacity of 310 g and a minimum weighing capacity of 0.04 g. It is equipped with load cell sensor to get precise measurements. The results can be displayed in different units. It can measure the density of both solid and liquid materials. Weighing tray is surrounded by plastic case along with aluminium density frame to avoid errors due to external factors. It is widely used in research institutes and inspection units.
$1,400.00
Specifications
| Measurement range | 0 to 100 g/cm3 |
| Maximum weight | 310 g |
| Minimum weight | 0.04 g |
| Resolution | 0.01 g |
| Sensor | Load cell |
| Pan size | 160 × 70 mm |
| Operation Temperature | 5 to 25°C |
| Repeatability | ± 0.02 g |
| Packing Dimension | 440 × 310 × 300 mm ×2 (Scale box and accessories box) |
| Test mode | Solid, Liquid |
| Unit mode | Weighing : g/ct/oz Density : D |
| Case material | Plastic case with aluminum density kit |
| Gross weight | 4.0 kg |
| Display | LCD |
| Calibration weight | 200 g |
| Tank Dimension | 139 × 100 × 78 mm |
| User interface | RS232C |
Features
- LCD display with white back light and black font
- Weighing resolution of 0.01 g to measure purity of samples with lesser weight
- Load cell sensor to get accurate measurements
- Aluminium density frame eliminates the interference during measurements
- Can test solid and liquid materials
- Weighing tray is surrounded by plastic case and an aluminum density kit to eliminate errors due to external factors
Applications
- It is used to measure the purity of a sample, the concentration of binary mixtures and even the consistency of sample. It finds application in breweries, distilleries, petroleum testing, pharmaceutical industry, inspection units etc.
Accessories Optional
Thermal printer
