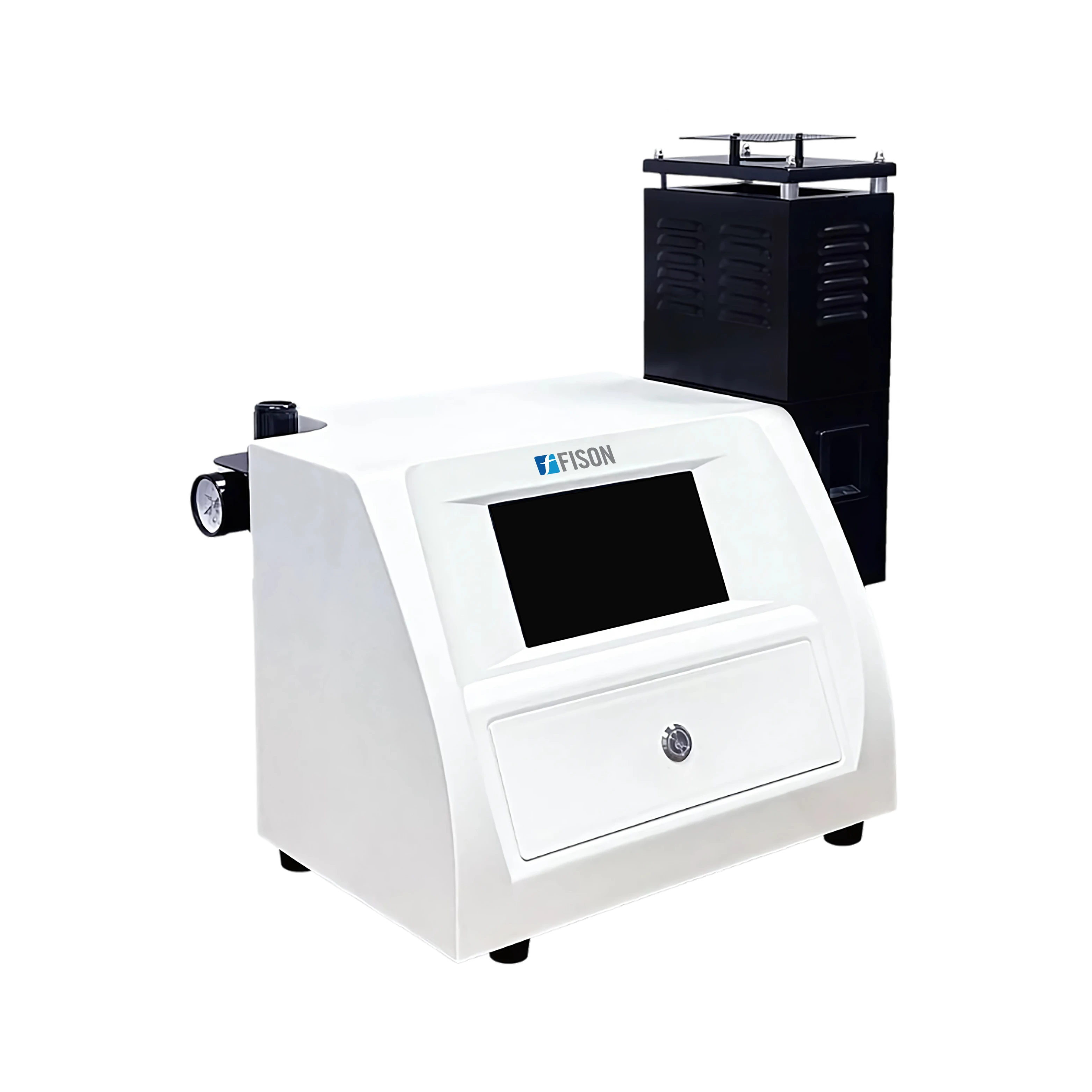

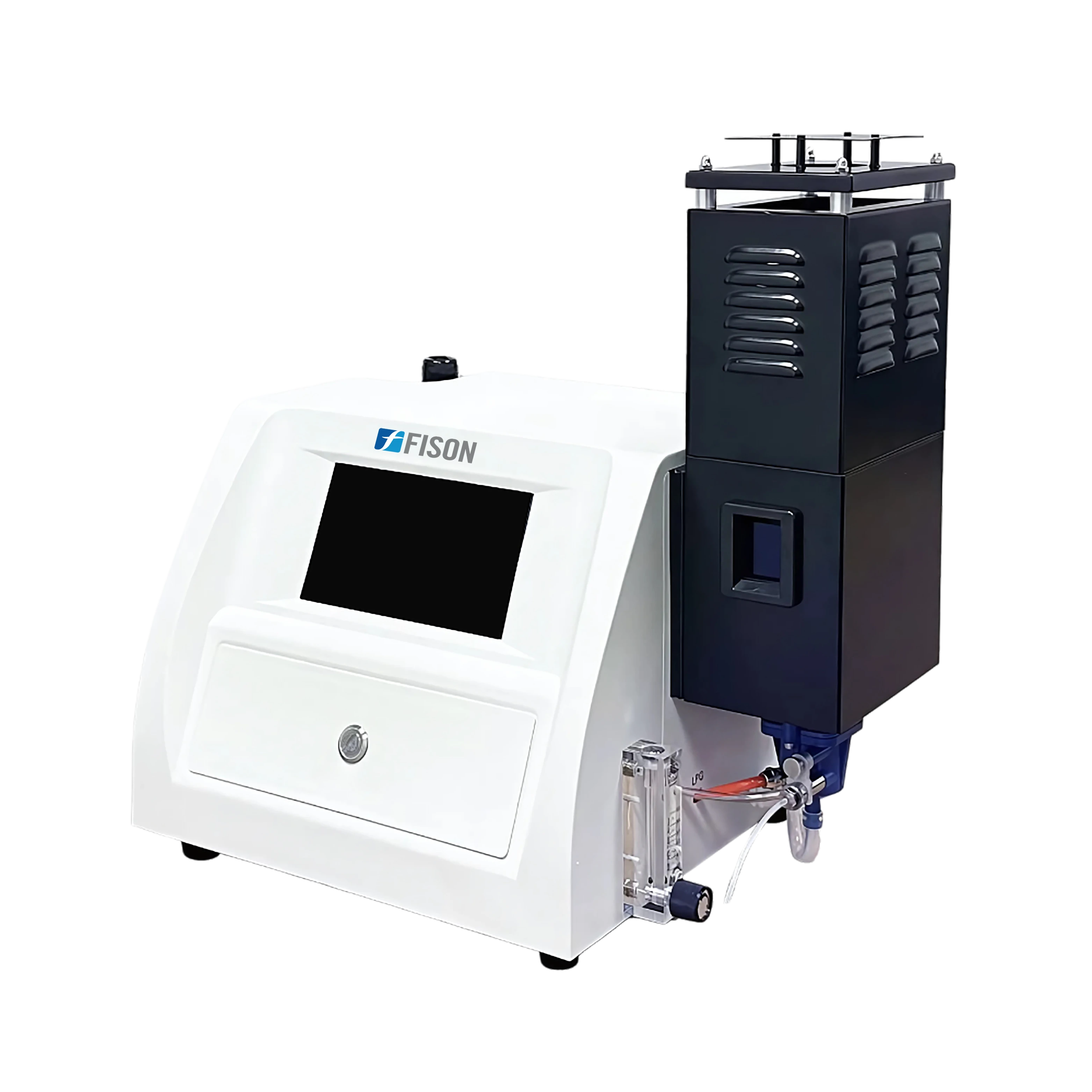

Flame Photometer FM-FPM-A105 delivers precise quantification of potassium, sodium, and calcium in diverse sample types. It supports an extensive measurement range of 0.15 to 100 ppm for potassium, 0.18 to 100 ppm for sodium, and 0.1 to 1000 ppm for calcium, ensuring high analytical versatility. It utilizes an LPG flame for reliable and consistent elemental analysis. Our photometer features a 7-inch color touchscreen that ensures intuitive operation and clear visualization of test parameters.
$2,995.00
| Test Elements | K / Na /Ca |
| Test Range | K: 0.15 to 100 Na: 0.18 to 100 Ca: 0.1 to 1000 ppm |
| LOD | K: ≤0.156 Na: ≤0.184 Ca: ≤2 ppm |
| Linear Error | K: ≤0.195 Na: ≤0.69 Ca: ≤3 ppm |
| Channel Quantity | 3 |
| Response Time | 8s |
| Sample Uptake | Less than 3ml/min |
| Stability | Less than 3% (15s), ≤15% (6min) |
| Reproducibility | Less than 2% |
| Air Compressor | External |
| Printer | Optional built-in thermal printer |
| Communication | USB |
| Fuel | LPG |
| Power Supply | AC220V±10%, 50Hz±1Hz, 30W |
| Dimension (L×B×H) | 570 × 530 × 400 mm |
| Weight | 18kg |
Accessory | Quantity |
LPG reducing valve | 1 pc |
Stainless steel bellows for LPG | 1 pc |
Silica gel tubing for waste liquid | 1 pc |
PU tubing for air | 1 pc |
Air compressor | 1 pc |
1: How does the Flame Photometer FM-FPM-A105 ensure accurate detection of potassium, sodium, and calcium?
Flame Photometer FM-FPM-A105 achieves high accuracy through its optimized LPG flame system, low limits of detection (LOD), and precise linearity, with built-in storage for 20 standard curves to enhance calibration consistency.
2: Where can data from the Flame Photometer FM-FPM-A105 be exported for further analysis?
Data from the Flame Photometer FM-FPM-A105 can be directly transferred to a PC via USB communication or saved on a flash drive, facilitating easy integration with external data processing software.
3: How does the Flame Photometer FM-FPM-A105 enhance operational safety during use?
Flame Photometer FM-FPM-A105 includes built-in safety mechanisms such as an accidental flameout detector and automatic power-down to protect users and maintain equipment integrity.
4: Why is the 7-inch color touchscreen an important feature of the Flame Photometer FM-FPM-A105?
The 7-inch color touchscreen on the Flame Photometer FM-FPM-A105 provides a user-friendly interface with multi-language support, enabling clear visualization and simplified control of real-time data and test parameters.
5: What are typical applications of the Flame Photometer FM-FPM-A105 in scientific and industrial settings?
Flame Photometer FM-FPM-A105 is widely used in fields such as soil nutrient analysis, food quality control, pharmaceutical research, and water quality testing due to its precision and broad elemental detection capabilities.
Fison Flame Photometers are designed for the precise detection and quantification of alkali and alkaline earth metals. They offer fast and reliable analysis of elements such as sodium (Na), potassium (K), calcium (Ca), and lithium (Li). These photometers feature high sensitivity and accuracy for detecting low concentrations of metals. Our photometers have a digital display for clear and quick reading of results. They incorporate a safety feature to prevent flameout and ensure continuous operation.
