Fluorescence Microscopes FM-FM-A103

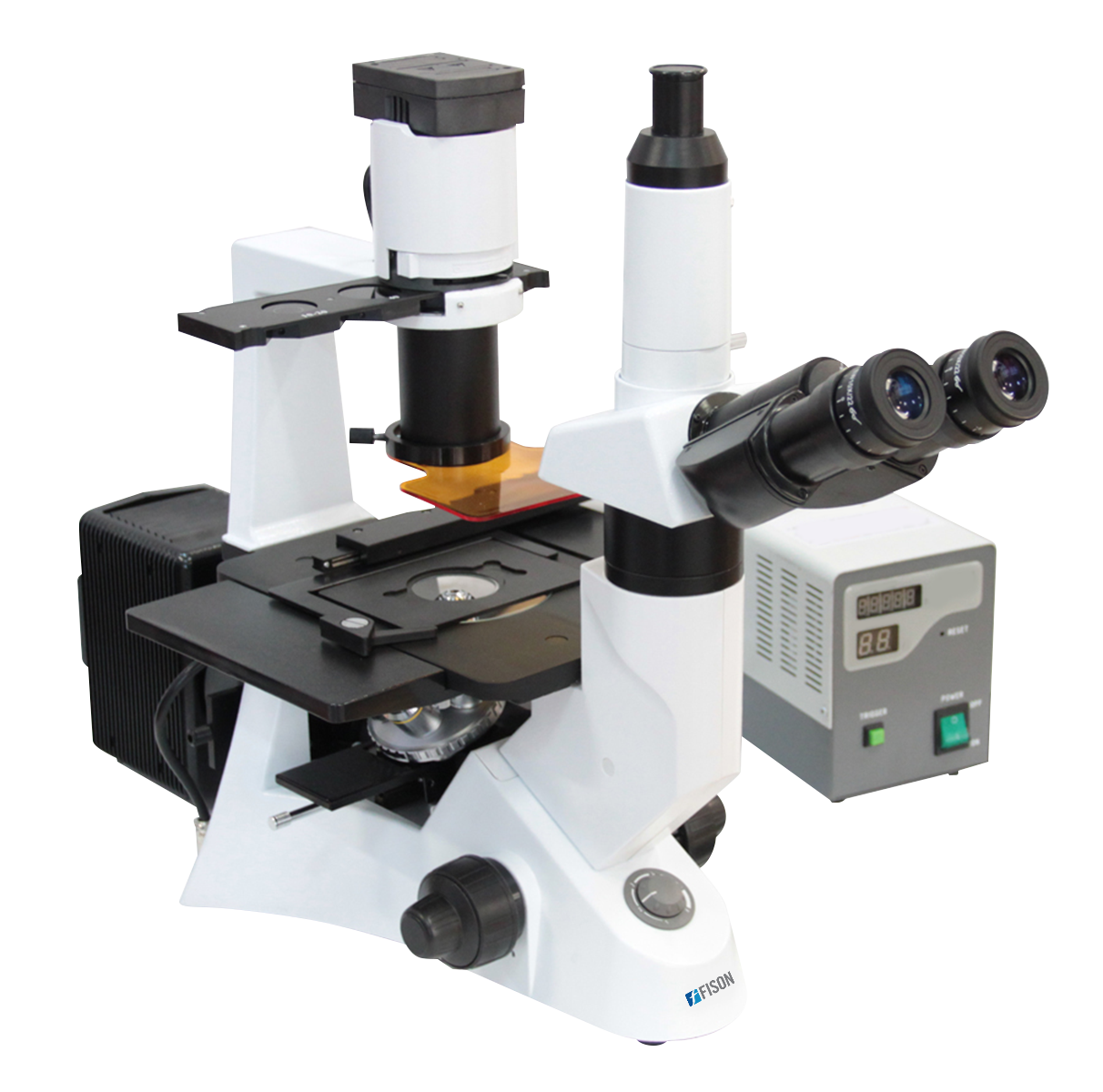

Fluorescence Microscopes FM-FM-A103 is an inverted microscope with phase contrast attachment, trinocular viewing head, long working distance infinite plan objectives and infinite plan phase objectives. The fluorescent attachment with B and G excitation filter modules aids in fluorescent microscopic observations.
Specifications
| Optical system | Infinite optical system | ||||||||||||||||||||||||||||
| Viewing head | Trinocular head inclined at 30°, interpupillary distance 48 to 75 mm | ||||||||||||||||||||||||||||
| Eyepiece | High eye point, extra wide field eyepiece EW10x/ 22 mm | ||||||||||||||||||||||||||||
| Objectives |
|
||||||||||||||||||||||||||||
| Nosepiece | Quintuple nosepiece | ||||||||||||||||||||||||||||
| Centering | Centering telescope 30 mm | ||||||||||||||||||||||||||||
| Condenser | ELWD Condenser N.A. 0.3, LWD 72 mm | ||||||||||||||||||||||||||||
| Phase Annulus | 10X, 20X, 40X Phase annulus plate (fixed) | ||||||||||||||||||||||||||||
| Stage | Plain stage 160 × 250 mm, glass insert Auxiliary stage 70 ×180 mm | ||||||||||||||||||||||||||||
| Fluoresence attachment |
|
||||||||||||||||||||||||||||
| Focusing | Coaxial coarse and fine adjustment, vertical objective movement, coarse stroke 37.7 mm per rotation, fine stroke 0.2 mm per rotation | ||||||||||||||||||||||||||||
| Illumination | 6 V, 30 W Halogen lamp | ||||||||||||||||||||||||||||
| Filter | Blue/Green and Ground glass (45 mm) | ||||||||||||||||||||||||||||
| Dimension (L×W×H) | 515 × 302 × 475 mm | ||||||||||||||||||||||||||||
| Weight | About 20 kg |
Features
- Inverted plain 160 × 250 mm stage and 70 × 180 mm auxiliary stage
- 6V, 30 W halogen lamp as illumination source
- Quintuple Nosepiece
- Infinite optical system
- Fluorescent and phase contrast attachments
- Blue and Green, Ground glass (45 mm) filters
Applications
- The fluorescent microscope with inverted stage finds applications in medical & clinical microbiology, tissue and cell culture fields, genetic engineering and other streams for detailed fluorescent dyes effect on a specimen.
Accessories Optional
Accessories No. Name 1 Terasaki holder 2 Attachable mechanical stage, X-Y coaxial control, moving range 120 × 78 mm 3 38 mm petri dish holder 4 54 mm slide glass holder 5 Neutral filter ND 25 6 Neutral filter ND 6 7 Centering plate 8 Photo attachment 9 Video adapter 1X C mount 10 Video adapter 0.5X C mount
