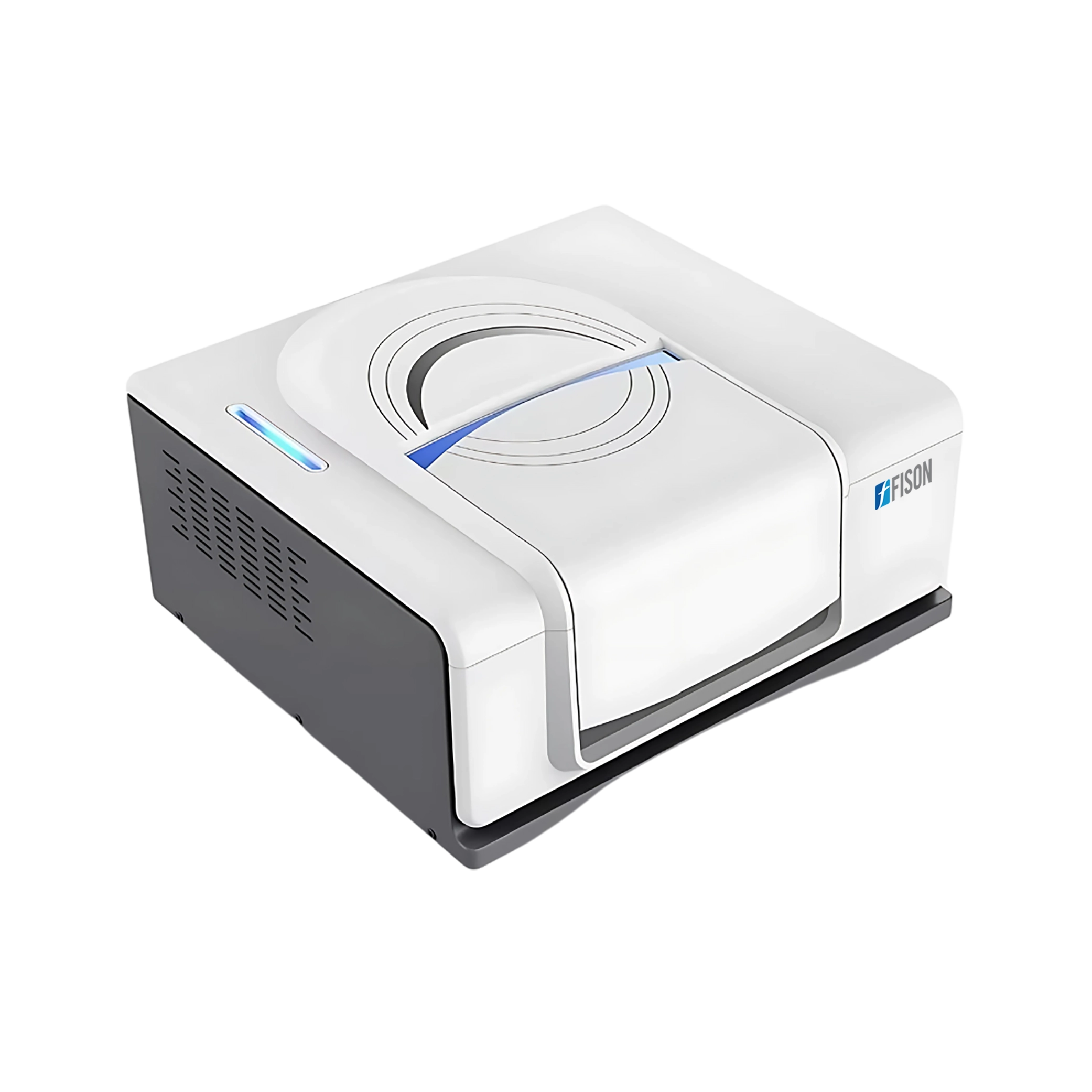

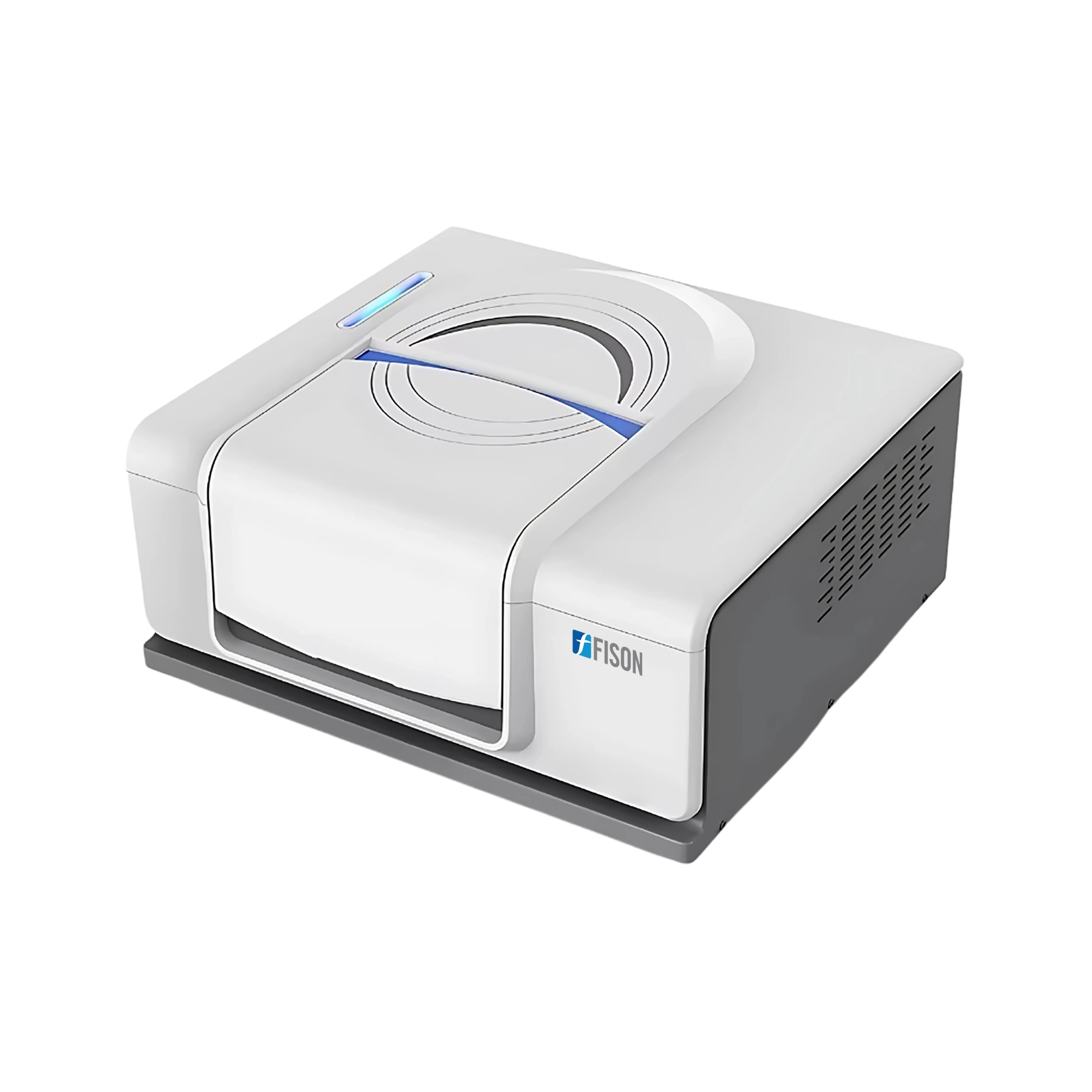

FTIR Spectrometer FM-FTIR-A100
FTIR Spectrometer FM-FTIR-A100 has a powerful optical system with Cube-corner Michelson interferometer. It has wavenumber range of about 7800 cm-1 to 350 cm-1. Gold-coated reflecting mirrors maximize light throughput, guaranteeing exceptional sensitivity. Communication has become very convenient due to Ethernet and WIFI connections. Enables real-time monitoring of instrument status and performance. Intuitive and user-friendly device, thanks to its touch control operation and compatibility with Windows. Moreover, it is a cutting-edge solution revolutionizing spectral analysis in research, industrial, and educational settings.
Specifications
| Interferometer Type | Cube-corner Michelson Interferometer |
| Beam Splitter | Multilayer Ge-coated KBr |
| Wavenumber Range | 7800 cm-1 to 350 cm-1 |
| Resolution | 0.85 cm-1 |
| Signal to Noise Ratio | Better than 20,000:1 (RMS value) |
| Wavenumber Accuracy | ±0.01 cm-1 |
| Scanning Speed | Microprocessor Controlled, Selectable Speeds |
| Detector | High Sensitivity Pyroelectric Module |
| Software | MainFTOS Suite Workstation, Compatible with All Versions of Windows OS |
| Device Status Diagnosis | Power on self-check, Real-time Temperature and Humidity Monitoring with Reminders |
| Environmental Conditions | Temperature: 10°C to 30°C, Humidity: Less than 60% |
| Power Supply | AC 220 V ± 22 V, 50 Hz ± 1 Hz |
| Dimensions | 490 × 420 × 240 mm |
| Packing dimensions | 680 × 580 × 630 mm |
| Weight | 23.2 Kg |
| Gross weight | 40 Kg |
Features
- FTIR Spectrometer with moisture proof design
- Integrated electronic system
- Flexible sample chamber design
- Easy data management and analysis
- Meets GLP/GMP and CFDA requirements
- Compact modular design on a cast aluminum base for robustness
- High-intensity, long-lifetime IR source module
- External isolated design for higher thermal stability and optical interference
Applications
- FTIR Spectrometer is widely used across chemical industry, pharmaceuticals, environmental science, forensic science, food, agriculture, biomedical, biological research materials, academic research, etc.
Accessories Optional
Accessories no Name 1 Diffuse Accessory 2 Specular Reflectance Accessory 3 Horizontal ATR for Liquid and Powder (ZnSe crystal, with powder press) 4 Single reflection ATR (Diamond crystal, ZnSe crystal, Ge crystal) 5 Gas cell (with KBr window plates,100 mm pathlength) 6 Demountable Liquid cell (with KBr, CaF2, ZnSe, NaCl window plates,0.1,0.2,0.5,1 mm pathlength) 7 KBr hydraulic press 15T, 12T (including die set) 8 Spare 13 mm die set for the hydraulic press 9 Mortar and pestle (Φ50, Φ70, Φ120) 10 Quartz cell with lid (Pathlength: 10 mm, 20 mm, 30 mm, 40 mm, 50 mm, 100 mm) 11 10 mm cell holder 12 10 to100 mm cell holder 13 50 L Dehumidifier 14 Intelligent electronic moisture-proof box 15 Window plates for liquid cell: KBr, CaF2, ZnSe, NaCl 16 Window plate polishing kit
