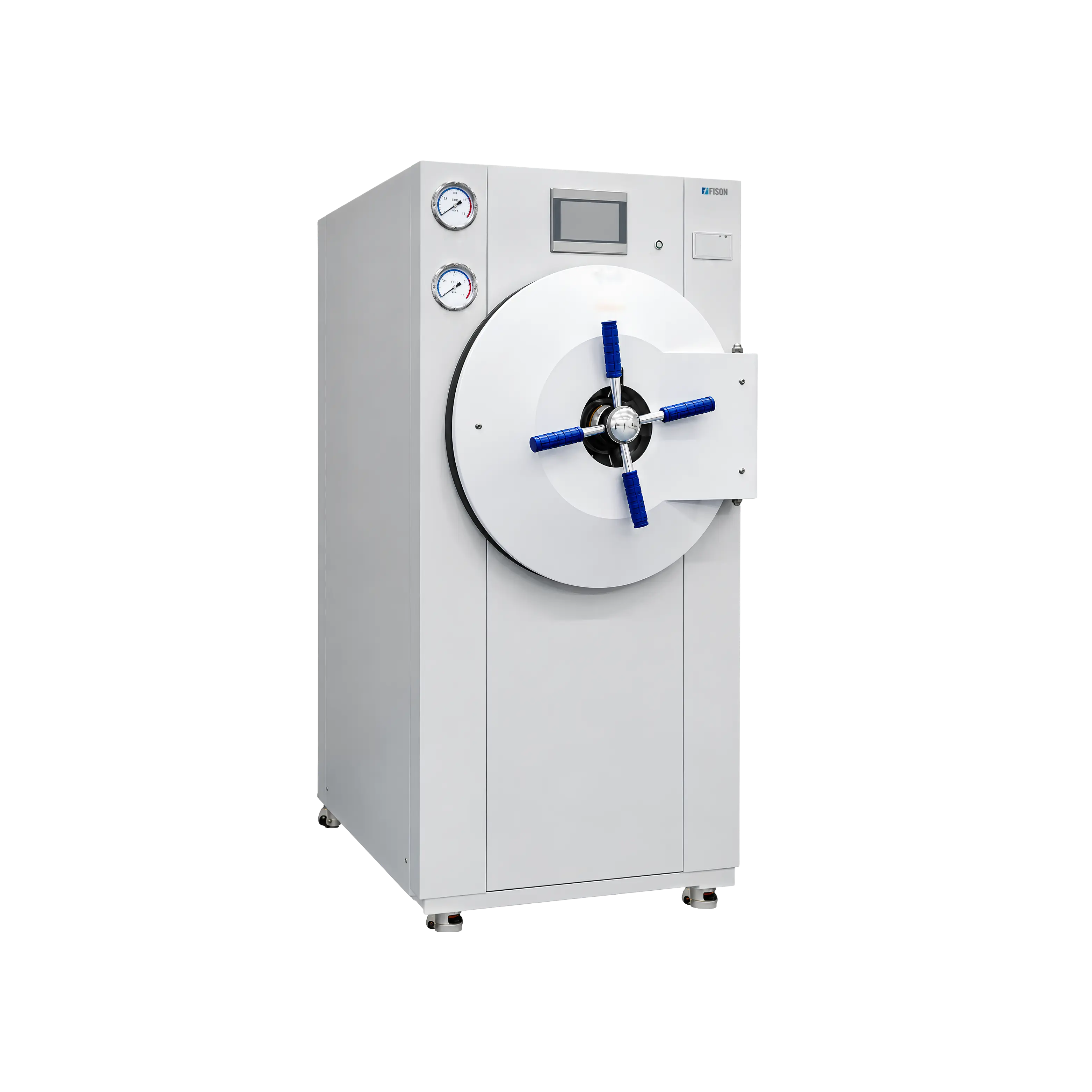

Horizontal Autoclave FM-HA-C101

Horizontal Autoclave FM-HA-C101

Fison Horizontal Autoclave FM-HA-C101 features a 100 L sterilizing chamber, 0.22 MPa working pressure, and a 115–134°C temperature range for controlled steam sterilization. As a horizontal high pressure steam sterilizer, it supports adjustable sterilization and drying cycles from 0–99 minutes, with vacuum capability down to −0.08 MPa and heat uniformity of ≤ ±2°C. Its adjustable operating parameters help maintain stable sterilization conditions throughout each cycle.

$17,493.00


Download Catalog

Horizontal Autoclave FM-HA-C101 - Specifications

Sterilizing Chamber Volume 100 L
Chamber Size Ø440 × 670 mm
Working Pressure 0.22 MPa
Working Temperature 134°C
Temperature Adjustment Range 115–134°C
Sterilization Time 0–99 min
Drying Time 0–99 min
Heat Uniformity ≤ ±2°C
Vacuum Limit −0.08 MPa
Power 10 kW
Power Supply AC 380 V, 50 Hz
Overall Dimension (W × D × H) 1400 × 660 × 1640 mm
Transport Dimension (W × D × H) 1560 × 820 × 1820 mm
Gross Weight 430 kg
Net Weight 376 kg

Horizontal Autoclave FM-HA-C101 - Features

  • Automatically controlled sterilization process.
  • Three or more pulsating vacuum cycles.
  • Suitable for packaged, unpackaged, porous instruments, and internally pipelined items.
  • Equipped with a steam generator.
  • Circular double-layer sterilization chamber with a jacket.
  • Vacuum drying function.
  • Printing function for recording the sterilization process.
  • Bowie & Dick test function for steam penetration testing.
  • Automatic fault detection.
  • Over-temperature and over-pressure protection.
  • Door cannot be opened until chamber pressure is reduced to 0.027 MPa.
  • Safety valve automatically opens when inner pressure exceeds 0.24 MPa.
  • Automatic power cut-off and alarm in case of water shortage.
  • Sealed door with automatic locking and safety interlocking device.
  • Stainless steel sterilization chamber.

Horizontal Autoclave FM-HA-C101 - Applications

Horizontal Autoclave FM-HA-C101 is widely used in hospitals, pharmaceutical facilities, laboratories, and healthcare centers for sterilizing surgical instruments, dressings, glassware, culture media, and other heat- and moisture-resistant materials. It is also suitable for microbiology, biotechnology, research, and food-processing applications.

Alternative Models Of Horizontal Autoclave

Fison horizontal autoclave range designed for high-capacity steam sterilization in laboratory environments, suitable for sterilizing culture media, glassware, instruments and heat-resistant materials. The series includes front-loading cylindrical and rectangular chamber designs made from corrosion-resistant stainless steel, supporting working temperatures up to 150°C and working pressure up to 0.25 MPa. This horizontal sterilizer features advanced models with digital control systems, thermo-pressure controllers, safety alarms, automatic water cut-off and buzzer alerts for controlled operation. Capacity options range from 90 L to 1000 L, covering multiple chamber sizes for varied sterilization requirements.
