Cellulose Acetate Horizontal Electrophoresis System FM-CHES-A100
Cellulose Acetate Electrophoresis System FM-CHES-A100 is designed with double bridge for accurate and efficient electrophoresis. It features a compact, space-saving build ideal for modern lab settings. It supports easy setup and handling with durable components. Multiple membrane sizes are supported for versatile testing needs. Its design ensures reliable performance in routine workflows. Ideal for clinical diagnostics, protein separation, and academic research.
Specifications
| Bridge size (W×L) | 70×250mm ×2 |
| Total Buffer volume | 1000 ml |
| Dimension (L×B×H) | 350×260×65 mm |
| Weight | 1.6 kg |
Features
- Auto switch-off lid
- Removable electrode system
- Easy to handle
- Adjustable cooling rod
Applications
- Cellulose Acetate Electrophoresis System FM-CHES-A100 can be used for serum protein and hemoglobin electrophoresis in clinical diagnostics. Applicable in biochemical and microbiological research for membrane-based separation. Ideal for academic laboratories performing routine electrophoretic analysis.
Accessories

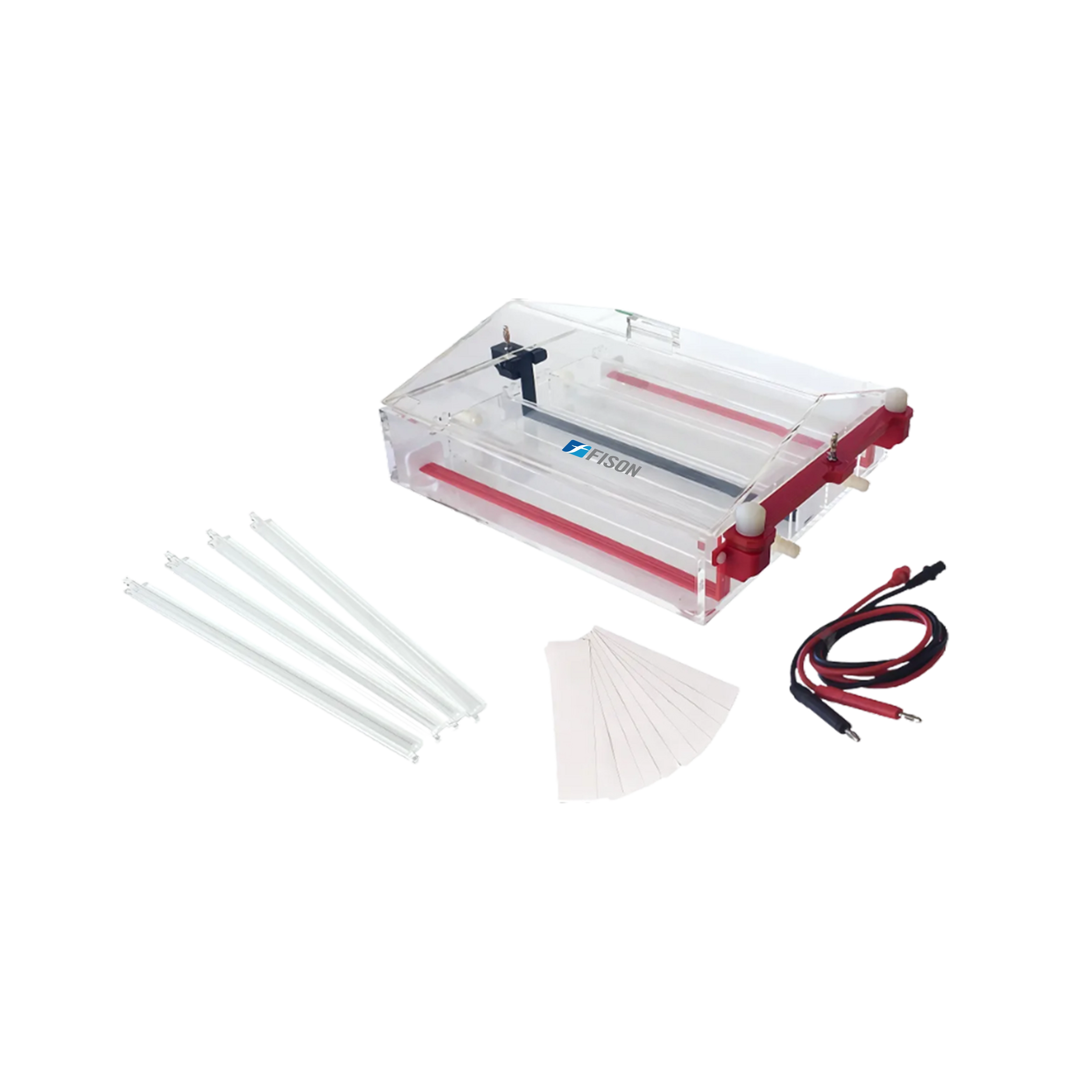

Accessories Quantity Lid with cables 1 Body tank with electrode 1 Adjusting Rod 4 Cellulose Acetate Membrane 10 Cooling tube 2
Frequently Asked Question
1: What is the FM-CHES-A100 used for?
FM-CHES-A100 is used for electrophoretic separation of serum proteins, haemoglobins, and other biomolecules on cellulose acetate membranes.
2: Can FM-CHES-A100 handle multiple membrane sizes?
Yes, FM-CHES-A100 supports various membrane sizes for flexible application in diagnostics and research.
3: Does Cellulose Acetate Horizontal Electrophoresis System FM-CHES-A100 have a temperature control feature?
Yes, Cellulose Acetate Horizontal Electrophoresis System FM-CHES-A100 is equipped with a cooling system to maintain a constant temperature during runs.
4: Is the electrode system user-replaceable?
Yes, the FM-CHES-A100 features removable electrodes for easy maintenance and replacement.
5: Is FM-CHES-A100 suitable for academic use?
Absolutely, FM-CHES-A100 features compact design and ease of use make it ideal for educational and research laboratories.
