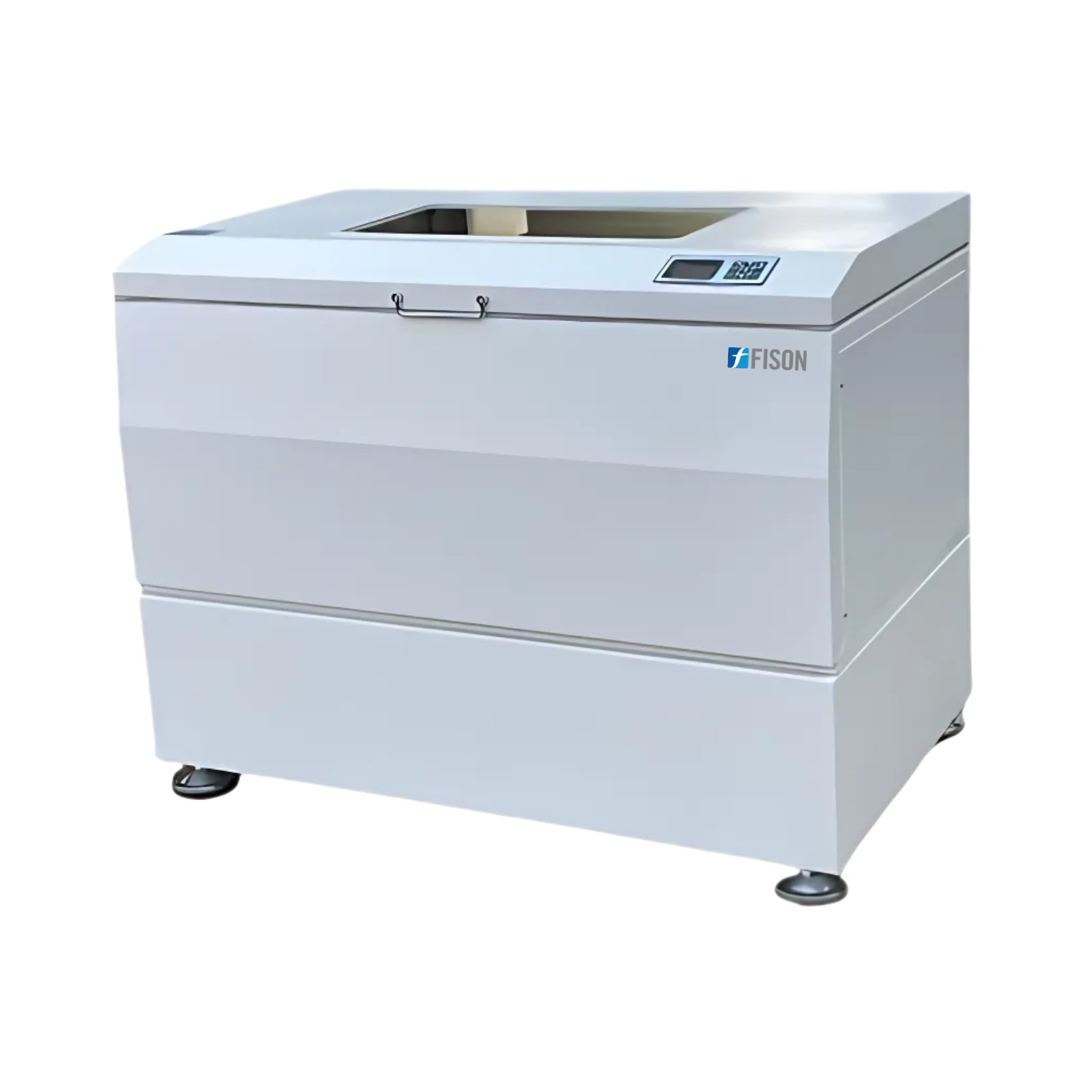

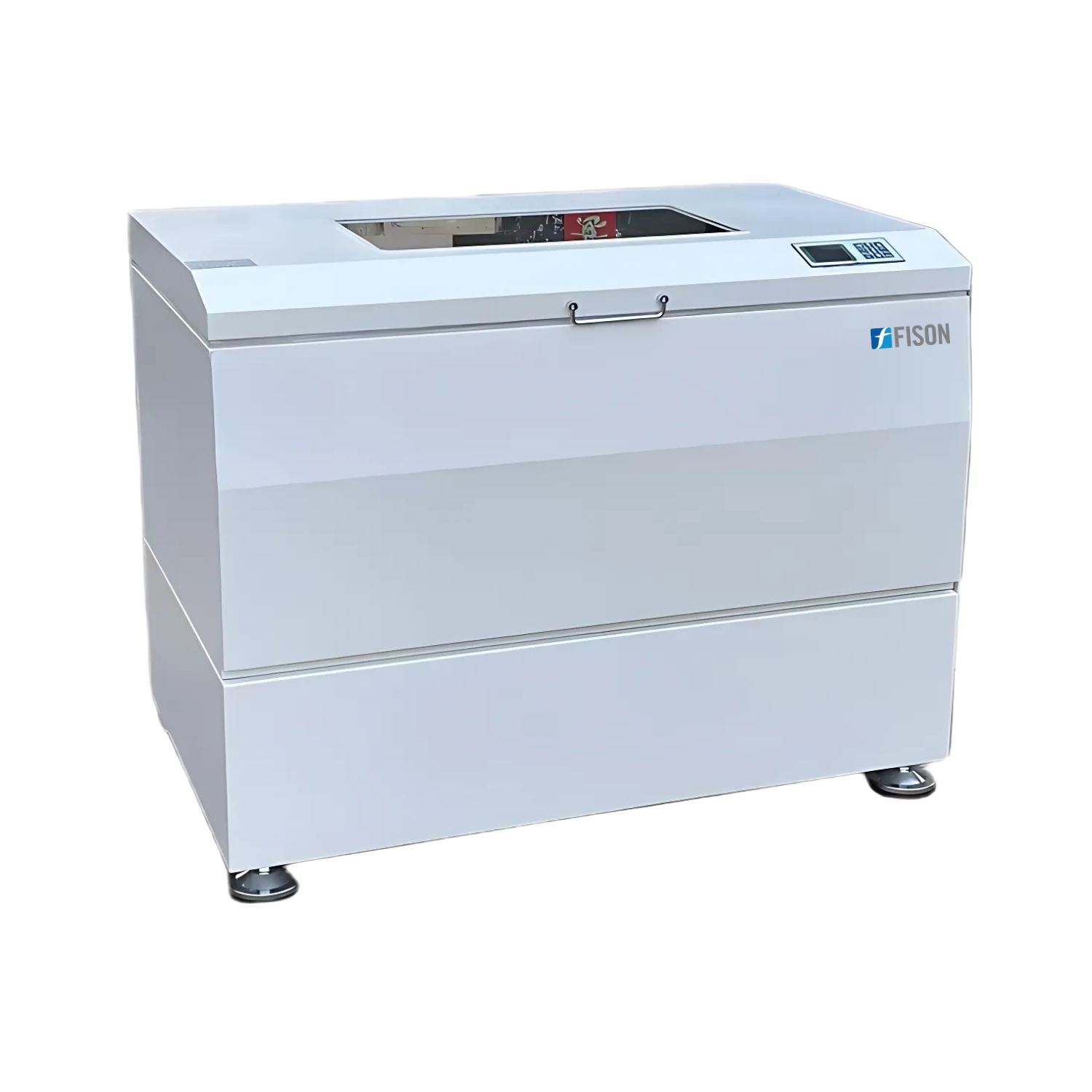

Horizontal Shaking Incubator FM-SI-A505
Horizontal Shaking Incubator FM-SI-A505 offers a speed range of 30-300 rpm and a temperature range of -15°C to 100°C with ±0.1°C accuracy. Its triple-eccentric drive ensures smooth and stable operation, while the hollow tempered glass door allows full visibility without opening. The LCD touch screen displays real-time data and supports USB export for recorded measurements. With UV sterilization it combines advanced functionality with user convenience. Our Horizontal Shaking Incubator is ideal for labs needing precise and efficient sample handling.
Specifications
| Speed | 30 to 300 rpm (stroke ϕ 26 mm) |
| Speed accuracy | ±1 rpm |
| Orbit diameter | ϕ 26 mm |
| Temperature range | -15 to 100°C |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ±0.5°C (at 37°C) |
| Display method | LCD touchscreen |
| Convection mode | Forced convection |
| Illumination | LED lamps on let and right walls |
| disinfection | UV lamps on left and right walls |
| Control mode | P.I.D microcomputer computer intelligent mode |
| Parameter protection | Password protected |
| Maximum capacity (fixed clamp) | 250ml×45 or 500ml×32 or 1000ml×18 |
| Timing range | 0 to 999.9 hours |
| Data storage interval | 1 minute |
| Noise | <55db |
| Interface | USB |
| Standard configuration | One universal plate for tubes, flasks and one adhesive late for petri dishes and microplates |
| Power supply | AC220±10, 50 to 60 Hz |
| Platform dimension (L×B) | 928×530 mm |
| Dimension (L×B×H) | 1200×740×1000 mm |
| Packaging dimension (L×B×H) | 1360×950×1280 mm |
| Net weight | 265 kg |
| Gross weight | 285 kg |
Features
- Timed defrosting function
- Automatic stop function
- Pull-out shaking plate
- Low noise compressor
Applications
- Horizontal Shaking Incubator FM-SI-A505 is ideal for laboratories requiring precise temperature-controlled shaking, such as cell culture, microbiology, and biochemical studies.
Accessories
Accessory
Quantity
Universal plate
1 pc
Adhesive plate
1 pc
Accessories Optional
50ml clip
100ml clip
250ml clip
500ml clip
1000ml clip
Frequently Asked Question
1: Is Horizontal Shaking Incubator FM-SI-A505 durable enough for continuous operation?
Yes, it features a triple-eccentric drive and imported compressors designed for stable, round-the-clock use, even at low temperatures, ensuring mechanical and thermal durability.
2: Is it safe to open during operation?
For user safety, the device stops automatically when the door is opened. It also features visual and audible alarms for abnormal conditions like over-temperature.
3: How is data stored and retrieved from the shaker?
Data is recorded every minute and stored for up to three months. You can export it via the built-in USB interface for tracking and compliance purposes.
4: Does it require calibration?
Yes, periodic calibration of temperature and speed (every 6–12 months) is recommended to maintain accuracy and compliance with lab standards.
