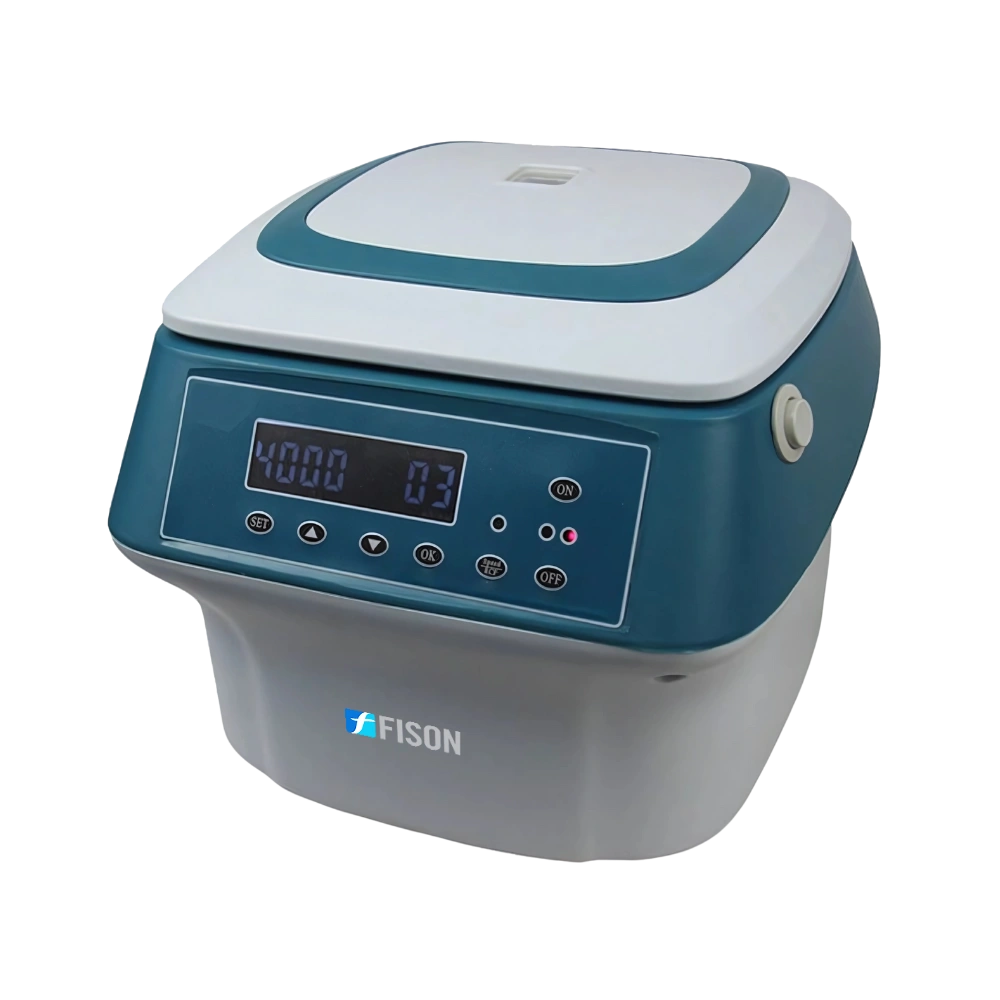

Low Speed Centrifuge FM-LSC-A508
Low Speed Centrifuge FM-LSC-A508 is designed with a maximum speed of 4000 rpm, enabling rapid and efficient separation of samples. Its standard rotor holds 12 tubes of 20 ml each, making it ideal for medium-capacity laboratory workflows. Its integrated completion alarm notifies users when the centrifugation process is finished, improving efficiency and avoiding delays. Our centrifuge features an intuitive error code display system for quick issue alerts and minimal downtime.
Specifications
| Maximum rpm | 4000 rpm |
| Rotor Capacity | 20 ml × 12 (standard) |
| Maximum RCF | 2325 ×g |
| Timer | 0 to 99 min |
| Voltage | 100-240V 50/60Hz |
| Dimension | 320 × 340 × 280 mm |
| Packing Dimension | 410 × 430 × 350 mm |
| Net Weight | 7 kg |
Features
- Brushless motor drive
- RCF/RPM toggle key
- Real-time RCF review
- Acceleration/Deceleration rate settings
- Over-speed alarm
- Mechanical door lock
Applications
- Low Speed Centrifuge FM-LSC-A508 separates substances and is widely used in clinical laboratories, research institutions, educational institutions, pharmaceutical labs, environmental labs, food and beverage industry.
Rotors Selection
Rotor No.
Rotor Capacity
Max RCF
Rotor No. 01
20 ml × 6
1790 ×g
Rotor No. 02
20 ml × 8
2325 ×g
Rotor No. 03
15 ml × 18
2325 ×g
Rotor No. 04
10 ml × 12
2325 ×g
Rotor No. 05
5 ml eppendrof tube × 12
1790 ×g
Frequently Asked Question
1: How do I switch between RPM and RCF modes on FM-LSC-A508?
Use the RCF/RPM toggle key on the control panel to switch display modes as needed for your sample separation requirements.
2: What should I do if FM-LSC-A508 gets stuck or doesn't spin?
First, check the door lock, ensure it’s securely closed, and verify the power supply. If the issue persists, the brushless motor or mechanical parts may need inspection by a technician.
3: Where can FM-LSC-A508 be safely installed for optimal performance?
Install FM-LSC-A508 on a flat, vibration-free surface in a well-ventilated lab area, away from direct sunlight and moisture for best results.
4: How will I know when the centrifugation process is complete on FM-LSC-A508?
The integrated completion alarm on FM-LSC-A508 audibly notifies users once the cycle is finished, reducing idle time and improving workflow efficiency.
5: Why is the centrifuge FM-LSC-A508 showing an error code on the display?
The intuitive error code display on FM-LSC-A508 alerts users to specific issues. Refer to the user manual for the code meaning or contact technical support for assistance
