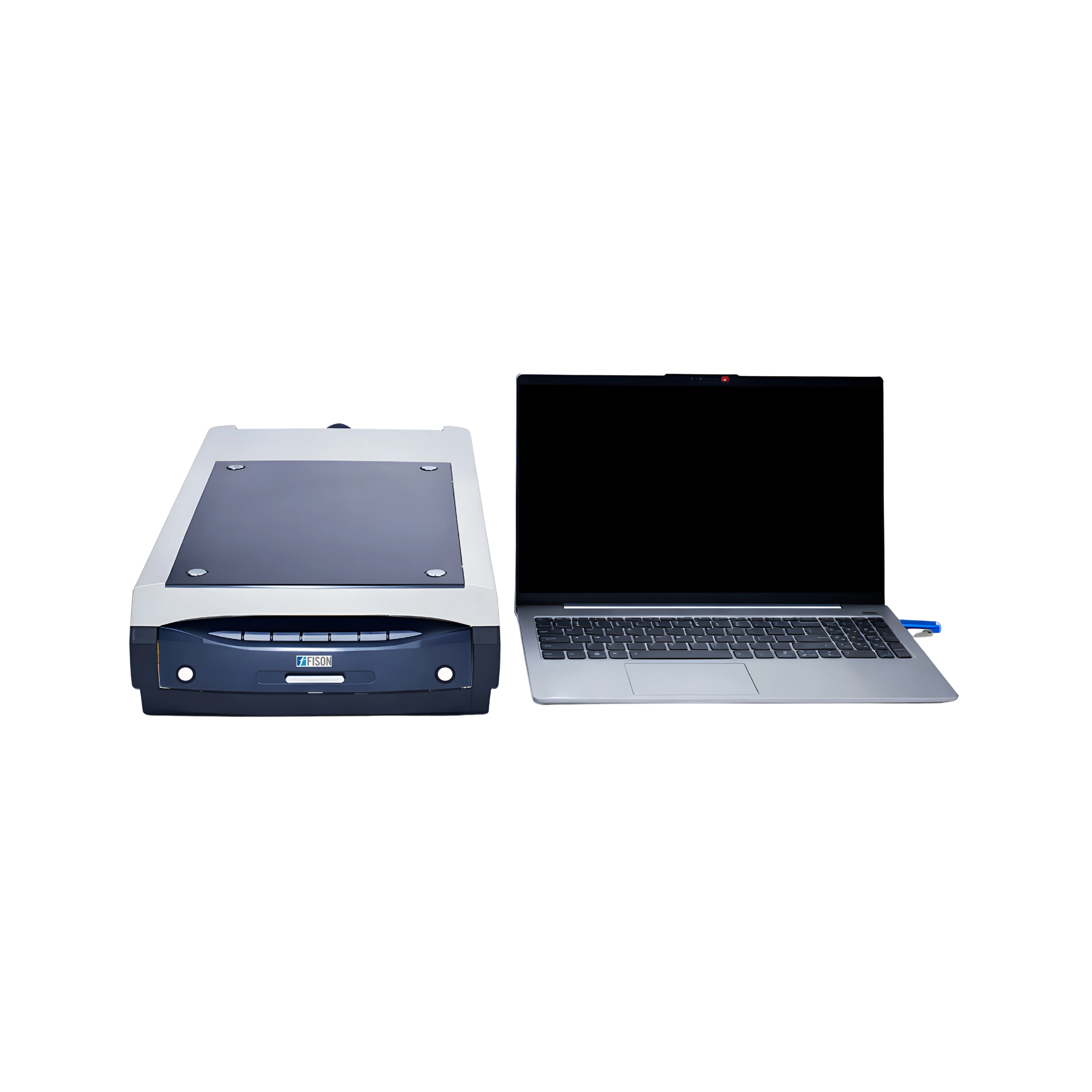

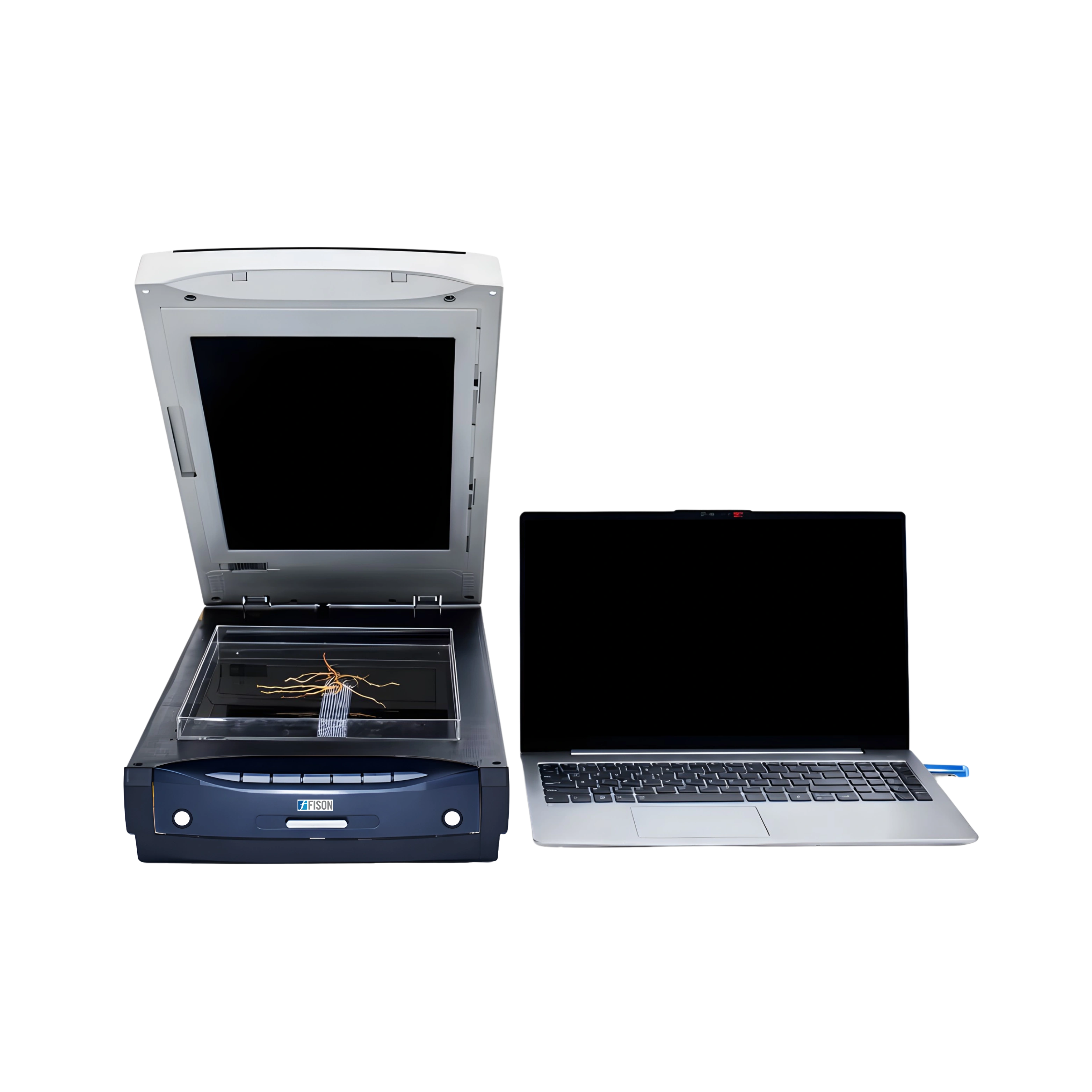

Plant Root Scanner FM-PRS-A100
Plant Root Scanner FM-PRS-A100 offers high precision with less than 4% error in root length measurement. It also achieves under 5% RSD in root nodule identification. It uses advanced software encryption to ensure secure storage and protection of sensitive research data. Our scanner features a personalized, user-friendly data display for easy observation. It provides one-click tabular data export, allowing easy and efficient saving and sharing of root and nodule analysis results.
$11,400.00
Specifications
| Scanning Range | 215.9 × 355.6 mm |
| Root Tip Accuracy Error | < 5% |
| Root Length Accuracy Error | < 4% |
| Projection Area Accuracy Error | < 4% |
| Surface Area Accuracy Error | < 4% |
| Average Diameter Accuracy Error | < 0.04% |
| Volume Accuracy Error | < 4% |
| Number of Root Nodules Error | < 5% |
| Root Nodule Identification Error | RSD < 5% |
| Overall Parameters | Total root length Total number of root tips Total overlap quantity Number of lateral root bifurcations Mean diameter of root system Volume Projection area Surface area |
| Topology Analysis Parameters | Root length at all levels Average diameter of roots at all levels Root surface area at all levels Root projection area at all levels Number of root connections at all levels Root volume at all levels |
| Root Nodule Analysis Parameters | Number of root nodules Root nodule area Root nodule volume |
| Connection Analysis Parameters | Total average length of each segment Total average projected area of each root segment Overall average angle of each root segment Total average surface area of each root segment Total average volume of each root segment Total average diameter of each root segment |
| Dimension (L × W × H) | 576 × 297 × 118 mm |
| Weight | 10 Kg |
Features
- Professional root nodule analysis
- One-click multi-parameter analysis
- Automated large-scale root and nodule data analysis
- Intelligent correction and precise data output
- Automatic outlier removal
- Automatic data saving
- Integrated research app and cloud platform
Applications
- Plant Root Scanner FM-PRS-A100 is widely used in agricultural research labs, universities, plant science research centers, soil and environmental studies to assess root-soil interactions, and biotech labs.
