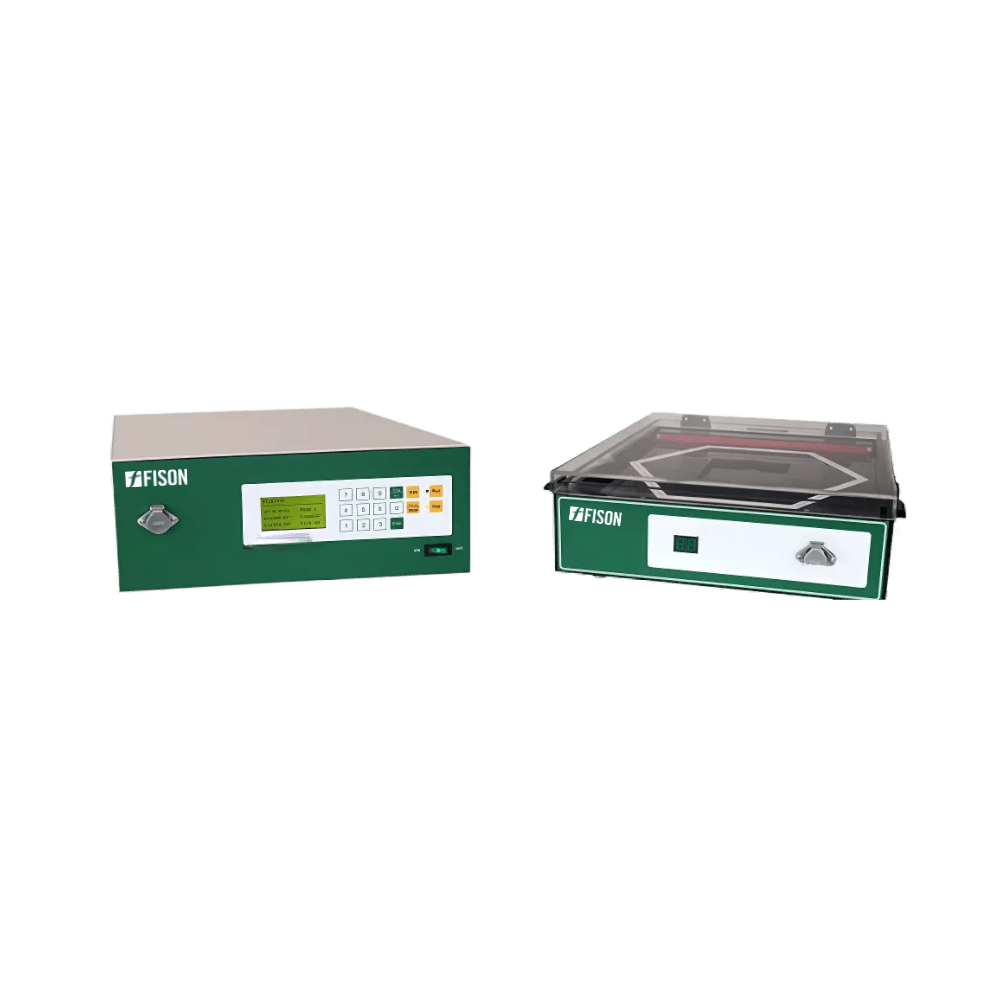

Pulse Field Electrophoresis System FM-PFES-A101
Pulse Field Electrophoresis System FM-PFES-A101 supports 13 samples with a gel size of 120×120 mm. It has a microprocessor control that lets users set and program pulse settings easily. The built-in multi-electrode tank ensures the electric field is evenly spread across the gel. Its temperature control system keeps the range steady between 10°C and 30°C with ±0.1°C accuracy. It is ideal for genome mapping, separating large DNA fragments, and molecular diagnostics.
$34,892.00
Specifications
| Gel size (W×L) | 120 × 120 mm |
| Number of samples | 9 to 13 |
| Pulse angle | ± 120° |
| Pulse width | 0.01 to 99.99s or 1 to 9999s |
| Tolerance | <± 0.1°C |
| Voltage gradient | ± 0.5V/cm to ± 9.5V/cm |
| Maximum current | 0.5A |
| Maximum Power | 300W |
| Power supply dimension (L×B×H) | 400 × 400 × 170 mm |
| Pulsed Electrophoresis tank dimension (L×B×H) | 395 × 440 × 140 mm |
| Constant temperature circulator dimension (L×B×H) | 196 × 406 × 482 mm |
| Weight | 70 kg |
Features
- Adjustable pulse width
- Dual-thickness combs
- Buffer circulation module
- Automatic shutdown
- Real-time monitoring
Applications
- Pulse Field Electrophoresis System FM-PFES-A101 is designed for precise analysis of genomic DNA and large DNA fragments. It is widely used in chromosome mapping, genetic disorder research, and genome library preparation. It offers dependable performance for clinical research, academic studies, and molecular biology applications.
Accessories
Accessories
Quantity Power supply 1 Output control allocation 1 Pulsed electrophoresis Tank 1 Constant temperature circulator 1 Gel casting 1 120× 120 mm gel tray 1 Gel pad 1 2 mm thickness 9-well comb 2 2 mm thickness 13-well comb 2 Sample module 2 Sample exporter 2 Level 1 Clip 2 Circular tube 3 Level adjusting button 4 Control line 2 Electrical cables 1 Power cord 1
