Shaking Incubator FM-IS-A102 Shaking Incubator FM-IS-A102

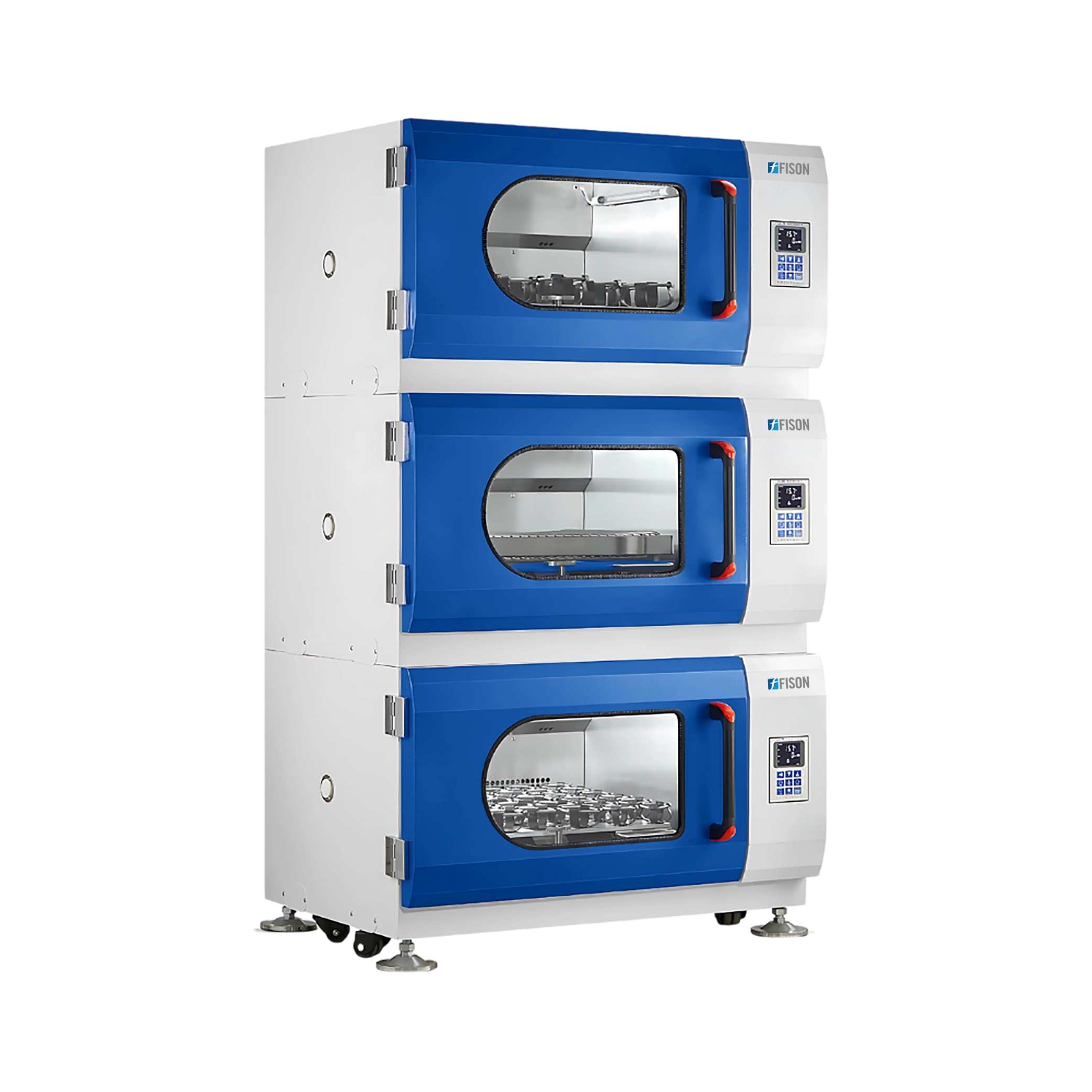

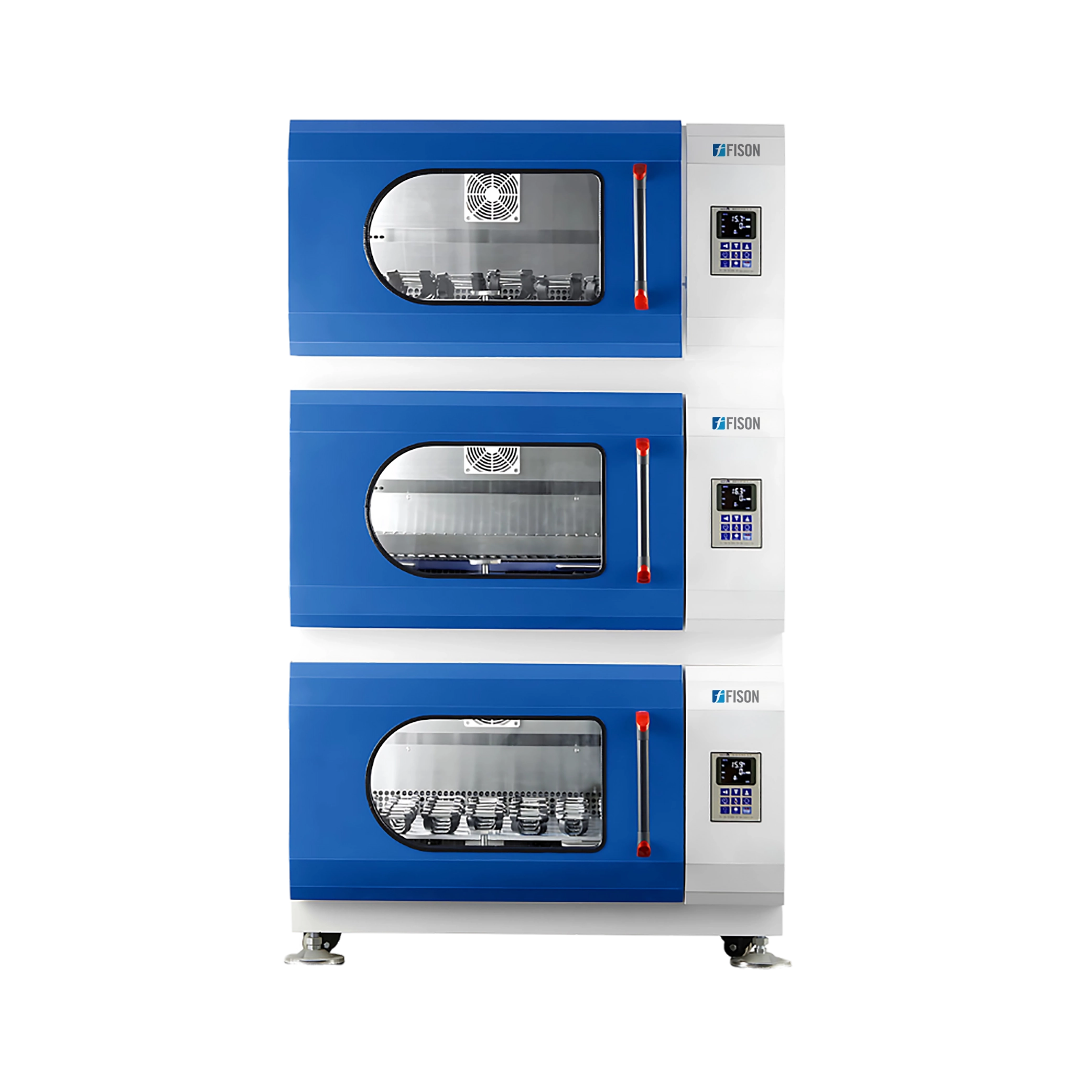

Shaking Incubator FM-IS-A102

Shaking Incubator FM-IS-A102 features an ambient temperature range of 5 to 35°C, ideal for microbiology and cell culture. The integrated digital speed monitor allows precise control over shaking speeds, ensuring consistent sample agitation. This unit is equipped with a UV sterilization system to prevent contamination. Our enhanced thermal insulation helps maintain stable temperature conditions while improving energy efficiency.

Download Catalog

Specifications

Total Volume 160 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 50 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Maximum Power Consumption 1400 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 590 × 465 mm
Tray Capacity for Shake Flasks 35 × 250 ml; 24 × 500 ml; 15 × 1000 ml or; 8 × 2000 ml
Dimensions (W × D × H) 1000×725×620mm (1 unit) 1000×725×1170mm (2 units) 1000×725×1720mm (3 units)
Internal Dimensions 1070 × 730 × 475 mm
Weight 115 kg

Features

  1. Stainless steel cavity
  2. Easy-to-clean design
  3. Waterproof incubator body
  4. High humidity cultivation
  5. Breakage-resistant interior

Applications

  • Shaking Incubator FM-IS-A102 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Accessories Optional

  • Removable Shake Tray
    125 mL Flask Clamp
    250 mL Flask Clamp
    500 mL Flask Clamp
    1000 mL Flask Clamp
    2000 mL Flask Clamp
    Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
    Adjustable Angle Test Tube Rack (15 mL×60)
    Adjustable Angle Test Tube Rack (50 mL×30)

Alternative Models Of Shaking Incubator

Fison Shaking Incubator has an integrated digital speed monitor that allows precise control over shaking speeds and consistent sample agitation. The incubator optimizes dark culture capabilities for sensitive biological cultures that require low-light exposure. The incubator's vibration-free stacking feature enables the stacking of multiple units without disrupting the shaking or incubation process. They feature a balanced oscillation system that requires uniform and consistent shaking, essential for optimal sample mixing and culture growth. Our shaking incubator protects photosensitive media from degradation, ensuring accurate and reliable results.
