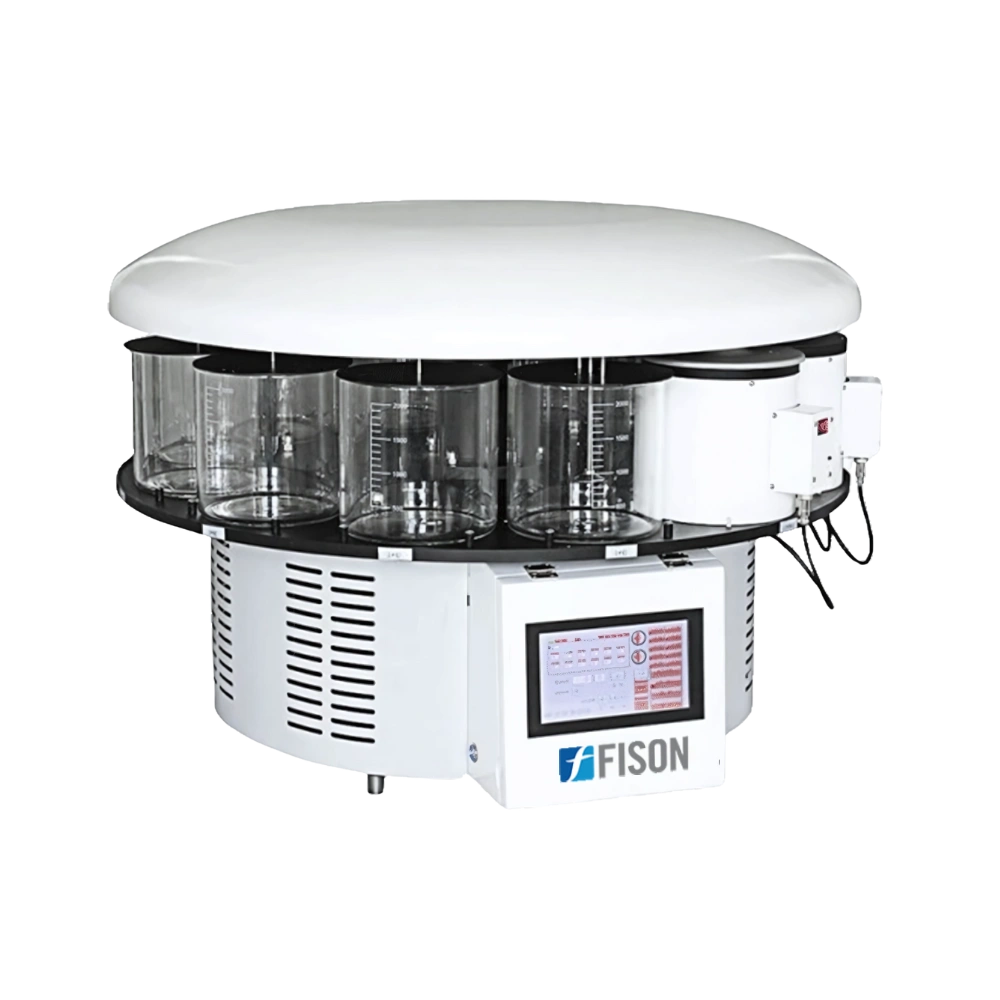

Spin Tissue Processor FM-STP-A100
Spin Tissue Processor FM-STP-A100 is a 12-station carousel system designed for efficient tissue processing. It has a 2.3 L capacity and nine containers to ensure consistent, automated tissue infiltration. Our processor features a large LCD interface, customizable timing, and vacuum options for precise control. It provides reliable tissue dehydration and paraffin embedding, making it suitable for both clinical and research uses.
$7,762.00
Specifications
| Reagent Container Capacity | 2.3L |
| Wax Paraffin Container Capacity | 1.8L |
| System Type | Carousel, 12 stations |
| Reagent Container | 9 |
| Wax Paraffin Container | 3 |
| Wax Temperature Range | 60°C to 99°C |
| Tissue Basket Stirring Interval | 1 min every 5 min |
| Display | LCD(160×90 mm) Foil protected keyboard |
| Delayed Start Time | Up to 30 days |
| Programmable Infiltration Time | 30 days |
| Number of Programs | 10 selectable, editable |
| Vacuum Pressure Capacity | Max 0.05 Mpa (~0.5 bar) |
| Tissue Basket Size | Φ130×110 mm |
| Standard Basket Capacity | Max 90 cassettes 1 basket (optional 2) |
| Power Consumption | 400 to 500 W |
| Power Supply | AC220V/110V, 50 Hz |
| Dimensions | 780×570×690 mm |
| Package Dimensions(machine) | 880× 880× 800 mm |
| Package Dimensions(tanks) | 620× 410× 530 mm |
| Net Weight | 70kg |
| Gross Weight | 110kg |
Features
- Customizable cylinder starting position
- UPS (battery backup)
- Agitation under vacuum mode
- Programmable stations up to 999 minutes
- High-precision constant temperature control
- 10 user-selectable programs
- Anti-collision sensor
Applications
- Spin Tissue Processor FM-STP-A100 is ideal for histopathology departments, biomedical research labs, and clinical diagnostic centres. It is built for accurate tissue dehydration, infiltration, and paraffin embedding workflows.
Accessories
Accessory Quantity Reagent Bottle 9 pcs Paraffin Wax Tank 3 pcs Paraffin Wax Tank Connection Line 3 pcs Tissue Basket 1 pcs Tissue Cassette 20 pc Hexagonal Wrench 1 pc Screwdriver 1 pc Fuse (5A) 1 pcs Power Line 1 line
Frequently Asked Question
1: What type of control system does the Spin Tissue Processor FM-STP-A100 use?
Spin Tissue Processor FM-STP-A100 uses a PLC, offering industrial-grade reliability and high-precision control over every processing step.
2: Can I delay the start of a tissue processing cycle in Spin Tissue Processor FM-STP-A100?
Yes, Spin Tissue Processor FM-STP-A100 allows you to schedule a delayed start up to 30 days, making it ideal for automated overnight or weekend runs.
3: In Spin Tissue Processor FM-STP-A100, how does vacuum agitation improve tissue processing?
In Spin Tissue Processor FM-STP-A100 Vacuum, agitation enhances reagent penetration, improving dehydration uniformity and minimizing processing artefacts in dense or fatty tissues.
4: In the Spin Tissue Processor FM-STP-A100, can I program different times for each station?
Yes, Spin Tissue Processor FM-STP-A100, every station is independently programmable with up to 999 minutes per step, giving you full control over infiltration time.
5: Can I change a program during an active run in Spin Tissue Processor FM-STP-A100?
Yes, Spin Tissue Processor FM-STP-A100 system allows real-time editing of the processing program without interrupting the cycle, saving time and increasing flexibility.
