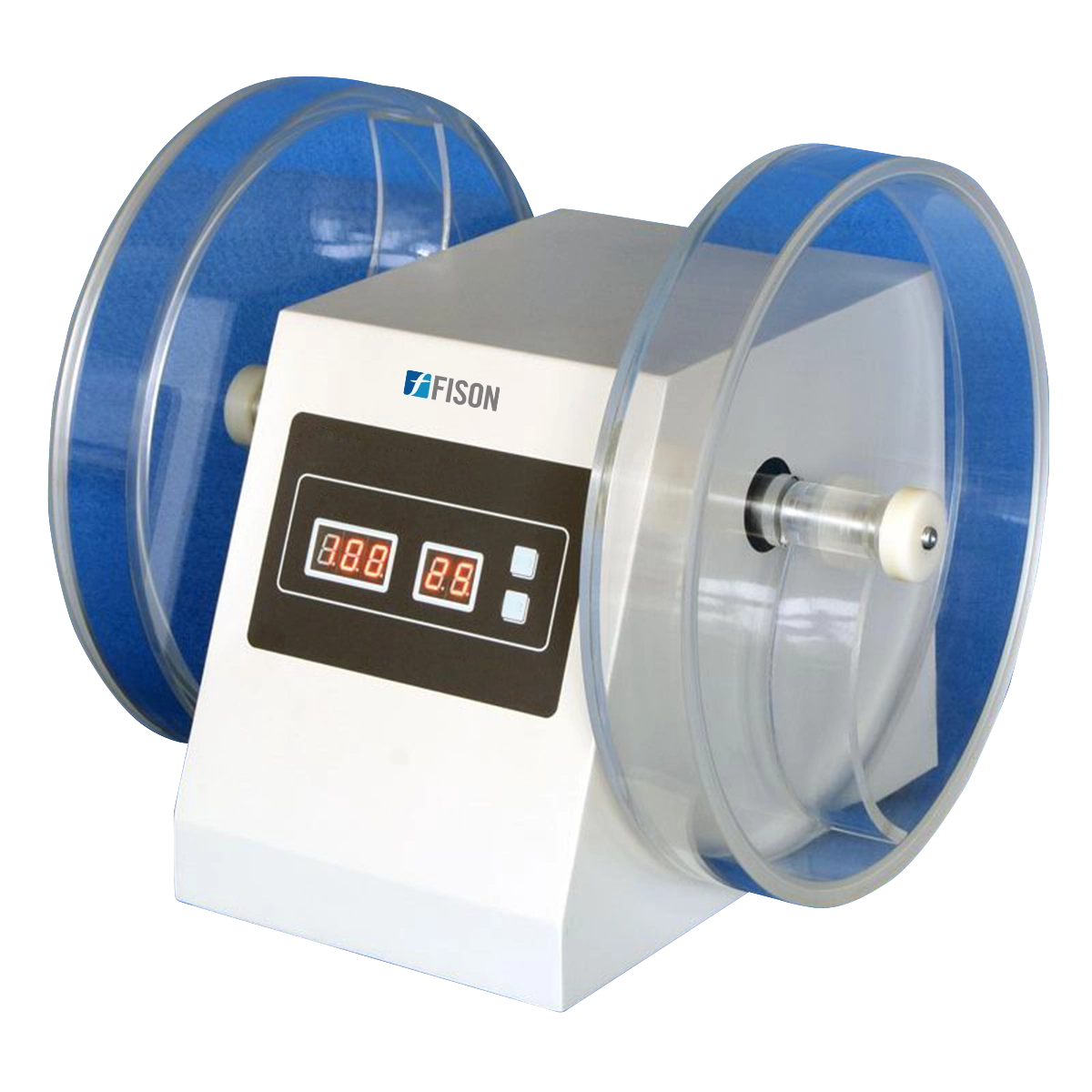

Tablet Friability Tester FM-TFT-A102 is a double cylinder tablet friability and abrasion test instrument. The Drum is made of high quality hyaline acryl and is separated into two parts, the drum body (cylinder) and a removable cover. The silent DC geared motor rotates the drums at a speed of 25 rpm. The tablets tumbled at each turn of the cylinder by a curved baffle that extends from the middle of the drum to the outer wall. The unit features an automated sample discharge at the end of a test and is equipped with LED screen to display preset value and real-time value separately. It also features auto-test, auto-diagnose and auto-alarm system.
| Number of cylinder | 2 |
| Cylinder inner diameter | 286 mm |
| Cylinder depth | 39 mm |
| Tablet drop height | 156 mm |
| Rotating speed | 25 rpm |
| Rotating speed accuracy | ± 1 rpm |
| Rotation count | 10 to 900 r |
| Rotation count accuracy | ± 1 turn |
| Power | 50 W |
| Voltage | AC 220 V, 50 Hz |
| Dimension (W × D × H) | 370 x 300 x 340 mm |
| Packaging dimension (W × D × H) | 420 x 410 x 500 mm |
| Net weight | 8 kg |
| Gross weight | 12 kg |
Used for detecting friability of tablets in the pharmaceutical, food, animal feed, pesticides and any other industries.
