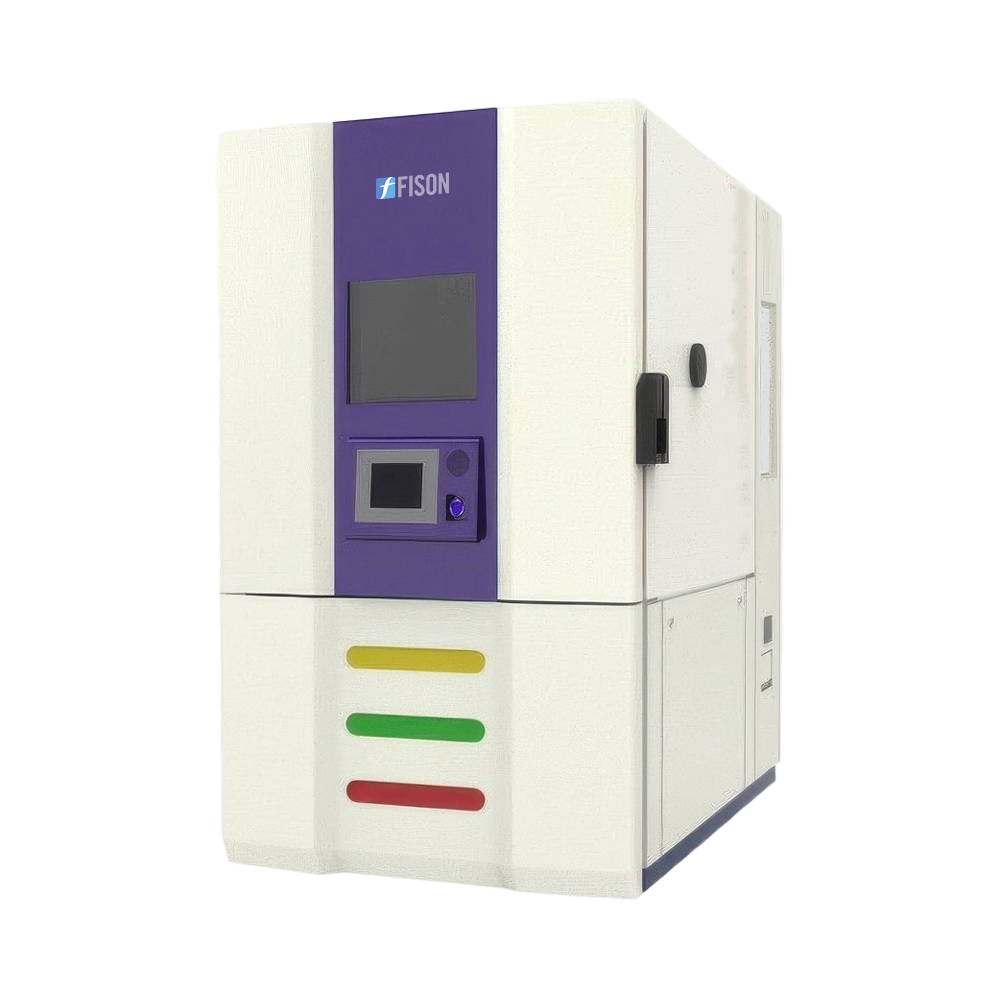

Temperature and Climate Test Chamber FM-TCC-A102
Temperature and Climate Test Chamber FM-TCC-A102 is designed with a spacious 600 L capacity for large volume, high-efficiency testing. It offers a wide temperature range from -42 to +180 °C, ideal for simulating extreme environmental conditions. Our chamber features independent sensors for precise monitoring and control of environmental conditions. Its intuitive 7-inch color touch screen ensures easy operation and real-time data display.
$27,406.00
Specifications
| Capacity | 600 L |
| Temperature Range | -42 to +180 °C |
| Climate Humidity Range | 10 to 98 %RH |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Climate Humidity Constancy | ±1.0 to ±3.0 %RH |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 4.0 °C/min |
| Cooling Rate | 3.0 °C/min |
| Climate Dew Point Temperature Range | +4 (-3) to +94 °C |
| Climate Temperature Constancy | ±0.1 to ±0.3°C |
| Climate Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Max. Thermal Compensation | 2500 W |
| Temp and Humid Max. Thermal Compensation | 500 W |
| Cooling Method | Air-cooled/Water-cooled |
| Power Supply | AC 380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimension (W × D × H) | 800 × 800 × 950 mm |
| External Dimension (W × D × H) | 1090 × 1960 × 1995 mm |
Features
- Ethernet / USB Interfaces
- Specimen protection
- Water shortage alert
- Optional mobile app
- Eco-friendly refrigeration
- Efficient testing cycles
- Dew, overheat, smog, and breeze Protection
Applications
- Temperature and Climate Test Chamber FM-TCC-A102 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, automotive industry, electronics, and semiconductor industry.
Accessories
3 Power outlets for specimens
Left and right entry ports Φ50mm
Silicon stoppers for entry ports
2 Stainless steel shelves
1 Water tank with 20L
1 Water filter
