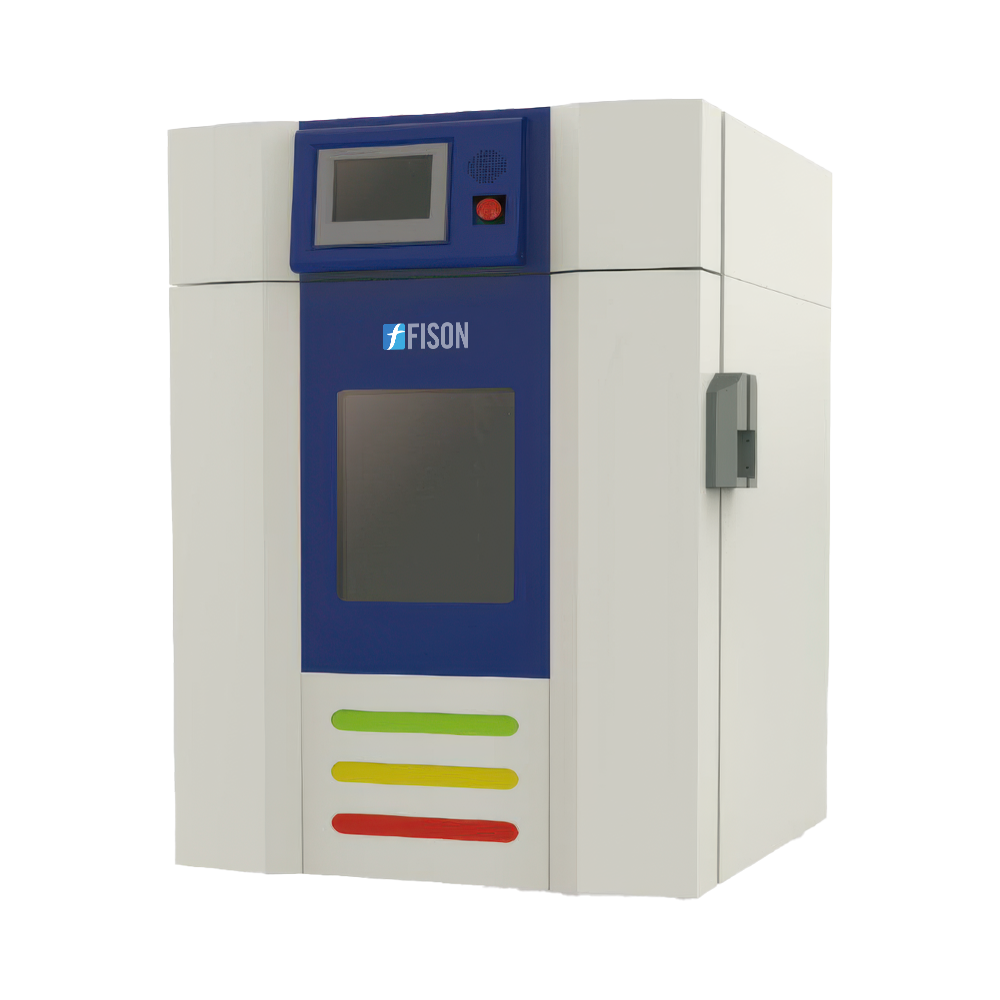

Thermal Shock Test Chamber FM-TSC-A104
Thermal Shock Test Chamber FM-TSC-A104 is designed with a -40 to +150 °C range, ideal for testing material durability under extreme conditions. It accommodates specimens up to 50 kg, making it suitable for a wide range of industrial testing applications. Our chamber uses eco-friendly refrigeration for energy-efficient, low-impact, high-performance testing. It is equipped with a 7-inch color touchscreen and an advanced 32-bit control system for precise and user-friendly operation.
Specifications
| Test Space Volume | 200 L |
| Testing Temperature Range | -40℃/-55℃/-66℃ to +150 °C |
| Max. Specimen Weight | 50 kg |
| Hot Chamber Temp. Range | +50 to +200 °C |
| Test Chamber Temp. Range | Room Temperature (R.T)°C |
| Cold Chamber Temp. Range | -75 to +70 °C |
| Temperature Constancy | ±0.3 to ±1.0 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Recovery Time | Less than 5 min (on Air Outlet) |
| Cooling Method | Water-cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/P |
| Test Space Dimension (W × D × H) | 650 × 585 × 450 mm |
| External Dimension (W × D × H) | 500 × 575 × 350 mm |
Features
- Real-time viewing window
- Integrated malfunction logging software
- Ethernet and USB Connectivity
- Fast heating/cooling
- Accurate air circulation system
Applications
- Thermal Shock Test Chamber FM-TSC-A104 is widely used in medical devices, the electronics industry, the automotive industry, aerospace and defense, consumer electronics, and the energy sector.
Accessories
3 Power outlets for specimens
Left and right entry ports (Φ50 mm)
2 Silicone stoppers for entry ports
2 Stainless steel shelves
Drier filter for compressed air
