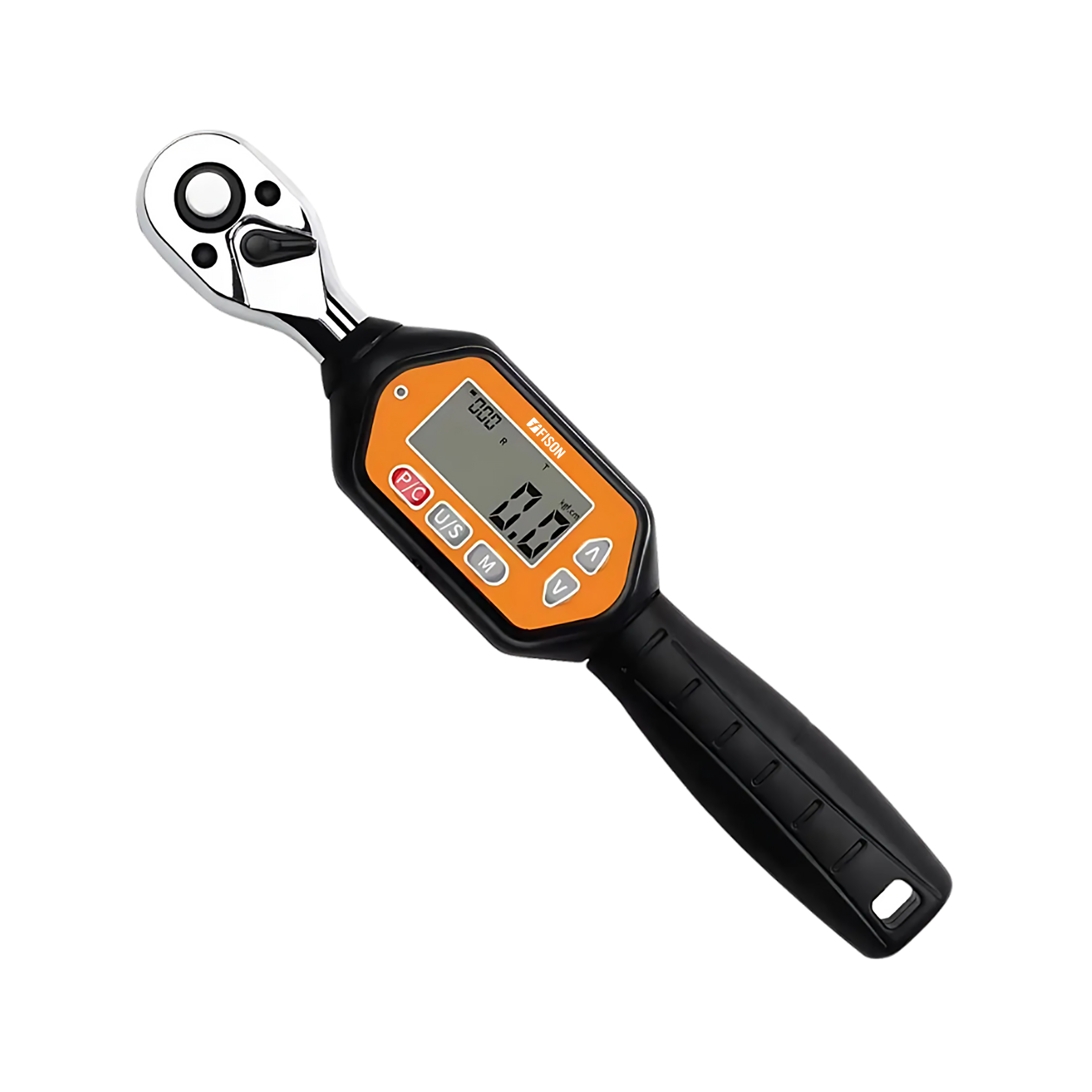

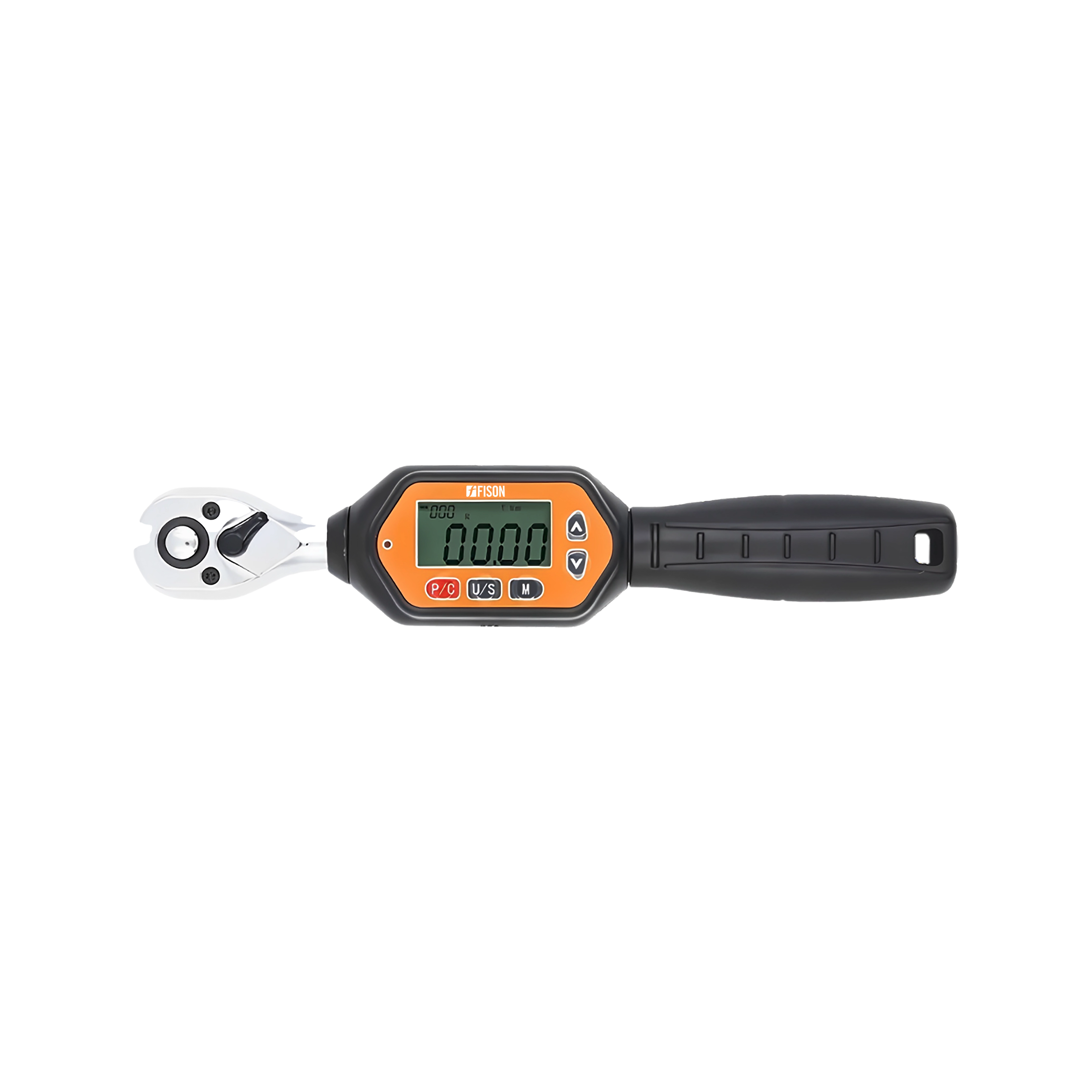

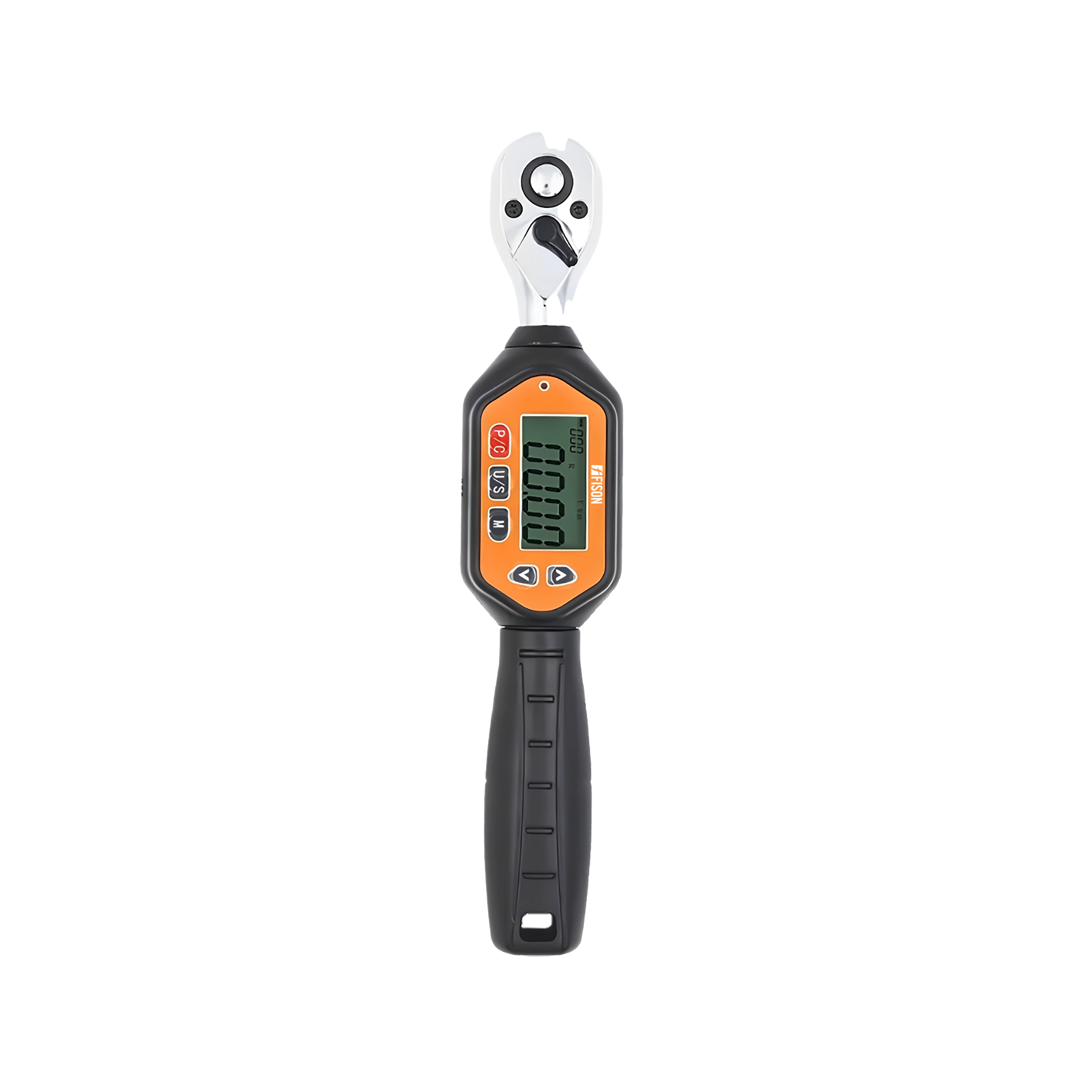

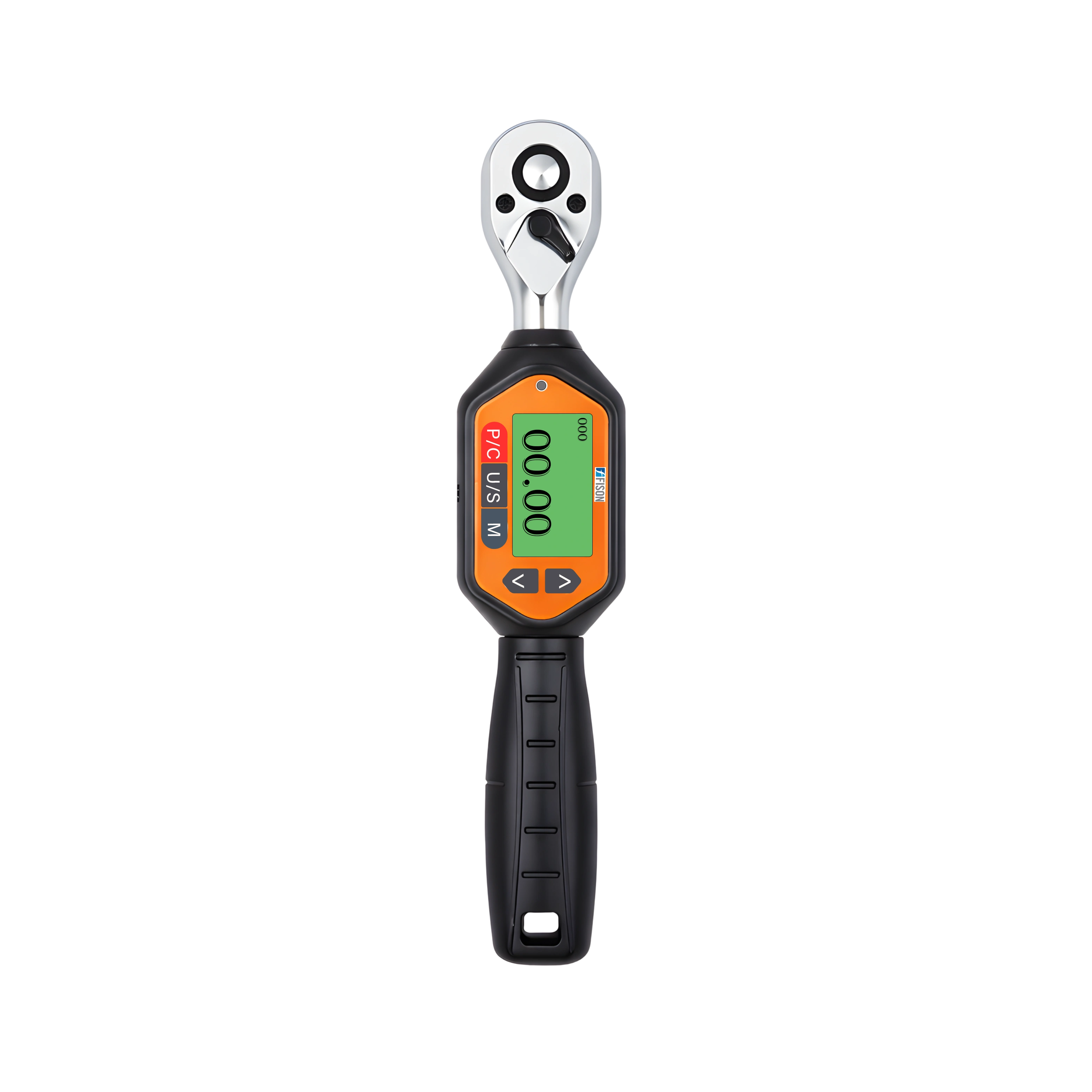

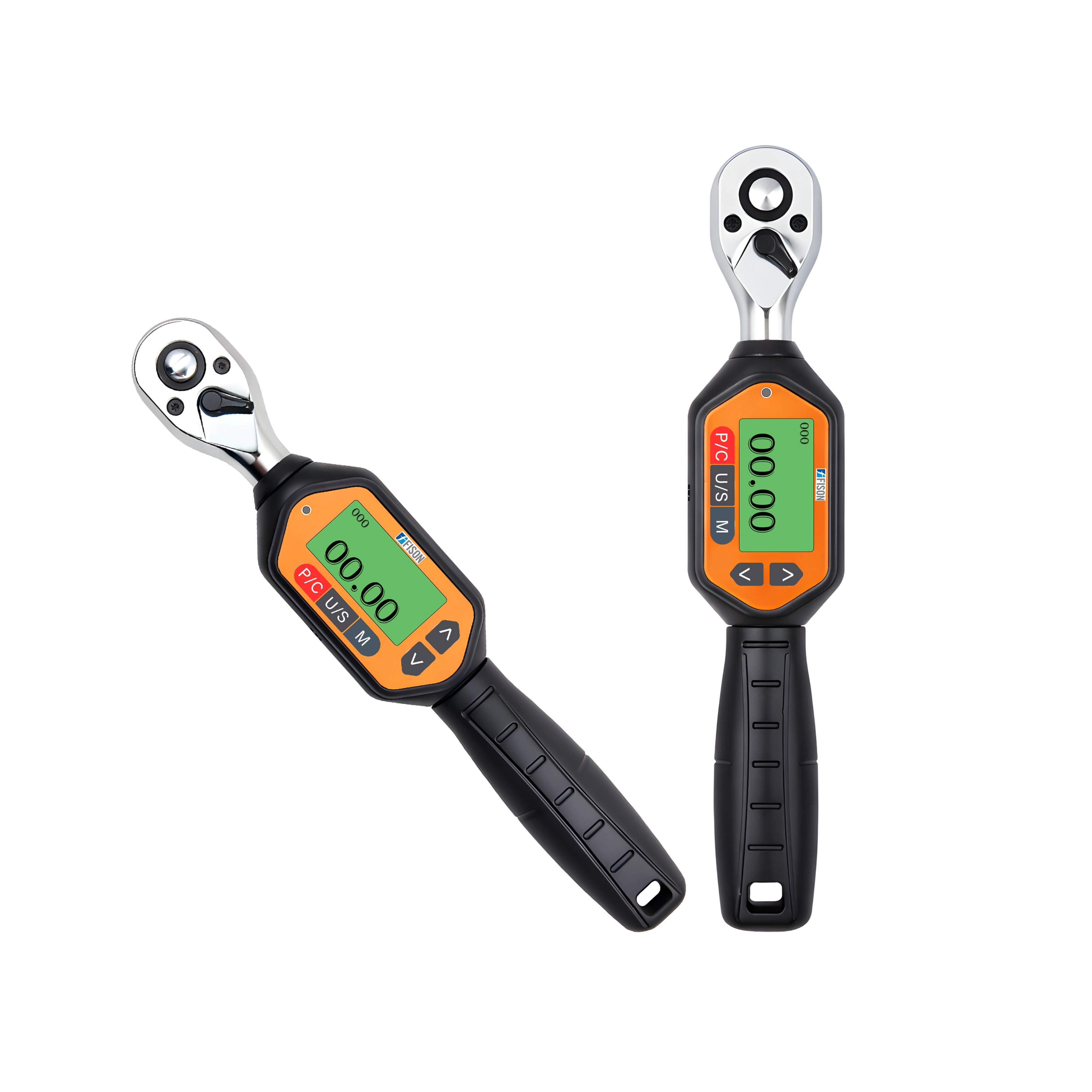

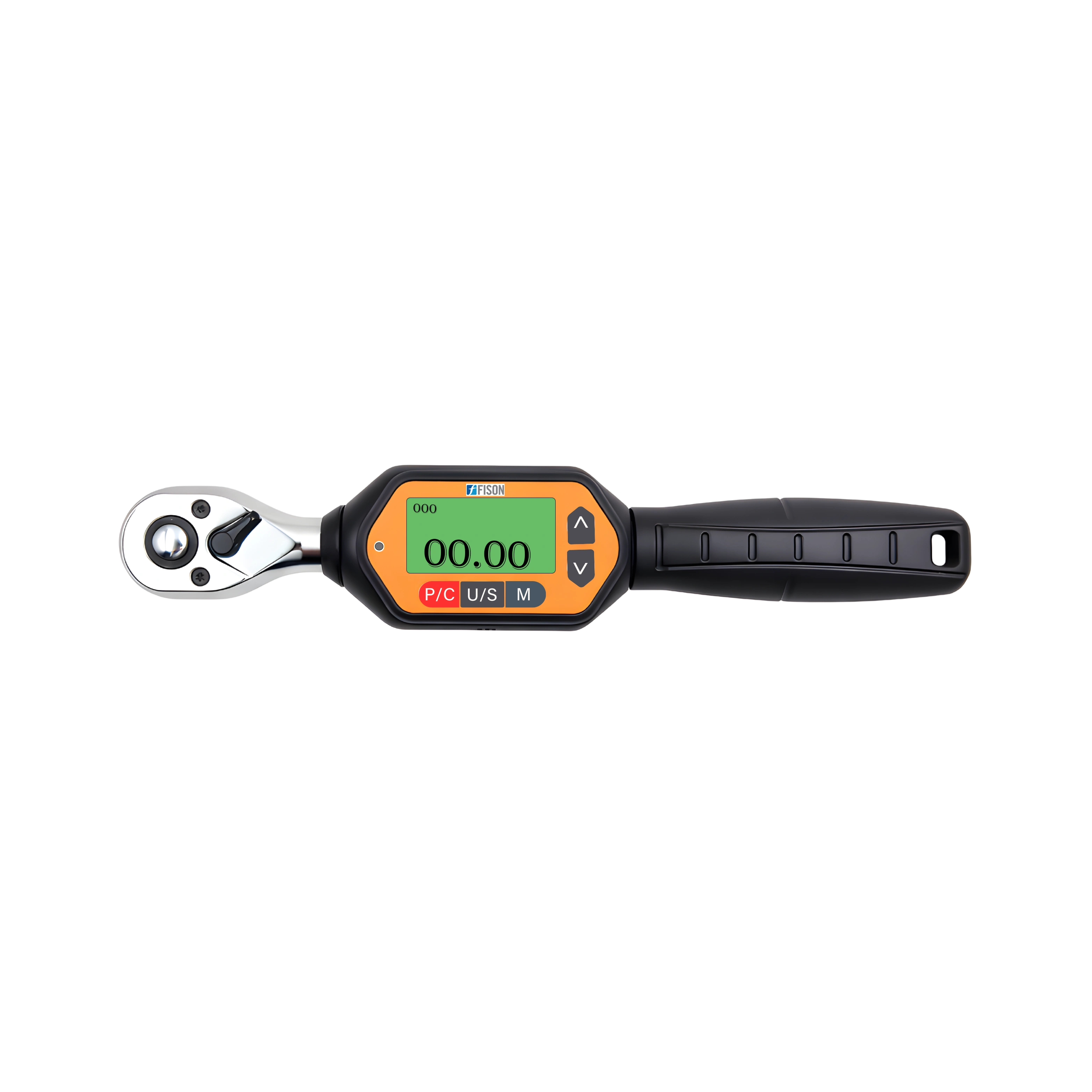

Digital Torque Wrench FM-DTW-A100
Digital Torque Wrench FM-DTW-A100 is a handheld tester designed to measure force or torque within an operating temperature range of -10℃ to 60℃. Equipped with a Trace mode setting facility ensures efficient and accurate torque measurement. Enhanced with a digital display which offers a high-end, sophisticated readout. Configured with an overload warning system, it safeguards the product by alerting users if the torque force exceeds 120%.
.
Specifications
| Maximum Operating Range | 0.9 to 30 N.m |
| Working Temperature | -10℃ to 60℃ |
| Storage Temperature | -20℃ to 70℃ |
| Accuracy | Clockwise：± 2% Counterclockwise：± 2.5% |
| Minimum Division | 0.01 |
| Unit Selection | N.m, kgf.cm, lbf. ft, lbf.in |
| Connector（inches) | 1/4 inches |
| Length (mm) | 230 mm |
| Preset Value Memory Capacity | 9 |
| Operating Mode | Peak mode（P）/ Real-time mode（T） |
| Form of ratchet head | Bidirectional ratchet head |
| Number of ratchet teeth | 72 teeth |
| Battery | 2 pcs AAA battery |
| Dimension (L×W×H) | 34 ×9×5 cm |
| Gross Weight | 1 kg |
Features
- Can be operated clockwise and anti-clockwise
- Immediate feedback with audible beeps and LED indications
- Backlight on or off seamlessly by enhancing visibility in various conditions
- Benefit from automatic entry into power-saving mode
- Ergonomically designed with a soft grip handle
- Boasts a total of 72 teeth, ensuring accurate and smooth operation
- Digital display has powerful operating functions, such as unit setting, value storage
Applications
- Torque tester digital is utilized in multiple industries, encompassing automotive, aerospace, construction, manufacturing, medical device production, energy, telecommunications, consumer electronics, and research and development. Its usage extends to tasks such as testing and calibrating.
